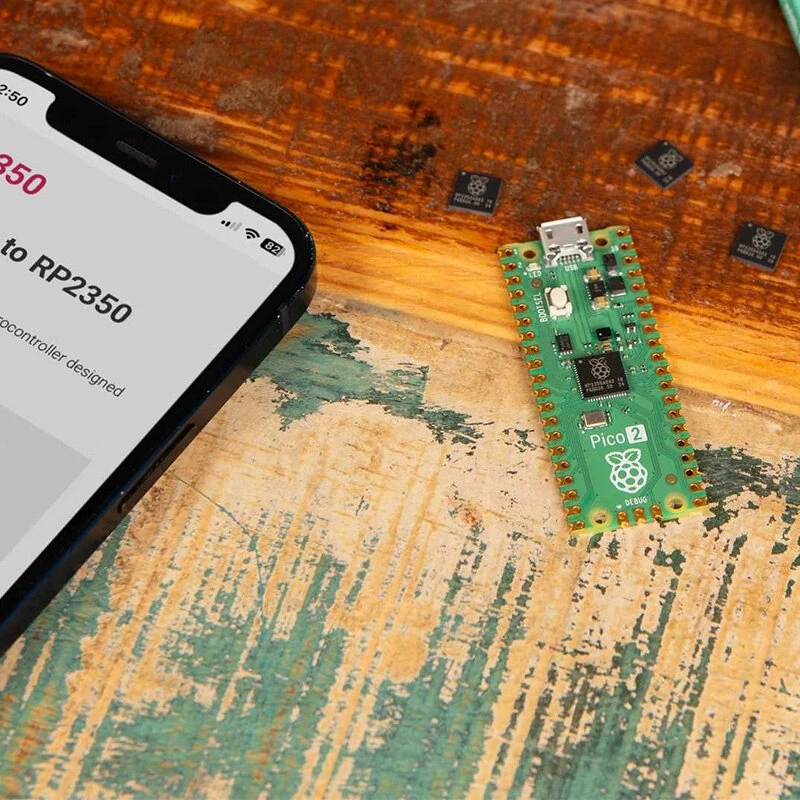

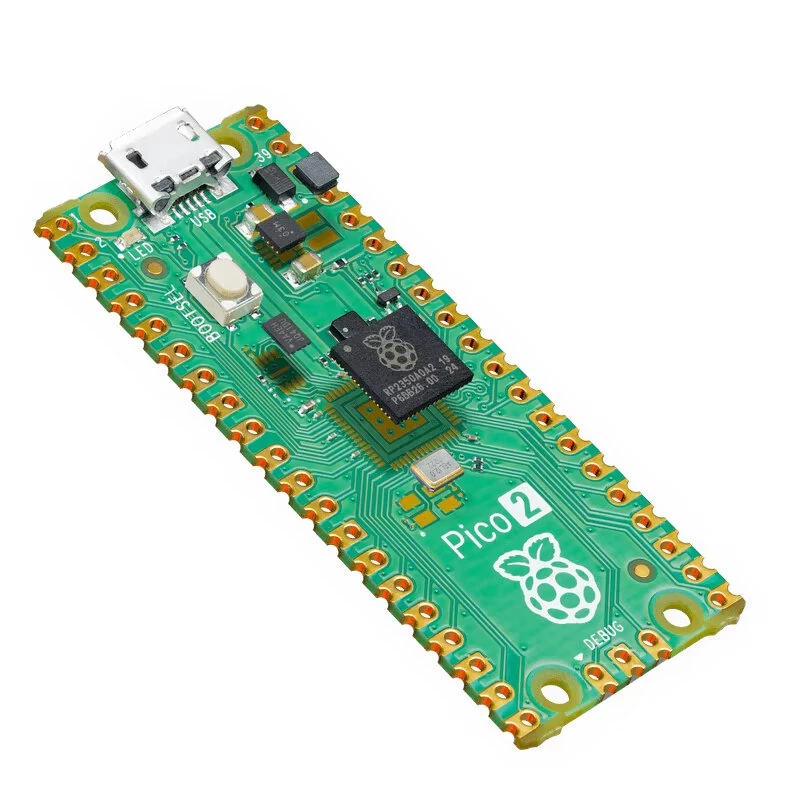

C3864 Raspberry Pi Pico 2 RP2350 Micro Control Board Dual Arm Cortex-M33 or Dual Hazard3 RISC-V Processor 150MHz Development Board

Processor: Dual Arm Cortex-M33 or Dual Hazard3 RISC-V @ 150MHz

Memory: 520KB on-chip SRAM

Compatibility: Software- and hardware-compatible with Raspberry Pi Pico 1

Programming: Drag-and-drop programming using mass storage over USB

Security:

ARM TrustZone for Cortex-M

Optional boot signing, enforced by on-chip mask ROM, with key fingerprint in OTP

Protected OTP storage for optional boot decryption key

Global bus filtering based on Arm or RISC-V security/privilege levels

Peripherals, GPIOs, and DMA channels individually assignable to security domains

Hardware mitigations for fault injection attacks

Hardware SHA-256 accelerator

Interfacing:

2 × UART

2 × SPI controllers

2 × I2C controllers

24 × PWM channels

3 x ADC channels

1 × USB 1.1 controller and PHY, with host and device support

12 × PIO state machines

Operating Temperature: -20°C to +85°C

Input Voltage: 1.8–5.5V DC

Features:

1. High-Performance Microcontroller: Powered by the RP2350 chip, the Raspberry Pi Pico 2 boasts dual-core options: two industry-standard Arm Cortex-M33 cores and two open-hardware Hazard3 cores. This provides developers with flexibility in choosing between traditional and RISC-V architectures.

2. Enhanced Security Features: Security is a major enhancement in the Pico 2, featuring ARM TrustZone for Cortex-M, optional boot signing with key fingerprint in OTP, global bus filtering based on security levels, and hardware SHA-256 accelerator. These features ensure a secure environment for developing applications.

3. Comprehensive Interfacing Capabilities: The board supports a wide range of peripherals, including UARTs, SPI and I2C controllers, PWM channels, ADC channels, PIO state machines, and USB 1.1 with host and device support. This extensive range of interfaces makes it ideal for complex embedded projects.

4. User-Friendly Programming: The Pico 2 supports drag-and-drop programming via USB mass storage, and is compatible with C/C++ SDK and MicroPython, making it accessible to both beginners and experienced developers. The improved documentation provides an easier and more efficient development experience.

5. Versatile Use Cases: With an operating temperature range of -20°C to +85°C and supported input voltages from 1.8 to 5.5V DC, the Pico 2 is adaptable to a variety of environments and applications. The castellated module allows it to be soldered directly onto carrier boards, facilitating integration into larger systems.

Package Included:

1 x Raspberry Pi Pico 2 Microcontroller Board
