BSIDE V30 Digital Multimeter Infrared Thermometer Measures AC/DC Voltage Current Resistance Capacitance Frequency Dual Power Options Flashlight V~Alert 4:1 Object Distance Ratio

Brand: BSIDE

Model: V30

DC Voltage: 0.2~1499.9V (DC mode), 0.5~1499.9V (Automatic mode)

AC Voltage: 0.2~749.9V (AC mode), 0.5~749.9V (Automatic mode)

Resistance: 0.0Ω~19.99MΩ

Capacitance: 00.000nF~9.999nF, 10.00mF~19.99MF

Alternating Current: 2.0mA~199.9mA

Direct Current: 2.0mA~199.9mA

Frequency: 1.000Hz~9.999Hz, 100.0KHz~199.9KHz

Infrared Temperature Measurement: -20ºC~0ºC (-4ºF~32ºF), 0.1ºC~380ºC (32ºF~752ºF)

Ambient Temperature: 0~50ºC

Diode Test: Automatic recognition of diodes less than 2V

Non-contact Induced Voltage: Fireline identification

Automatic Shutdown: 15 minutes

Built-in Flashlight: Yes

Battery: 1200mA 3.7V lithium battery (can be installed with 2 additional AAA batteries)

Dimensions: 161 x 78 x 21mm

Weight: 204g

Features:

High Precision Measurement: Offers high accuracy with a resolution of 0.0001V for voltage and 0.1Ω for resistance, ensuring precise readings for professional use.

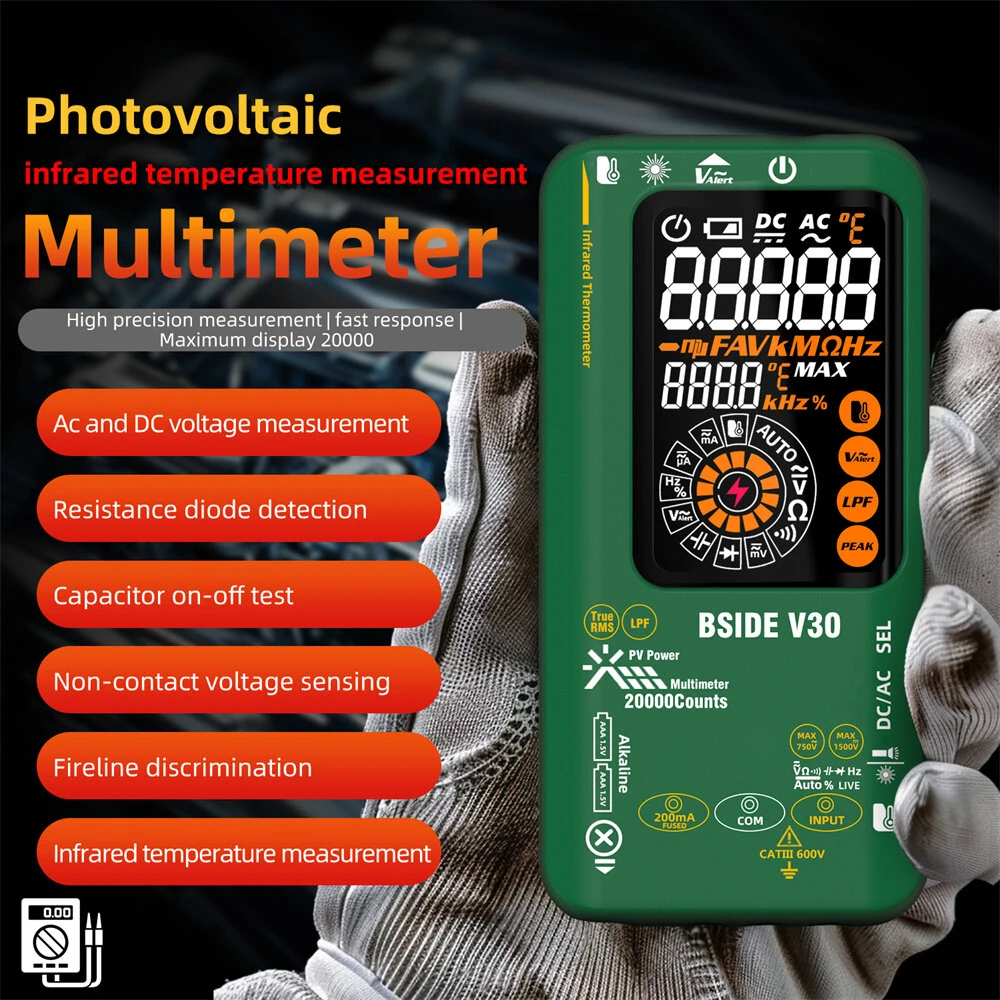

Wide Range of Applications: Capable of measuring DC/AC voltage, resistance, capacitance, current, and frequency, making it versatile for various electrical tasks.

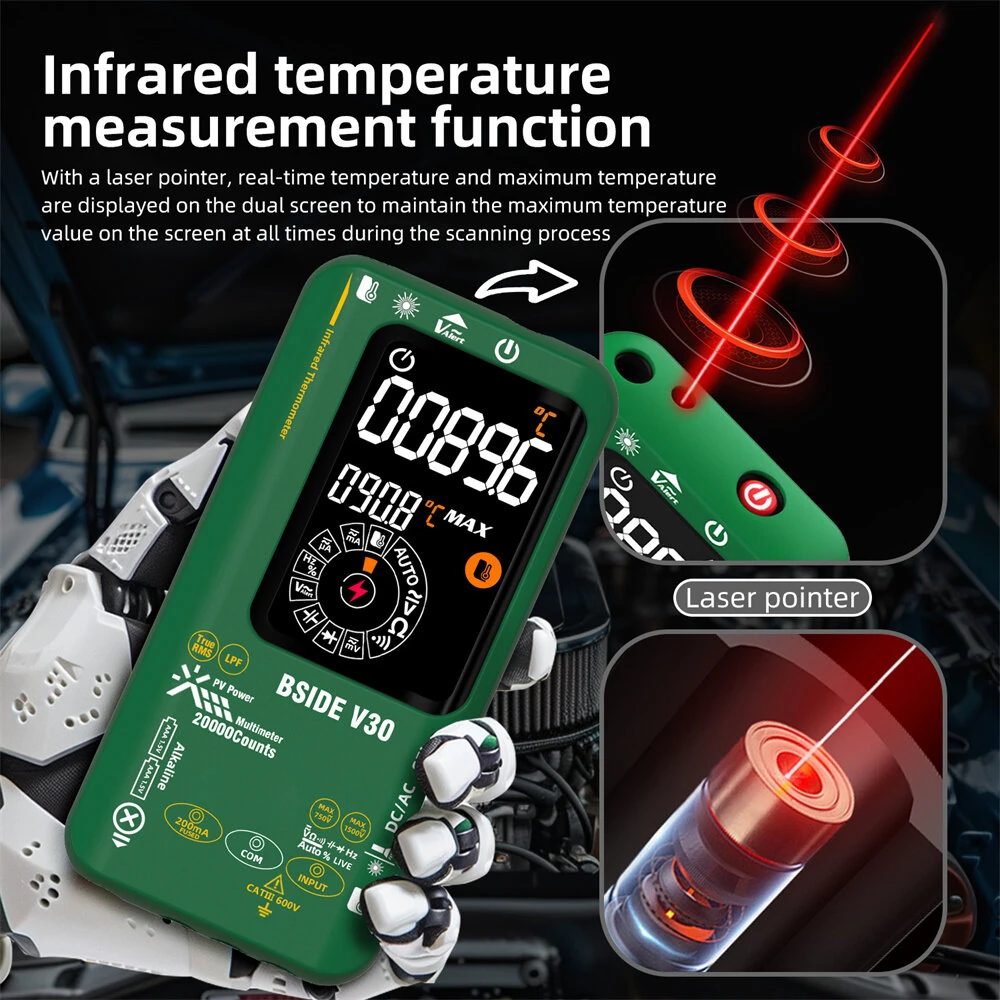

Infrared Temperature Sensor: Measures temperatures from -20ºC to 380ºC, providing an essential tool for detecting temperature variations in photovoltaic systems.

Safety and Convenience: Equipped with automatic shutdown after 15 minutes of inactivity and non-contact voltage detection for enhanced user safety.

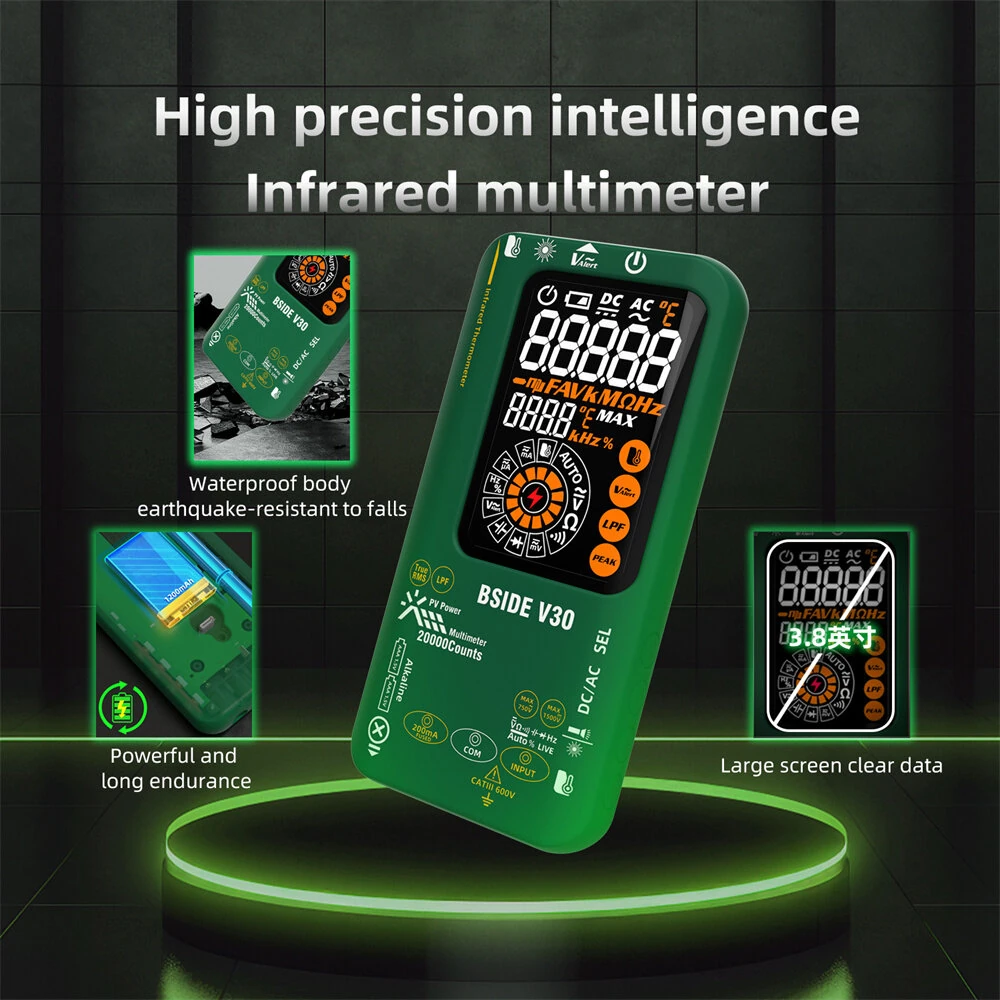

Portable and User-friendly: Compact design with a built-in flashlight and a clear LCD screen for easy reading and operation in low-light conditions.

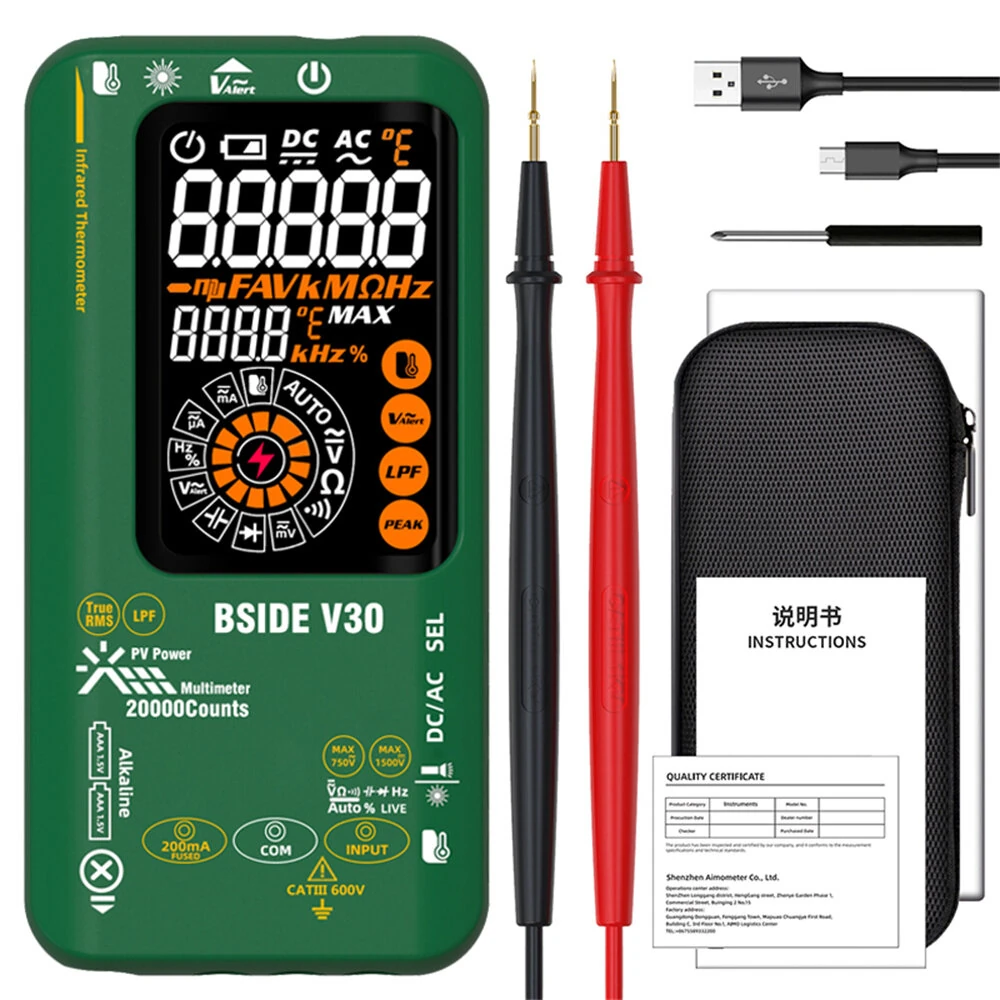

Package Included:

1 x V30 Multimeter

1 x Probe

1 x Charging Cable

1 x Screwdriver

1 x User Manual
