BSIDE Mini OT3 Oscilloscope 3.2" TFT Color Screen 10MHz Bandwidth Real-Time Sampling 48MSa/s Portable Handheld Oscilloscope with Probe

Display Technical Indicators:

- Display Screen: 3.2" TFT color screen

- Resolution: 320 x 240 pixels

- Data Retention: Yes

- Screen Backlight: Yes

- Low Battery Warning: Yes

- Automatic Shutdown: Yes

- Pause: Yes

Mechanical Technical Index:

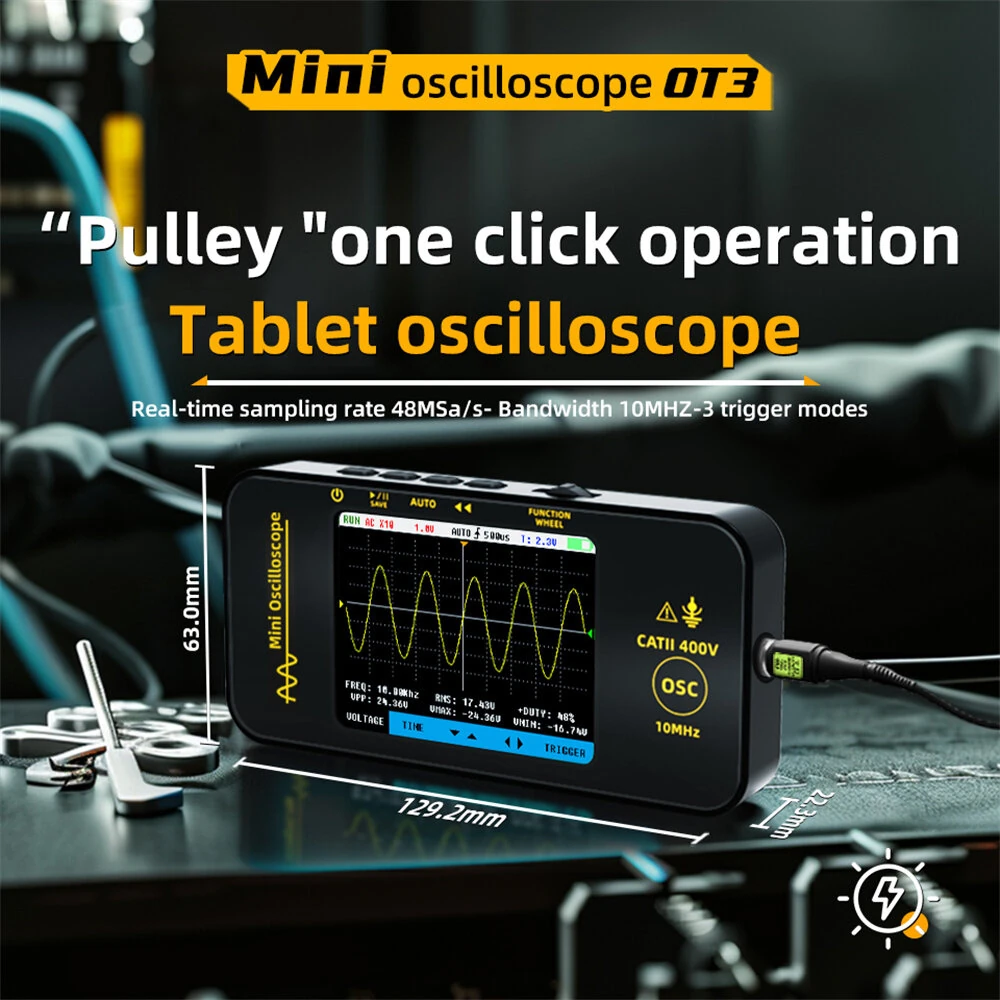

- Dimension: 129.2 x 63.0 x 22.3 mm

- Weight: 166g (battery included)

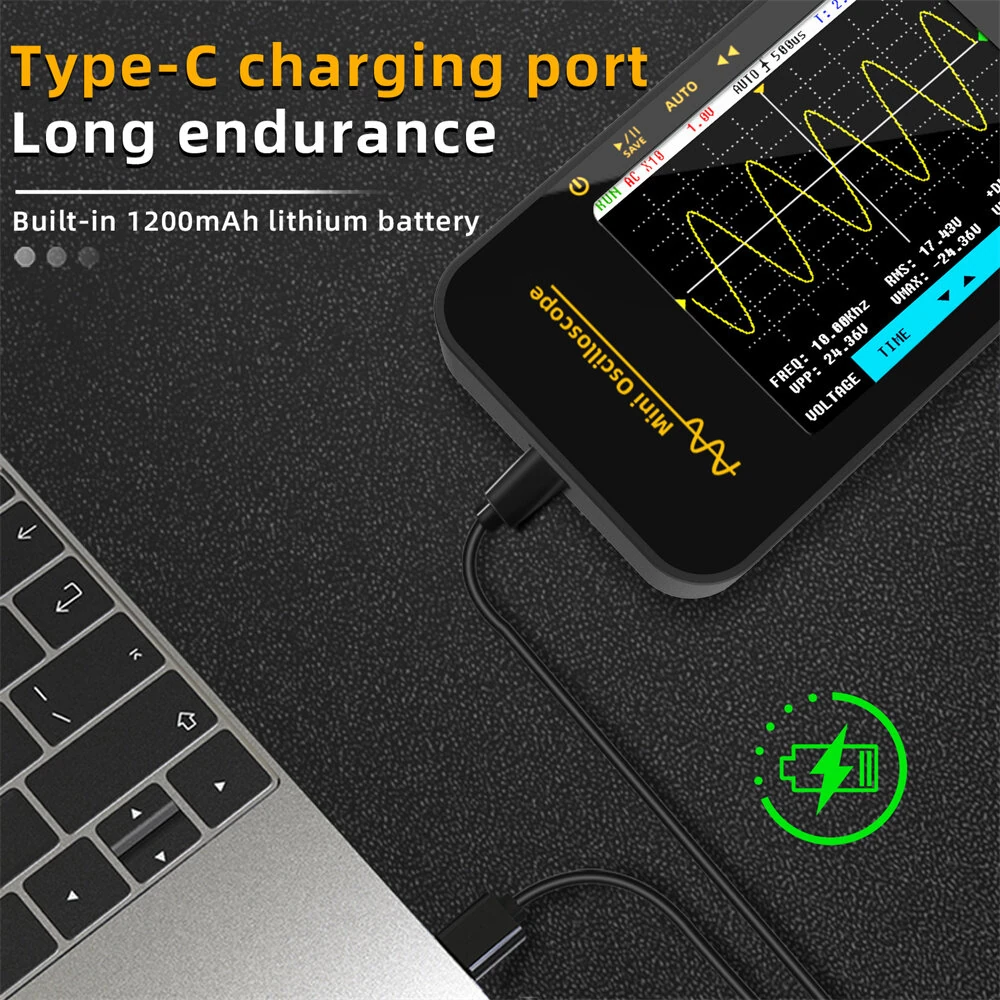

- Battery Type: 1200mAh Lithium battery

Environmental Technical Index:

- Working Environment:

  - Temperature: 0 ~ 40℃

  - Humidity: ≤75%

- Storage Environment:

  - Temperature: -20 ~ 60℃

  - Humidity: <80%

Oscilloscope Technical Indicators:

- Bandwidth: 10MHz

- Sampling Mode: Real-time sampling

- Real-time Sampling Rate: 48MSa/s

- Number of Channels: 1 single channel

- Input Coupling: DC, AC

- Input Impedance: 1MΩ, @16pF

- Probe Attenuation: X1, X10

- Maximum Input Voltage:

  - X1 Range: ±40V

  - X10 Range: ±400V (DC + AC peak value)

- Sampling Rate Range: 1.5Sa/s - 48MSa/s

- Waveform Interpolation: (sinx)/x

- Sweep Range: 100ns/Div to 20s/Div

- Time Base Accuracy: 20ppm

- Storage Depth: Up to 128kB

- Sensitivity: 20mV/Div - 10V/Div

- Displacement Range: 4 cells (positive and negative)

- Analog Bandwidth: 10MHz

- Low-frequency Response: Greater than 10Hz

- Rise Time: Less than 100ns

- DC Gain Accuracy: ±3%

- Trigger Mode: Automatic, normal, single

- Trigger Edge: Rising edge, falling edge

Features:

1. High-Resolution Display:

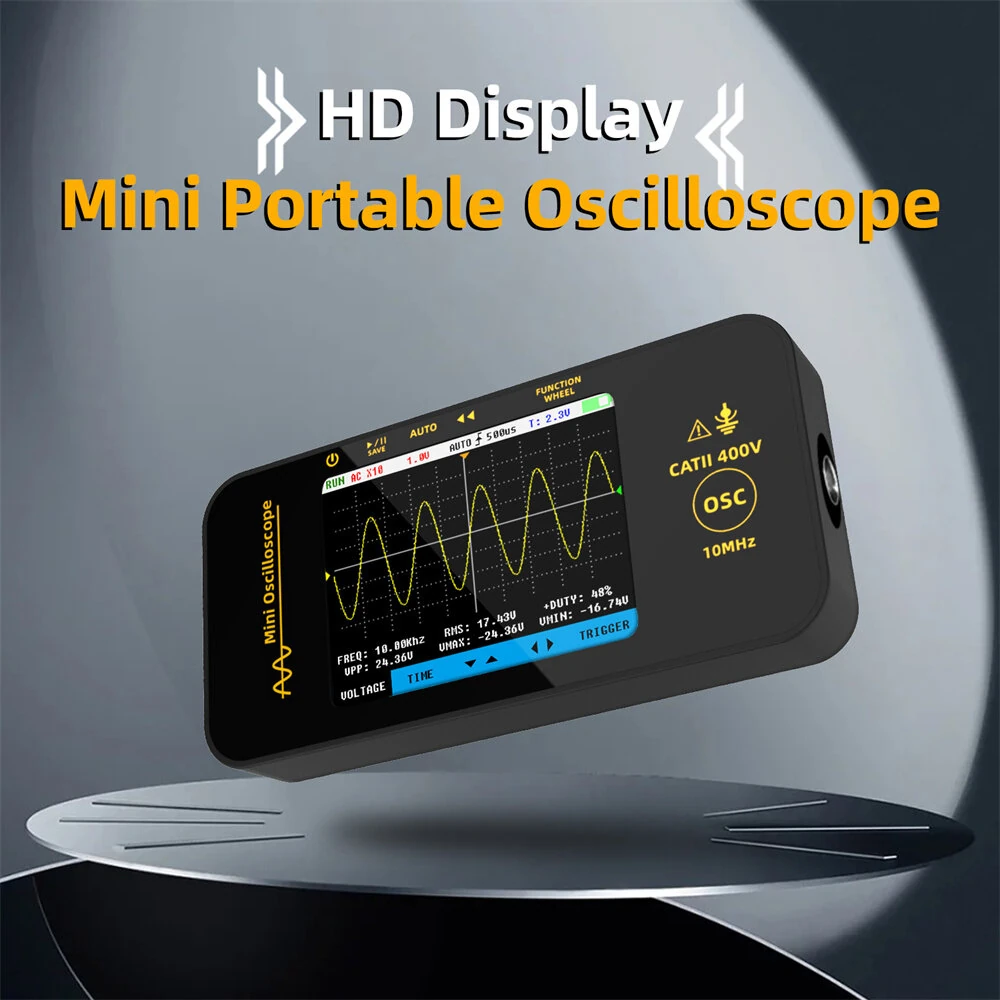

The BSIDE Mini OT3 Oscilloscope features a 3.2" TFT color screen with a resolution of 320 x 240 pixels, providing clear and detailed visuals for precise measurements and analysis.

2. Compact and Lightweight:

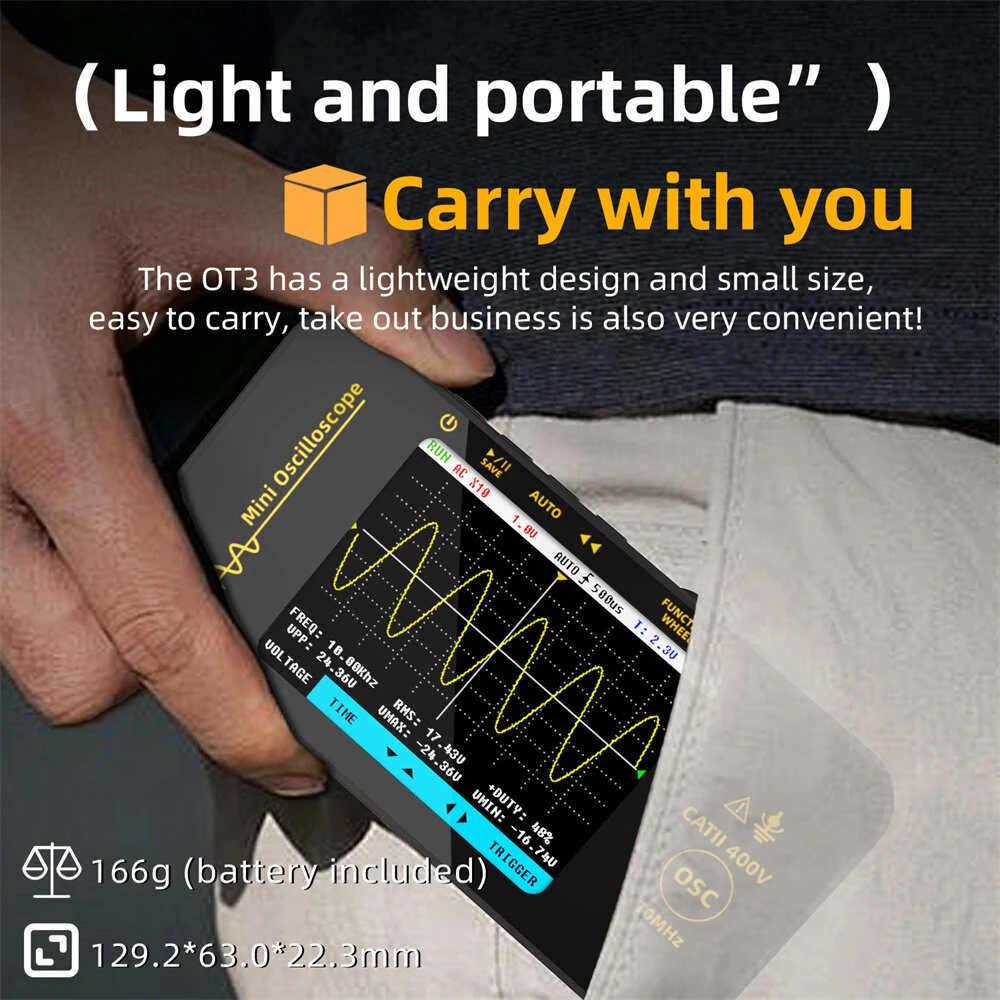

With dimensions of 129.2 x 63.0 x 22.3 mm and a weight of just 166g (battery included), this oscilloscope is highly portable and convenient for fieldwork and on-the-go diagnostics.

3. Versatile Input Options:

The device supports both DC and AC input coupling with a maximum input voltage of up to ±400V, catering to a wide range of testing scenarios and ensuring compatibility with various signals.

4. Real-Time Sampling:

The oscilloscope offers a real-time sampling rate of 48MSa/s, enabling accurate and fast signal capture for dynamic and transient events.

5. User-Friendly Features:

Equipped with functionalities such as automatic shutdown, low battery warning, screen backlight, and data retention, the oscilloscope ensures ease of use and efficient power management.

Package Included:

 1 x BSIDE Mini OT3 Oscilloscope Set
