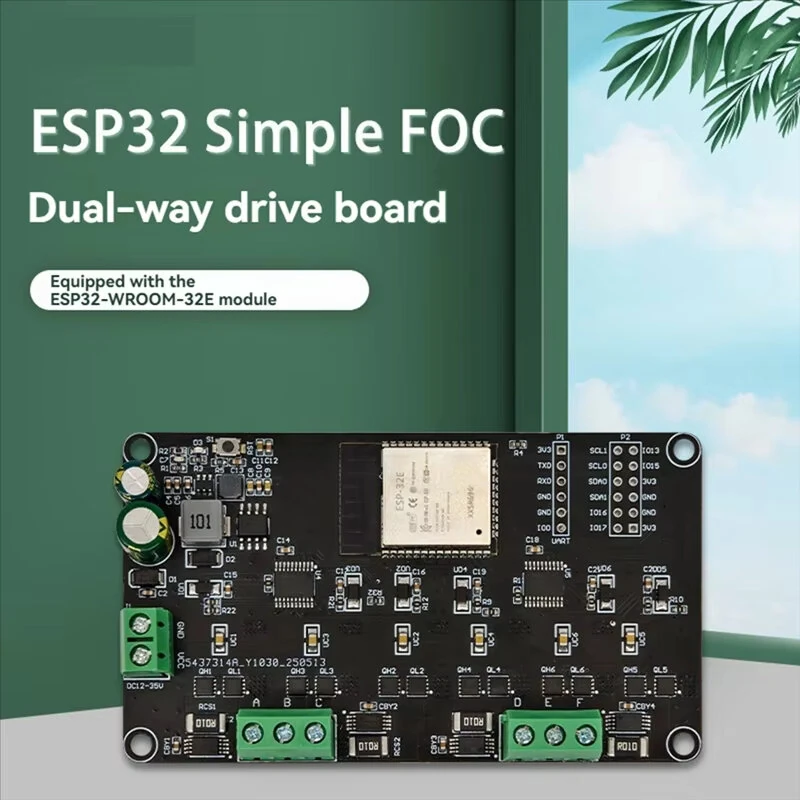

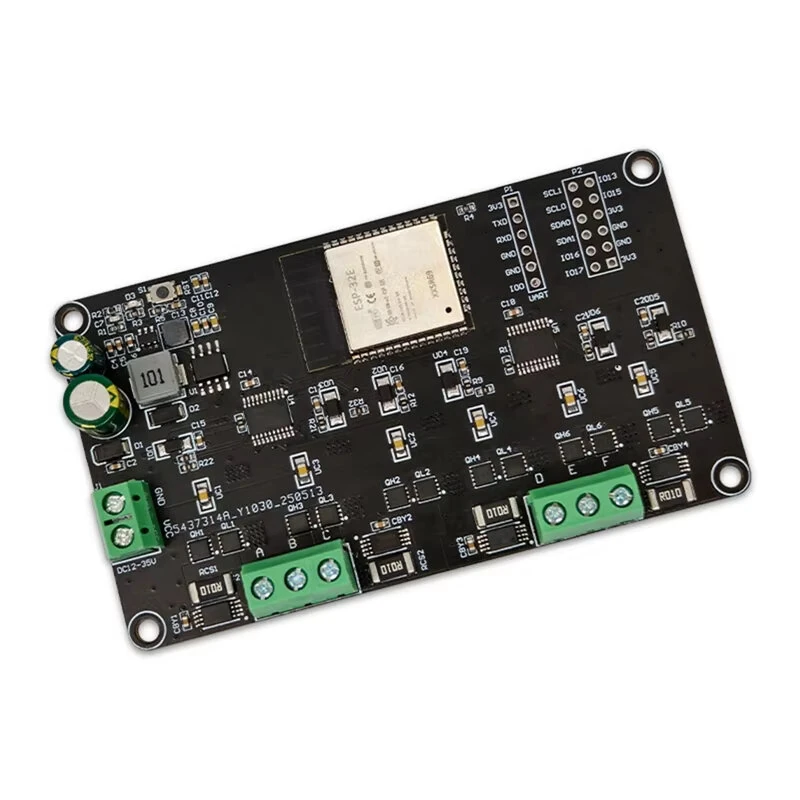

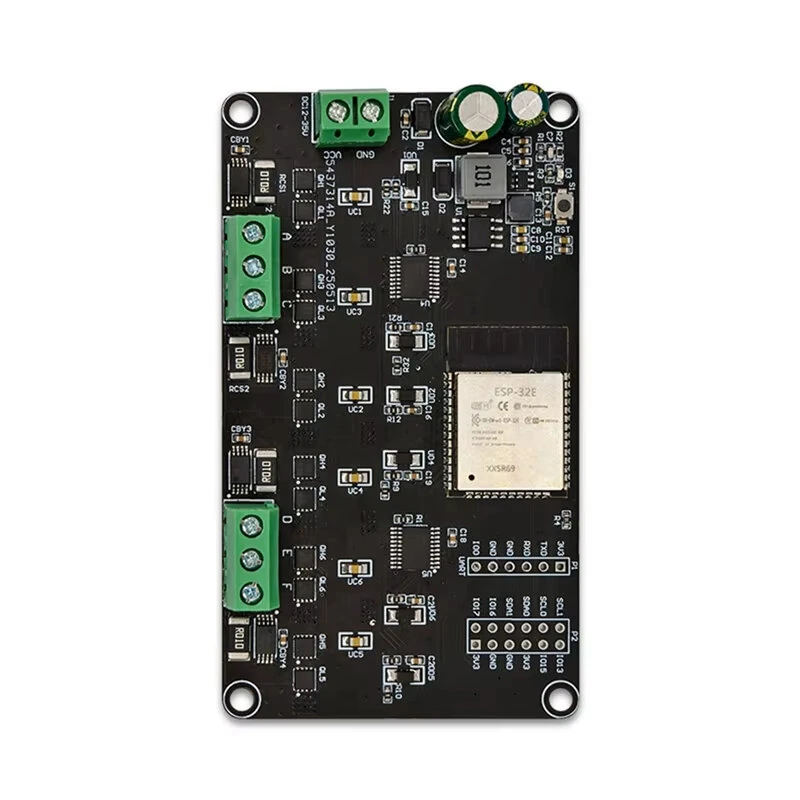

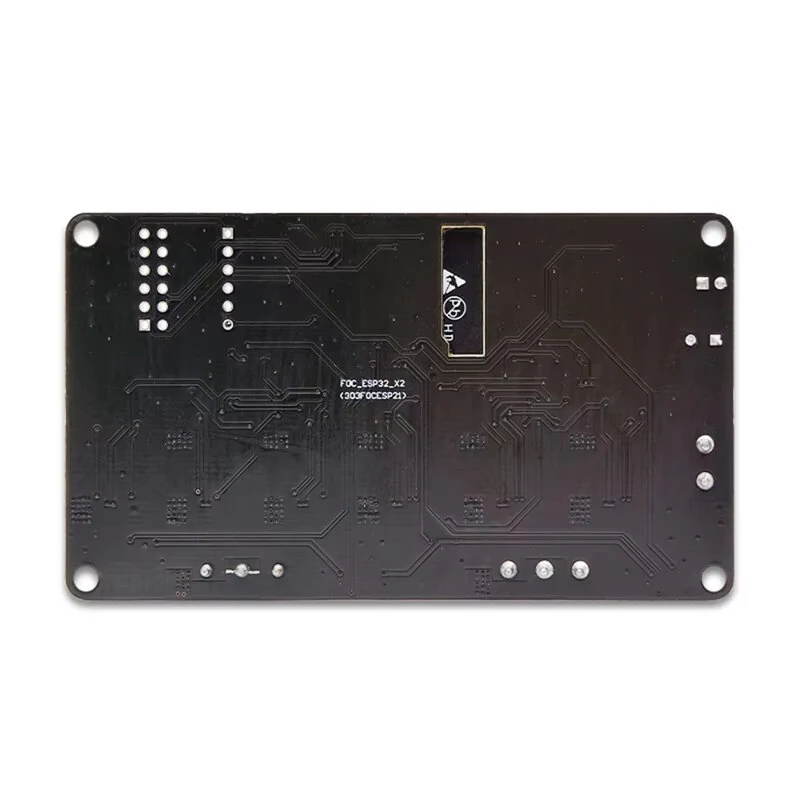

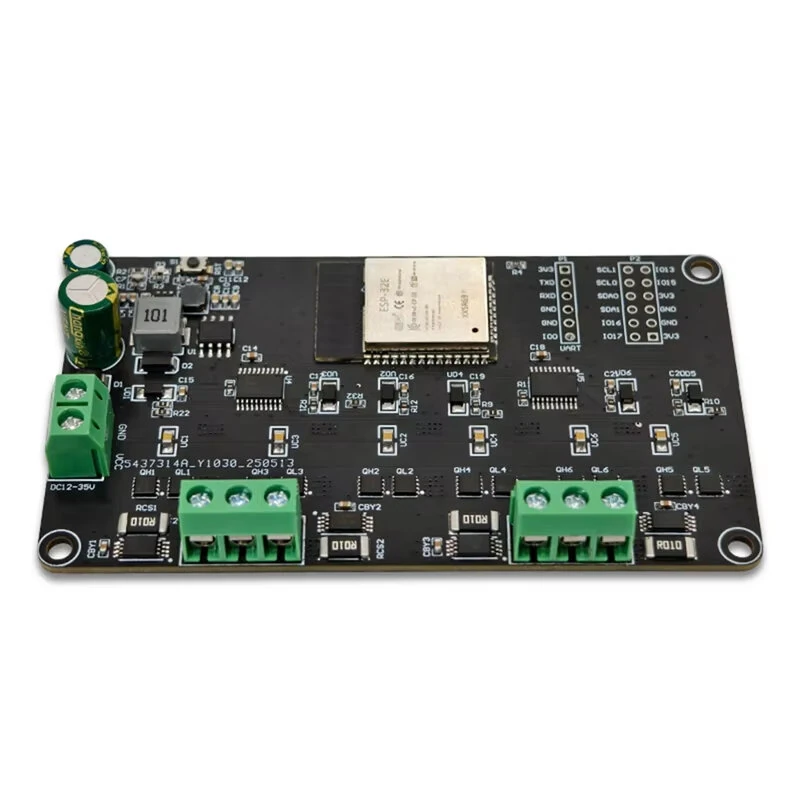

Brushless Motor Driver Board Dual-Channel ESP32 Simple FOC with ESP32-WROOM-32E Module
5.01 ratingThe Brushless Motor Driver Board Dual-Channel ESP32 Simple FOC with ESP32-WROOM-32E Module is a mid-range product designed for everyday users. Customers praise its accurate and reliable.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
36% Off — you save ₹1,326 on this product!
Type: Board Only
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The Brushless Motor Driver Board Dual-Channel ESP32 Simple FOC with ESP32-WROOM-32E Module is a mid-range designed for everyday users. Customers highlight its accurate and reliable.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications:
Product Name: ESP32 Simple FOC dual-channel driver board
Power supply: DC-12V
Communication method: UART
Programming interface: UART
Development environment: Compatible forArduino
Board Size: 54 x 95mm
Positioning Hole Diameter: 3mm
Weight: 31g
Color: Black
Material: PCB
Features:
1. Integrated dual-channel motor driver for advanced control applications.
2. Pre-reserved UART pins for firmware programming and debugging tasks.
3. Includes multiple I/O pins for extended control options and versatile usability.
4. Allows operation under various development environments, including ESP-IDF and ArduinoIDE.
Package Include:
1x ESP32 Brushless Motor Driver Board
1x Short Circuit Cap
1x 6P Single Row Pin
1x 6P Double Row Pin
Firmware Burning Process:
1. Tool preparation: USB to serial port module
2. Operation steps
3. Open the Flash tool tool, select the chip model ESP32
4. Check the burning option and specify the firmware path
5. Short the GND-I00 pin before powering on to enter the burning mode
6. Connect the device according to the following wiring method: RX-TX TX-RX GND-GND 3V3-3V3
7. Click START to start burning and wait for the completion prompt
Users can expand more control logicthrough the interface. It is recommended to develop complex applications under for the Arduinoframework
