Brushless Motor Driver Board Compatible with Simple FOC Shield V2.0.4
5.01 ratingThe Brushless Motor Driver Board Compatible with Simple FOC Shield V2.0.4 is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
26% Off — you save ₹624 on this product!
Type: Board Only
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The Brushless Motor Driver Board Compatible with Simple FOC Shield V2.0.4 is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications:
1. VCC, GND: DC12-35V power supply
2. A, B, C: brushless motor interface
3. GPIO outlet can be directly inserted into For ArduinnoUNO and other development boards.

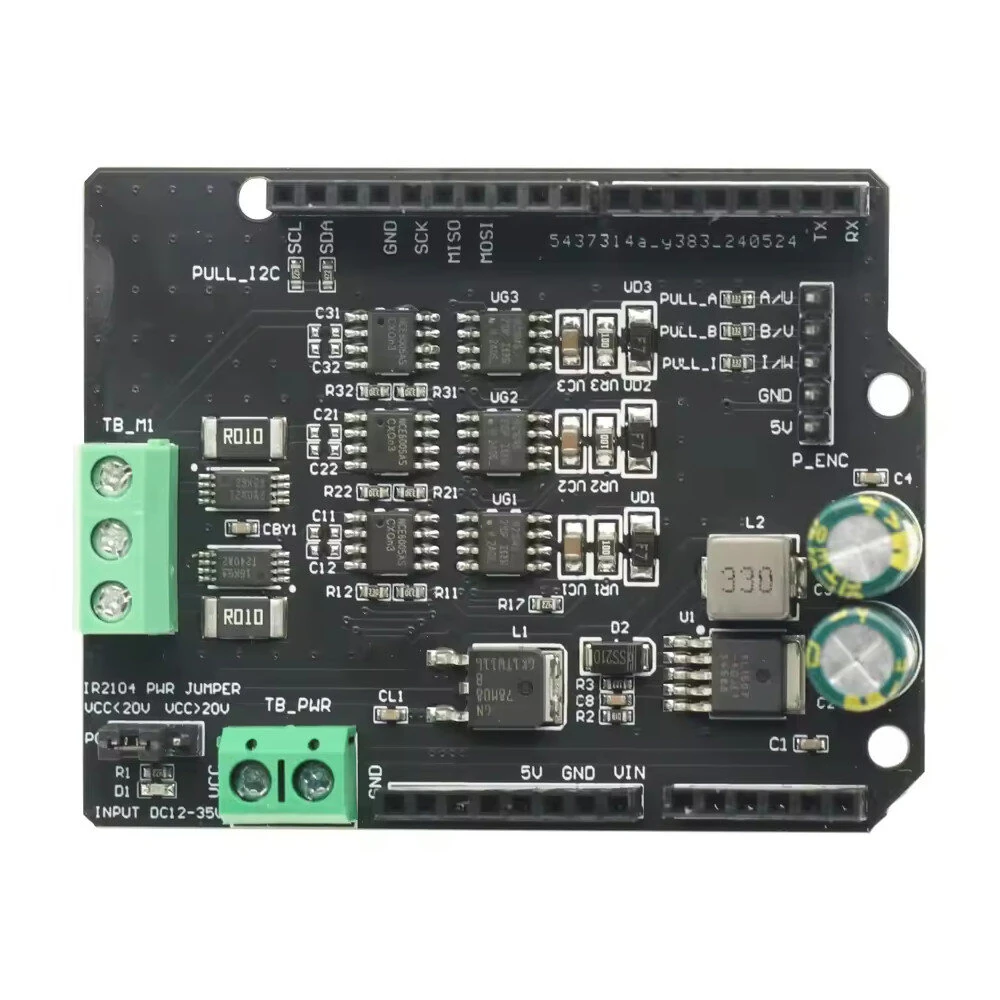

4. IR2104 power supply jumper cap: Because IR2104 only supports a maximum of 20V power supply, when the VCC is less than or equal to 20V, the jumper cap is inserted at the left end, and the power supply voltage of IR2104 is equal to VCC. When the VCC is 20V larger. When the jumper cap is plugged into the right end, the supply voltage of IR2 104 is equal to 16V.
Features:
1. Three IR2104 gate drivers and two on-board INA240 high-precision current sensors are used to measure the A-B phase current.
2. BLDC drive circuit, support Hall, magnetic sensor and other encoders, power supply voltage DC12-35V.
3. Compatible open source project SimpleFOC Shield V2.0.4 can be directly plugged into For the Arduinno NNO development board for use as a Shiled.
Package Includes:
1 x Motor Driver Board
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1mm-1cm differences due to manual measurement.
