BME280 Atmospheric Pressure Sensor GXHTV3 Temperature & Humidity Sensor Buzzer Module for Heltec V4 Meshtastic WiFi LoRa 32 Expansion Kit — image 1
Hover to zoom

1 / 7 · Click to enlarge

BME280 Atmospheric Pressure Sensor GXHTV3 Temperature & Humidity Sensor Buzzer Module for Heltec V4 Meshtastic WiFi LoRa 32 Expansion Kit

35+ bought in last month
AI Summary
product for everyday users

The BME280 Atmospheric Pressure Sensor GXHTV3 Temperature & Humidity Sensor Buzzer Module for Heltec V4 Meshtastic WiFi LoRa 32 Expansion Kit is a mid-range product designed for everyday users.

₹1,616-31%
MRP:₹2,349Save ₹733
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

31% Off — you save ₹733 on this product!

Price: ₹1,616

Total: ₹1,616
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 27 Aug – 10 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-2047958

About This Product

The BME280 Atmospheric Pressure Sensor GXHTV3 Temperature & Humidity Sensor Buzzer Module for Heltec V4 Meshtastic WiFi LoRa 32 Expansion Kit is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specifications:

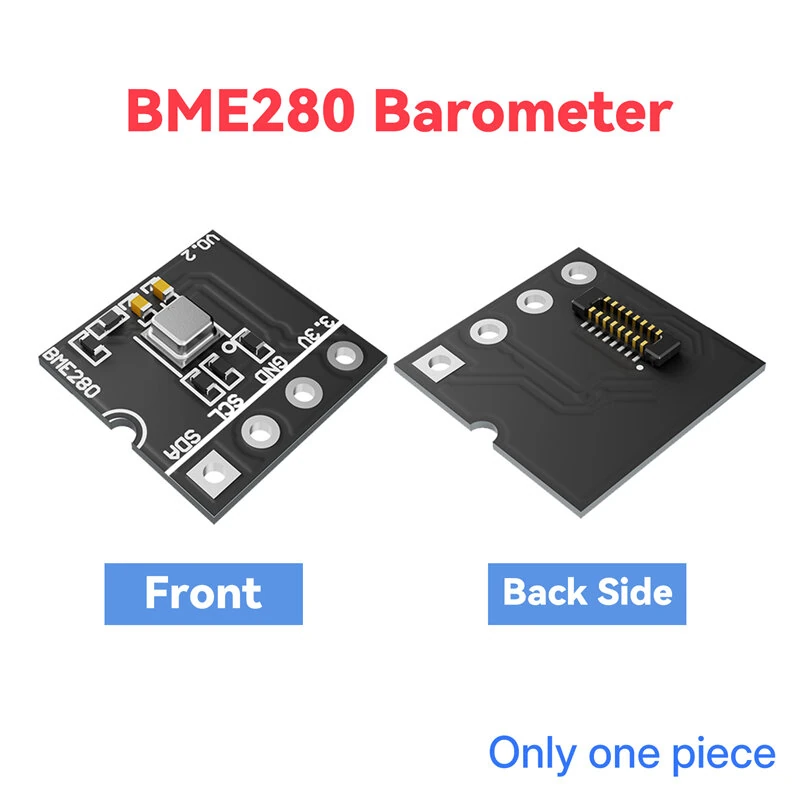

BME280 Atmospheric Pressure Sensor:
Supply Voltage: 3.3V
Supply Current: 2.8μA
Pressure Resolution: 0.16 Pa
Temperature Resolution: 0.01°C
Interfaces: I2C
Measurement Modes: P&T (forced or periodic)
Measurement Rate: Up to 157 Hz
Filter Options: Five bandwidths
Storage Temperature: -45~85°C
Dimension:
15x15x10mm (including QuickLink Socket)
15x15x2mm (excluding QuickLink Socket)

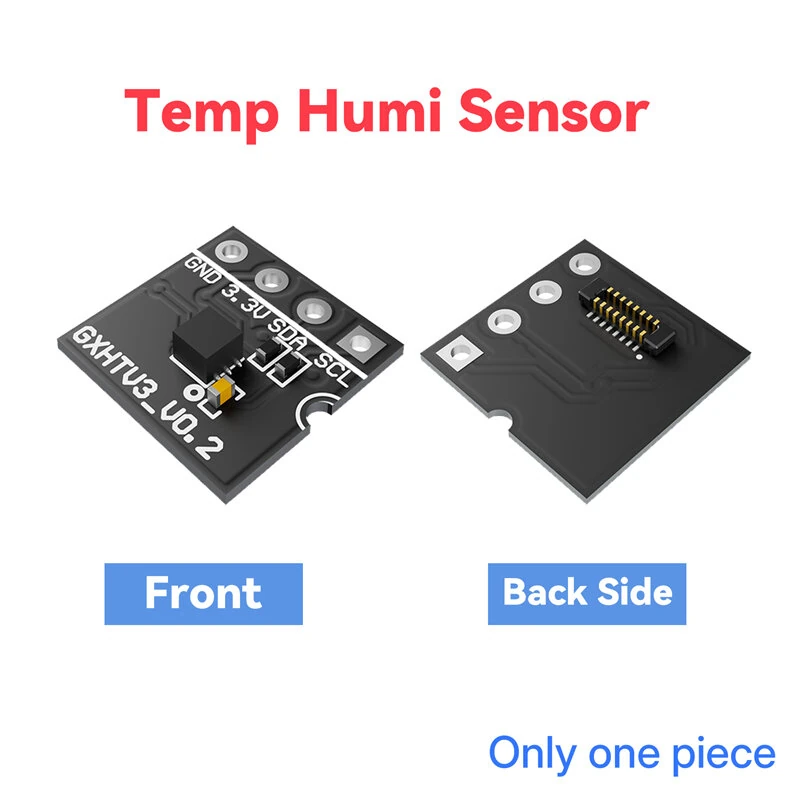

Temp & Humidity Sensor (GXHTV3):
Supply Voltage: 3.3V
Supply Current: 430μA
Interfaces:
I2C on PH2.0 x 4
I2C and SPI on LGA (2.54 stamp home)
Operating Temperature Range: -45~130°C
Storage Temperature Range: -45~130°C
Dimension:
15x15x10mm (including QuickLink Socket)
15x15x2mm (excluding QuickLink Socket)

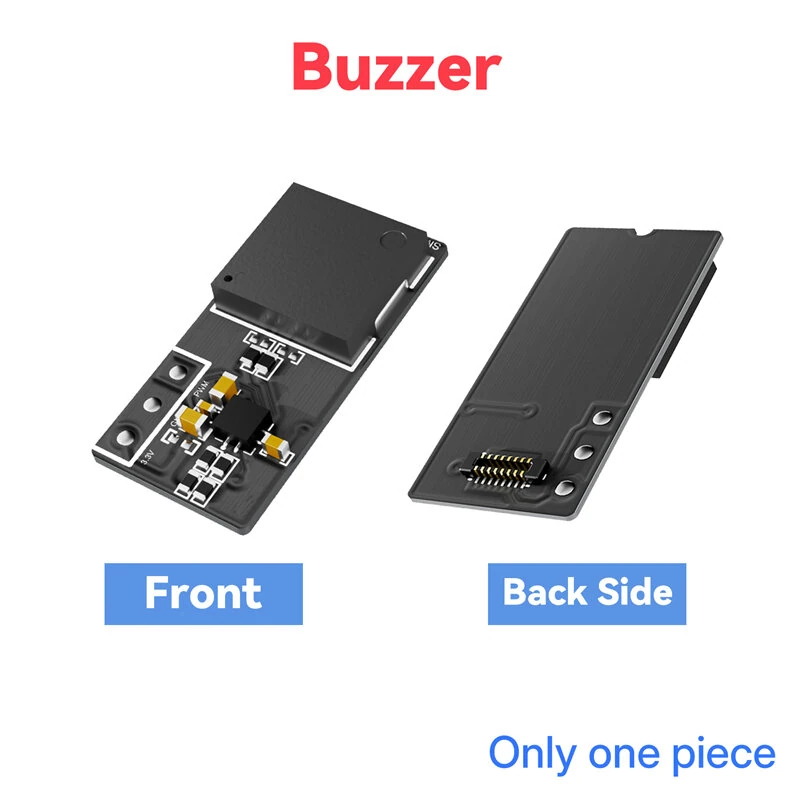

Buzzer Module:
Supply Voltage: 1~25V
Supply Current: 5mA MAX (at 3V)
Sound Pressure Level: Min. 65 dB (at 10cm at 3V)
Electrostatic Capacity: 12000±30% pF (at 100Hz 1V)
Oscillation Frequency: 4000 Hz
Storage Temperature: -40~85°C
Dimension: 22.20x10.40x3.00mm

Features:
1. High Precision Readings
Both the atmospheric pressure and temperature sensors deliver ultra-fine resolutions for accurate environment monitoring.
2. Wide Operating Temperature Range
Designed to function between -45°C and 130°C, ensuring stable performance under various conditions.
3. Compact Design
Small-sized module dimensions make it easy to incorporate into space-constrained applications.
4. Versatile Interfaces
Support I2C and SPI communication protocols, allowing compatibility with multiple systems.
5. Enhanced Acoustic Signal
The buzzer produces clear, audible signals with a sound pressure level of at least 65dB, even in noisy environments.

Package Included:
(The other items are not includes)
1 x BME280 Atmospheric Pressure Sensor
or
1 x GXHTV3 Temperature & Humidity Sensor
or
1 x Buzzer Module


Product Safety Information
Product Safety Information
Manufacturer
Shenzhen Yuner Yipu Trading Co., Ltd
Address
East 1087, Building 4, SEG Science and Technology Park, No. 3012 Huaqiang North Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong, CN
European agent
VISHTEC ltd
Email
compliance@vish-tec.com
Address
3 rd floor office 5, Plovdiv 2 Liuben Karavelov bul, 4002 Bulgaria
UK agent
CET Product Service Ltd.
Email
info@cetproduct.com
Address
Beacon House Stokenchurch Business Park, Ibstone Rd, Stokenchurch, High Wycombe, Buckinghamshire, UK

Setup Guide

1
Identify the pins
Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.
2
Wire to your microcontroller
Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.
3
Install libraries
In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.
4
Upload example sketch
Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.
5
Calibrate if needed
Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
