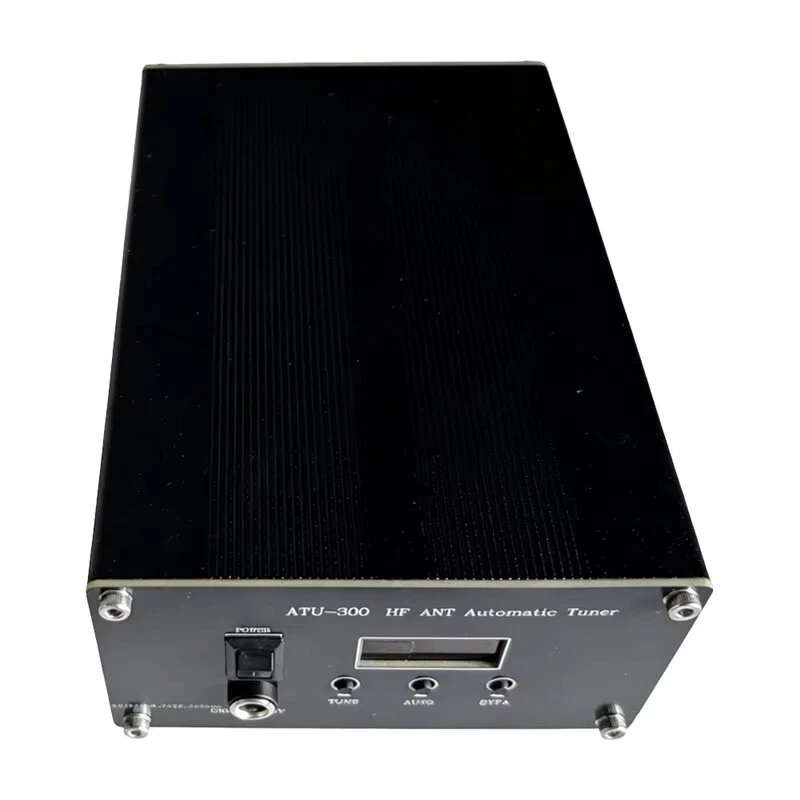

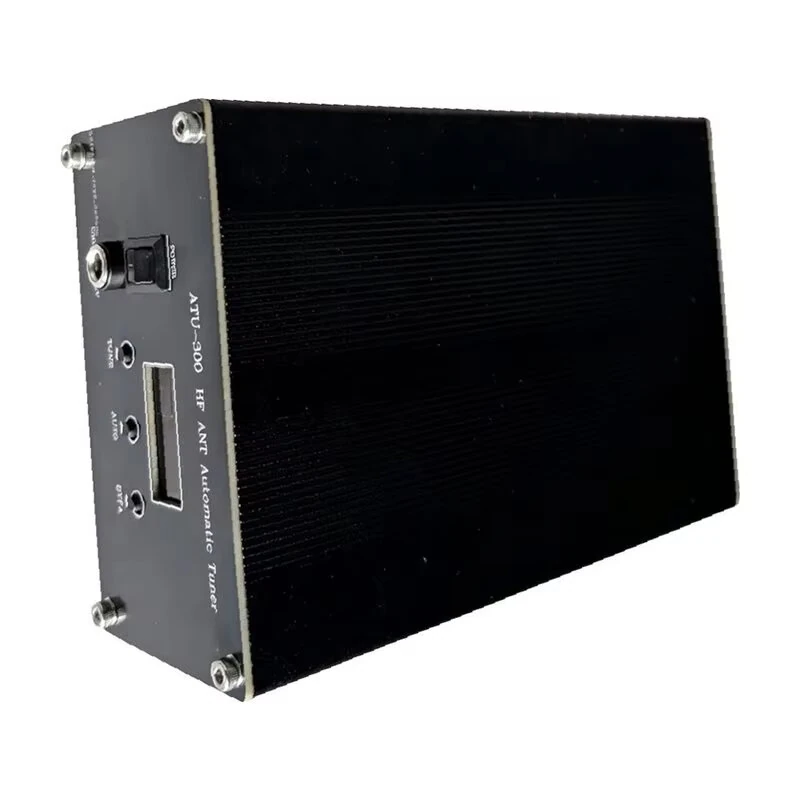

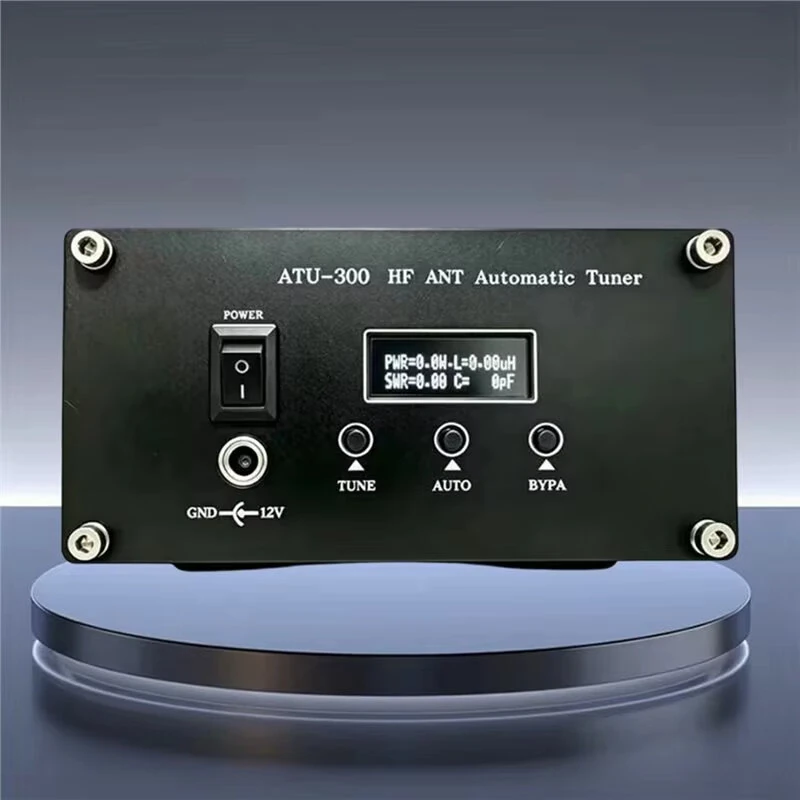

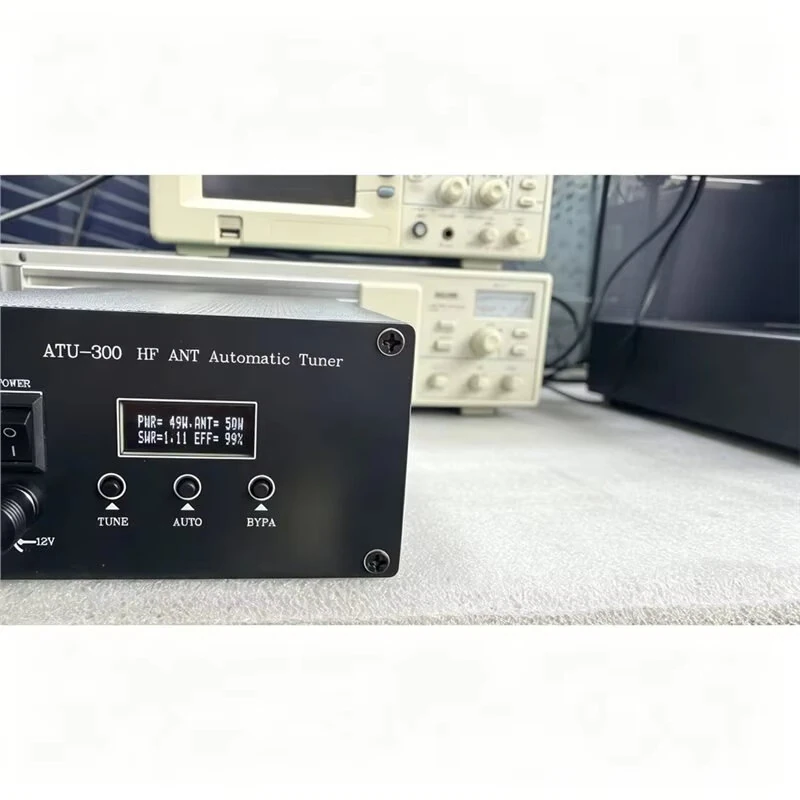

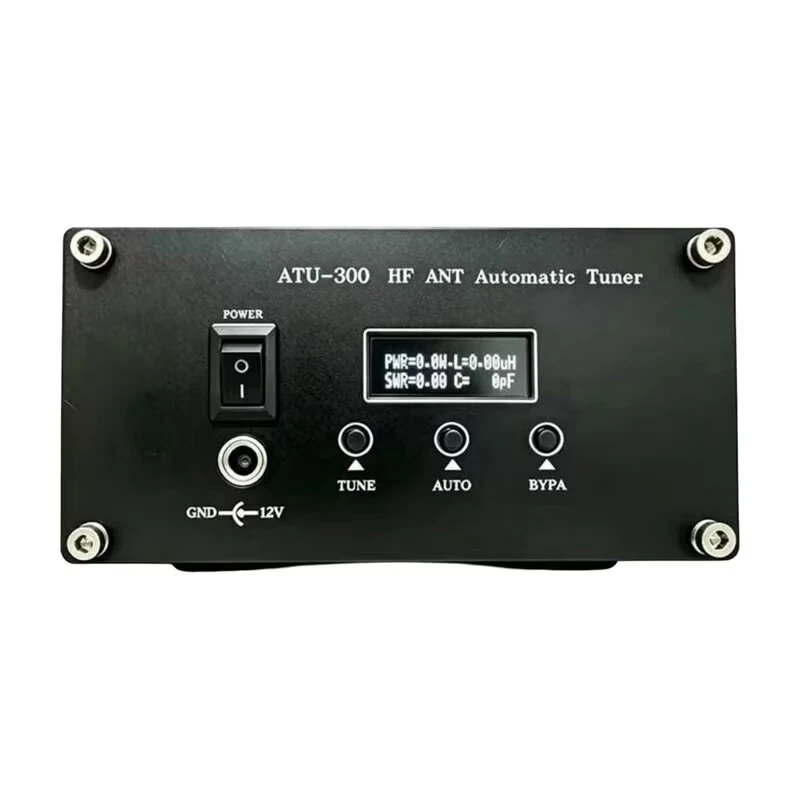

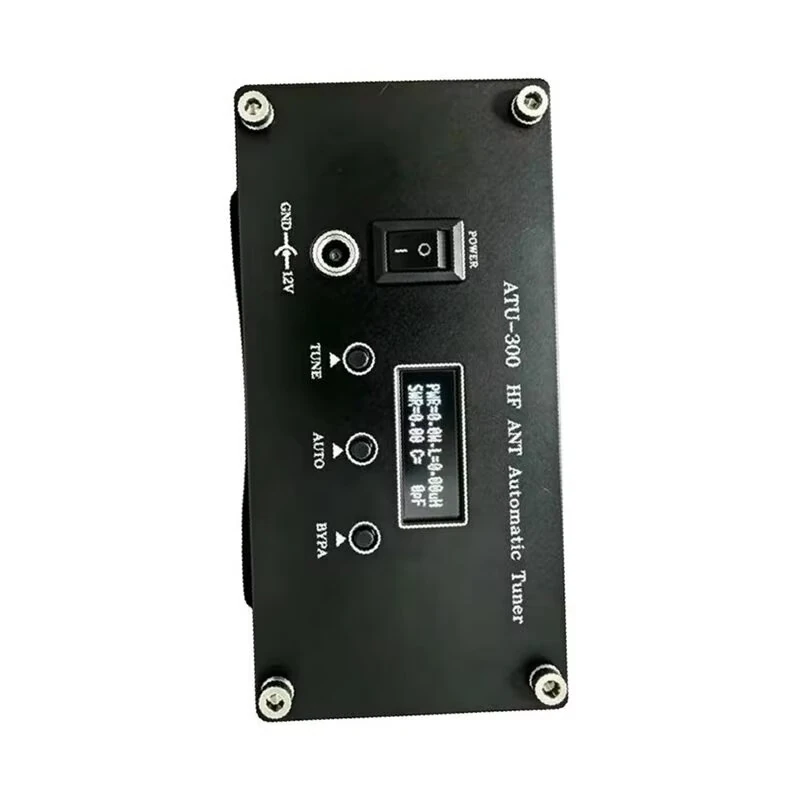

ATU-300W Automatic Shortwave Antenna Tuner Impedance Matcher 1.8-54MHz 5Ω-1200Ω 350W Peak OLED Display For GP Long Wire Antennas
The ATU-300W Automatic Shortwave Antenna Tuner Impedance Matcher 1.8-54MHz 5Ω-1200Ω 350W Peak OLED Display For GP Long Wire Antennas is a premium product designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Color: Black
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The ATU-300W Automatic Shortwave Antenna Tuner Impedance Matcher 1.8-54MHz 5Ω-1200Ω 350W Peak OLED Display For GP Long Wire Antennas is a premium designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification
Product Name: ATU-300W Automatic Shortwave Antenna Tuner Impedance Matcher
Frequency Range: 1.8-54MHz full band
Impedance Matching Range: 5Ω-1200Ω
Antenna Compatibility: Compatible with coaxial GP antennas and long-wire antennas
Inductor: 12.4uH magnetic core inductor
Capacitor: 6KV high-voltage capacitor
SSB Peak Power: 350W
Maximum Continuous Carrier Power: 200W
Display: 0.91 inch OLED
Display Content: Power, standing wave ratio, LC matching parameters, frequency tuning count
Memory Function: Power-off memory
Enclosure Material: Aluminum alloy
Installation: Supports vehicle-mounted, indoor, and outdoor shortwave equipment use
Connection: Easy wiring, self-grounding, dedicated terminal for long-wire antenna
Power Supply: DC11V-14V
Power Consumption: Low standby power consumption
Tuning Mode 1: Automatic tuning, automatically matches standing wave greater than 1.8, tuning target SWR ≤ 1.5
Tuning Mode 2: Manual tuning, long press TUNE button to start matching
Bypass Mode: Disconnects matching circuit, only tests standing wave and power
Memory Capacity: Stores 50 current frequency point matching memories
Applicable Modes: SSB, CW, AM, FM, FT8 and other shortwave analog and digital communications
Features
1) Covers 1.8-54MHz full band with 5Ω-1200Ω impedance matching range.
2) Supports coaxial GP antennas and long-wire antennas for flexible use.
3) Built with 12.4uH magnetic core inductor and 6KV high-voltage capacitor.
4) 0.91 inch OLED shows power, standing wave ratio, LC parameters, and tuning count.
5) Supports automatic, manual, and BYPASS operation with 50-group memory storage.
Package Included
1x Main unit
1x Power cable
1x Banana plug
