Product Overview:
This product is a DIY balun (balanced-to-unbalanced converter) kit. It uses high-quality components, features pre-drilled holes in the casing, and comes equipped with waterproof gaskets, O-rings, terminals, and M4 mounting rings, ensuring excellent waterproof performance.
The kit includes 1.2 meters (1mm diameter) of enameled wire, allowing users to wind baluns with various impedance ratios such as 1:1, 4:1, 9:1, 49:1, and 64:1.
Features and Functions:
- High-Quality Components: High-quality components ensure stable performance and long lifespan, suitable for long-term outdoor use.
- Waterproof Design: Each interface is equipped with waterproof gaskets, providing basic rain and splash protection; the casing includes waterproof gaskets and O-rings. For rainy/humid environments, it is recommended to apply sealant for enhanced waterproofing.
- Easy DIY Assembly: Pre-drilled holes in the casing eliminate the need for additional drilling; all accessories are included, requiring only soldering tools for assembly.
- Customizable Impedance: Includes 1.2 meters x 1mm enameled wire, allowing for the winding of baluns with various impedance ratios to meet different needs. - Transparent casing: Allows easy observation of the internal structure and wiring, facilitating assembly and inspection.
- Long-lasting components: JS-910B type pure copper thickened terminals (excellent conductivity, robust structure); M4 size 304 stainless steel lifting rings, corrosion resistant, suitable for outdoor installation.
- Spare capacitor: Includes a 100pF high-voltage capacitor (spare part, not required for all baluns).
Specifications:
Basic Specifications:
- Operating frequency: 1.8–54 MHz
- Power handling: Single sideband (SSB) 100 W; Data mode (DATA) 30 W (Note: Actual power varies depending on balun ratio, frequency, and operating environment).
Magnetic Ring Specifications:
- Material: Nickel-Zinc Ferrite
- Initial Permeability: 800
- Dimensions: Outer Diameter 31 mm × Thickness 13 mm
- Center Frequency: 15 MHz
- Applicable Frequency: 1.8–54 MHz
Housing Parameters:

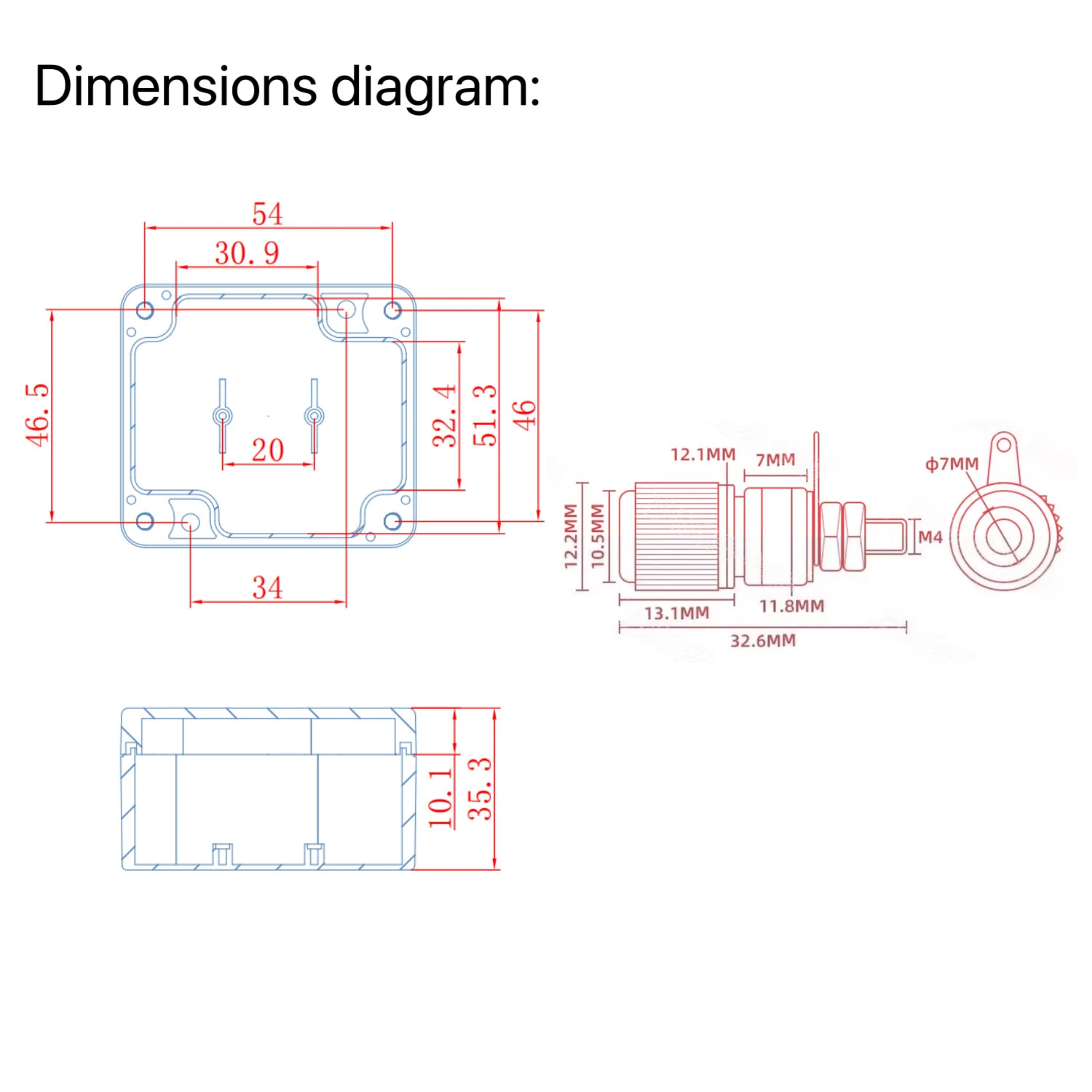

- Dimensions: 65 mm × 58 mm × 35 mm

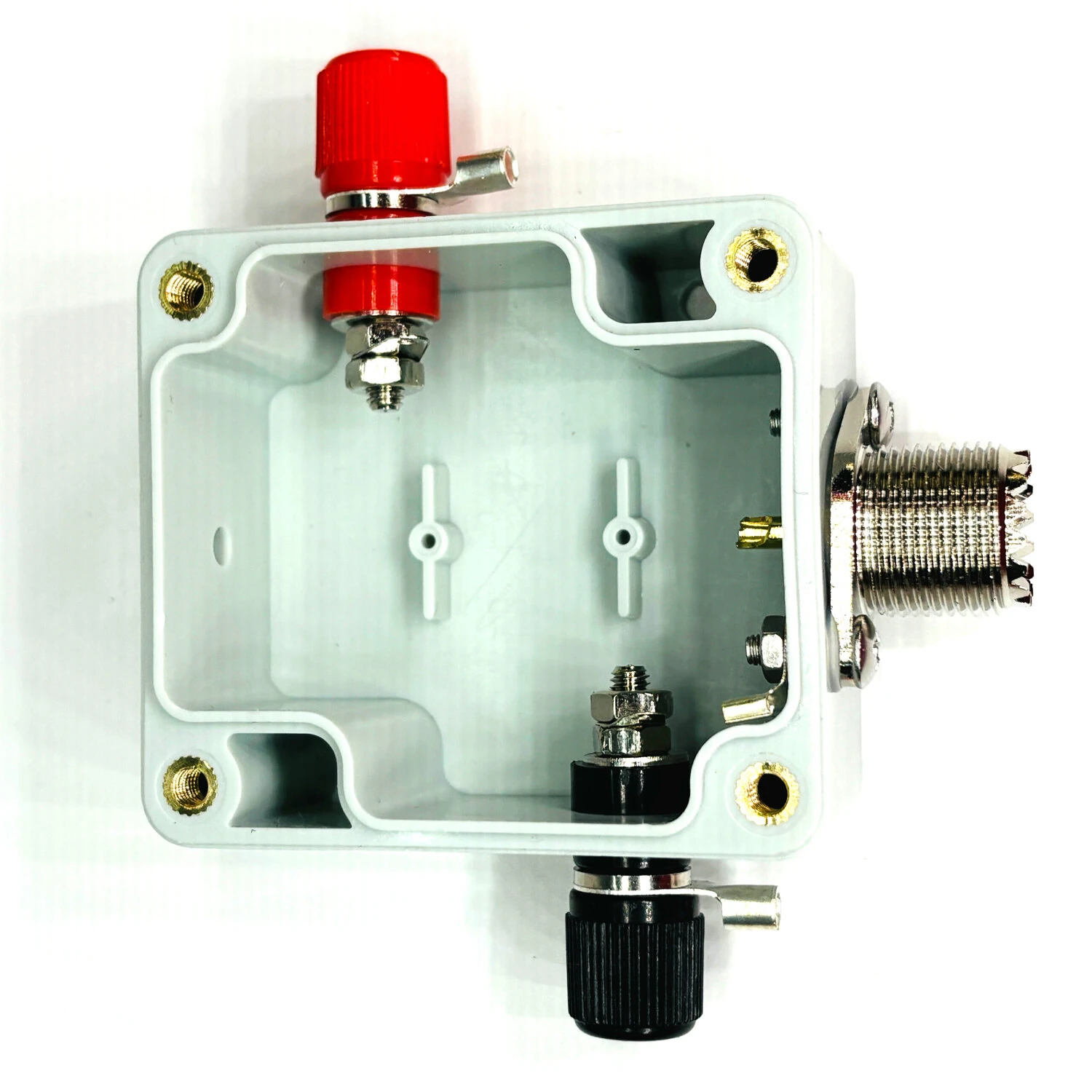

- Pre-drilled Holes: RF Interface (SL16/M-KF) × 1, Terminal Block × 2, Mounting Ring × 1

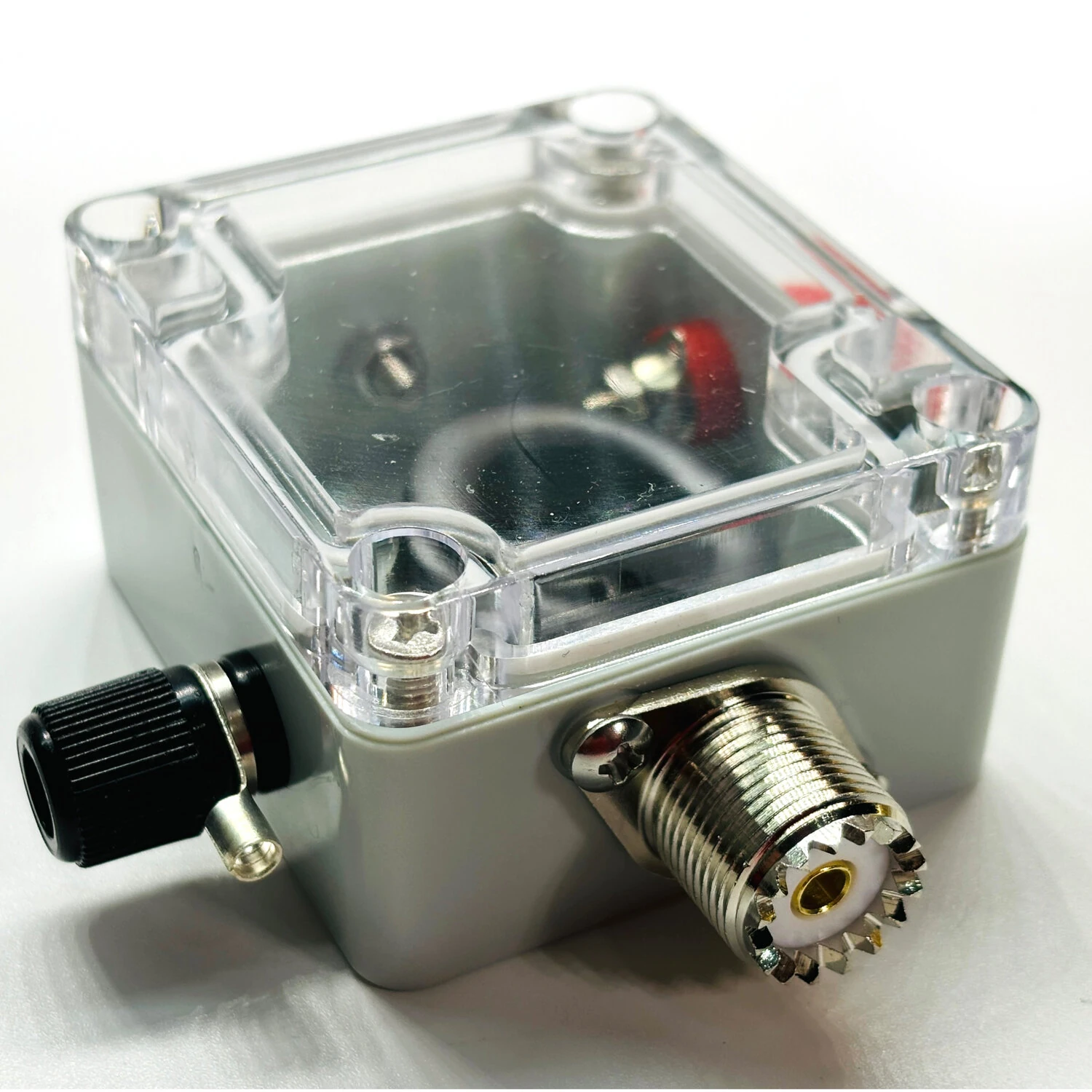

- Appearance: Transparent housing, allowing observation of internal structure and wiring
Other Accessory Parameters:
- Terminal Block: JS-910B type pure copper thickened, screw cap thickened pure copper
- Mounting Ring: M4 mounting nut, 304 stainless steel, corrosion resistant
- Capacitor: 100 pF high voltage (spare part)

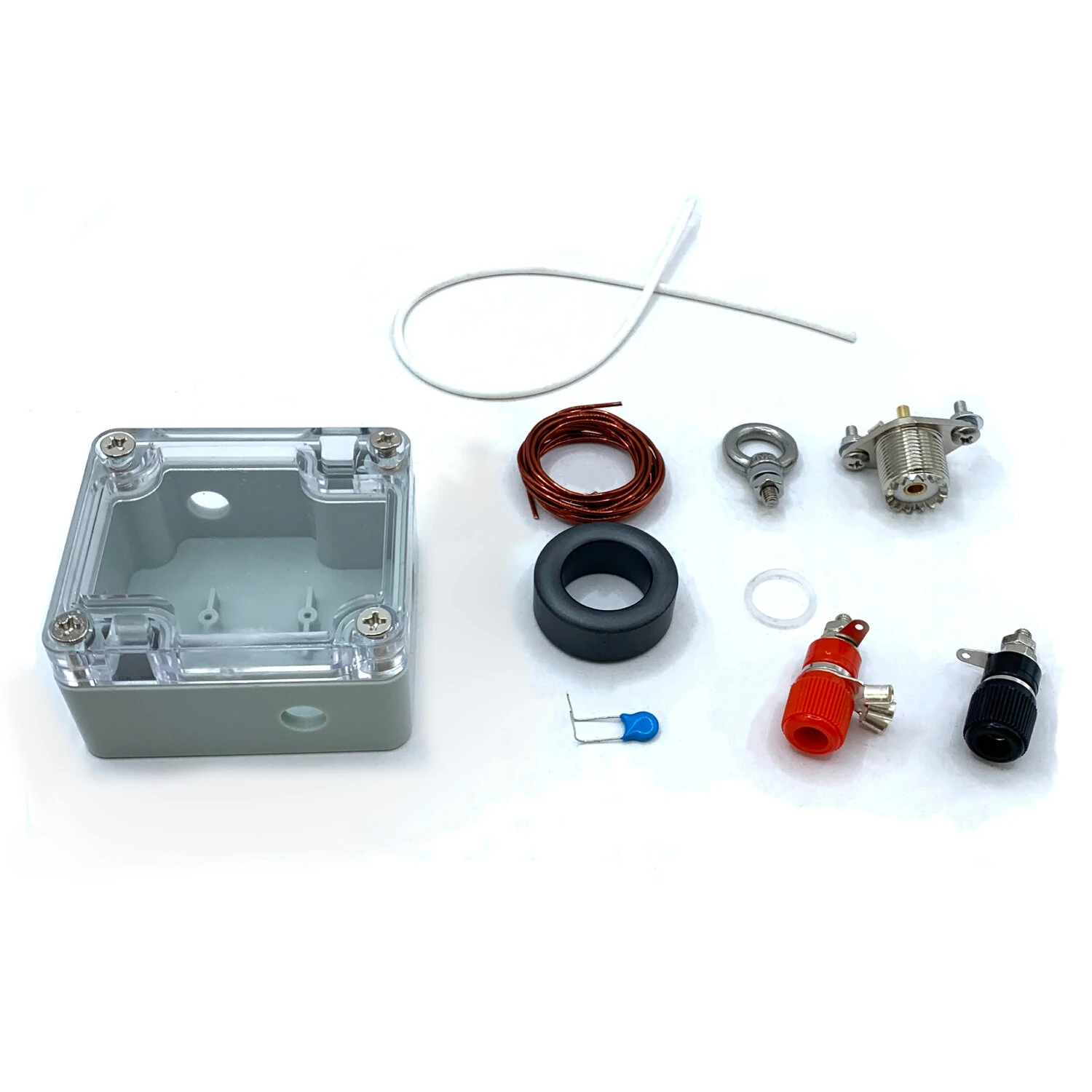

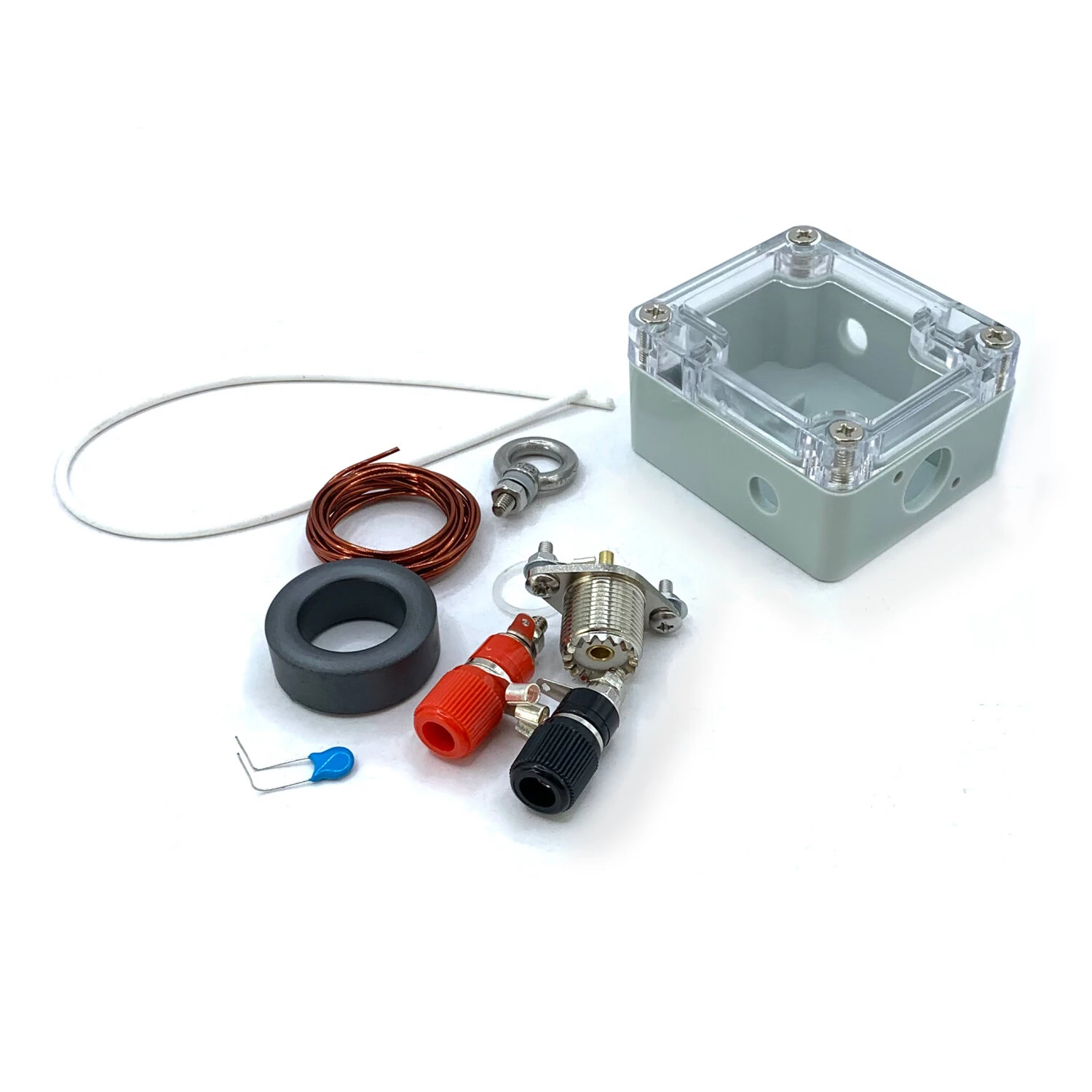

Package Included:
1 × Housing (including waterproof strip)

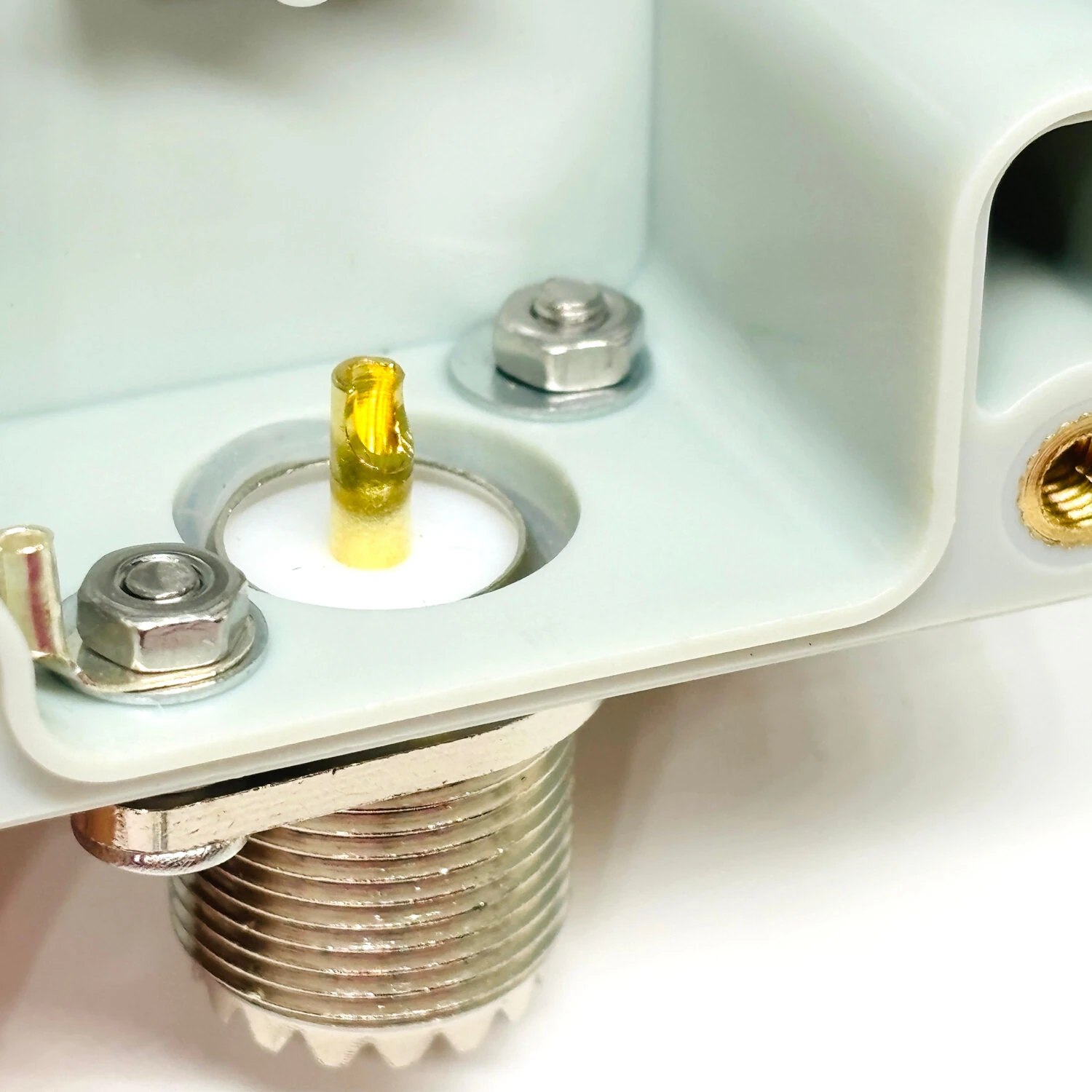

1 × SL16/M-KF RF Connector
1 × JS-910B type terminal block
1 × Magnetic Ring
1 × Enameled Wire (1mm×1.2m)
1 × M4 Eye Bolt
1 × 100pF High Voltage Capacitor
1 × Fixing Terminal
1 × M4 Fixing Washer
1 × Waterproof Washer
Notes:
- This kit requires self-soldering and assembly. You will need your own soldering iron, wire strippers, and basic electronics skills.
- Remove the insulation from both ends of the enameled wire before soldering to ensure a reliable solder joint.
- This DIY kit does not provide assembly instructions or debugging support. Please assemble it according to your own technical capabilities.
- Parts specifications may vary slightly from batch to batch without prior notice. The actual product shall prevail.
