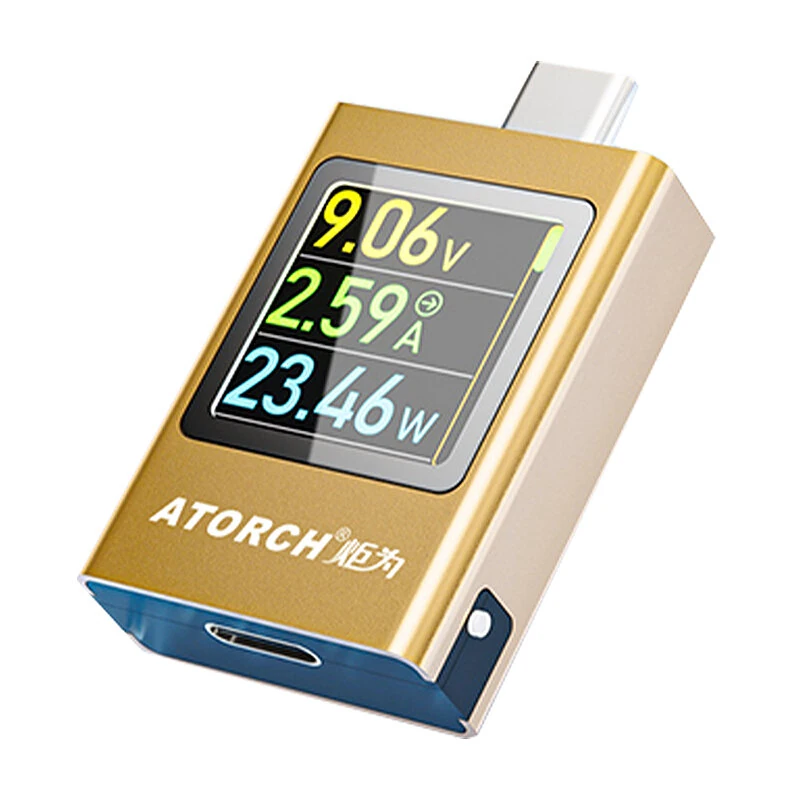

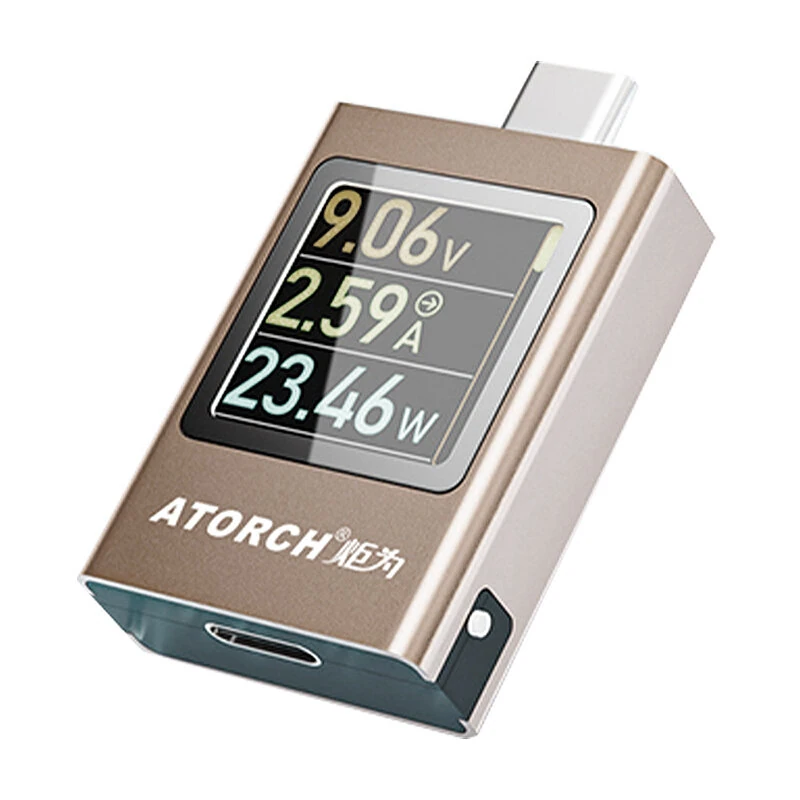

ATORCH AT085C DC4.5-50V 0-12A 600W PD3.1 Digital Display Voltage Ammeter for Power Bank Meter Type-C Mobile Phone Charger TFT G-Sensor Tester

Parameters:

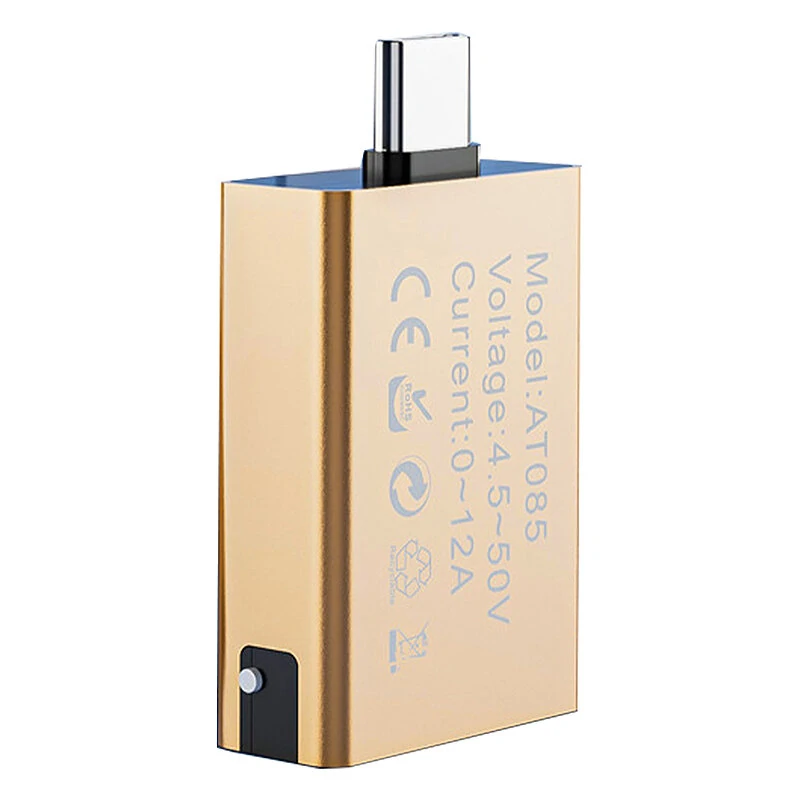

Product name: Type-C detector Product model: AT085 LCD screen: IPS HD colorful Power supply mode: 48V full voltage power supply Working voltage: DC 4.5-50V Working current: 0-6A (short-term peak 12A) Bidirectional current: 12A in both directions Power display: 0-600W Battery display: 0~9999Wh Capacity display: 0~99999mAh Working temperature: 0-45 ℃/32-113 ℉ Sampling resistance: 0.001R Power consumption: <0.15W Interface type: C male and C female Type-C: 16PPD3.1 through Protocol communication: CC1, CC2 protocol transmission, D+D- data transmission Temperature measurement: CPU temperature measurement Power supply method: 48V full voltage power supply Capacity calculation: Calculate the capacity based on the electricity value Power chip: DC-DC switching power supply Control mode: Double key page flipping Curve function: Double parameter curve can paused/run Electric parameter recording: real-time recording of voltage, current, and power peak values Display screen: IPS high-definition colorful display Gravity sensing: gravity rotary screen/support for locking direction Product size: 43 * 25 * 10mm

Features:

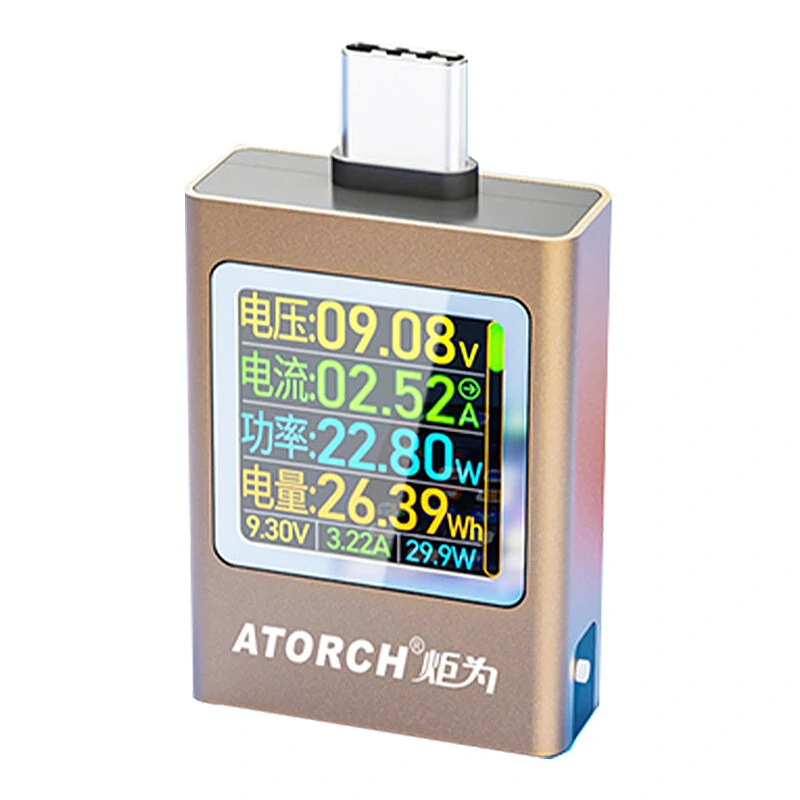

1. Real time display of voltage, current, power, battery capacity, temperature, timing, voltage and current curves, etc.
2. Support multiple fast charging protocols, display multiple parameters on one screen, high-definition color screen, and various test parameters are clear at a glance.
3. Added real-time voltage and current curve display function, making it convenient for users to analyze the fluctuation status during the charging process.
4. Bidirectional current measurement and separate addition of zero load current clearing function make precise current measurement more accurate.
5. It has the function of power-off memory and data storage, which facilitates the data accumulation application of segmented endurance testing.
6. The PD protocol charger automatically turns off the screen with zero power consumption when there is no current, prolonging the screen's service life, and is energy-saving and environmentally friendly.
7. Using DC-DC switching power supply chip to supply power to the route, with a wide input voltage range, high power supply efficiency, and low power consumption.

Functional operation: Up/Enter/Back key

Short press is to turn up the page or dial the number; Long press is the function of entering or returning. (Tips: When you press this button for the first two pages, the screen turns white.)

Down/Clear/Confirm key

Short press is to turn down the page or adjust the number: Long press on different pages is to clear the power capacity, pausethe curve, confirm and clear the no-load current, etc. (Tips: press this key five times quickly to lock and unlock the display direction of the screen)

Frequently Asked Question: Question 1: Why is the product not displayed when the product is plugged into the charger alone? Answer: By default, the Type-C port of most chargers has no voltage output. At this time, the product has no power supply and no display. Only when the load agreement is detected will the charger have voltage output and the product will be displayed at this time. Question 2: My product charger is marked with 10A or 120W. Why can't the test meter detect 10A or 120W? Answer: The measured value of this product is the real-time charging parameter in the charging process, and the parameter marked on th© charger is the maximum power parameter of the product, so it is not always possible to output such a large parameter. Question 3: Why does the output occasionally show a current of 0.01-0.02A when there is no load? Answer: This product adopts bidirectional current testing, and it is normal that there is a small no-load current, but it can also be cleared by pressing and holding the function key quickly in the current clearing interface.
Package Include:
1x Power Meter
