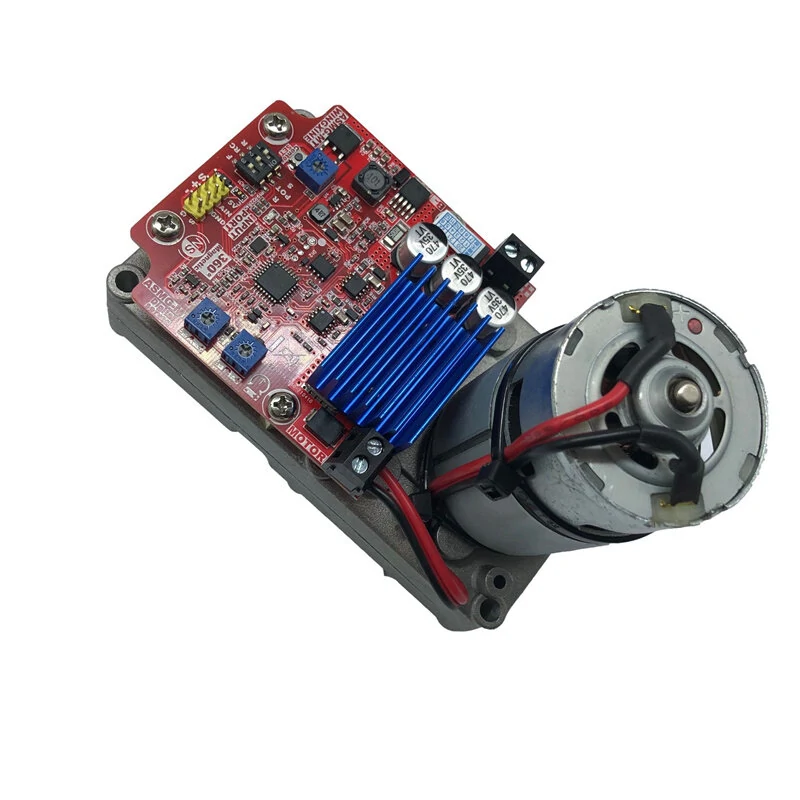

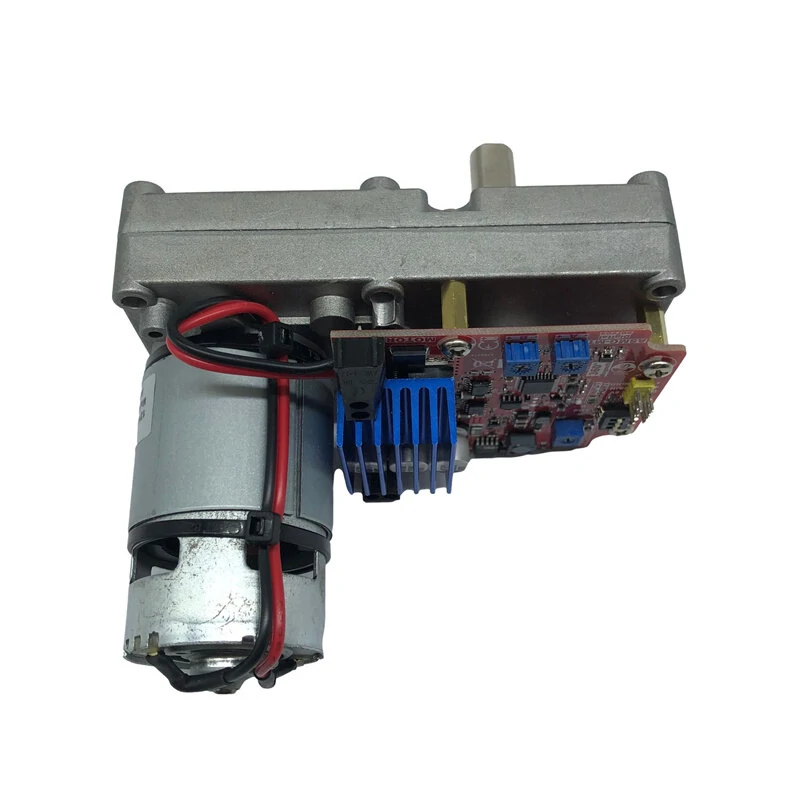

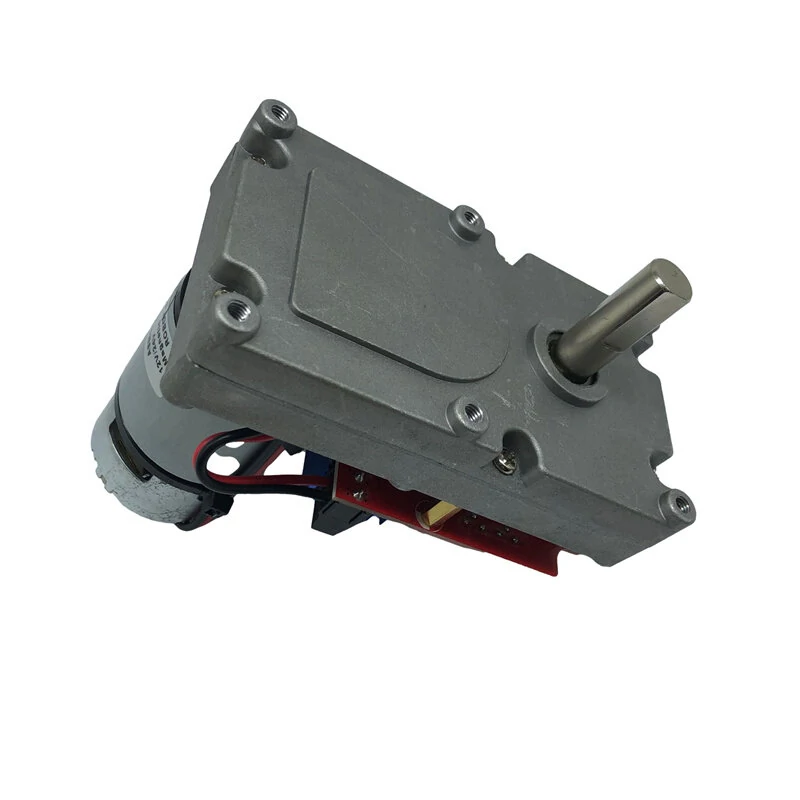

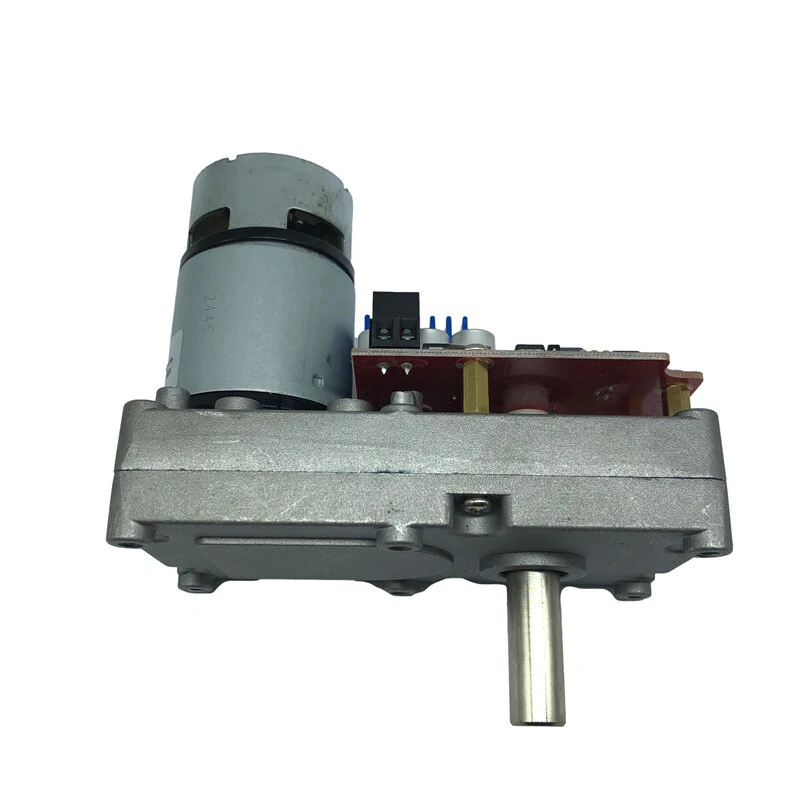

ASMG-MTB Magnetic Encoded 360° High Power High Torque Servo 500KG Robot Steering Motor Software Large Mechanical Arm 12V-24V
The ASMG-MTB Magnetic Encoded 360° High Power High Torque Servo 500KG Robot Steering Motor Software Large Mechanical Arm 12V-24V is a premium product designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The ASMG-MTB Magnetic Encoded 360° High Power High Torque Servo 500KG Robot Steering Motor Software Large Mechanical Arm 12V-24V is a premium designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications:
Rated parameters:
Rated voltage: 12V~24V/DC (11V/MIN~30V/MAX, limit voltage
No-load current: <500mA (current limit: 10A, it is recommended to use a switching power supply or battery greater than 15A)
Limit angle: ±180° or 0°~360° (MAX) The servo has electronic limit adjustment
RC mode: 1ms Pulse mode: 1ms~2ms (pulse width)/50Hz (cranial rate) suitable for wireless remote control control
2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency) suitable for multi-channel steering gear controller control
Analog voltage mode: 0V-3.3V input voltage (OV corresponds to 0, 3.3V corresponds to 360°)
Control resolution: 360° corresponding to 15Bit resolution (32768), ARM32-bit MCU, real digital port to read magnetically encoded data
Material: Gear and shaft: alloy steel; Gear box: cast aluminum
Weight: 550g
Overall dimensions: 95mm*60mm*110mm
Mechanical life: >1,000,000 times/full load (conservative value)
Limit parameters:
Limit voltage: 11V-30V/DC (MAX)
Current limit value: 10A±0.2A(MAX)
Working angle: 180° or 0°~360°(MAX)
RC mode:
1ms pulse mode: 1ms~2ms (pulse width) 50Hz~333Hz (frequency)
2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz~333Hz (frequency)
Analog voltage mode: 0V-3.3V input voltage 0V corresponds to 0°, 3.3V corresponds to 360°
Weight: 510g~560g
Features:
Suitable for ostrich aircraft controller, model aircraft wireless remote control and analog voltage control
Alloy gear high power motor high torque output
Aluminum alloy reduction box is ultra-light weight
Easy to install, sturdy and durable
Application Scope:
Heavy-load motion control of arm joints and leg joints of large robots
Industrial automation production line robot control
Precise control of door cutting angle
Large camera pan/tilt remote control
Various occasions requiring large torque angle control
Package Include:
1x ASMG-MTB Module Board
