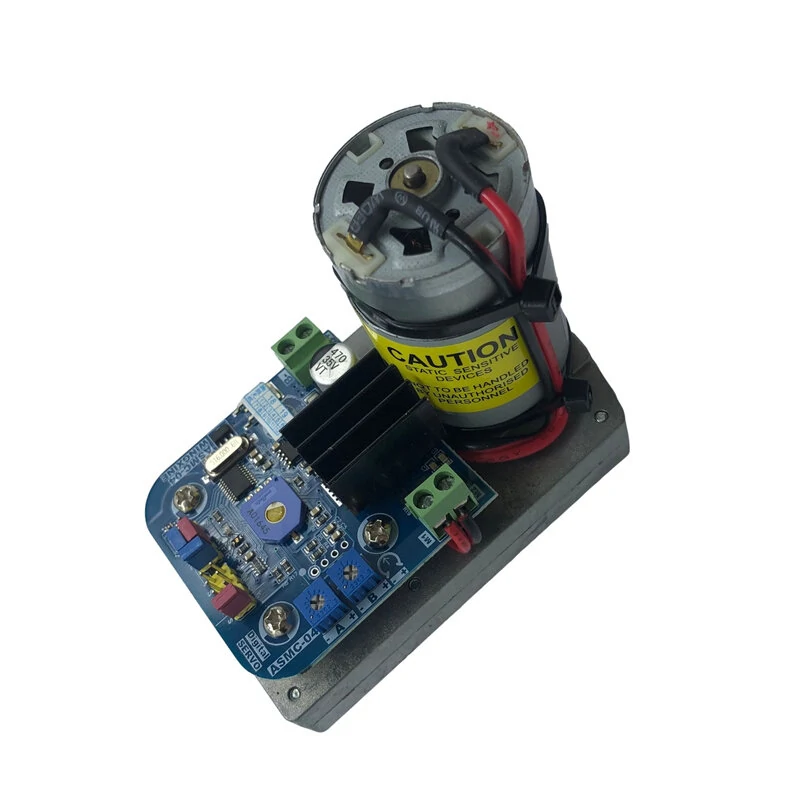

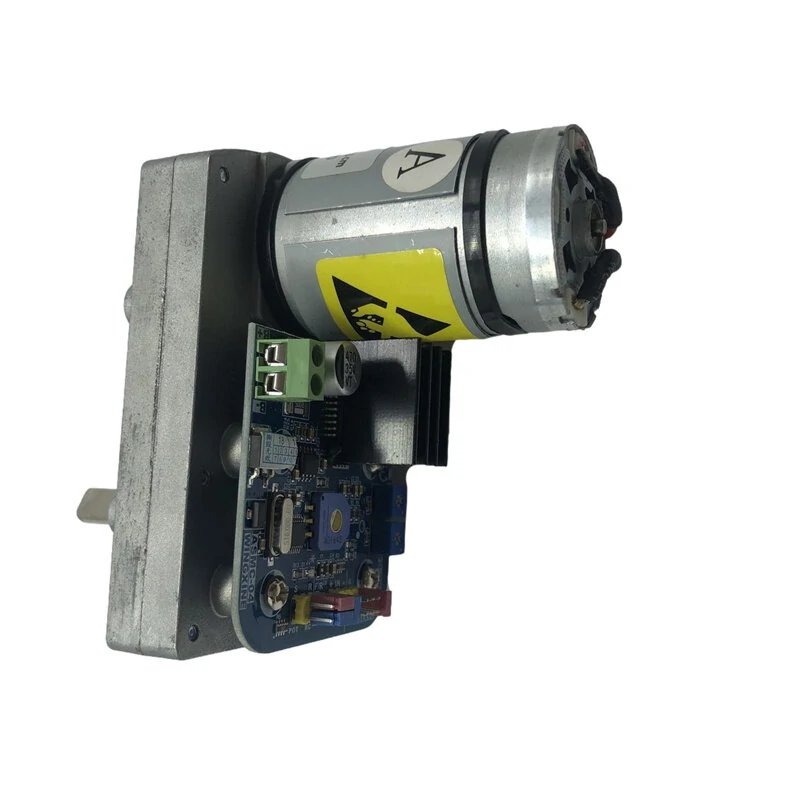

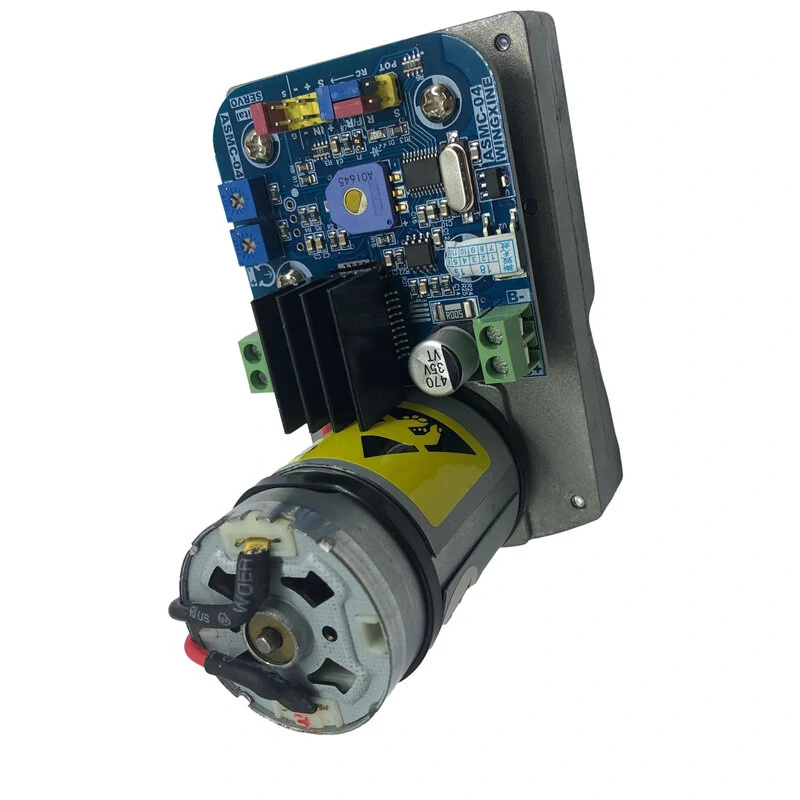

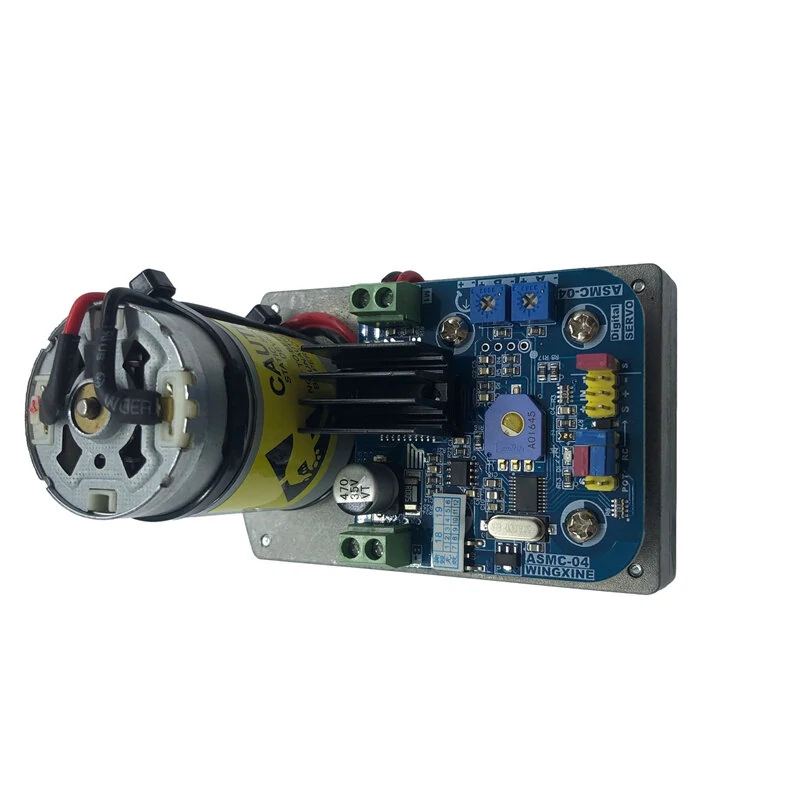

ASMC-04A Super Torque Digital Industrial Model Aircraft Steering Gear Robot Steering Gear Super Steering Gear
The ASMC-04A Super Torque Digital Industrial Model Aircraft Steering Gear Robot Steering Gear Super Steering Gear is a mid-range product designed for professionals. It features Model: ASMC-04A and Working voltage: 12V to 24V (DC).
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Quick Specs
Ideal For
About This Product
The ASMC-04A Super Torque Digital Industrial Model Aircraft Steering Gear Robot Steering Gear Super Steering Gear is a mid-range designed for professionals. It delivers reliable performance at an accessible price.
Key Specifications
- Model: ASMC-04A
- Working voltage: 12V to 24V (DC) — works with standard household power
- No-load rotation current: <500mA
- Maximum torque: 110kg.cm (24V)
- Angular velorcity: 0.12s/60° at 24V; 0.24s/60° at 12V;
- Rotation angle: 300°MAX (0 to 300° electronic limit adjustable)
- Input mode: Pulse signal (remote control, multi-channel steering gear controller, microcontroller) or analog voltage signal (potentiometer) — works with standard household power
- Pulse signal input range: 0.5ms-2.5ms suitable for all "multi-channel steering gear controllers", "1ms-2ms model aircraft remote controls", "microcontroller programmingArduino", etc. — reliable connection even at a distance
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Features:
1. High power and high torque control suitable for medium and large-sized robots.2. Wide working voltage range from 12V to 24V with a no-load rotary current of less than 500mA.
3. Superior maximum torque output of up to 110kg.cm at 24V.
4. Adjustable electro limit rotation angle from 0 to 300°MAX.
5. Built with robust, high-quality steel gear and optimized for control accuracy of 0.32°.
Package Include:

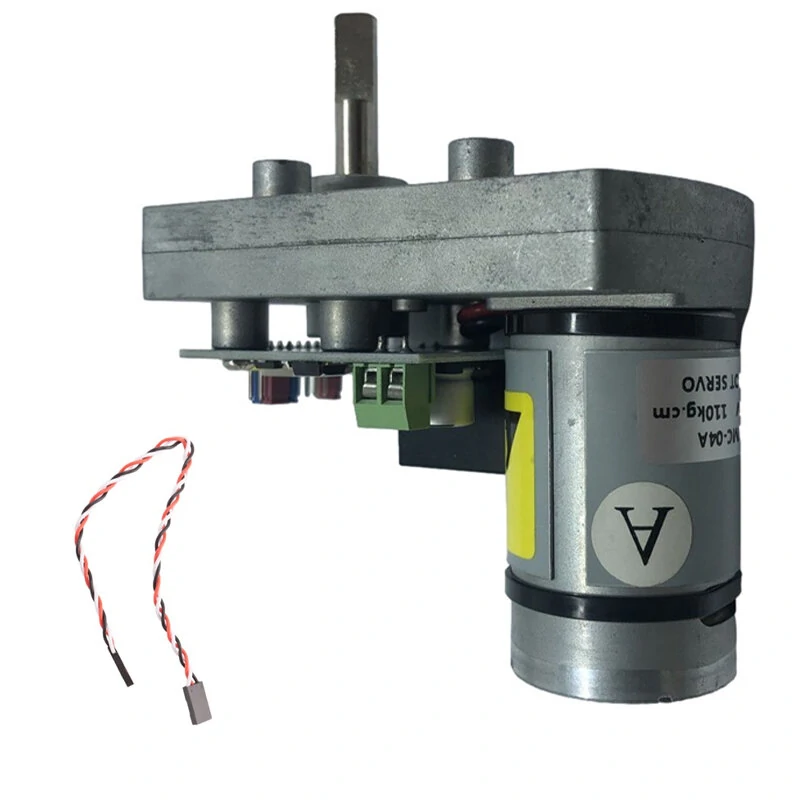

1x ASMC-04A Steering Gear
1x 20cm Signal Cable
