hi, I get my device, but after connecting the red test lead to the A Terminal for current measuring (current was 500mA) I put the red lead to V Terminal but my device doesn't want to measure voltage or anything else. Even if I unplug leads those 3 buttons doesn't work. I tried to search something about of this problem online and I found that there are more people with the same problem. Can you tell me how to fix that?

Check the two N-Channel Mosfets A6SHB on Q4 and Q5. I had the same problem - replacing them with new ones solved the problem.

what is the live wire test and how you connect the probes into the meter?

The NCV stage is already built into the instrument, above the display (an internal coil). It detects the magnetic field produced by alternating voltages, informs us of its presence at the point where we point ANENG Q1, and thus we avoid undesirable electrical shocks. ... see more see less

There are two items with the same ANENG Q***** nomenclature, one is red and the other is yellow, what is the difference between them?

the yellow one is thermocouple for measuring temperature

Can you increase the brightness of the display? Using outdoors, I can hardly see the numbers.

In the outdoors u can see the screen with full brightness.

Is there a way to turn up the shine?

There is no way to increase the brightness of the screen, but it is enough with the backlight that it has.

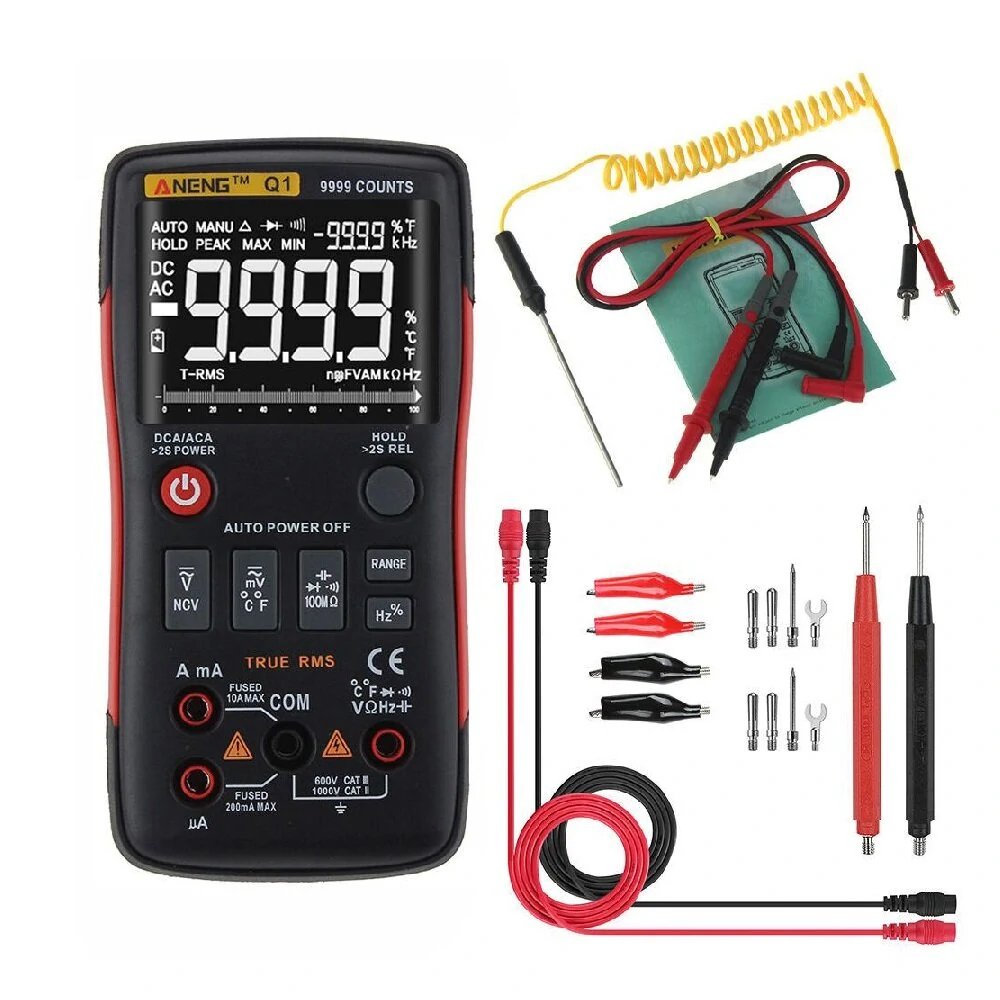

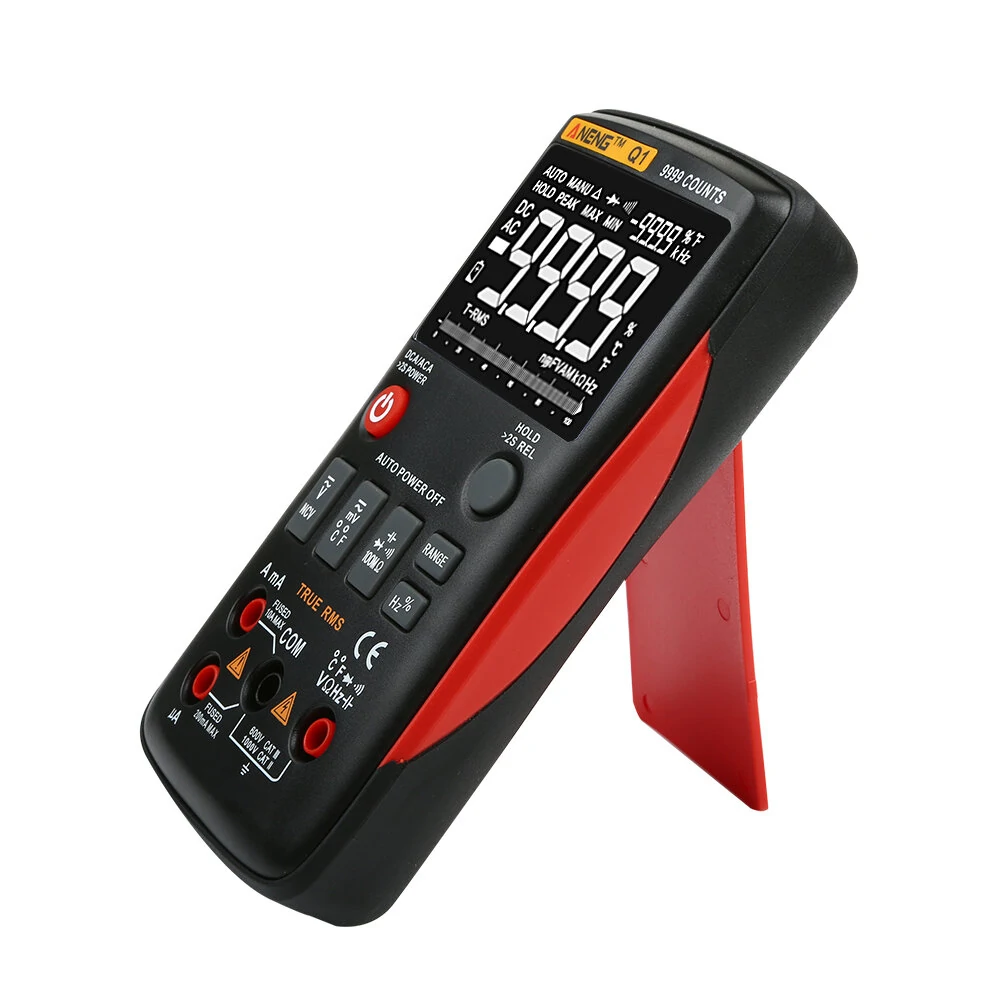

ANENG Q1 9999 Counts True RMS Digital Multimeter AC DC Voltage Current Resistance Capacitance Temperature Tester Auto/Manual Raging with Analog Bar Graph — image 1

Hover to zoom

1 / 10 · Click to enlarge

ANENG

ANENG Q1 9999 Counts True RMS Digital Multimeter AC DC Voltage Current Resistance Capacitance Temperature Tester Auto/Manual Raging with Analog Bar Graph

Name: ANENG Q1 9999 Counts True RMS Digital Multimeter AC DC Voltage Current Resistance Capacitance Temperature Tester Auto/Manual Raging with Analog Bar Graph
Brand: ANENG
SKU: bg-1302943
Price: 5027 INR
Availability: InStock
Rating: 5.0 (1383 reviews)

5.01,383 ratings

AI Summary

Tools, Industrial & Scientific for DIY enthusiasts and makers

The ANENG Q1 9999 Counts True RMS Digital Multimeter AC DC Voltage Current Resistance Capacitance Temperature Tester Auto/Manual Raging with Analog Bar Graph by ANENG is a premium tools, industrial & scientific designed for DIY enthusiasts and makers. Customers praise its easy to set up and use and excellent build quality. 100% of buyers rate it 4★ or above.

✓ easy to set up and use✓ excellent build quality✓ great value for money✓ fast and responsive

₹5,027-12%

MRP:₹5,699Save ₹672

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

12% Off — you save ₹672 on this product!

Quantity

Total: ₹5,027

Buying tip: A quality investment for dependable performance and premium build quality.

Estimated delivery: 4 Aug – 18 Aug

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Home improvement projectsDIY repairs and assemblyProfessional work

SKU: bg-1302943Category: Tools, Industrial & Scientific

About This Product

The ANENG Q1 9999 Counts True RMS Digital Multimeter AC DC Voltage Current Resistance Capacitance Temperature Tester Auto/Manual Raging with Analog Bar Graph by ANENG is a premium tools, industrial & scientific designed for DIY enthusiasts and makers. Customers highlight its easy to set up and use and excellent build quality.

Customer Verdict

100% of buyers rated this product 4 stars or above. The most appreciated qualities are: easy to set up and use, excellent build quality, great value for money, fast and responsive.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Special Features:

1. True RMS

2. NCV

3. Auto and manual ranges selectable

4. Analog bar graph

5. Black EBTN screen

Specifications:

Capacitance: 9.99nF/99.99nF/999.9nF/9.99uF/99.99uF/999.9uF/9.999MF

Voltage: 999.9mV/9.999V/99.99V/999.9V

Current: 999.9uA/99.99uA/999.9mA/10A

Resistance: 99.99/999.9/9.999k/99.99k/999.9K/9.999M/99.99M Ohm

Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/5MHz
Temperature: -20℃~1000℃/-4℉-1832℉

Display Type: Digital Display

Diode Test: Yes

Continuity: Yes

Duty Cycle: 1%-99%

Sample Rate: 3 times per second

Power: 2 x 1.5V AA batteries(Not Included)

DIY Supplies: Electrical

Operating Mode: Auto/Manual Ranging

Operating Temperature: 0 - 40 ℃

Operating Humidity: ≤75%RH

Storage Condition: -20~60℃

Storage Humidity: ≤80%RH

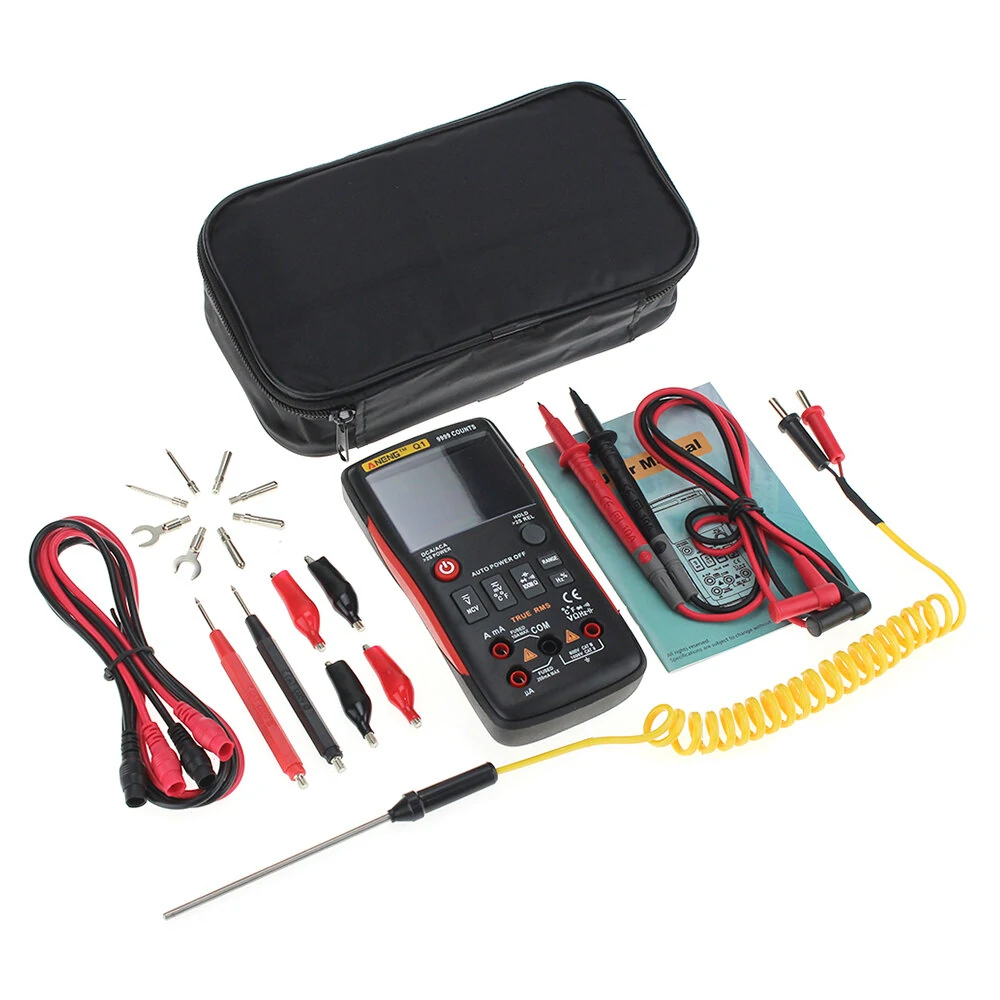

Package Included:

1 x ANENG Q1 9999 Counts True RMS Digital Multimeter

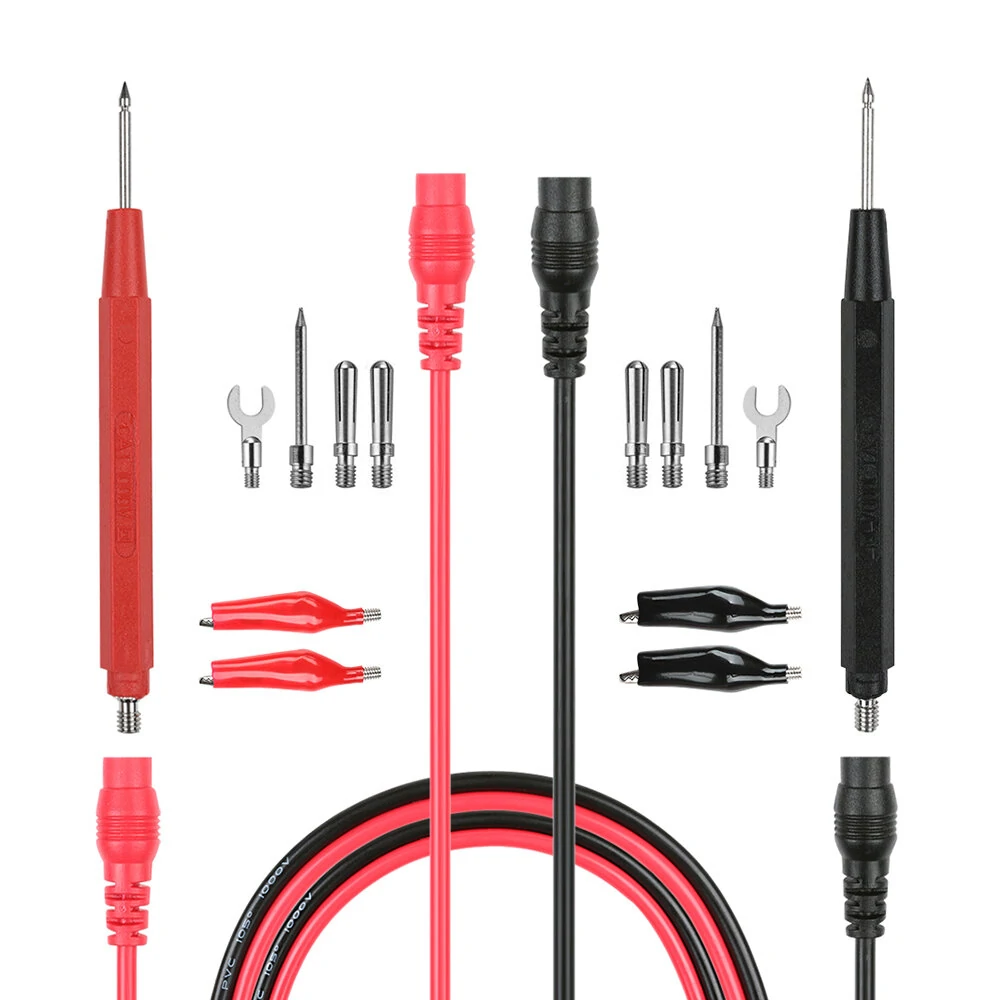

1 x 16 in 1 Multifunctional Test Line
2 x Test Probe
1 x Temperature Sensor
1 x Storage Bag
1 x English User Manual

Detail Pictures:

Product Safety Information

Setup Guide

Charge the battery pack

Insert the battery into the charger and plug in. Charge fully before first use — most packs take 1–3 hours. The LED will turn green when complete.

Insert the correct bit or blade

Open the chuck by turning it counterclockwise. Insert the drill bit or screwdriver tip and tighten the chuck firmly by hand.

Set direction and speed

Use the forward/reverse switch to set rotation direction. Select the speed mode (low for screwing, high for drilling) if your model has multiple speeds.

Adjust the clutch

Set the clutch to a low number for driving screws (prevents over-tightening) or to the drill symbol for drilling holes.

Use safely

Always wear safety glasses. Keep the drill perpendicular to the surface. Apply steady pressure — let the tool do the work.

Helpful Buying Guides

Best Power Tools in India — Buyer's Guide guide →

ANENG Q1 9999 Counts True RMS Digital Multimeter AC DC Voltage Current Resistance Capacitance Temperature Tester Auto/Manual Raging with Analog Bar Graph

About This Product

Customer Verdict

Why Buy from Pricio?

Setup Guide

Helpful Buying Guides

More from ANENG

ANENG AN8008 True RMS Wave Output Digital Multimeter AC DC Current Volt Resistance Frequency Capacitance Test

ANENG AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Resistance Frequency Capacitance Temperature Tester ℃/℉

SMD Inductor Test Meter Clip Probe for Resistor Capacitor Multimeter

ANENG A3005A A3005APro 4000 Counts Professional Digital Multimeter Pen AC/DC Voltage Hertz Capacitance Resistance Diode Testing Auto Shutdown Essential Tool for Precision Electrical Measurements

ANENG 620A 4.7-inch Large LCD Screen Automatic + Manual Intelligent True RMS Digital Multimeter Resistance Diode Capacitance Temperature Frequency Test

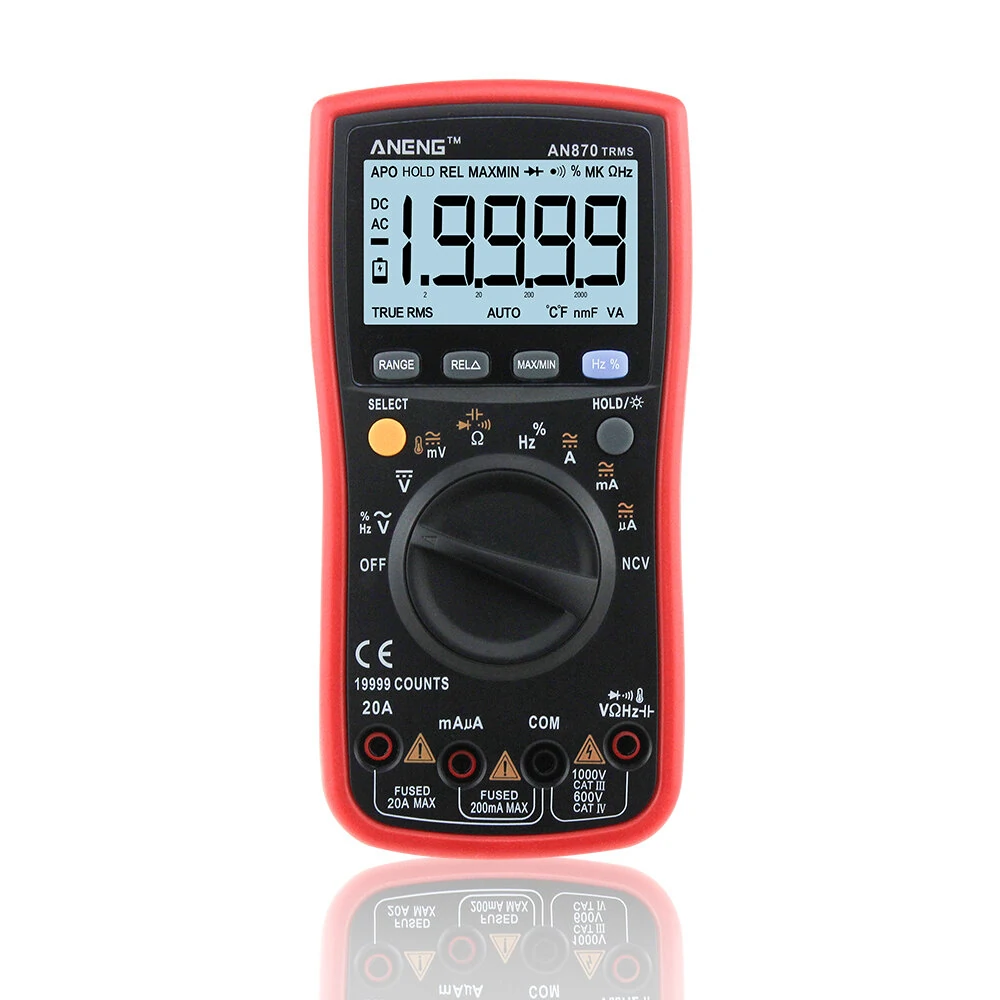

ANENG AN870 Auto Range Digital Precision Multimeter 19999 Counts True-RMS NCV Ohmmeter AC/DC Voltage Ammeter Transistor Tester
