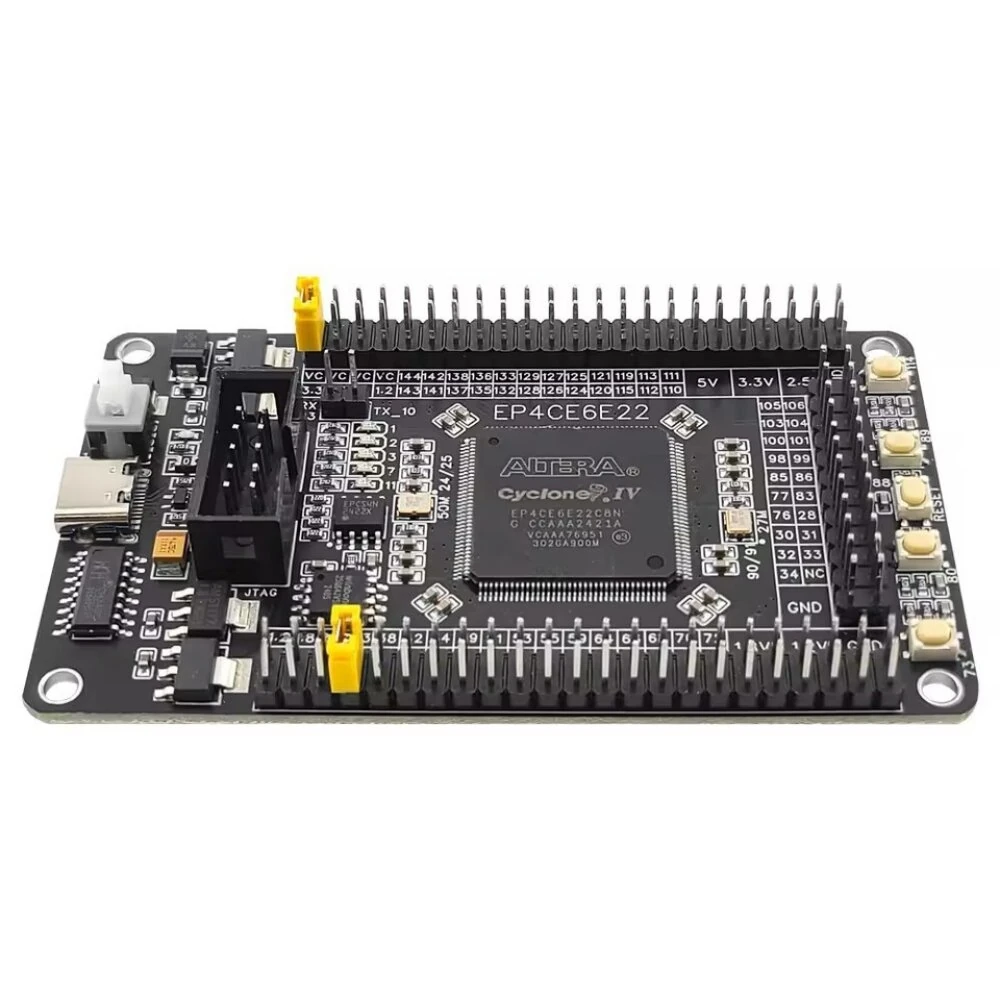

Altera Cyclone IV EP4CE6E22C8N FPGA Development Board High Performance Core Board System Board

Specifications:
Model: Altera Cyclone IV EP4CE6E22C8N
FPGA Type: Cyclone IV
Core Voltage: 1.2V
Dimensions: 88mm x 51mm

Features:
1. Integrated CH340 serial port chip and W25Q storage chip for efficient communication and data storage purposes.
2. Two onboard active crystal oscillators (50MHz and 27MHz) for reliable clock signal generation.
3. Flexible voltage settings for pins, allowing customization using jumper caps (1.2V, 1.8V, 2.5V, 3.3V, and 5V).
4. JTAG download port for seamless connection to Blasters downloaders and programming.
5. Equipped with five onboard LEDs and five pull-up buttons for additional user interaction options.
6. Compatible Type-C power input for convenient and modern power supply connectivity.

Package Includes:
1 x Altera Cyclone IV Development Board
