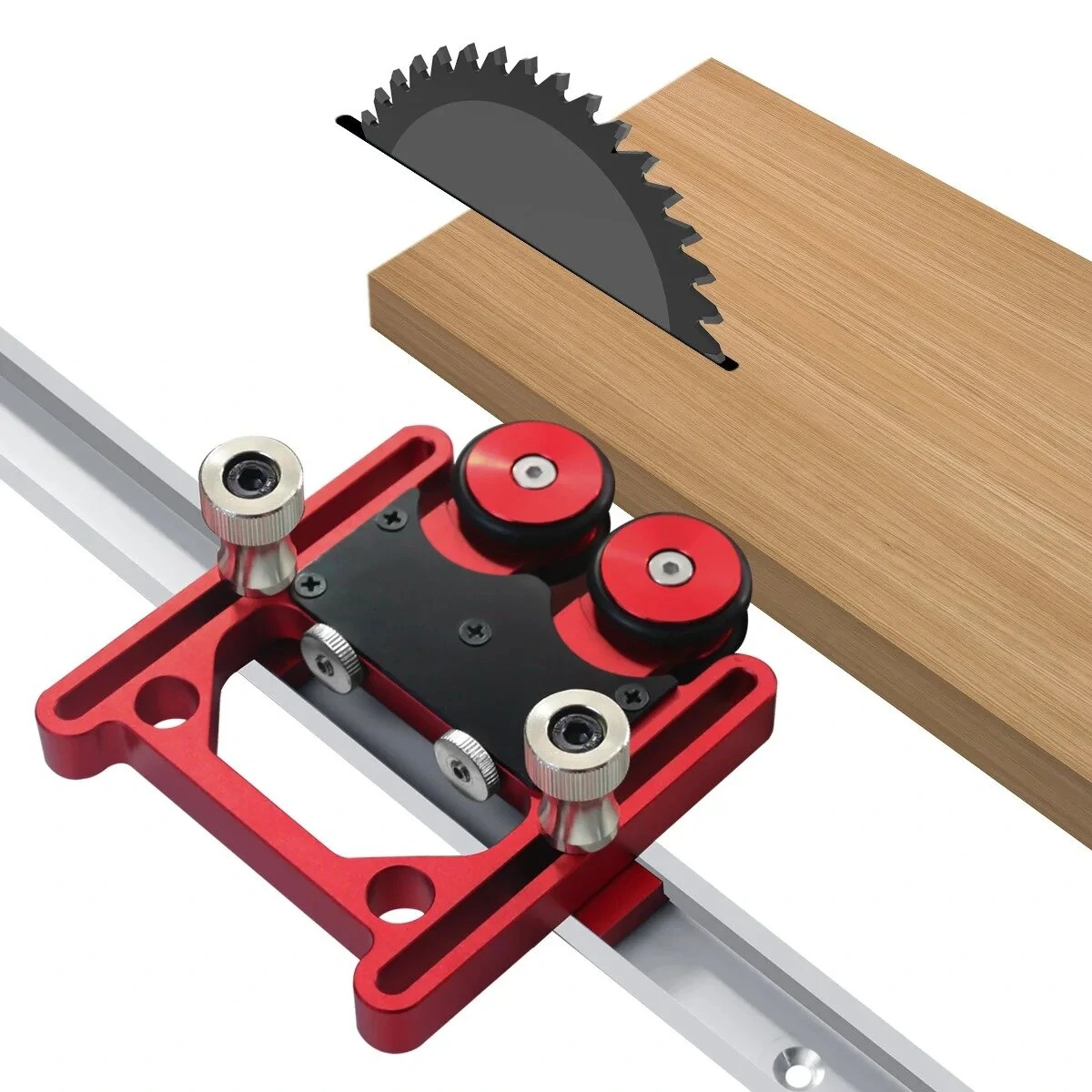

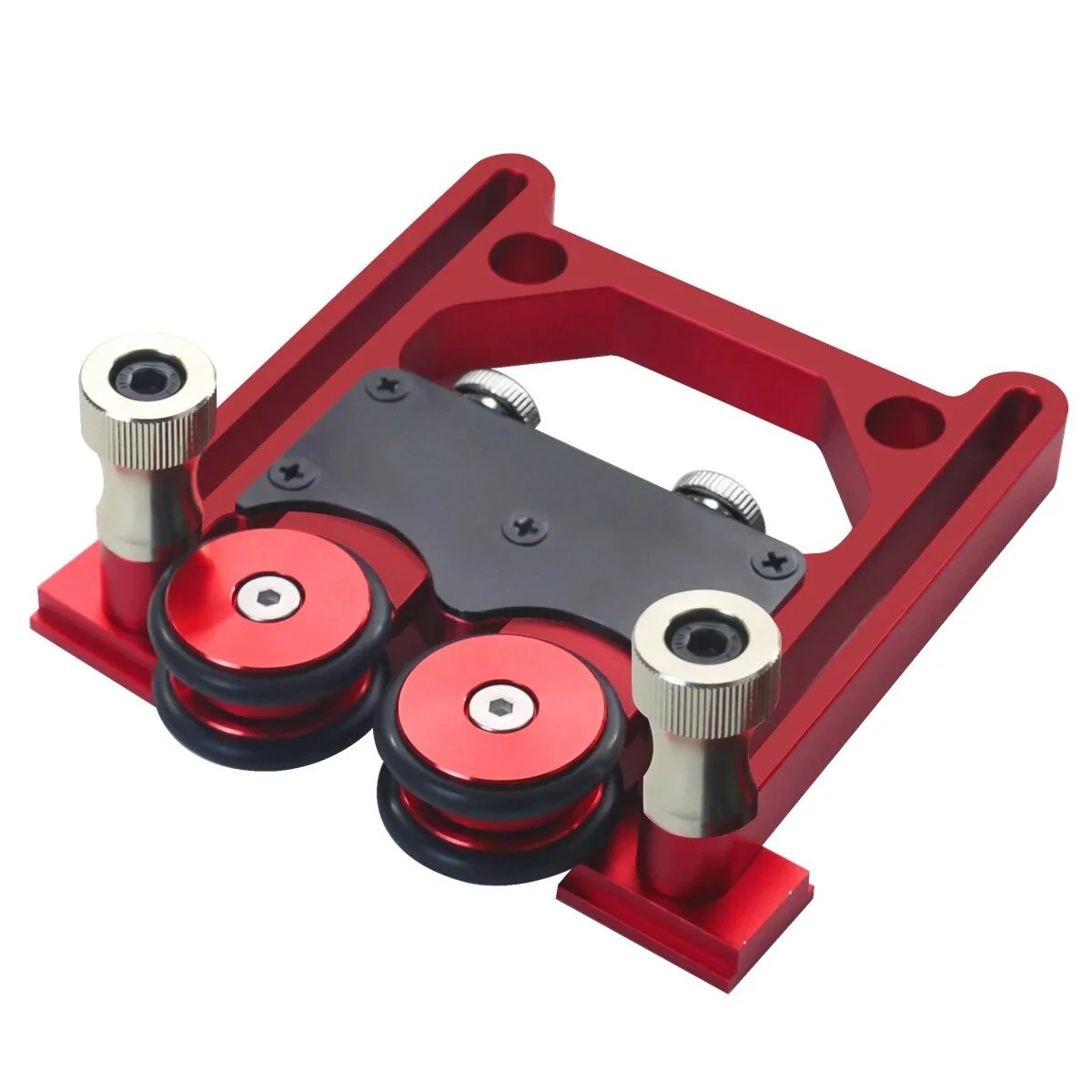

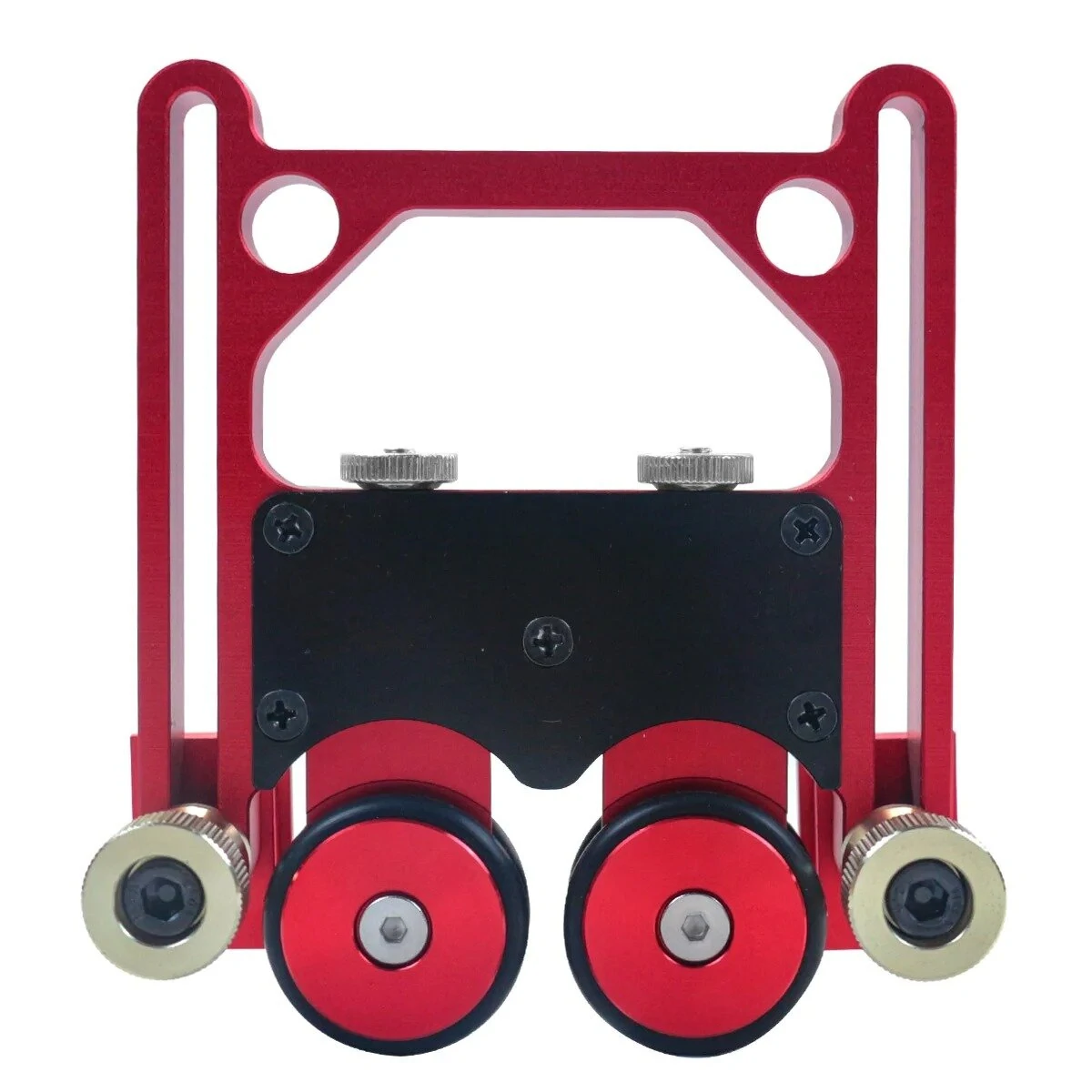

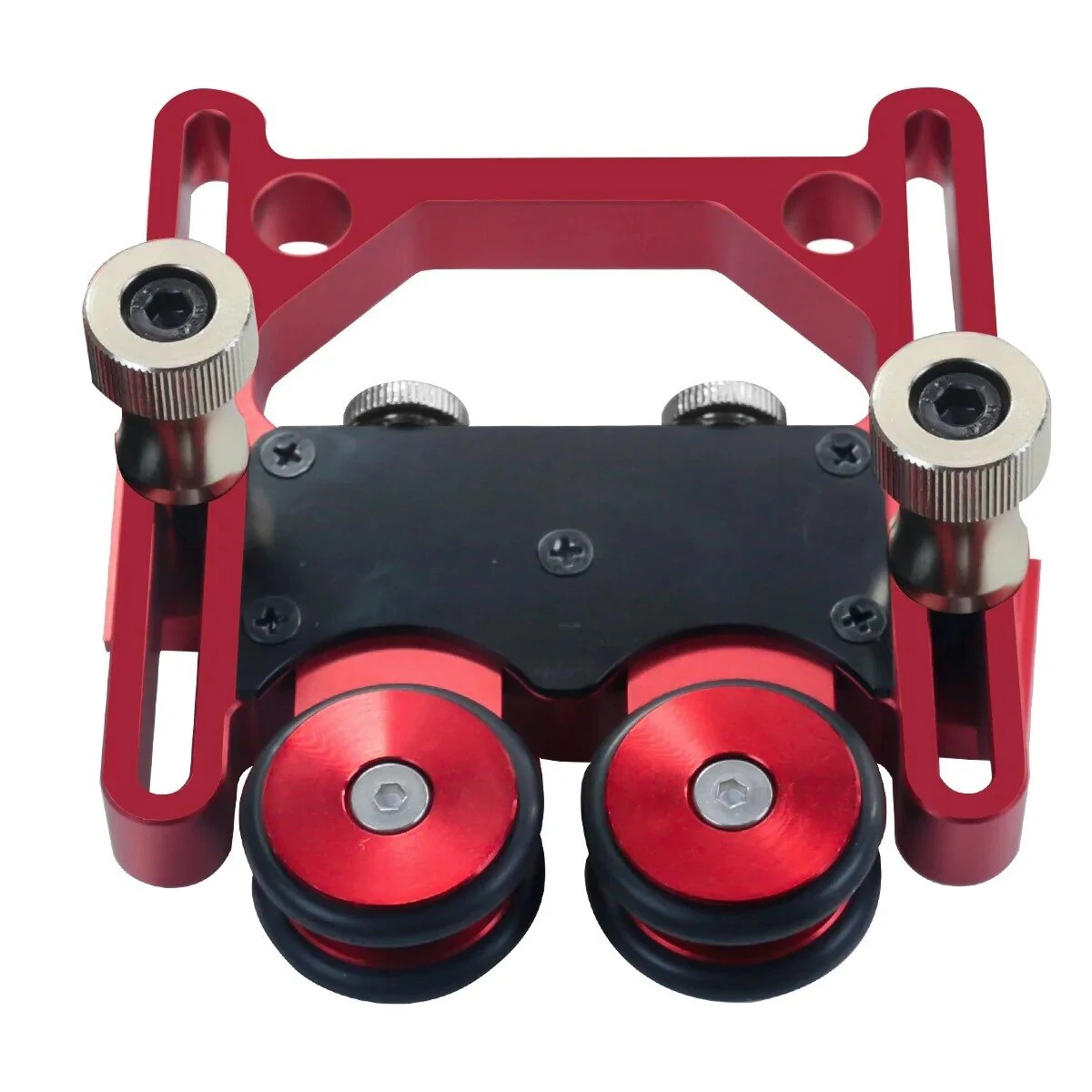

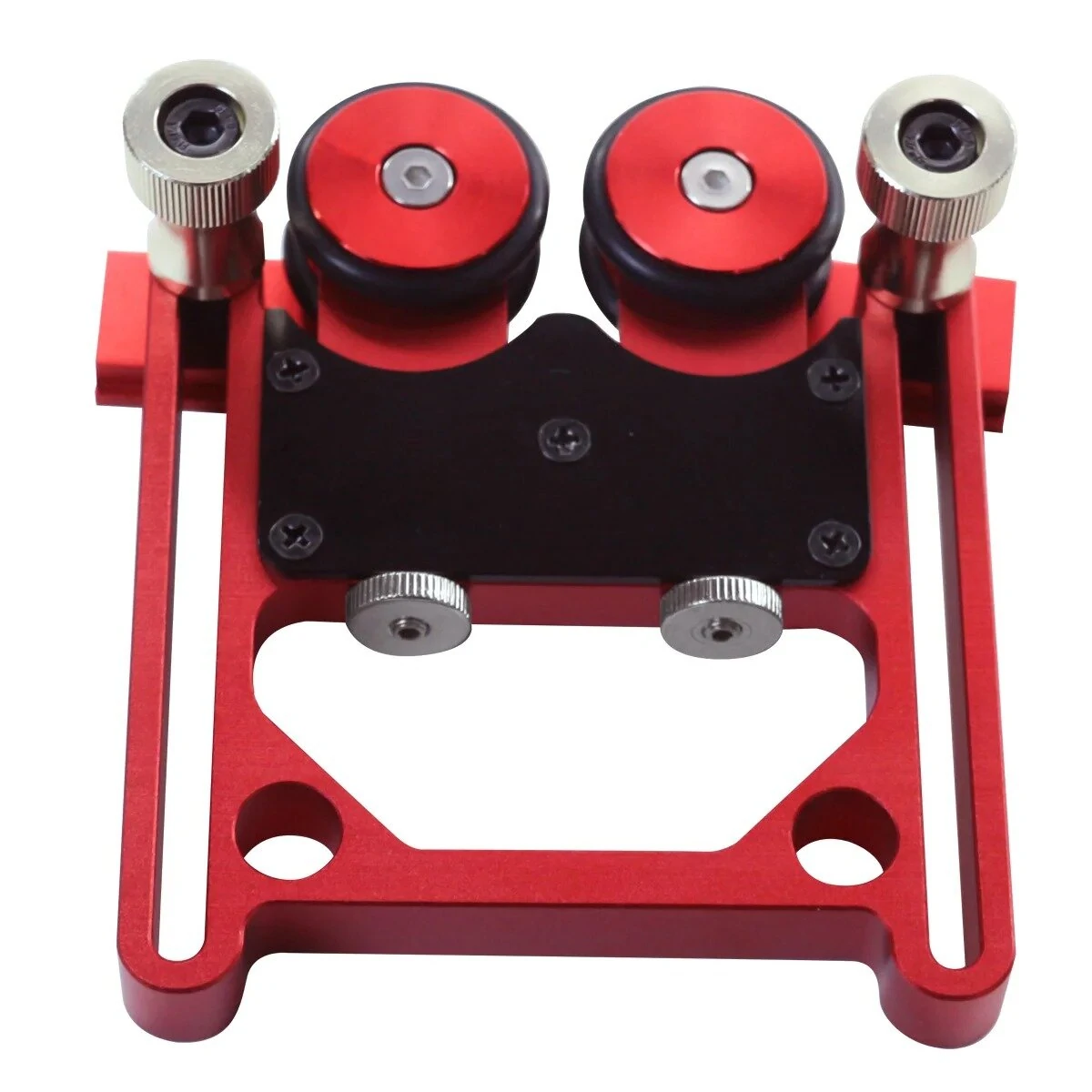

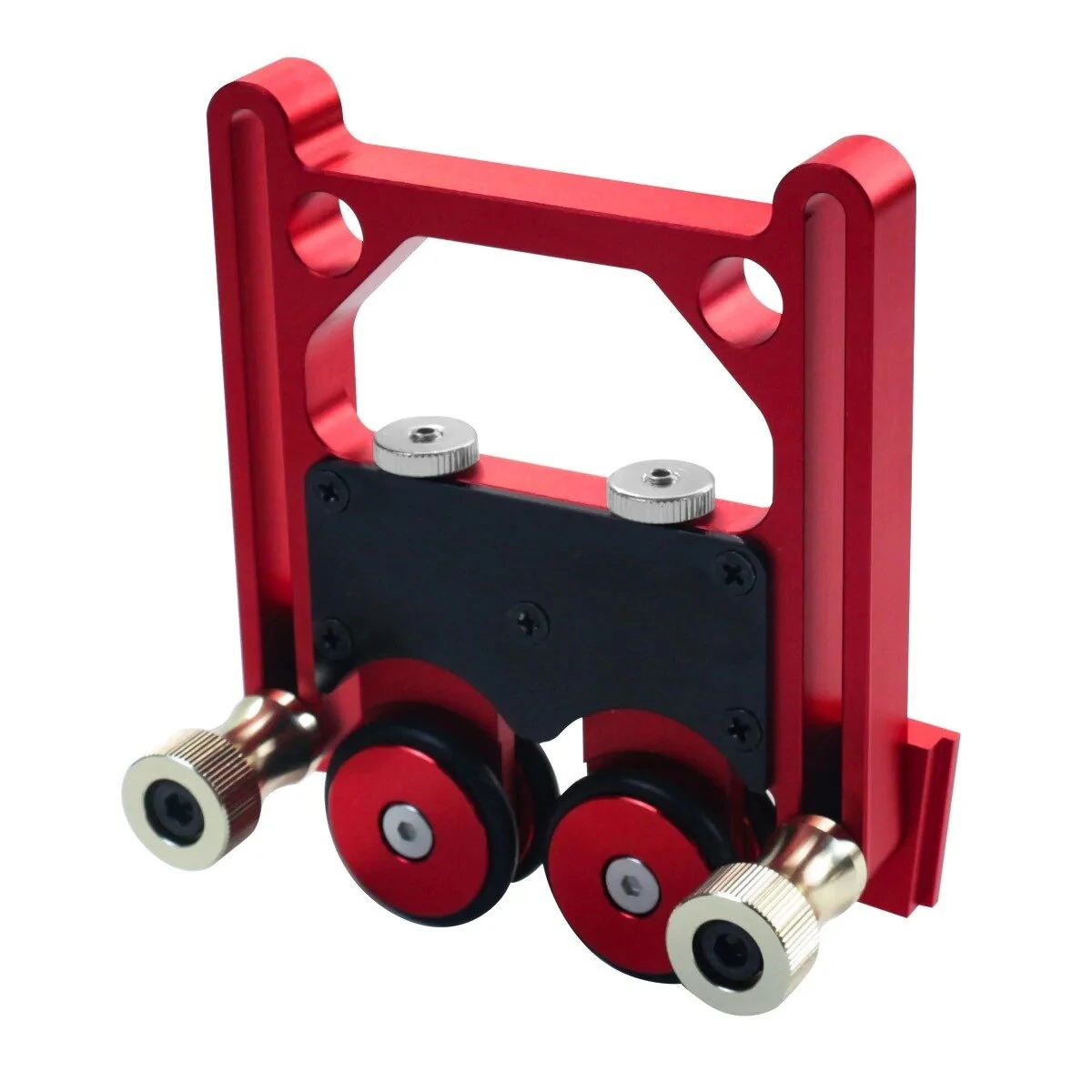

Name: Adjustable Stock Guide with One-Way Wheel and Safety Auxiliary Tool Versatile for Table Saw Band Saw Circular Saw Woodworking Equipment Tool
Brand: Pricio
SKU: 2003119
Price: 3507 INR
Availability: InStock
Rating: 5.0 (36 reviews)

Question 1

whats the max reach, ie distance from mitre slot slider to edge of wheel

Accepted Answer

From the side of the mitre slot nearest to the edge of the wheel the distance is 115mm or 4.5 inches. Hope this helps.

Question 2

If it only turns in one direction, how can it be placed on both the left-side of the blade and the top of the fence?

Accepted Answer

It can be flipped over for use.

Question 3

Are the rollers slightly angled to pull the workpiece against the stop when pushing through?

Accepted Answer

They are perpendicular to miter slot.

Question 4

Please elaborate on what the two small silver pieces are for. The previous answer made reference to a pulley and a backrest, but I have no idea what parts these are referring to.

Accepted Answer

It is installed on your miter gauge. If you don't have a miter gauge, then this small silver piece is useless.

Question 5

I do not understand the answer for what the 2 small square threaded silver pieces are for. To attach the pulley to the backrest? Could provide more clarification to that answer? Thank you.

Accepted Answer

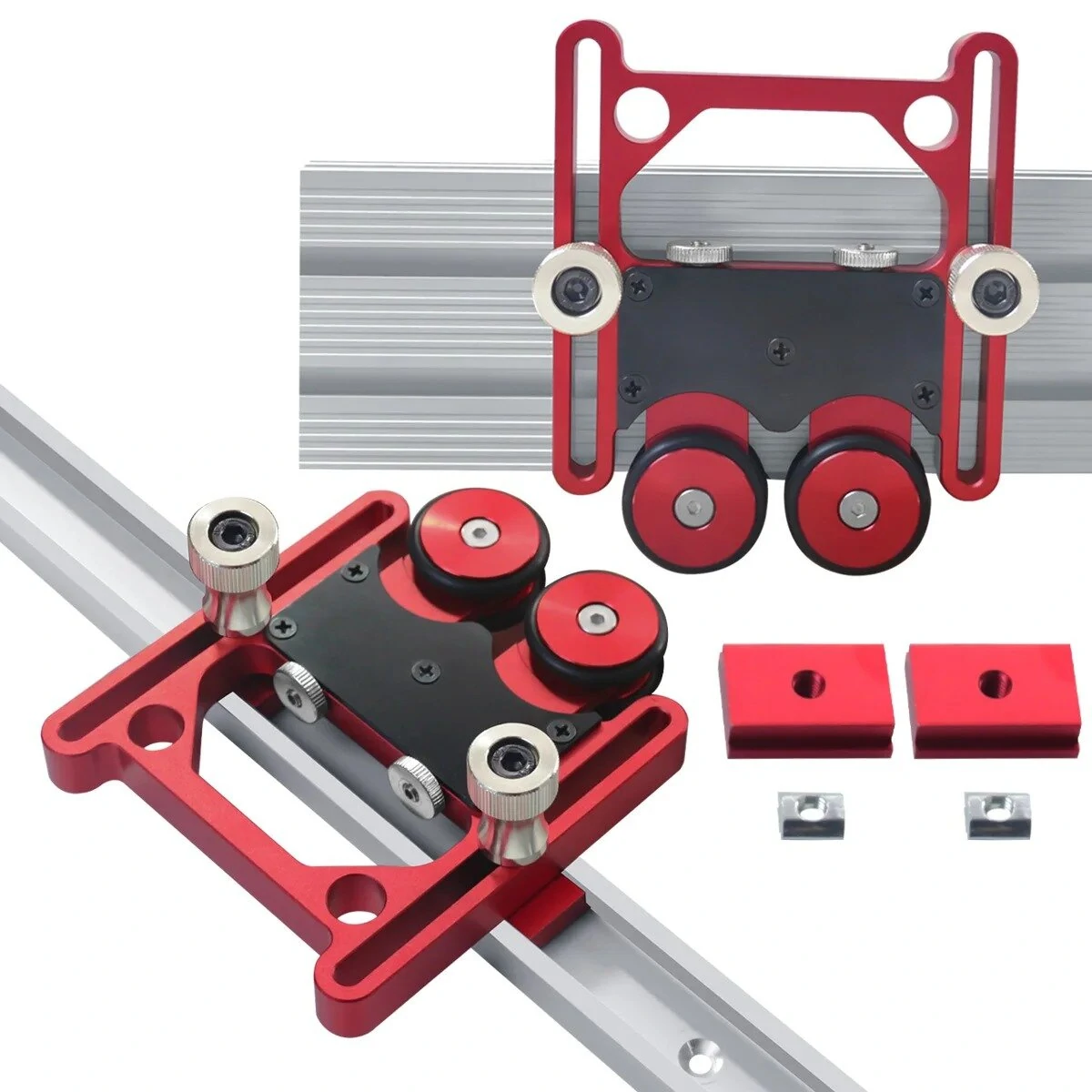

Yes, just connect the pulley to the backrest, the two red sliders are connected to the slide rails, and the two silver ones are connected to the backrest.

Question 6

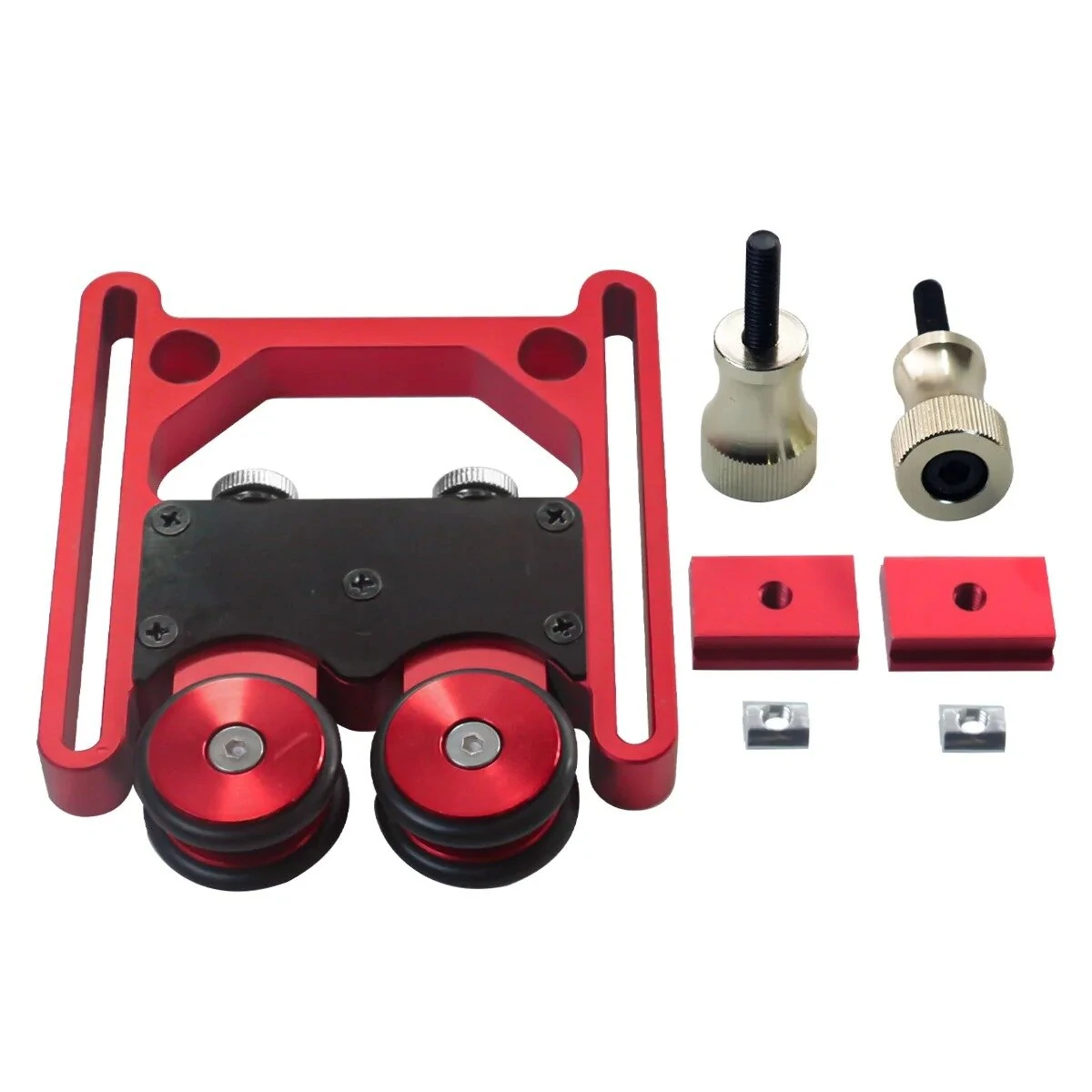

What are the two small silver, threaded square pieces used for?

Accepted Answer

To attach the pulley to the backrest.

Question 7

Could you manufacture this Good Guide roller with 50-60mm longer arms to increase the reach to about 160mm? Reason: Most (U.S. american) router table and table saw t-tracks are 6 - 6.3 in or 150-160mm away from the fence or saw blade! With the longer reach you could increase the versatility of your tool, make it a fantastic tool and sell more!

Accepted Answer

Thank you for your suggestion, we will consider it.

Question 8

hola is the size of the nuts that goes in the track M6

Accepted Answer

Yes, the nuts are M6.

Question 9

Hello are the wheels spring loaded

Accepted Answer

Yes, the wheels are spring loaded.

Question 10

Can you switch the direction of the way the wheels turn

Accepted Answer

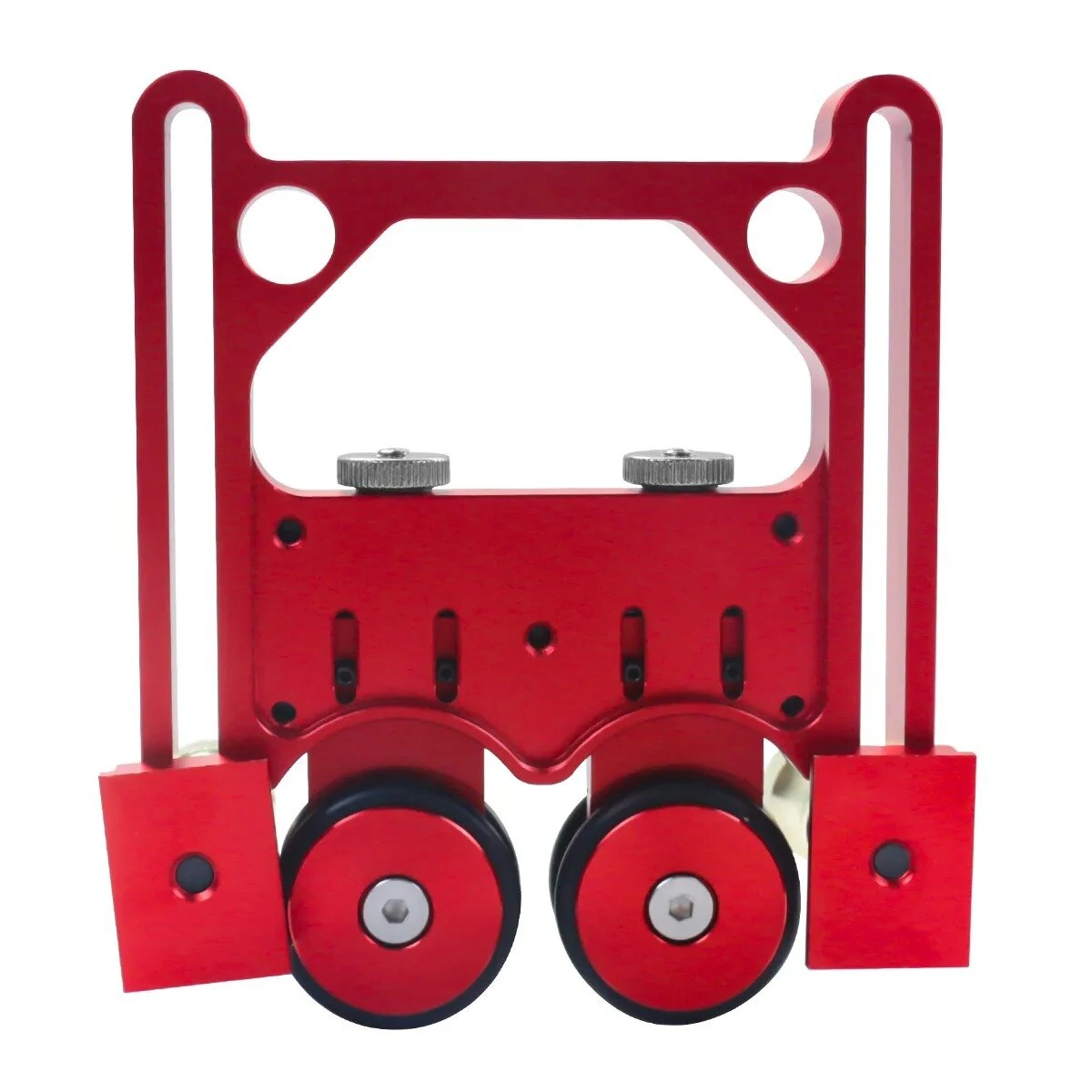

Yes it is possible to change the direction of the one way wheels, it’s quite easy although a bit fiddly. From the underside there are 2 black grub screws per wheel, which limit the travel of the wheels, which are
                                                                                                                    removed with a 1.5 hex key. Unscrew the silver knurled nuts at the opposite end to the wheel and pull out the wheel assembly. There are 2 springs behind the wheel so be careful to locate them and put them safe for reuse. With the wheel assembly removed turn it over and replace it along with the 2 springs. Replace the knurled knob and 2 grub screws. Do the same for the other wheel and you’re in business. It’s actually much easier to do task than describing the process. _I struggled replacing the springs into their blind locating holes so I removed the black cover (5
                                                            ...
