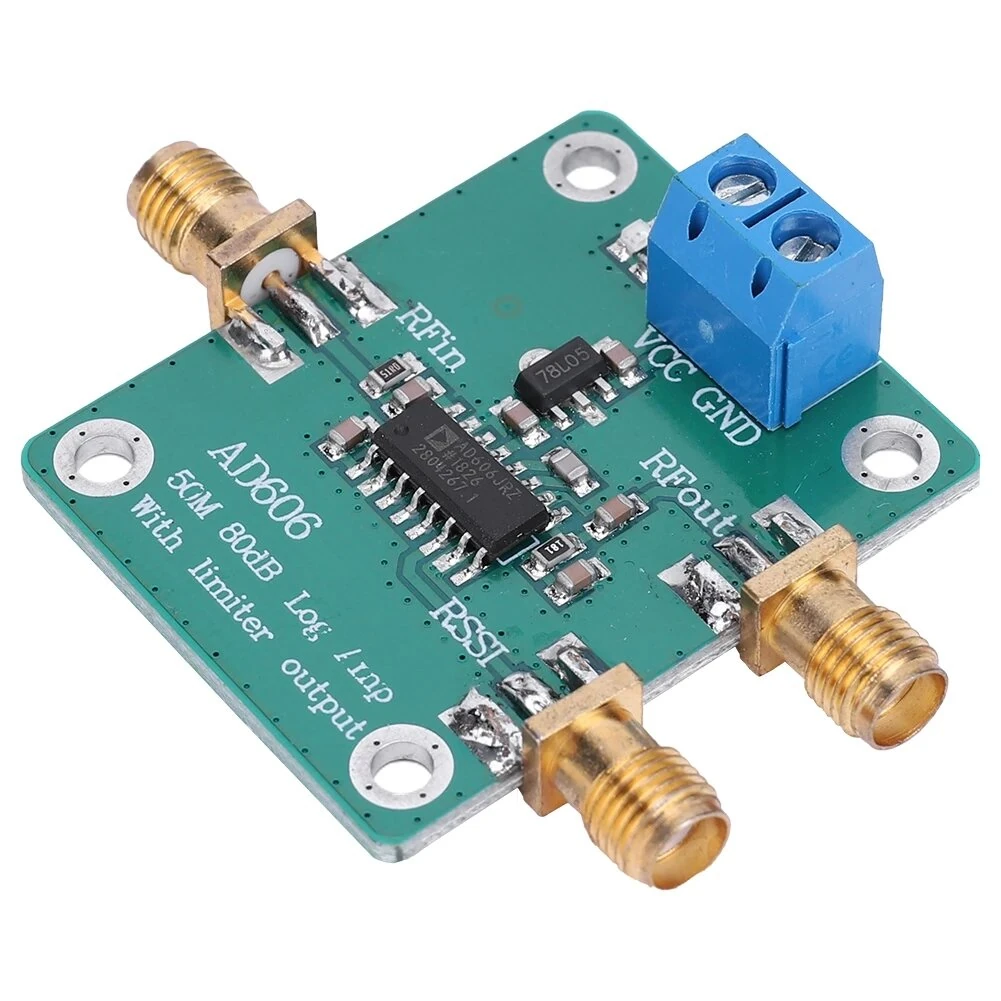

AD606 Log Amp Module Low Power 80dB Demodulation Logarithmic Amplifier Detector Adjustable Limiter for Sonar Ultrasonic

Feature: 1. Low Power Consumption: The log amp module operates with low power consumption, making it an energy-efficient choice for various applications. It helps prolong battery life and reduces overall power consumption in electronic systems. 2. Adjustable Limiting Output: This logarithmic detector features adjustable limiting output, allowing users to set the desired output level according to their specific requirements. It provides flexibility and customization options for signal processing in applications such as ultrasonics and sonar processing. 3. Wide Application Range: The demodulation logarithmic amplifier is suitable for a wide range of applications, including ultrasonic and sonar processing, phase-stable limiting amplifiers operating at high frequencies up to 100 MHz, receive signal strength indicator (RSSI), and wide-range signal and power measurements. 4. Enhanced Signal Strength Monitoring: With its receive signal strength indicator (RSSI) capability, this adjustable limiter provides accurate monitoring and measurement of signal strength. It allows users to precisely assess signal performance and optimize system operation. 5. Extensive Signal and Power Measurement: The limiting output module offers wide-ranging signal and power measurement capabilities, enabling users to accurately measure and analyze signals across various frequency bands. It provides comprehensive measurement solution for different applications and ensures reliable performance. Specification: Model Number: AD606 Log Amp Module Dimensions: 52 X 40 X 12mm/2.0 x 1.6 x 0.5inch Color: Green Logarithmic amplifier performance: Dynamic range : -75 dBm to +5 dBm Input noise: ≤ 1.5nV /Hz Operating frequency: available for > 50 MHz 37.5 mV/dB voltage output On-chip low-pass output filter Limiter performance: 61 dB output flatness in the 80 dB range, in the 80 dB range Phase stability: 638 phase stability at 10.7 MHz, adjustable output amplitude Low power +5 V single power supply 65 mW typical power consumption CMOS compatible power consumption down to 325 mW (typical) <5 ms enable/disable time Applications: 1. Ultrasonic and sonar processing 2. Phase-stabilised limiting amplifiers up to 100 MHz 3. Received Signal Strength Indicator (RSSI) 4. Wide range signal and power measurements
