A49T 150mm Triple Feed Patch 5.8GHz 14DBi Pagoda Array FPV Antenna for Long-distance Flight
5.03 ratingsThe A49T 150mm Triple Feed Patch 5.8GHz 14DBi Pagoda Array FPV Antenna for Long-distance Flight is a mid-range product designed for everyday users. Customers praise its fast and responsive.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
35% Off — you save ₹822 on this product!
Price: ₹1,504
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The A49T 150mm Triple Feed Patch 5.8GHz 14DBi Pagoda Array FPV Antenna for Long-distance Flight is a mid-range designed for everyday users. Customers highlight its fast and responsive.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Description:

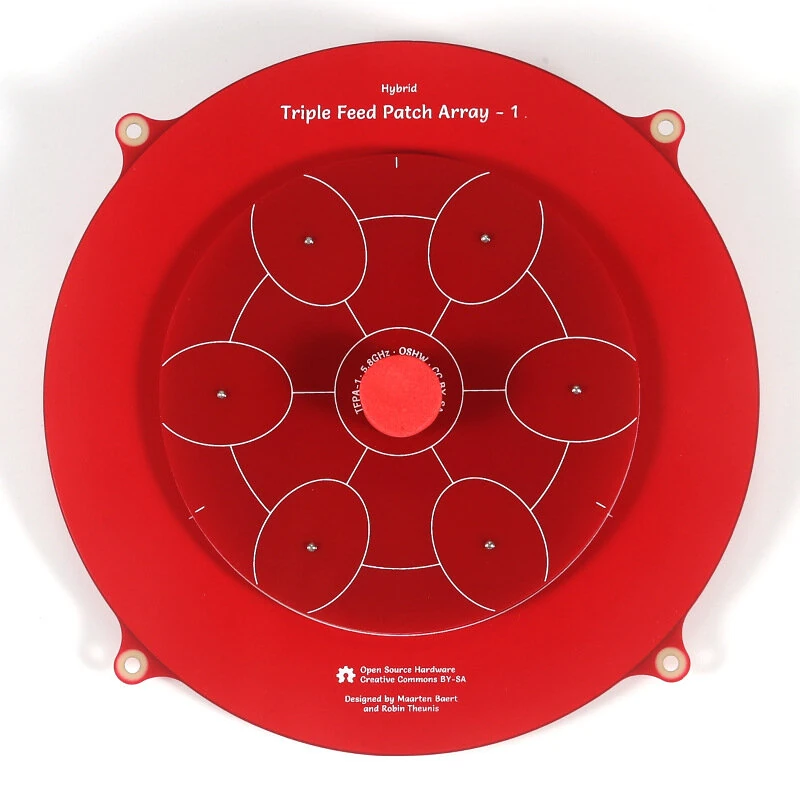

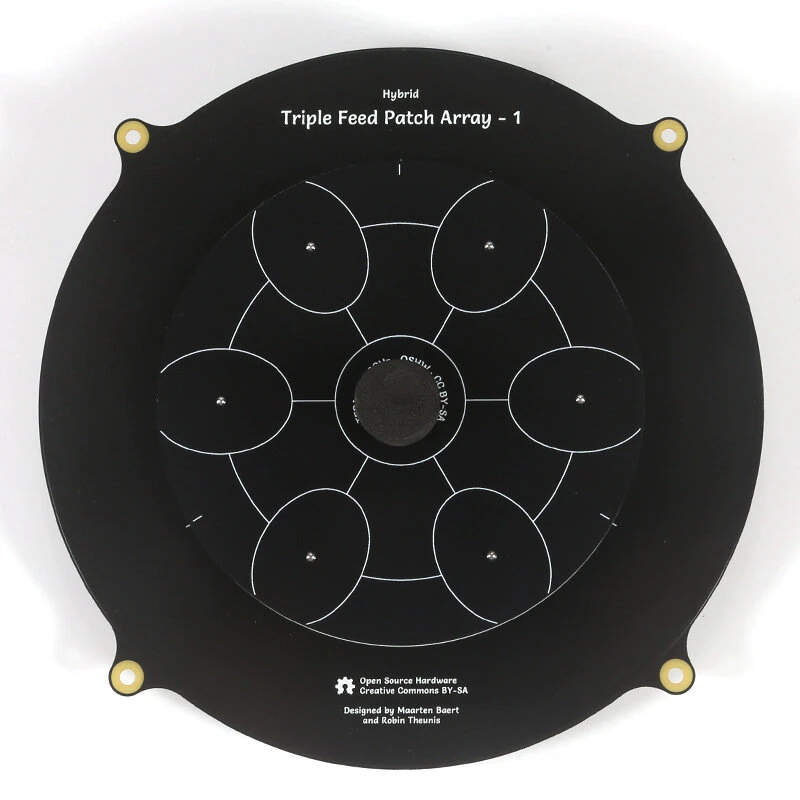

The 5.8G three-phase feed flat panel antenna is a high-performance directional circularly polarized flat panel antenna designed by foreign model friends Maarten Baert and Robin Theunis based on the three-phase feed flat panel antenna. This antenna uses 7 coupling plates, so it can achieve very high gain. This antenna is not recommended for FPV because the antenna has a narrow beam width, but it is very suitable for long-distance flight.
Specifications:
Antenna color classification: black, red (optional)

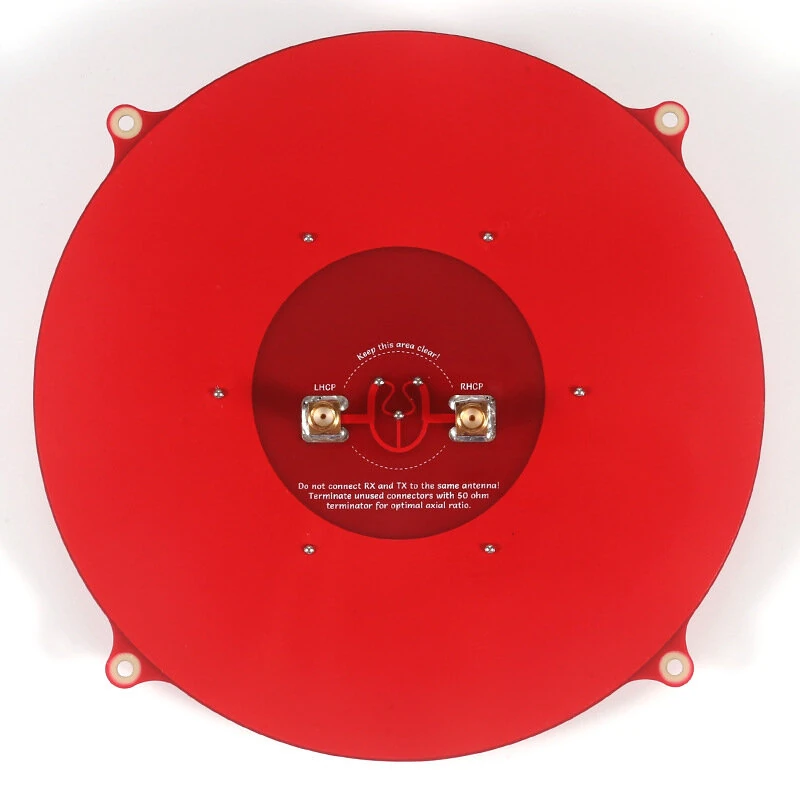

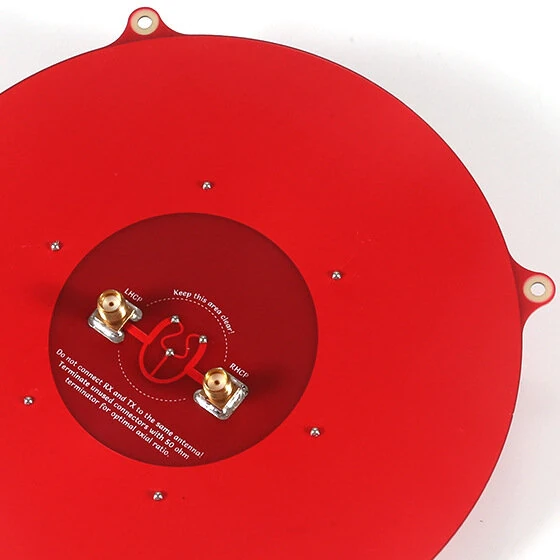

Interface: SMA inner screw inner needle, SMA inner screw inner hole
Gain: 14dBi
Center frequency: 5.8G Bandwidth: 950MHZ+-100MHZ
Impedance: 50 ohms
Polarization: left-right circular polarization
Standing wave ratio: <1.5
Axial ratio: 1.10 10.83 dB)
Half-power beamwidth: 30°
Radiation efficiency: 74%
Features:
1. Excellent radiation efficiency. Unlike other flat antennas with glass fiber substrates, the efficiency loss in the 5.8G band is serious. Moreover, the feed network loss of many whole-array antennas is large. But the design of the coupling plate can reduce the loss of the feed network.
2. Excellent axial ratio. Not only perpendicular to the plate, but also offsets the center point.
3. High gain, although it does not reach the theoretical gain value, this is because maximizing the gain will result in high side lobes and low axial ratio.
4. Extremely low side lobes, almost all of which can be concentrated on the main lobe. Although some gain is sacrificed, the width of the main lobe is increased.
Package Include:

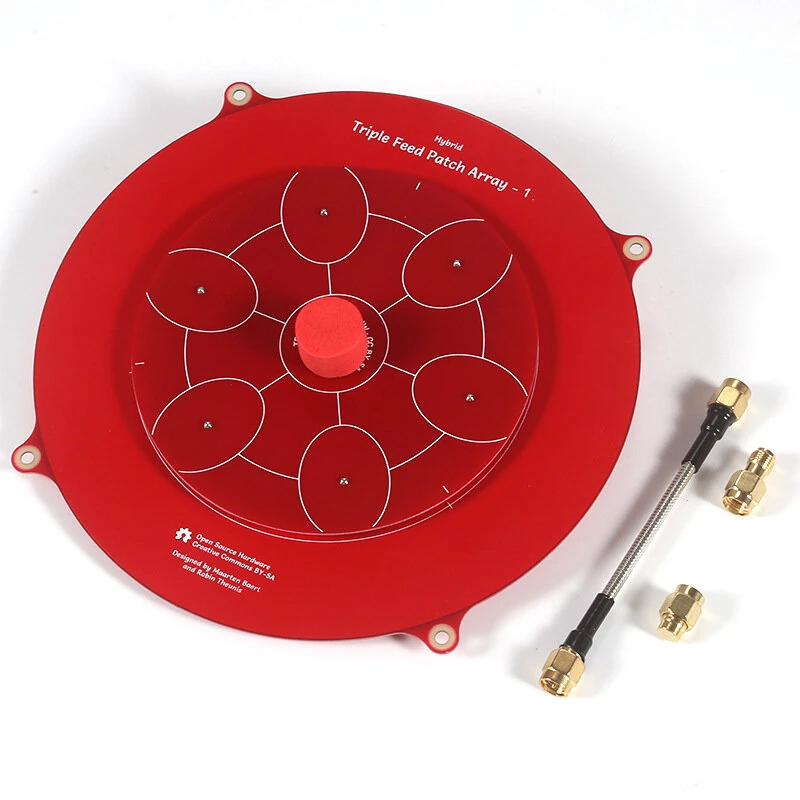

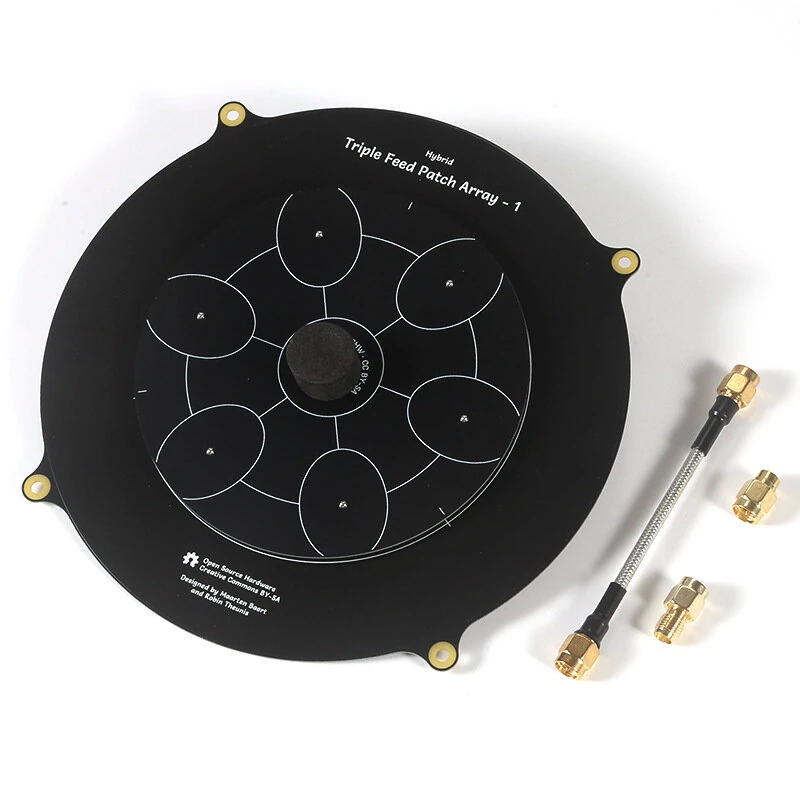

1x 5.8G Three-phase Feed Flat Panel
1x Antenna
2x Connectors
