6A 12A DC LC Filter Low-pass EMI Filter Electromagnetic Interference EMC Automotive 12V 24V CAR Switching Power Ripple Filter Module Board
The 6A 12A DC LC Filter Low-pass EMI Filter Electromagnetic Interference EMC Automotive 12V 24V CAR Switching Power Ripple Filter Module Board is a value-for-money product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Price: ₹1,337
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 6A 12A DC LC Filter Low-pass EMI Filter Electromagnetic Interference EMC Automotive 12V 24V CAR Switching Power Ripple Filter Module Board is a value-for-money designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications:
Input Voltage: DC up to 63V (Voltage can be increased by replacing electrolytic capacitors)
Output Voltage: DC
Current Rating: 6A or 12A options available
Circuit Composition:
First Stage: Level LC Filter
Second Stage: Common-Mode EMI Filter
Third Stage: Two-Stage LC Filter

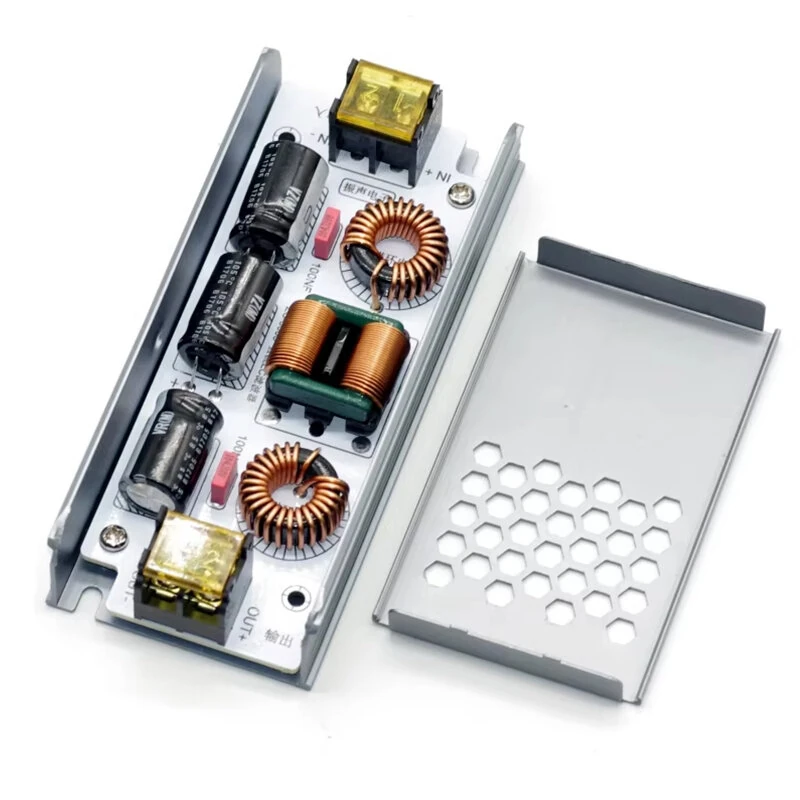

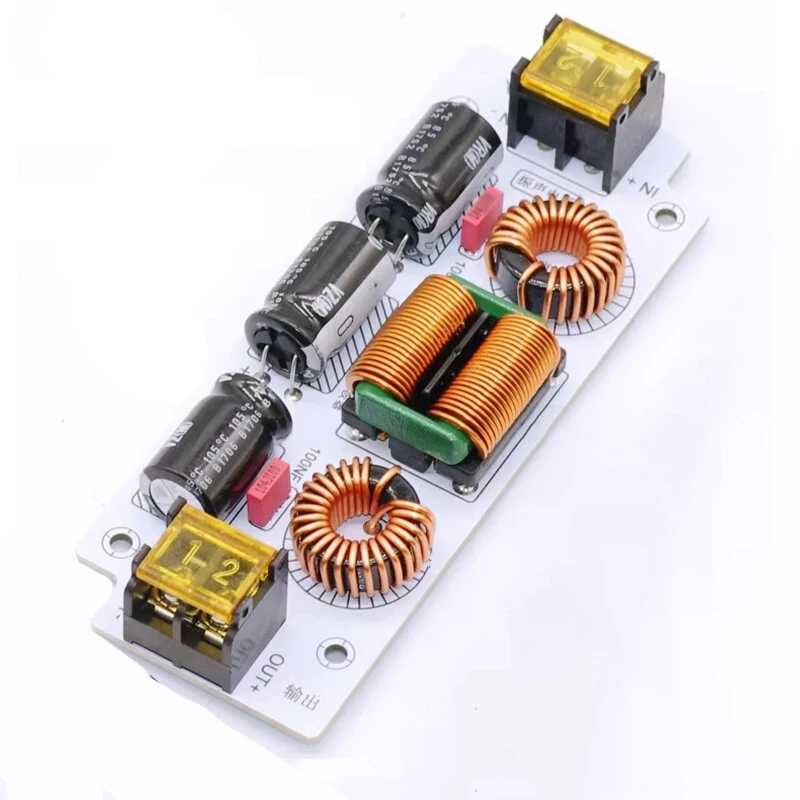

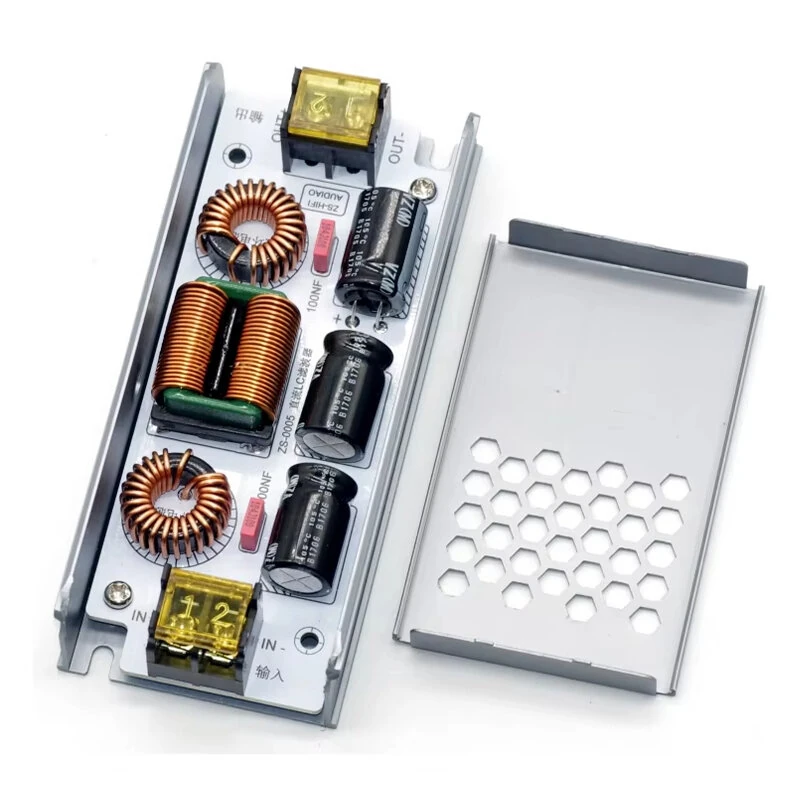

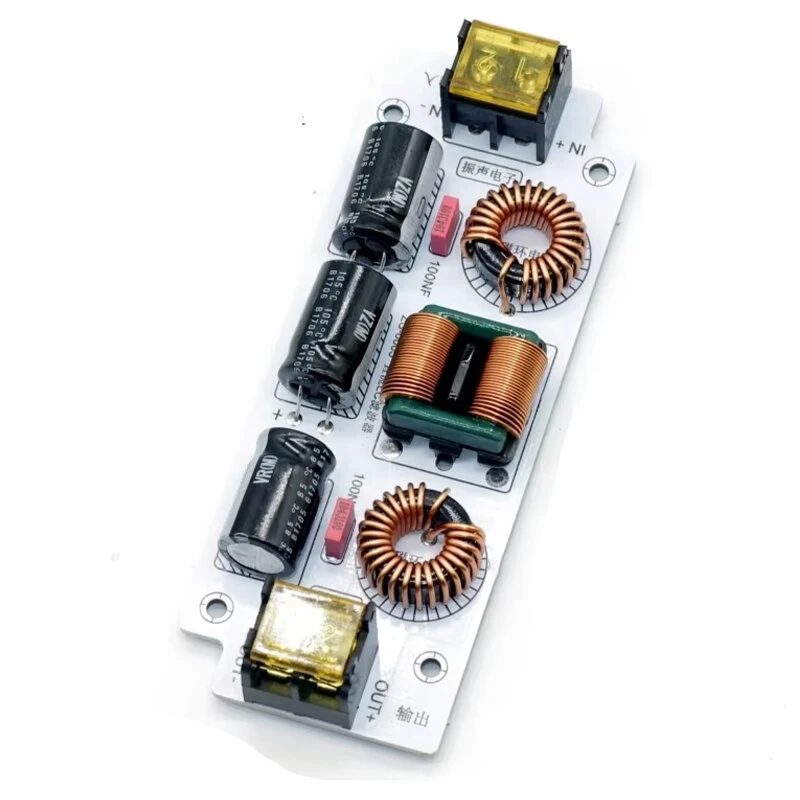

Main Components:
Circuit Board: Double-sided FR4 fiberglass board
Electrolytic Capacitors: 63V 470μF, diameter 13mm, quantity: 3 (Brands may vary due to supply fluctuations)
Film Capacitors: 100nF, quantity: 2
Magnetic Ring Inductors: Iron-silicon-aluminum inductors, quantity: 2
Common Mode Inductor: Flat copper inductor, quantity: 1
Sockets: 7.62mm pitch, 2-pin connectors, quantity: 2

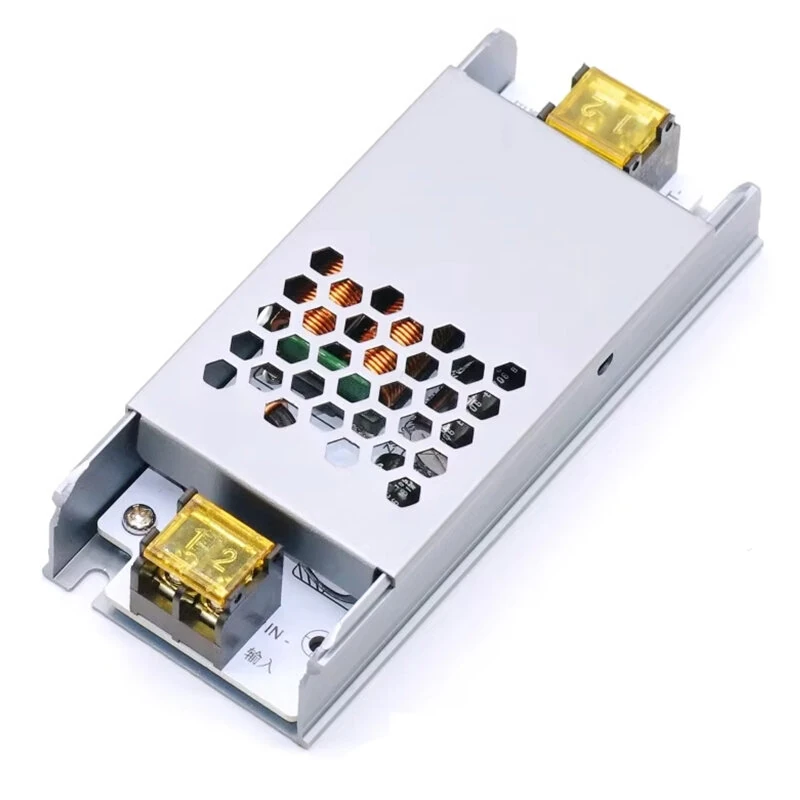

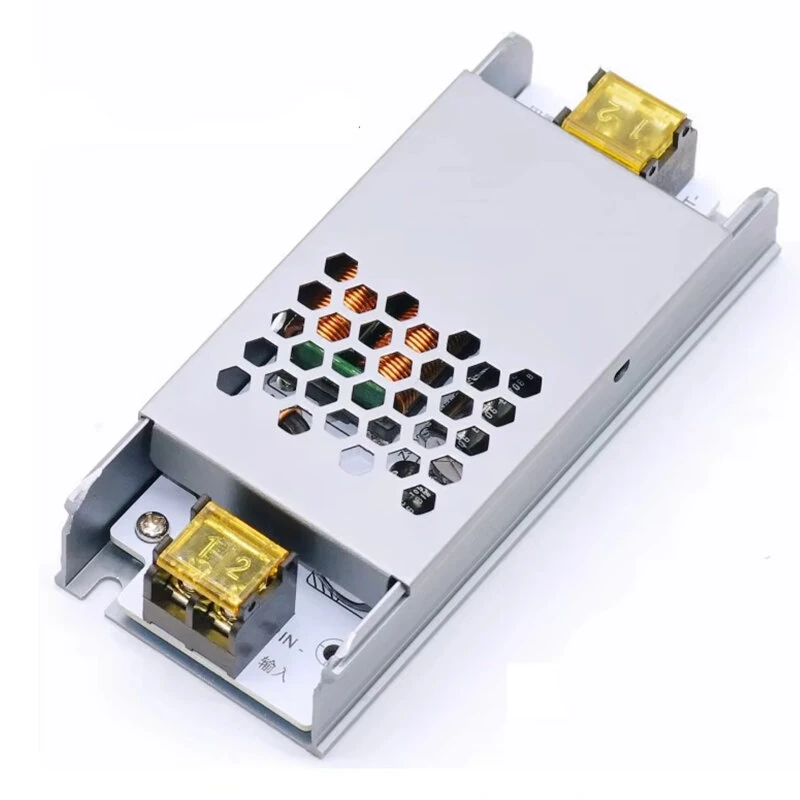

Housing: Aluminum alloy housing (optional, as required)
Features:
1. Multi-Stage Filtering for Superior Noise Reduction: Combines level LC filtering, common-mode EMI suppression, and two-stage LC filtering to effectively eliminate electromagnetic interference in DC power systems.
2. High Voltage and Current Capacity: Supports DC voltages up to 63V and handles currents of 6A or 12A, making it suitable for a wide range of applications.
3. Premium Quality Components: Constructed with a double-sided FR4 fiberglass PCB and high-quality capacitors and inductors to ensure reliable performance and effective ripple filtration.
4. Versatile Application Scenarios: Ideal for use after switching power supplies, in automotive and motorcycle electrical systems, and in any DC circuits experiencing strong electromagnetic interference.
5. Easy Integration: Features 7.62mm pitch sockets for straightforward installation and compatibility with existing setups; optional aluminum alloy housing provides additional protection if required.
Package Includes:
1 x DC LC Low-Pass High-Frequency EMI Electromagnetic Interference Filter Module Board (6A or 12A, With Case or No Case depending on selection)
