5V Ultrasonic Suspension Parts DIY Learning Kit Electronic Production DIY Kit Mini Levitator Set
The 5V Ultrasonic Suspension Parts DIY Learning Kit Electronic Production DIY Kit Mini Levitator Set is a value-for-money product designed for DIY enthusiasts and makers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Price: ₹951
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 5V Ultrasonic Suspension Parts DIY Learning Kit Electronic Production DIY Kit Mini Levitator Set is a value-for-money designed for DIY enthusiasts and makers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Description:
This levitator operates at a frequency of 40KHZ in the air and can capture light objects with a density of 2-3MM in diameter, such as foam balls, ants and other tiny objects. They can be stably suspended in the air for a long time, and the motherboard will heat up slightly. The circuit mainly consists of a microcontroller, a driver chip and 2 ultrasonic transmitters. Mainly used to learn about ultrasonic standing wave levitation.
Working principle: Ultrasonic standing wave levitation is based on the fact that there is a certain distance between the ultrasonic transmitting end and the transmitting end (or another transmitting end) (called the resonant cavity distance), and the transmitted wave and the reflected wave (or another sound wave) are continuously superimposed, and finally form Standing wave, the sound wave force on the object at the node of the standing wave overcomes the effect of gravity, and finally achieves the effect of levitation.

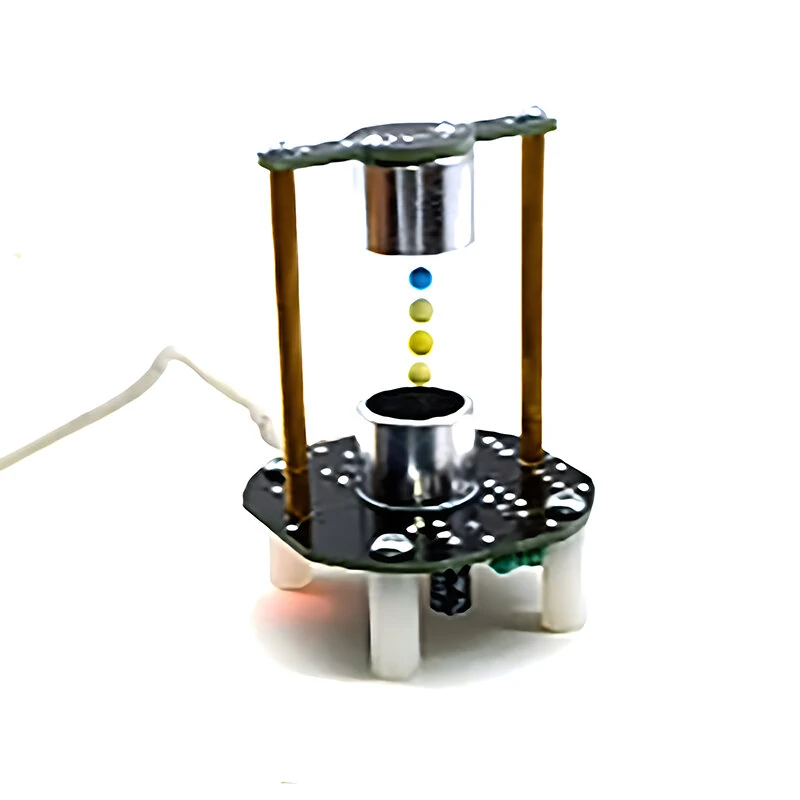

How to play: Use tweezers to hold the small foam ball, and gently place the foam ball between the two ultrasonic probes, and the foam ball will float.
Parameters:
Power Input: DC12V(0.5-1A)
Function: Ultrasonic suspension, DIY electronics making
Size: 44*40*66mm
Weight: 22g
Some components may be changed, but this does not affect use. Based on the actual goods received.

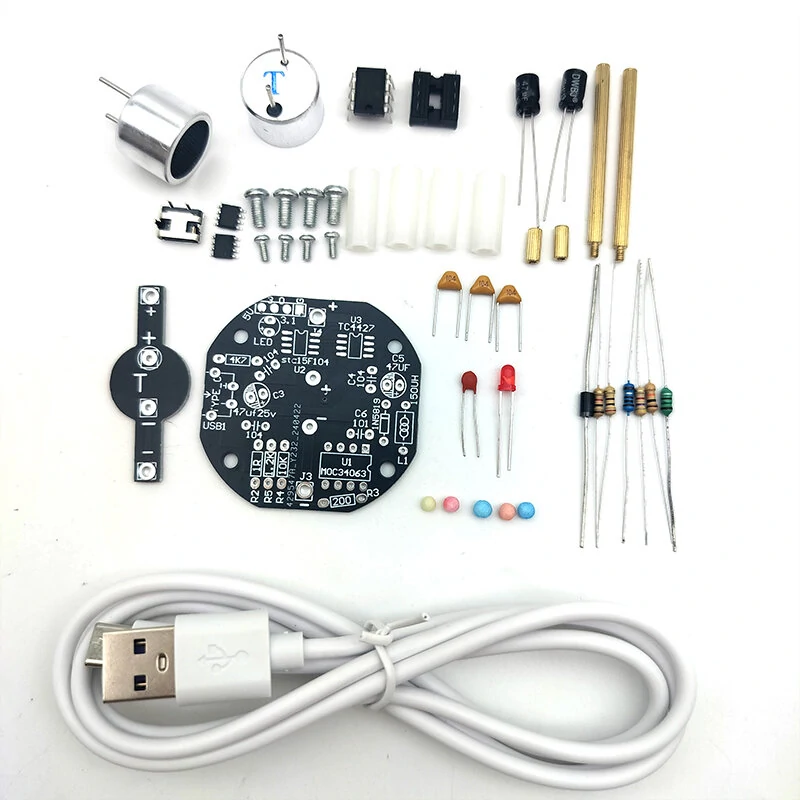

Package Include:
【Parts】:
1 x Upper PCB board
1 x Lower PCB board
2 x Ultrasonic transmitter T
5 x M2*4 Screw
2 x M2*7 Two-way Copper Column
2 x M2*39+3 Copper Column
5 x M3*6 Screw
4 x M3*15 two-way nylon column
2 x 25V 47UF
1 x TYPE-C building
3 x 104 monolithic capacitor
1 x 101 ceramic capacitor
1 x 4.7K Resistor
1 x 1 ohm resistor
1 x 1K resistor
1 x 10K resistor
1 x 200 ohm resistor
1 x 1N5819 Diode
1 x 3MM LED red red
1 x 150UH color ring inductor
1 x STC15F104W (burn-in program)
1 x TC4427
Several foam balls
1 x 8P IC block
1 x MOC34063
【Finished Product】:
1x Finished Ultrasonic Suspension
