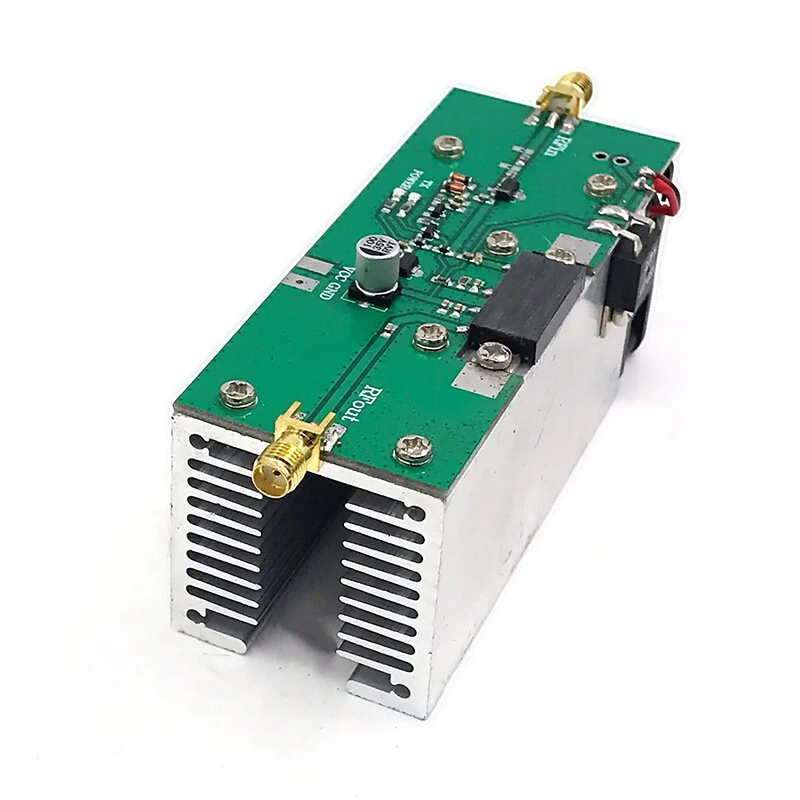

433MHz RF Power Amplifier 335-480MHz Dedicated for Wireless Data Transmission and Remote Control
The 433MHz RF Power Amplifier 335-480MHz Dedicated for Wireless Data Transmission and Remote Control is a mid-range rf amplifier designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
35% Off — you save ₹1,983 on this product!
Color: Green
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 433MHz RF Power Amplifier 335-480MHz Dedicated for Wireless Data Transmission and Remote Control is a mid-range rf amplifier designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specifications:
Supply Voltage: DC 12V - 14V (Typical value: 13.8V)
Frequency Range: 335 MHz - 480 MHz
Typical Operating Frequency: 433 MHz
Input Power Range: -10 dBm to +17 dBm (0.1mW to 50mW)
Output Power: ≥ 41 dBm (Approx. 13W) @ 13.8V supply
Cooling System: Intelligent temperature-controlled active cooling with built-in fan
Operating Current: Approx. 2A (varies by frequency and voltage)
Dimensions (LxWxH): 100mm x 40mm x 40mm
Weight: Approx. 190g
RF Connector: SMA female (outer thread, inner hole) - Input and Output
Operating Temperature: -20°C to +60°C
Features:
1. Powerful Output, Stable and Reliable: Powered by a 13.8V supply, it boasts an output power of up to 13W (41dBm), providing ample RF power for 433MHz/UHF band applications, significantly improving communication range and signal penetration.
2. Wideband Coverage, Flexible Applications**: Operating from a 335-480MHz frequency range, it seamlessly covers the 433MHz ISM band and is compatible with similar frequency bands (e.g., 315MHz requires verification). This allows for multiple uses, reducing spare parts.
3. Intelligent Temperature Control, Long-Term Stability**: A built-in automatic temperature control and active cooling system monitors temperature in real time and intelligently adjusts fan speed to prevent overheating, derating, or damage, ensuring long-term, stable operation under high loads.
4. Highly Efficient Driver, Strong Adaptability**: A wide input power range (-10dBm to 17dBm / 0.1mW to 50mW) allows for easy compatibility with various transmitters, drivers, or signal sources, simplifying system design.
5. Compact and lightweight for easy integration: The metal housing measures only 40mm x 40mm x 100mm and weighs approximately 190g, saving space and facilitating integration into a variety of devices.
6. Standard interfaces for convenient connection: Both input and output ports utilize standard female SMA connectors (male thread, female hole), offering strong versatility and reliable and convenient connection to RF cables.
7. Wide-range power supply voltage for adaptability: Supports 12V-14V DC power supply (typical value: 13.8V), compatible with regulated power supplies, batteries, and vehicle power systems.
Typical Applications:
- Industrial wireless remote control systems (cranes, construction machinery, automation equipment)
- Long-distance wireless data transmission (data radio, telemetry and remote control)
- Wireless video/signal transmission for security surveillance
- Image and remote control link enhancement for UAVs
- Signal enhancement for Internet of Things (IoT) gateways
- Power boost for professional wireless communication equipmen
- High-power amplification applications in the 433MHz ISM band
Package Included:
1 x 433MHz RF Power Amplifier
