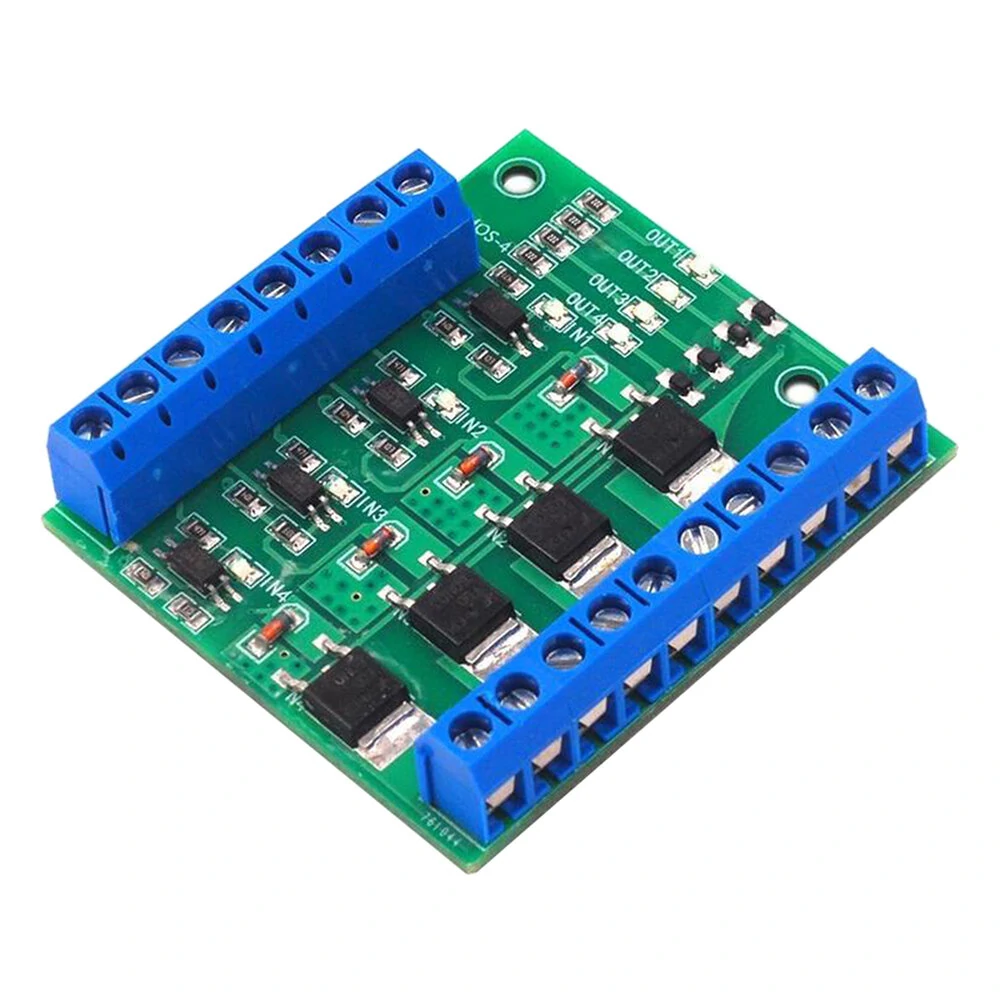

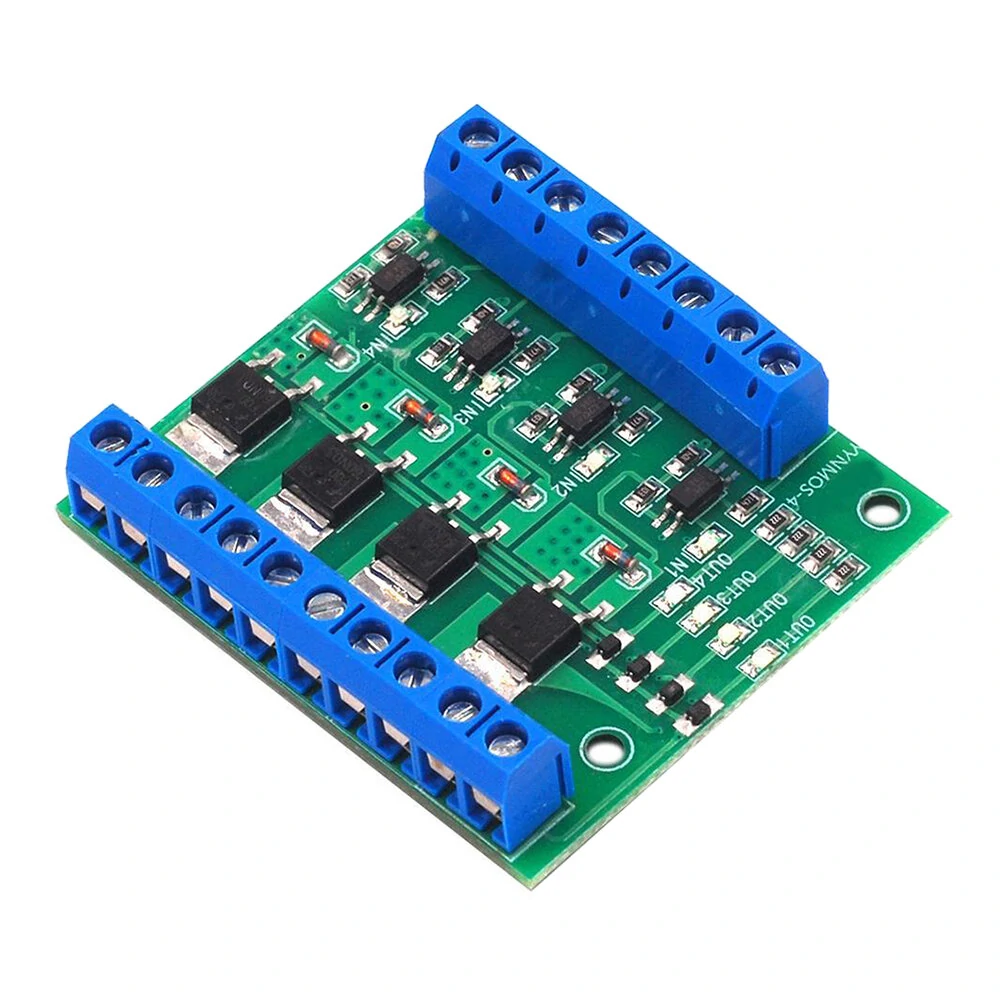

4-Channel MOS FET PLC Amplifier Board Driver Module PWM 3-20V to 3.7-27V DC 10A Optocoupler Isolation Module Accessories

5.04 ratings
548+ bought in past month
AI Summary
product for everyday users

The 4-Channel MOS FET PLC Amplifier Board Driver Module PWM 3-20V to 3.7-27V DC 10A Optocoupler Isolation Module Accessories is a value-for-money product designed for everyday users. Customers praise its fast and responsive.

✓ fast and responsive
₹1,033
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Total: ₹1,033
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 23 Aug – 6 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-1976351

About This Product

The 4-Channel MOS FET PLC Amplifier Board Driver Module PWM 3-20V to 3.7-27V DC 10A Optocoupler Isolation Module Accessories is a value-for-money designed for everyday users. Customers highlight its fast and responsive.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specification:

Product model: YYNMOS-4
Product weight: 27g
Product size: 56*50*10mm


Features:

1. Strong anti-interference ability, stable performance, input signal and output isolation.
2. Input signal: PWM signal between 3~20V
3. Output capacity: DC 3.7V~27V, current within 10A per channel
4. PWM frequency: 0~200Hz
5. Indicator light: with input signal and output indicator light
6. Application description: The output terminal can control high-power equipment, motors, bulbs, LED strips, DC motors, miniature water pumps, solenoid valves, etc., and can input PWM to control motor speed, lamp brightness, etc.

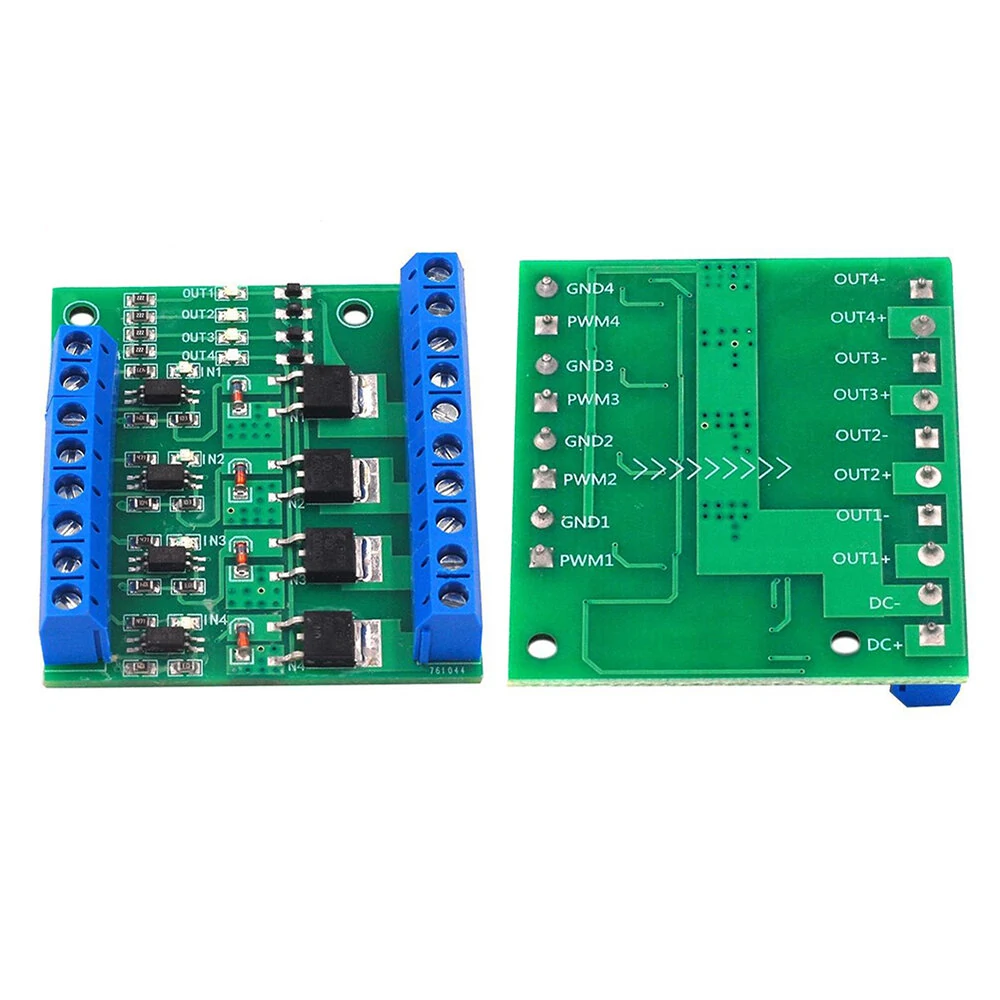

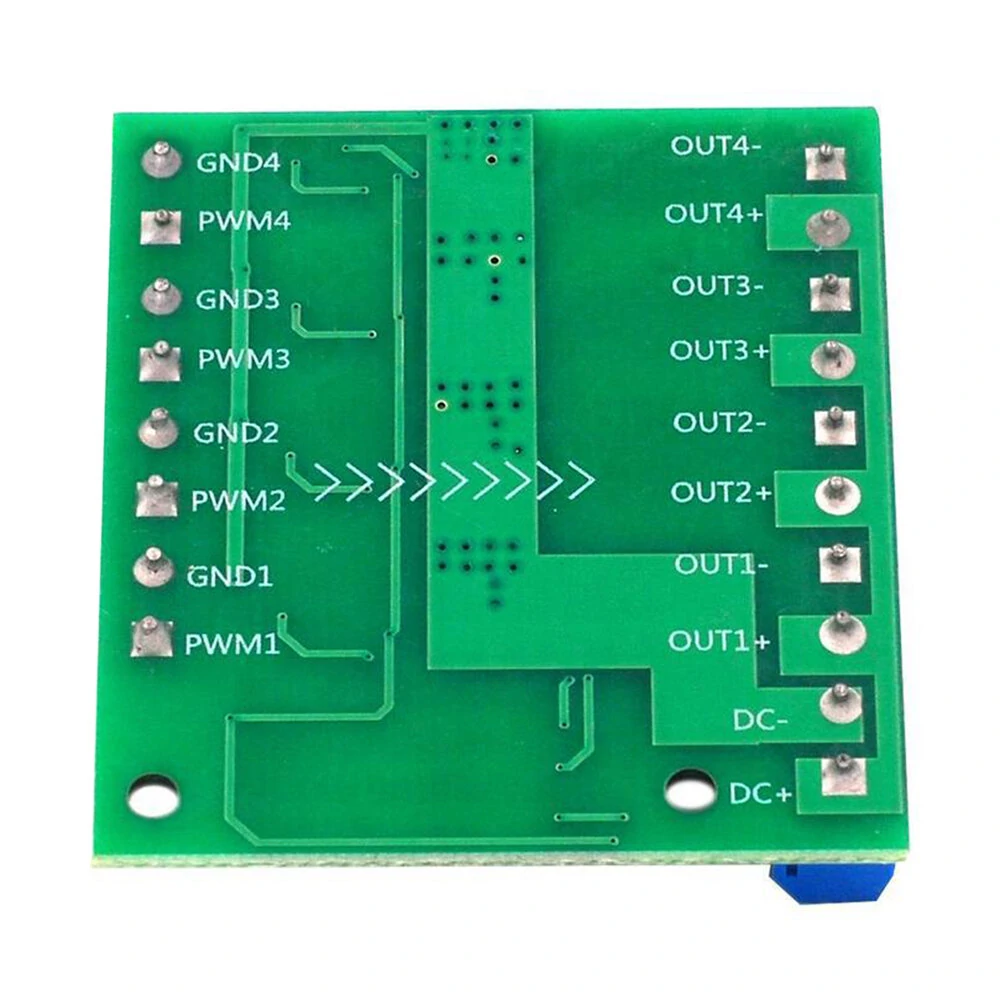

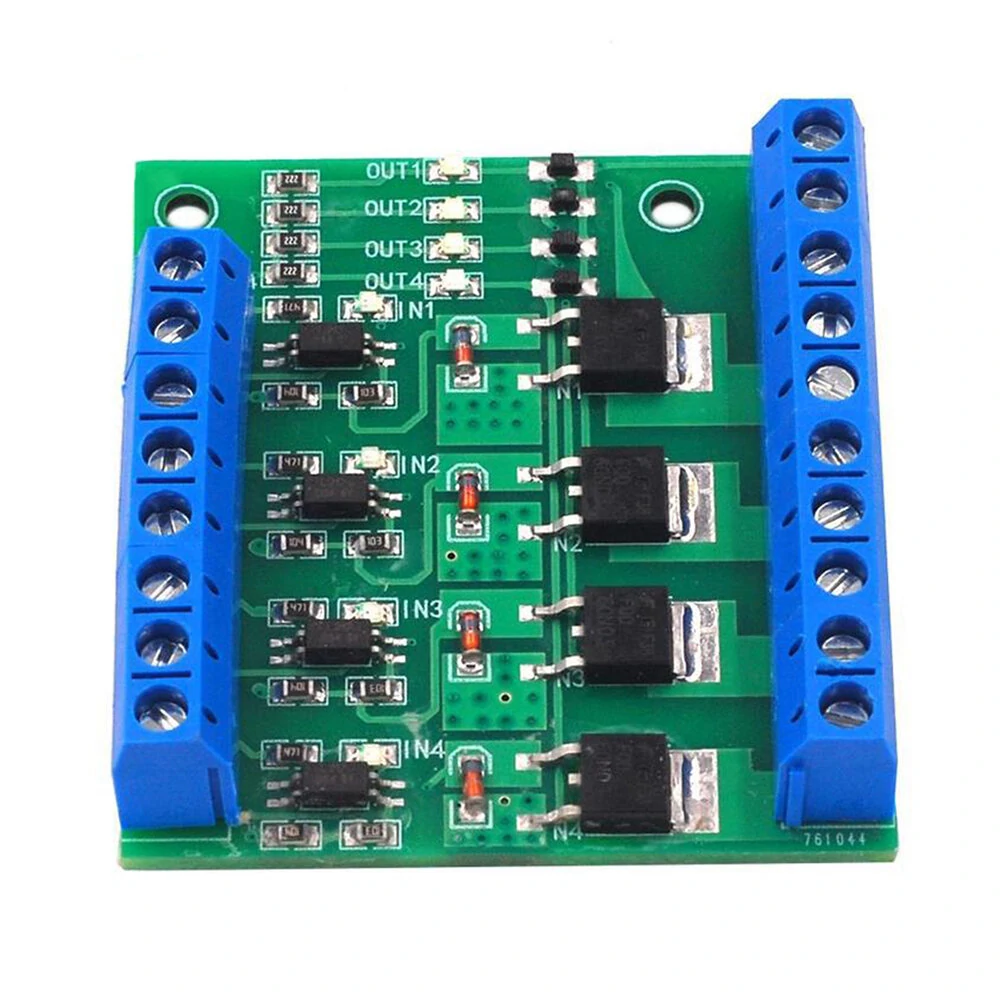

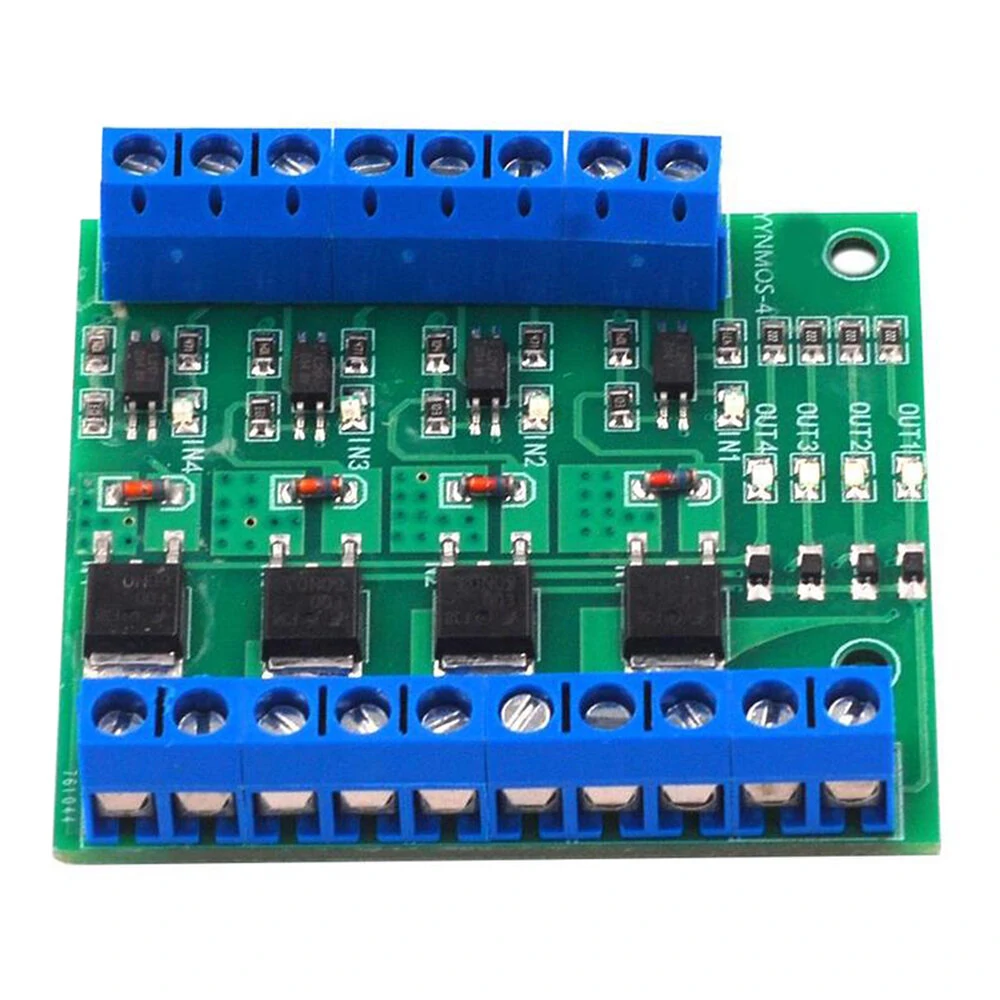

7. Module interface description:
DC+: The positive pole of the device's DC power supply
DC-: the negative pole of the device's DC power supply
PWM: signal input terminal (connected to MCU IO port, PLC interface, DC power supply, etc.)
GND: signal negative terminal
OUT+: Positive output terminal (connected to the positive pole of the device)
OUT-: The negative pole of the output terminal (connect to the negative pole of the device)


Package Include:

1×Module Board
