1 / 7 · Click to enlarge

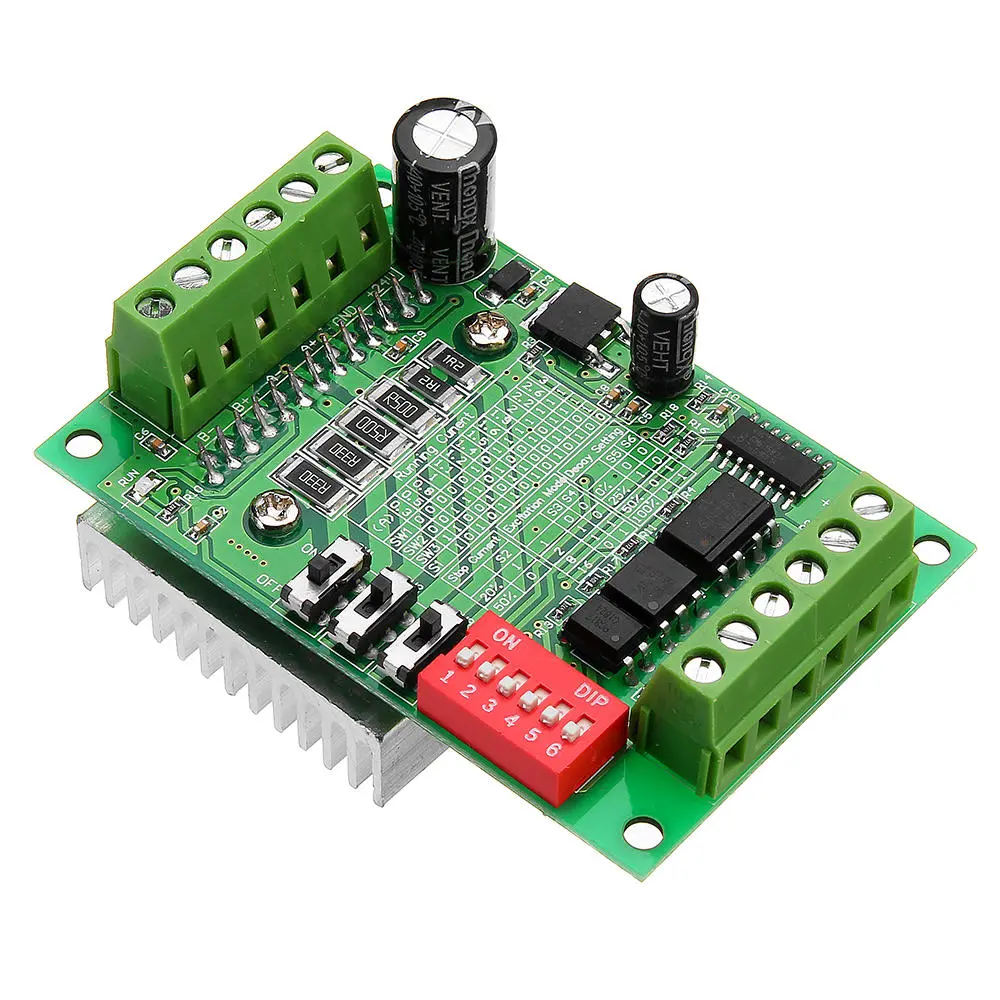

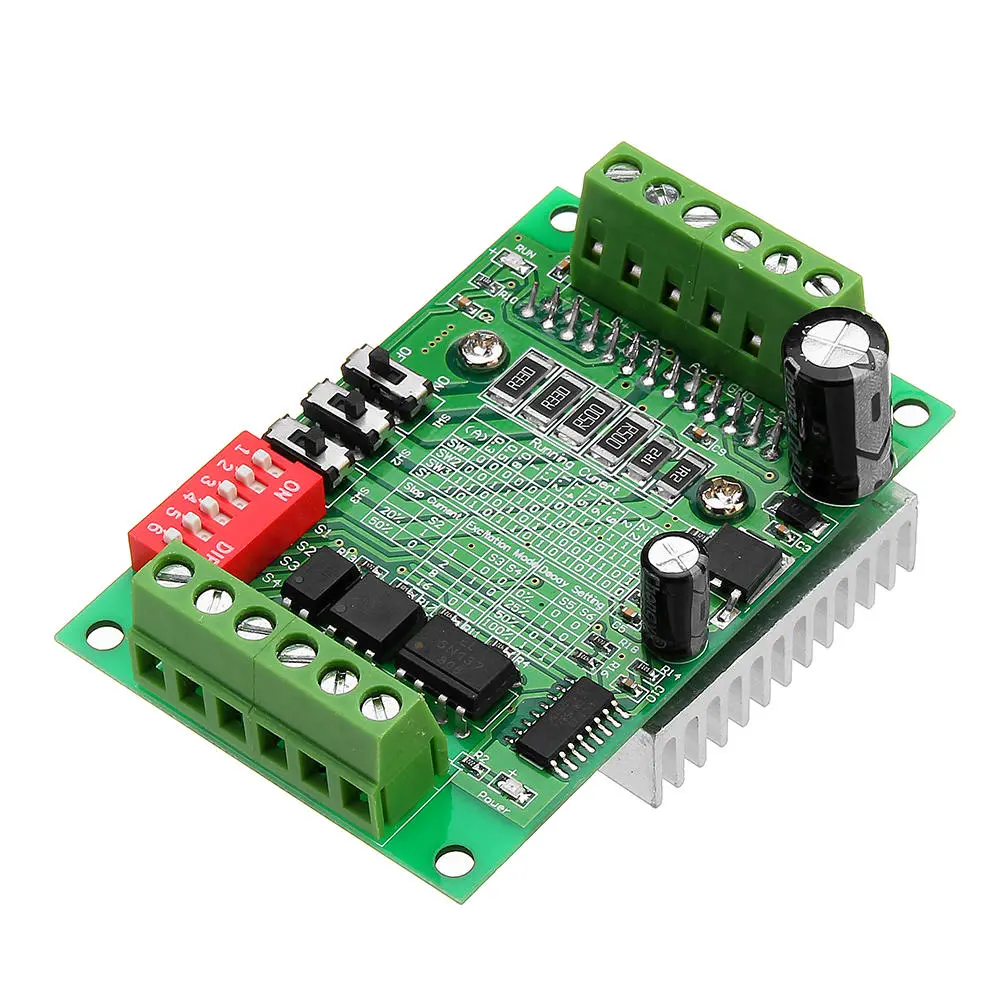

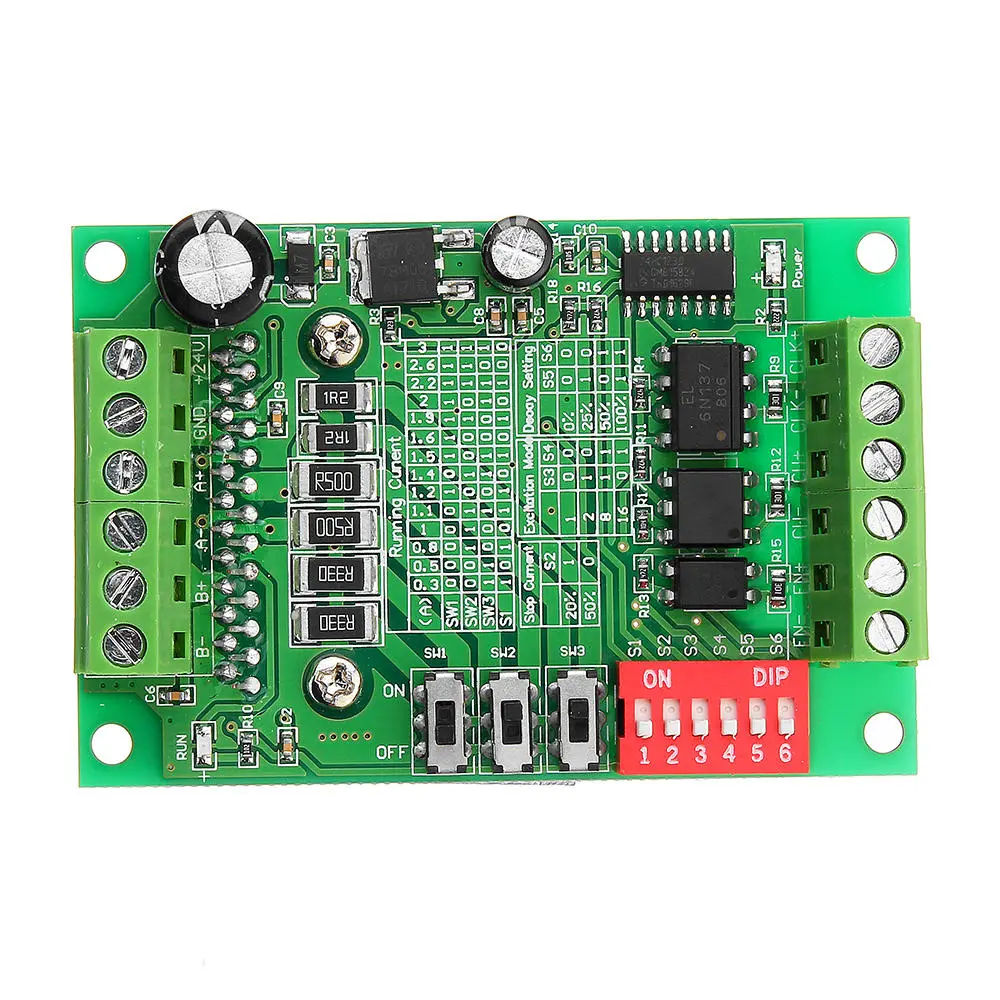

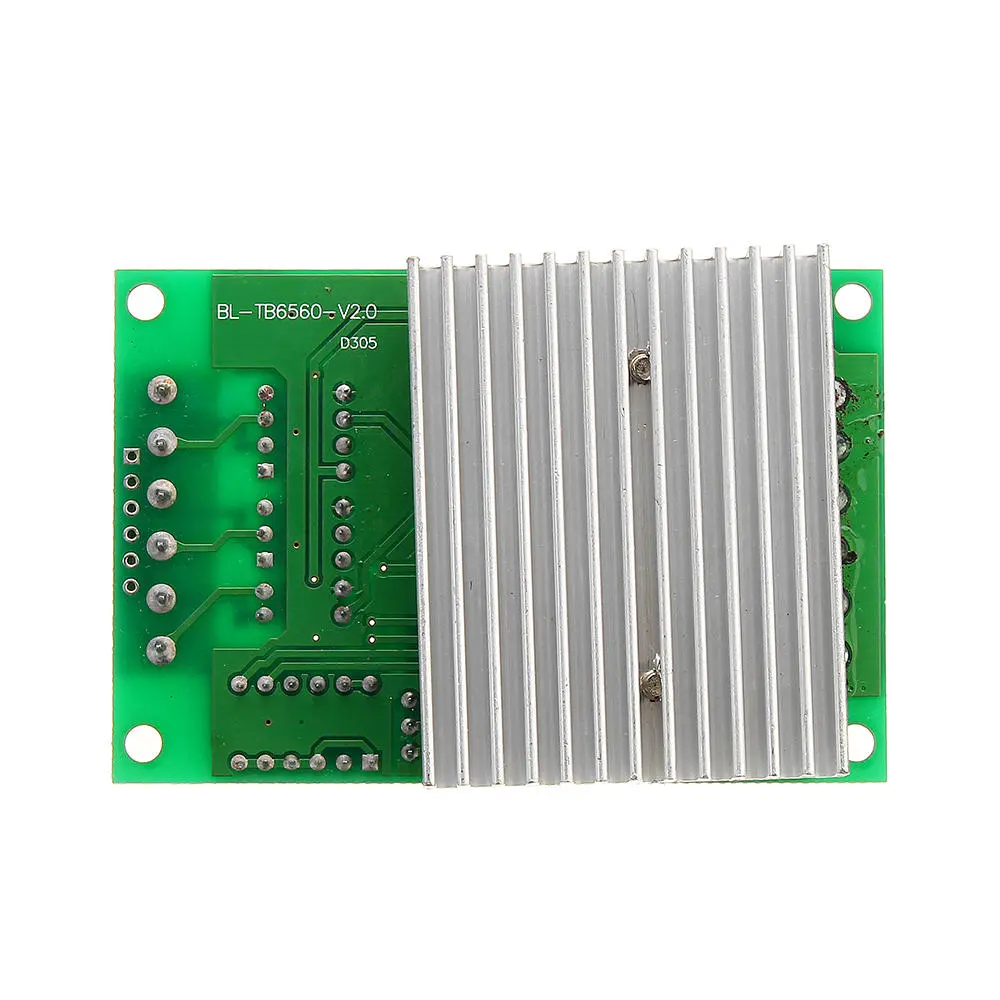

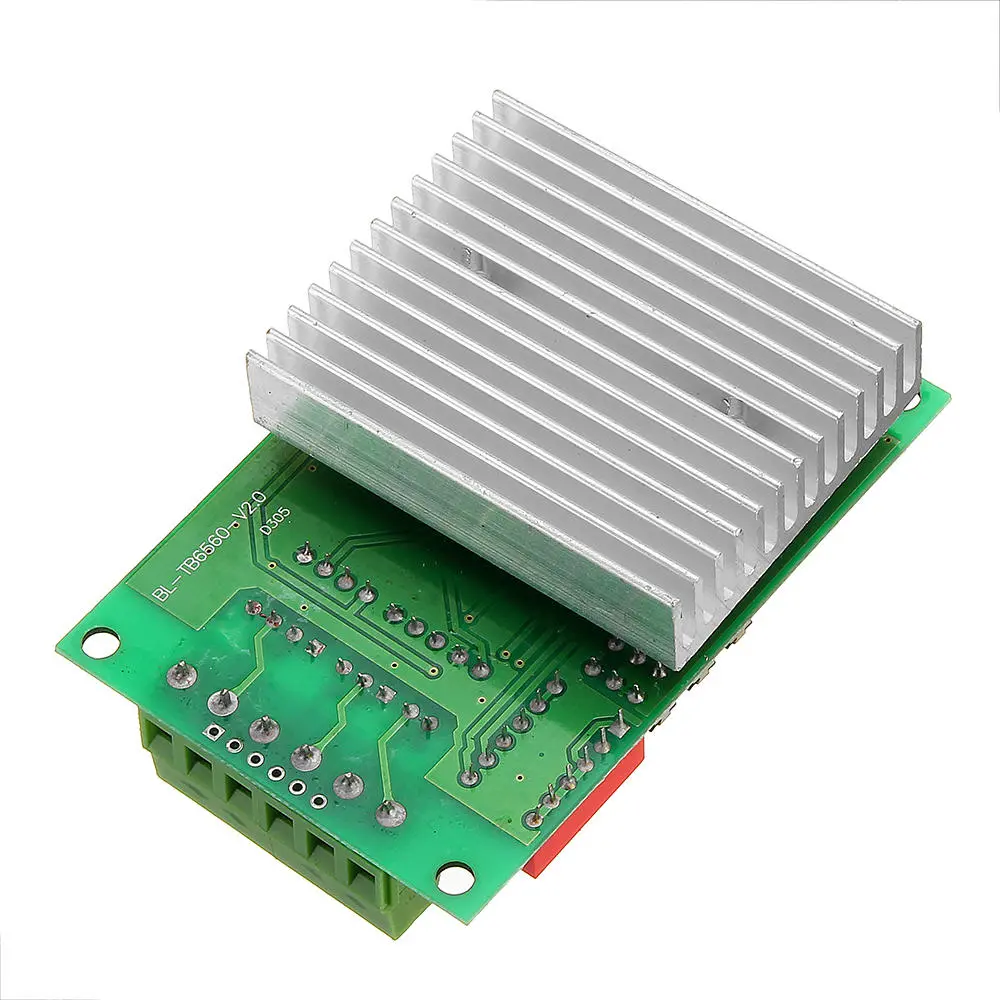

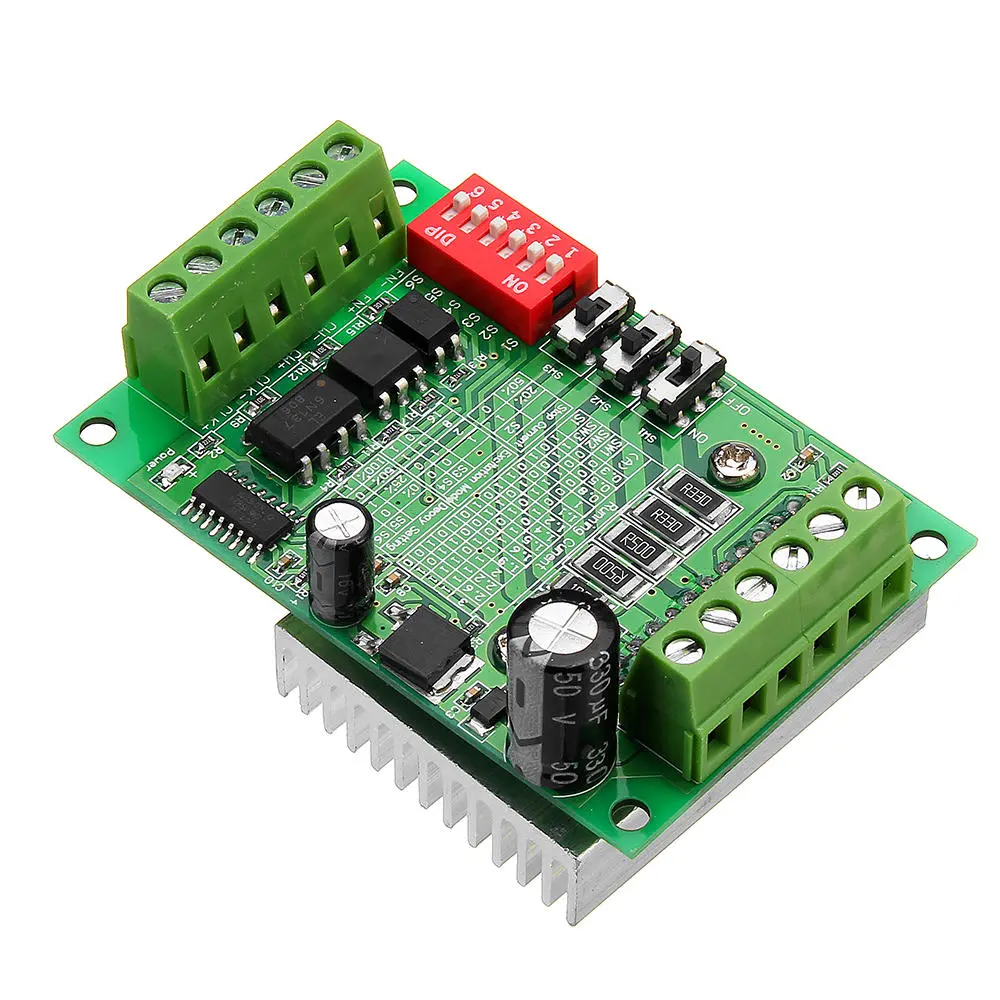

The 3Pcs TB6560 3A CNC Router 1 Axis Driver Module Stepper Motor Driver Board by Pricio is a mid-range driver module designed for everyday users. Customers praise its fast and responsive and compact and portable. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 3Pcs TB6560 3A CNC Router 1 Axis Driver Module Stepper Motor Driver Board by Pricio is a mid-range driver module designed for everyday users. Customers highlight its fast and responsive and compact and portable.
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: fast and responsive, compact and portable, accurate and reliable.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Size: 75 x 50 x 35mm / 2.95 x 1.96 x 1.37inch (L x W x H)
Rated maximum output: ± 3A, peak 3.5A
Working voltage: DC 10V-35V
Recommended to use a switching power supply: DC24V power supply
Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 Subdivisions.
Feature:
Using the TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.
For two-phase within 42, 57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor.
Automatic half current function.
6N137 high-speed optical coupling, guarantee high speed without losing step.
Features similar products:
1. Current grade-by-adjustable to meet your demand for a variety of applications.
2. Semi-automatic flow adjustable.
3. 6N137 high-speed optical coupling, guarantee high speed without losing step.
4. Plate printed setup instructions operation without manual also.
5. Thick teeth radiator, good heat dissipation.
Package included:
3 x TB6560 1 axis driver board
Setup Guide
