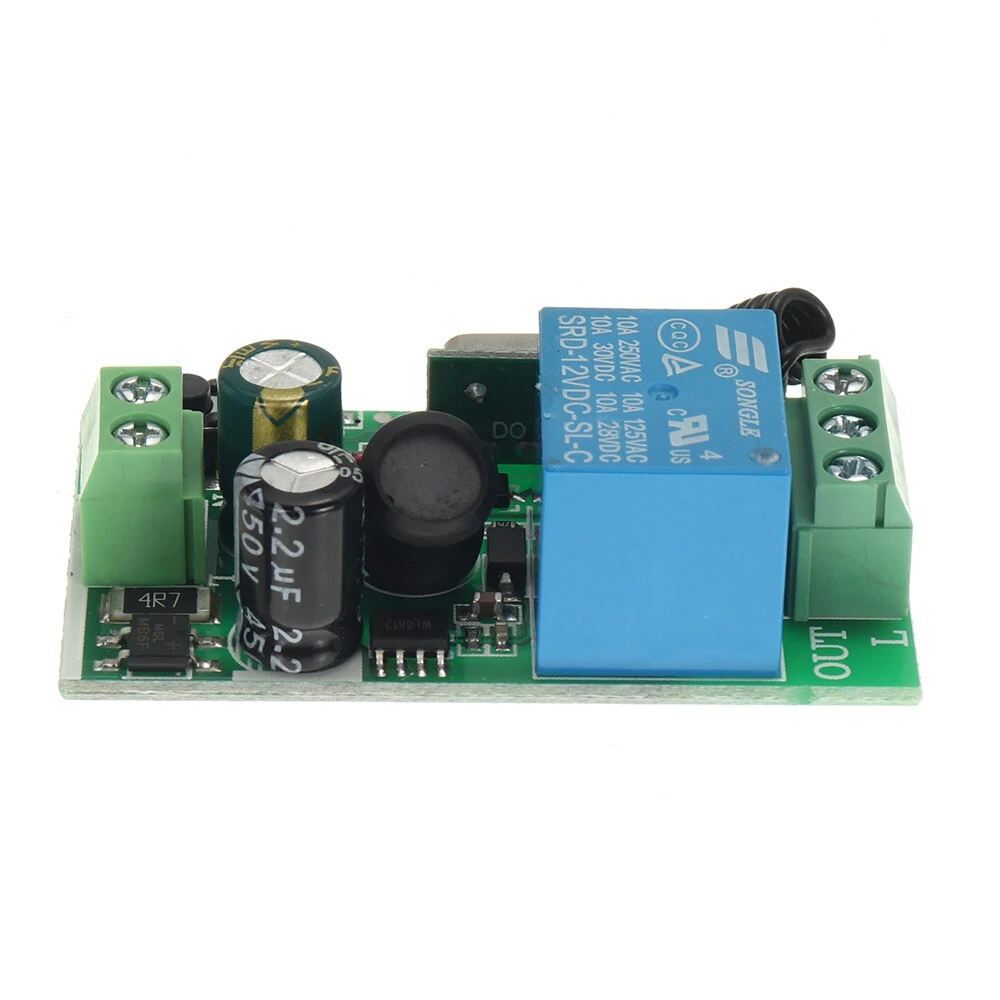

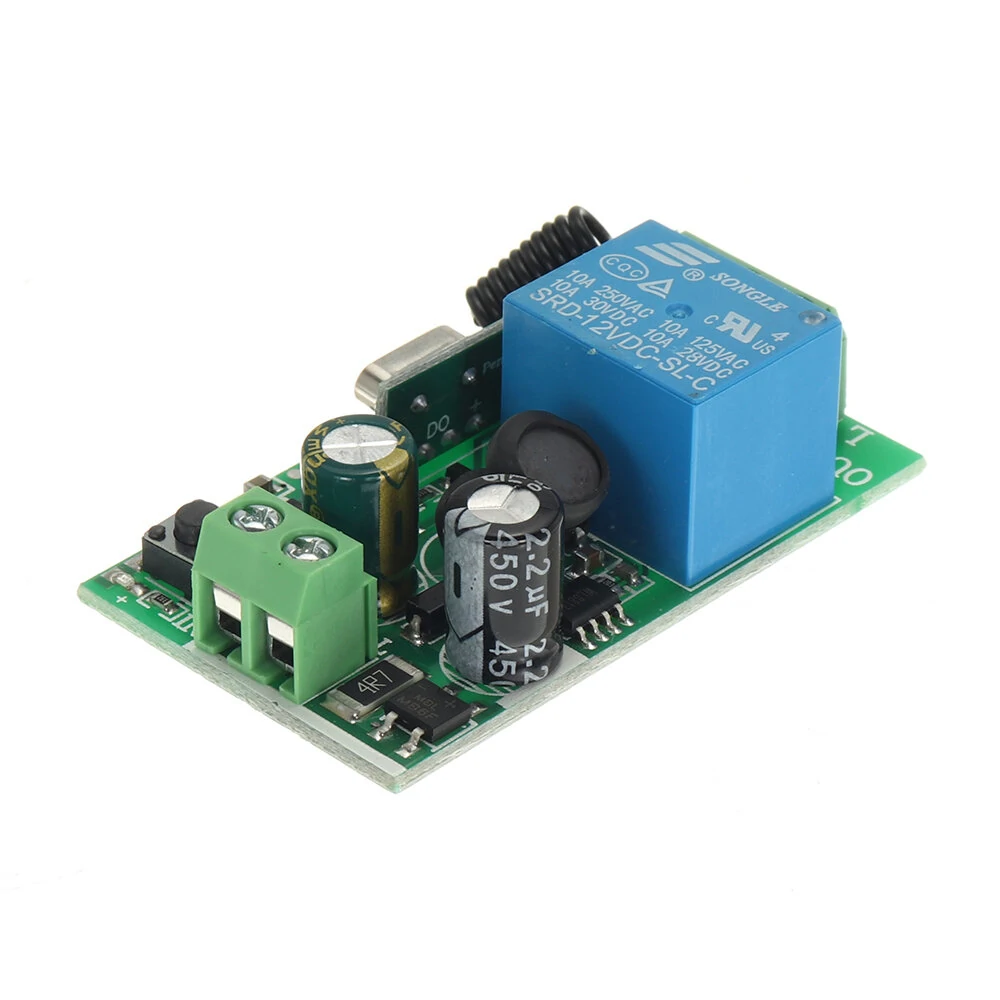

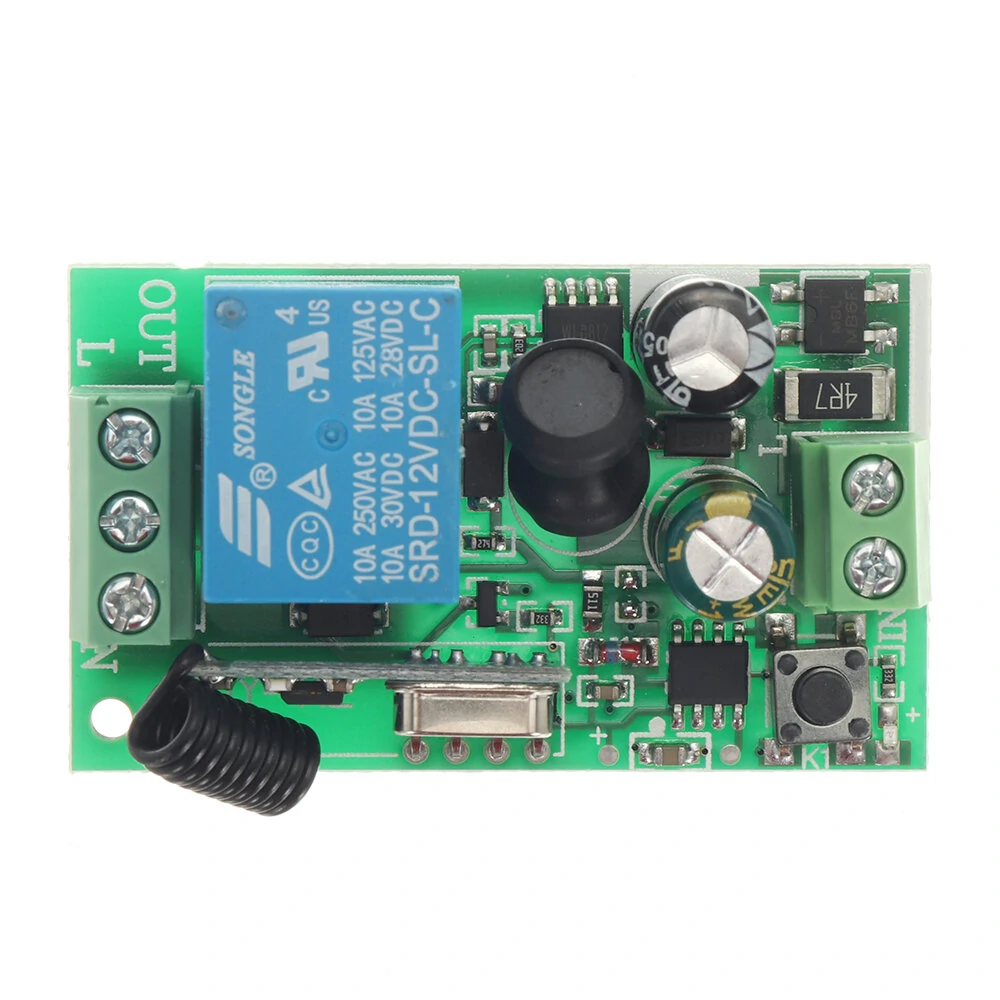

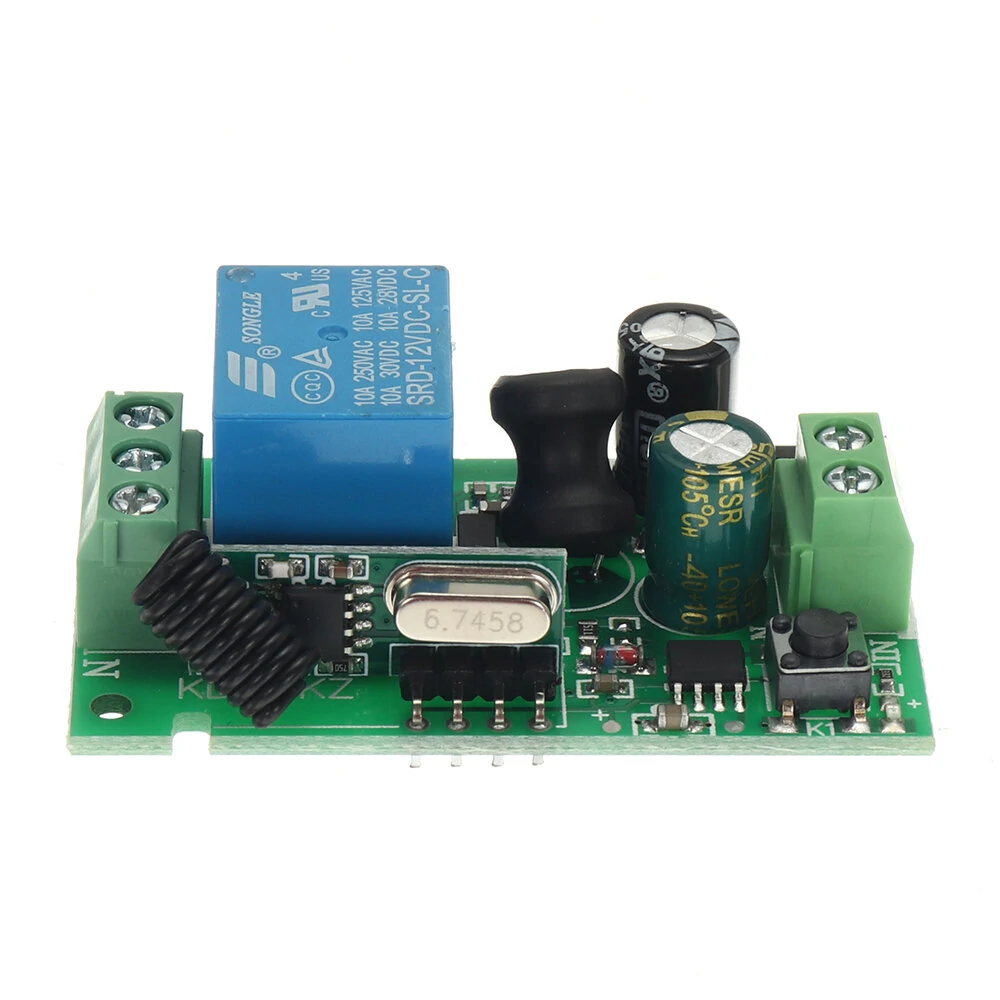

315MHz / 433MHz 220V 10A 1CH Channel Wireless Relay Remote Control Switch Receiver

5.0248 ratings
AI Summary
Relay Module for everyday users

The 315MHz / 433MHz 220V 10A 1CH Channel Wireless Relay Remote Control Switch Receiver by Pricio is a mid-range relay module designed for everyday users. Customers praise its fast and responsive. 100% of buyers rate it 4★ or above.

✓ fast and responsive✓ wireless convenience
₹2,000
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

Price: ₹2,000

Total: ₹2,000
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 4 Aug – 18 Aug
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Hobbyist flyingOutdoor recreationKids entertainment
Share:
SKU: bg-1126024Category: Relay Module

About This Product

The 315MHz / 433MHz 220V 10A 1CH Channel Wireless Relay Remote Control Switch Receiver by Pricio is a mid-range relay module designed for everyday users. Customers highlight its fast and responsive.

Customer Verdict

100% of buyers rated this product 4 stars or above. The most appreciated qualities are: fast and responsive.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Specification:
1. Input Voltage: AC85V-AC220V
2. RF Frequency: 315/433MHZ
3. RF Working mode:Super heterodyne receiver
4. Receiver Sensitivity: -107dBm
5. Remote Control Distance: >100 meter(In open environment)
6. Decoding Way: MCU Software decoding
7. Can store the number of remote control:32
8. Support remote control type: Fixed code, learning code
9. Channel: 1CH
10 .Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)
11. Wiring Method:Fixed wiring terminal
12. Rated load:10A 250VAC / 10A 125VAC, 10A 30VDC / 10A 28VDC
13. Dimension:5.4cm*3.1cm*1.4cm
Working/output method:
1. Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2. Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Clear & Learn Code:
1. Clear function - After pressing the "KEY" button 8 times, the LED will go off and release all the remote control data in the memory. When the LED flashes for 5 times, it indicates that the clear function is completed.
2. learning function - click the learning button "KEY", LED indicator light indicates that the microprocessor to enter the learning state of the code, press the matching wireless remote control button, LED light blinks 3 times then turn off means Code success.
3. LED flashes to determine the selected function.
   * Flashing 1 time - Jogging function    * Flashing 2 times - Self-locking function    * Blink 3 times - Interlock function
Note:
When using for the first time, make sure to clear the factory code and clear the remote control code.
Package included:
1 x 220V 1 Channel Wireless Relay Switch


Product Safety Information
Product Safety Information
Manufacturer
Shenzhen Yuner Yipu Trading Co., Ltd
Address
East 1087, Building 4, SEG Science and Technology Park, No. 3012 Huaqiang North Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong, CN
European agent
VISHTEC ltd
Email
compliance@vish-tec.com
Address
3 rd floor office 5, Plovdiv 2 Liuben Karavelov bul, 4002 Bulgaria
UK agent
CET Product Service Ltd.
Email
info@cetproduct.com
Address
Beacon House Stokenchurch Business Park, Ibstone Rd, Stokenchurch, High Wycombe, Buckinghamshire, UK

Setup Guide

1
Identify the pins
Locate VCC (power), GND (ground), and data pins (SDA/SCL for I2C, MOSI/MISO for SPI, or TX/RX for UART). Refer to the pinout diagram on the product page.
2
Wire to your microcontroller
Connect VCC to 3.3V or 5V (check the module spec), GND to GND, and data pins to the appropriate GPIO pins on your Arduino or Raspberry Pi.
3
Install libraries
In Arduino IDE, go to Sketch → Include Library → Manage Libraries and search for the sensor library. Install the recommended version.
4
Upload example sketch
Open File → Examples → [library name] → Basic Example. Upload to your board and open Serial Monitor to view output.
5
Calibrate if needed
Some sensors (temperature, humidity, distance) may need a short warm-up period or calibration. Run the calibration sketch if provided.
