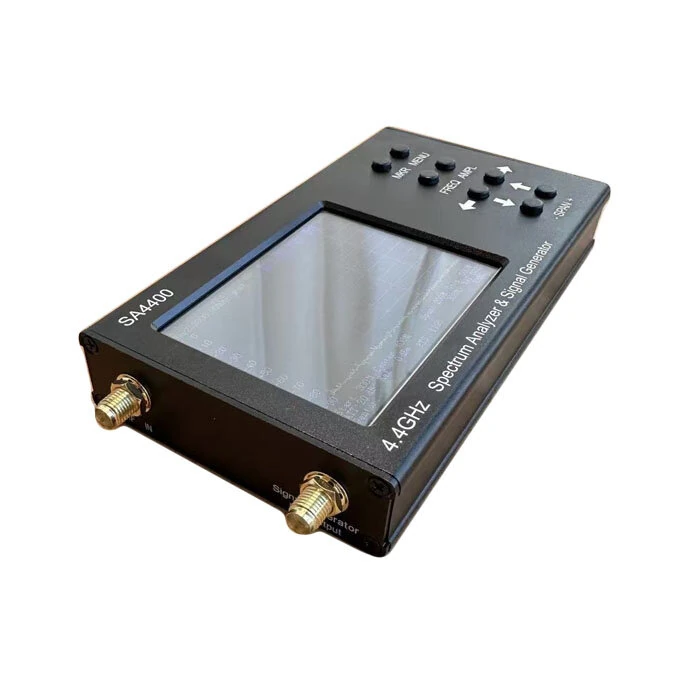

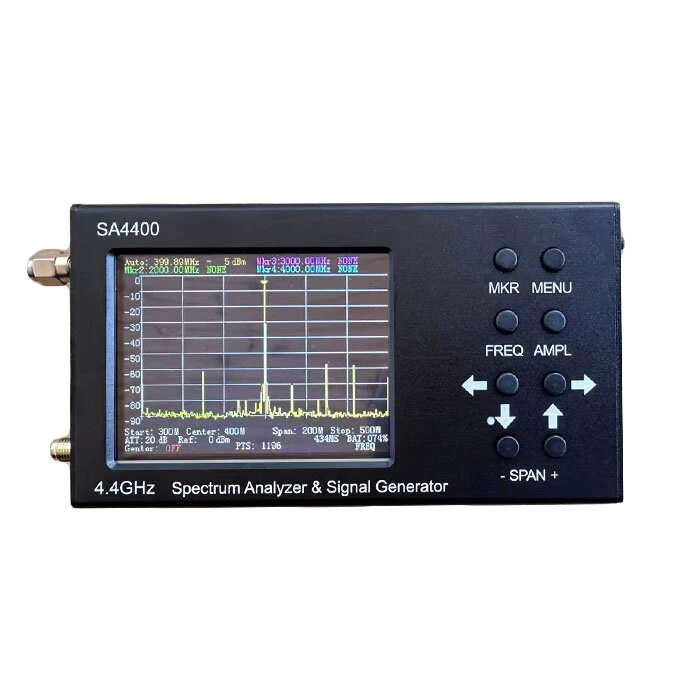

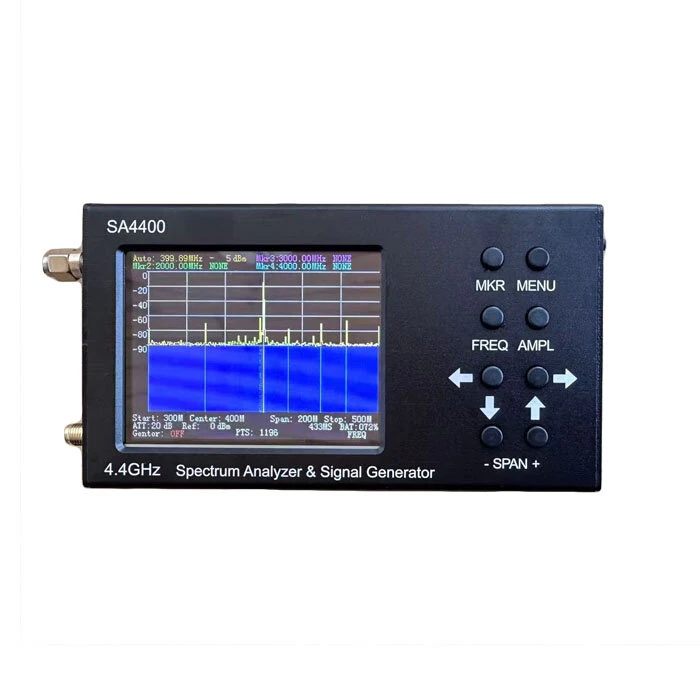

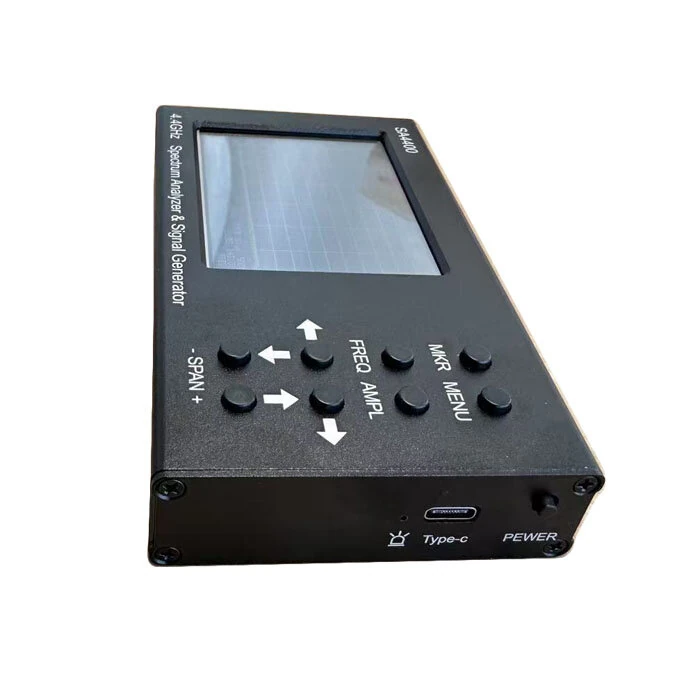

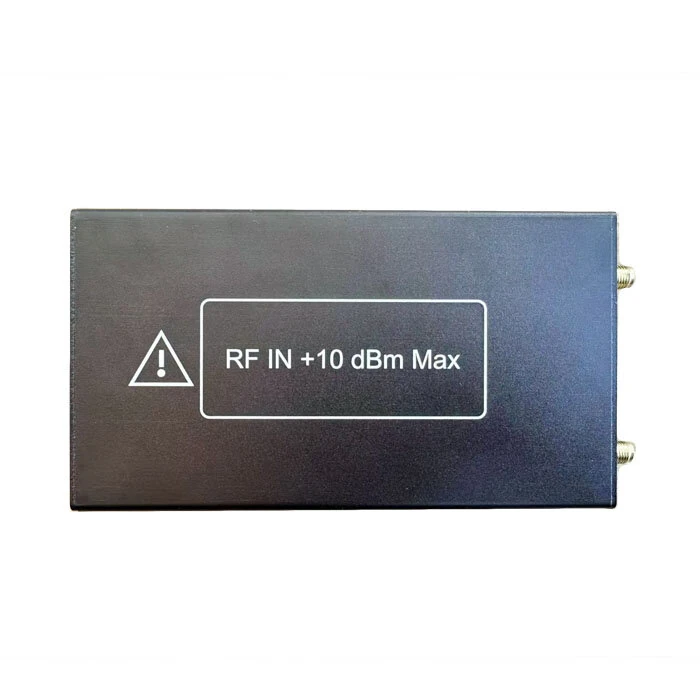

3.2-Inch Touch Screen Spectrum Analyzer 4.4G Signal Generator 45-4400 MHz Wide Frequency Range High Accuracy 600 MHz/s Fast Sweep Speed
The 3.2-Inch Touch Screen Spectrum Analyzer 4.4G Signal Generator 45-4400 MHz Wide Frequency Range High Accuracy 600 MHz/s Fast Sweep Speed is a premium product designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Color: Black
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 3.2-Inch Touch Screen Spectrum Analyzer 4.4G Signal Generator 45-4400 MHz Wide Frequency Range High Accuracy 600 MHz/s Fast Sweep Speed is a premium designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
- Displayed Frequency Range: 35-4400 MHz
- Measured Frequency Range: 45-4400 MHz
- Dynamic Range:
- 75 dB (45-3000 MHz band)
- 70 dB (3000-4400 MHz band)
- Maximum Bandwidth: 4355 MHz
- IF Bandwidth (Fixed): 200 kHz
- Sweep Speed:
- With span > 100 MHz: 600 MHz/s
- Sweep Time of 100 MHz Span: < 0.25 s
- Detectable Signal Duration at 10 MHz Scan Span: 20 ms
- Noise Floor:
- Up to 3000 MHz: < -100 dBm
- 3000-4500 MHz: < -95 dBm
- 4500-6200 MHz: < -90 dBm
- Input Impedance: 50 Ohm
- SWR in Operating Frequency Range: < 1.5
- Internal Attenuator: 0-30 dB
- Attenuation Error:
- Up to 10 dB: 2 dB
- 10 to 20 dB: 5 dB
- 20 to 30 dB: 8 dB
- Built-in Tracking Generator Frequency Range: 35-6200 MHz
- Tracking Generator Output Power: -15 to -25 dBm
- Signal Display Accuracy within Dynamic Range: 2 dB
- Maximum Input Power:
- With 0 dB Attenuator: +10 dBm
- With > 20 dB Attenuator: +20 dBm
- Measured Maximum Input Signal: +10 dBm
- Maximum RF Input DC Voltage: 5V
- Maximum Supply Current:
- Battery Mode: 450 mA
- USB Mode (charging): 500 mA
- Battery Capacity: 3000 mAh
- Continuous Operation Time on Battery: 3 hours
- Battery Charging Time: ~4 hours
- Dimensions: 155x81x27 mm
- Weight: 0.49 kg
Features:
1. Wide Frequency Range: Capable of scanning frequencies from 45 MHz to 4400 MHz with an internal attenuator and amplifier, covering a broad spectrum for various applications.
2. Efficient Sweep Speed: Provides a fast sweep speed of 600 MHz/s with a span of more than 100 MHz, allowing for quick and efficient spectrum analysis.
3. High Accuracy: Offers a high dynamic range (up to 75 dB) and low noise floor (< -100 dBm up to 3000 MHz), ensuring precise and reliable measurements.
4. Enhanced Display: Features a 3.2-inch color resistive touch screen combined with button controls, providing a user-friendly interface for easy operation.
5. Long Battery Life: Equipped with a 3000 mAh battery that supports continuous operation for up to 3 hours, ensuring longevity for fieldwork and extended use.
Package Included:
1 x 4.4G Spectrum Analyzer & Signal Generator
1 x USB Type-C Connecting Cable
1 x SMA_BNC Connector
1 x Touch Pen
