20/24Pin ATX Power Transfer Board Digital Voltage Display Multi-Output 5V-12V USB PD Fast Charging Adjustable Voltage Module with DC Socket for Electronics Testing Multi-Device Charging
The 20/24Pin ATX Power Transfer Board Digital Voltage Display Multi-Output 5V-12V USB PD Fast Charging Adjustable Voltage Module with DC Socket for Electronics Testing Multi-Device Charging is a value-for-money product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
38% Off — you save ₹747 on this product!
Price: ₹1,226
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 20/24Pin ATX Power Transfer Board Digital Voltage Display Multi-Output 5V-12V USB PD Fast Charging Adjustable Voltage Module with DC Socket for Electronics Testing Multi-Device Charging is a value-for-money designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

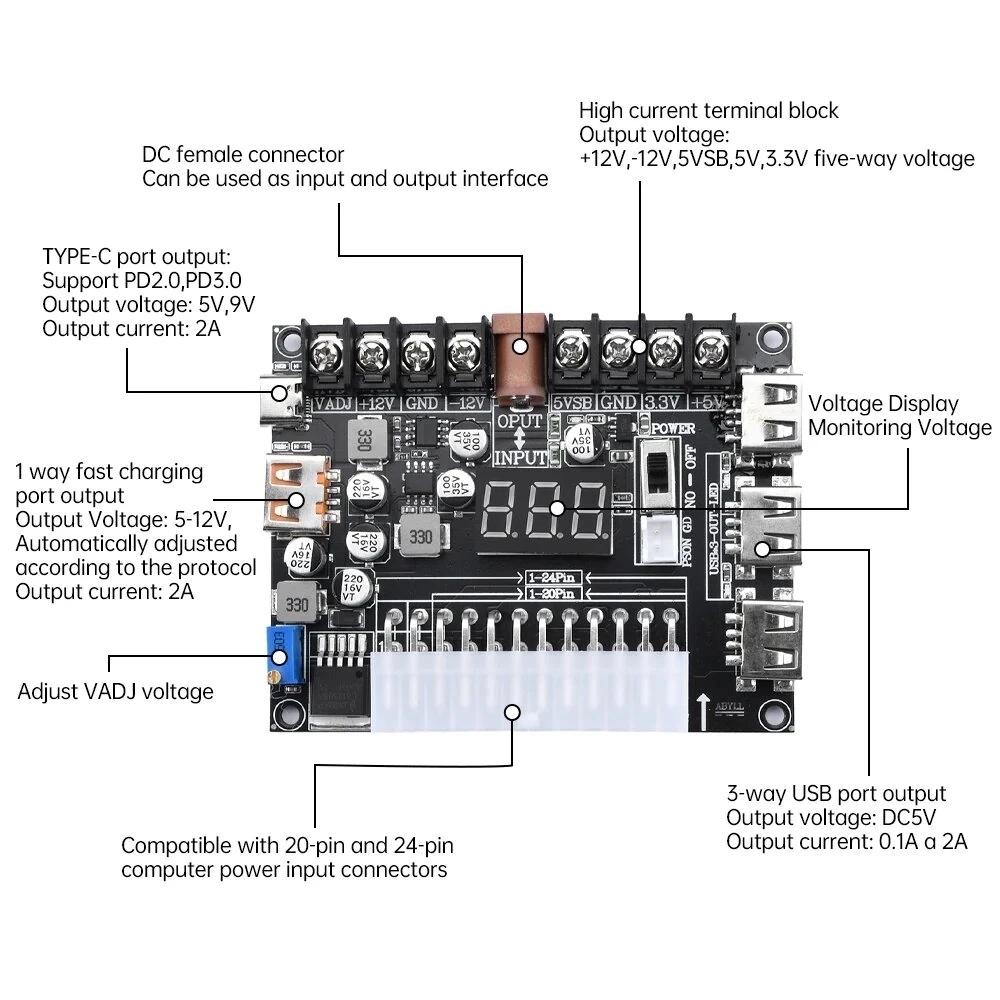

Specifications:
Terminal output voltage: +12V, -12V, +5V, 5VSB, 3.3V
3 USB outputs:
Output voltage: maximum DC5V;
Output current: 0.1A-2.1A;
1 orange USB port: (fast charging output interface, supports multiple protocols, requires mobile phone and data cable to support fast charging)
Output voltage: 5-12V, automatically adjusted according to the protocol;
Output current: 2A
1 TYPE-C interface output:
Support PD2.0/PD3.0 protocol;
Output voltage: 5V, 9V
Output current: 2A
DC female socket interface: can be used as input and output interface
Compatibility: compatible with all 20-pin and 24-pin computer power supplies
Application: USB interface can power mobile phones, tablets, mobile power supplies, flashlights, bluetooth speakers, smart bracelets, small desk lamps, aging electronic products, etc.
Features:
1. The module board is compatible with all 20Pin and 24Pin ATX computer power supplies;
2. The toggle switch is used, which makes the switch operation more convenient;
3. The XH2.54-2P terminal is reserved (suspended), and two lines can be connected externally to control the ATX power supply on and off using the microcontroller IO port (5V) or switch (convenient for adding a shell for external installation);
4. There are multiple interfaces on the board to facilitate the use of various lines. After the module is turned on, it outputs 5 groups of power: +12V, -12V, 5V, 5VSB and 3.3V;
5. The module uses high-current wiring terminals to solve the problem of loose wiring and poor wiring caused by terminal posts and screw-type wiring terminals;

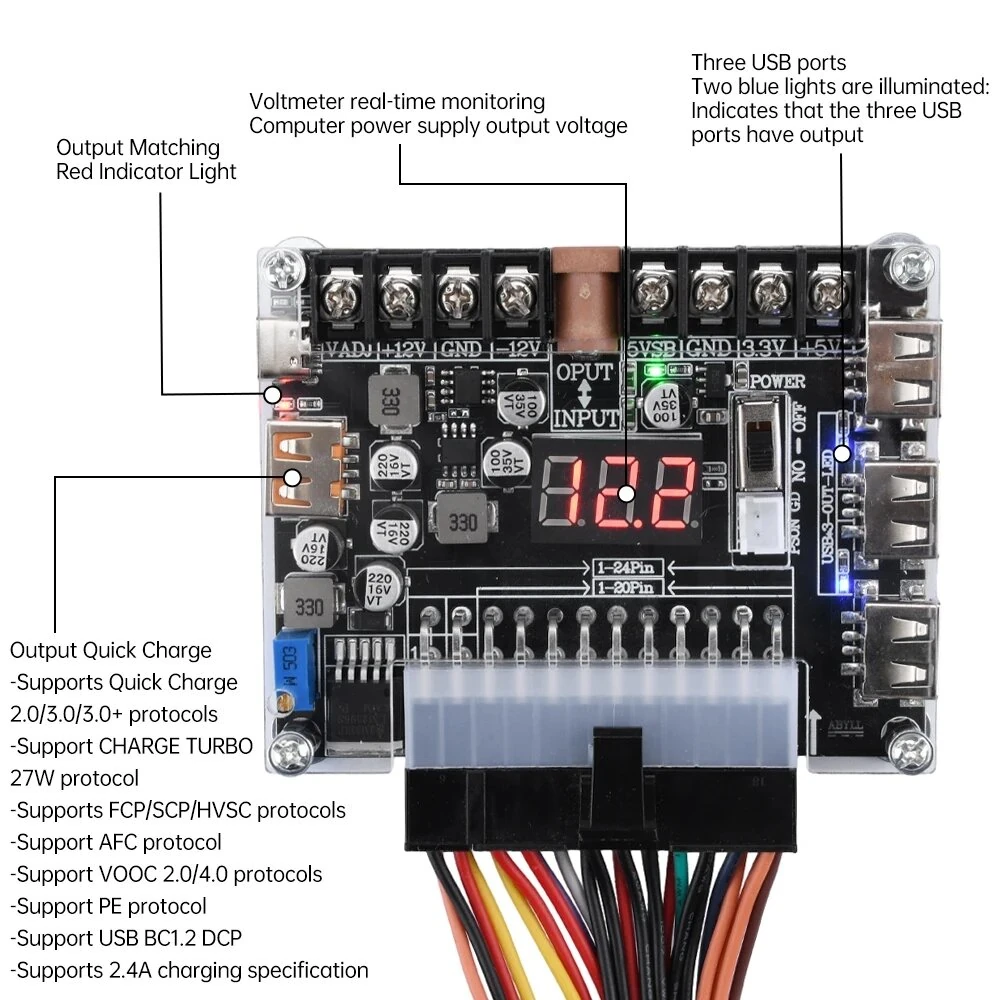

6. The motherboard has its own voltage display screen to display and monitor the output voltage of the computer power supply in real time;
7. The motherboard is equipped with a DC mother socket to output 12V voltage, which can also be used as an input voltage (DC12V-24V). Using the DC mother socket input, the motherboard fast charging interface has voltage output.

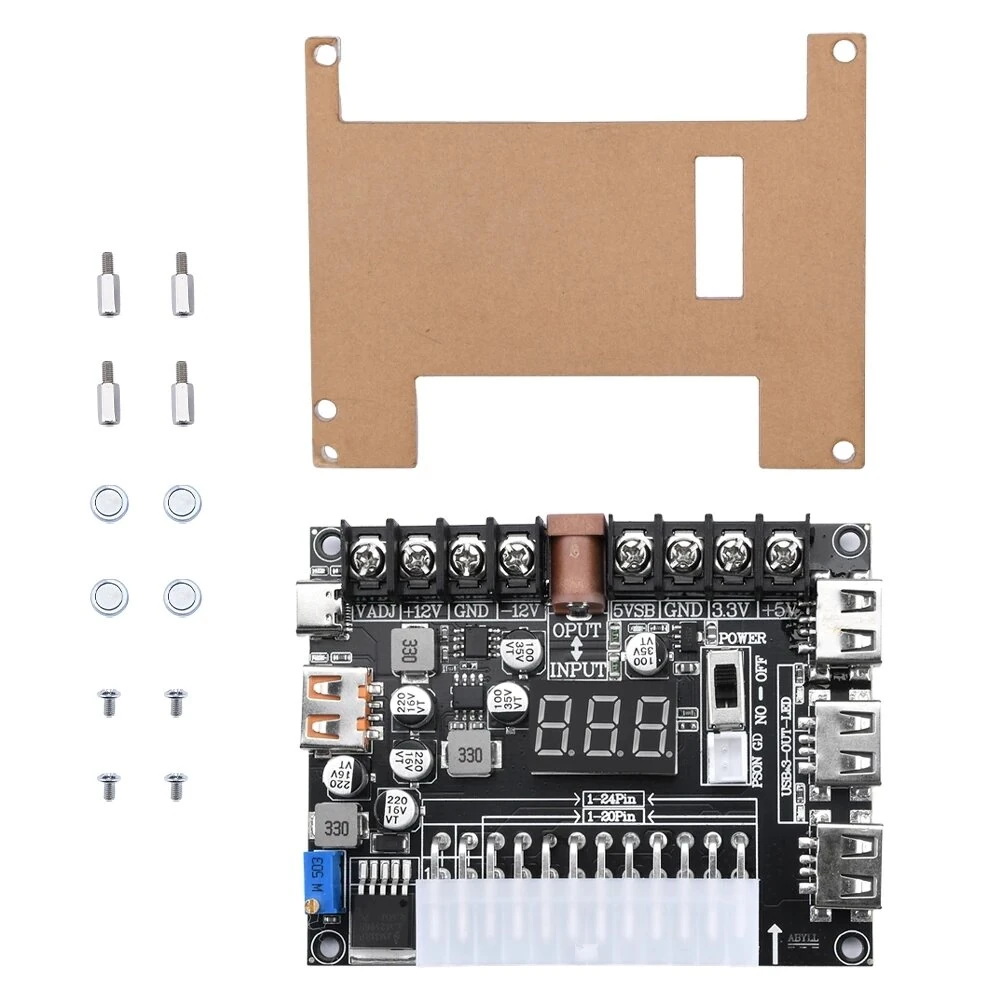

Package Include:
1x Power Converter Board
1x Acrylic Shell(Optional)
1x Screws Pack(Optional)
