2.8 Inch IPS Screen Audio Decoder Board Bluetooth 5.3 MP3 FLAC WAV APE Support I2S Digital Output USB Sound Card Line Input EQ Audio Module
5.04 ratings468+ bought in past month
AI Summary
product for everyday usersThe 2.8 Inch IPS Screen Audio Decoder Board Bluetooth 5.3 MP3 FLAC WAV APE Support I2S Digital Output USB Sound Card Line Input EQ Audio Module is a mid-range product designed for everyday users.
✓ wireless convenience
₹3,737-26%
MRP:₹5,075Save ₹1,338
Free Shipping💵 COD Available
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
26% Off — you save ₹1,338 on this product!
Total: ₹3,737
Buying tip: A quality investment for dependable performance and premium build quality.
Estimated delivery: 22 Aug – 5 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only
Available Offers
💳
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
🏦
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
📦
Free Shipping
Free delivery on all orders. No minimum order value.
💵
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
Everyday convenience
SKU: bg-2042979
About This Product
The 2.8 Inch IPS Screen Audio Decoder Board Bluetooth 5.3 MP3 FLAC WAV APE Support I2S Digital Output USB Sound Card Line Input EQ Audio Module is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:
Product Name: 2.8-inch TFT color screen Bluetooth lossless audio player decoder board
Colors: Black, Silver
Screen Specifications: 2.8-inch 320*240 pixel IPS screen
Bluetooth Name: Bluetooth Audio (user-configurable)
Bluetooth Version: V5.3 + smartphone + smartphone
Bluetooth Reception Range: Approximately 10 meters
Audio DAC Hardware Bit Width: 24-bit
Number of Output Audio Channels: 2
Channel Output Audio Signal Level: <2.8Vp-p
Audio Output Signal-to-Noise Ratio: SNR>104dB
Audio Output Signal Power: <50mW (supports direct headphone operation; external amplifier required for speaker operation)
Operating Voltage: 4.5-5.0V (regulated power supply required)
Standby Current: 20mA
Operating Current: 30-180mA (mainboard operating current only; power consumption varies depending on state; does not include peripheral current)
Introduction:
1. This product is a multifunctional high-fidelity stereo audio decoder board that integrates Bluetooth audio decoding, TF card and USB flash drive music file decoding, computer USB sound card, and LINE input.

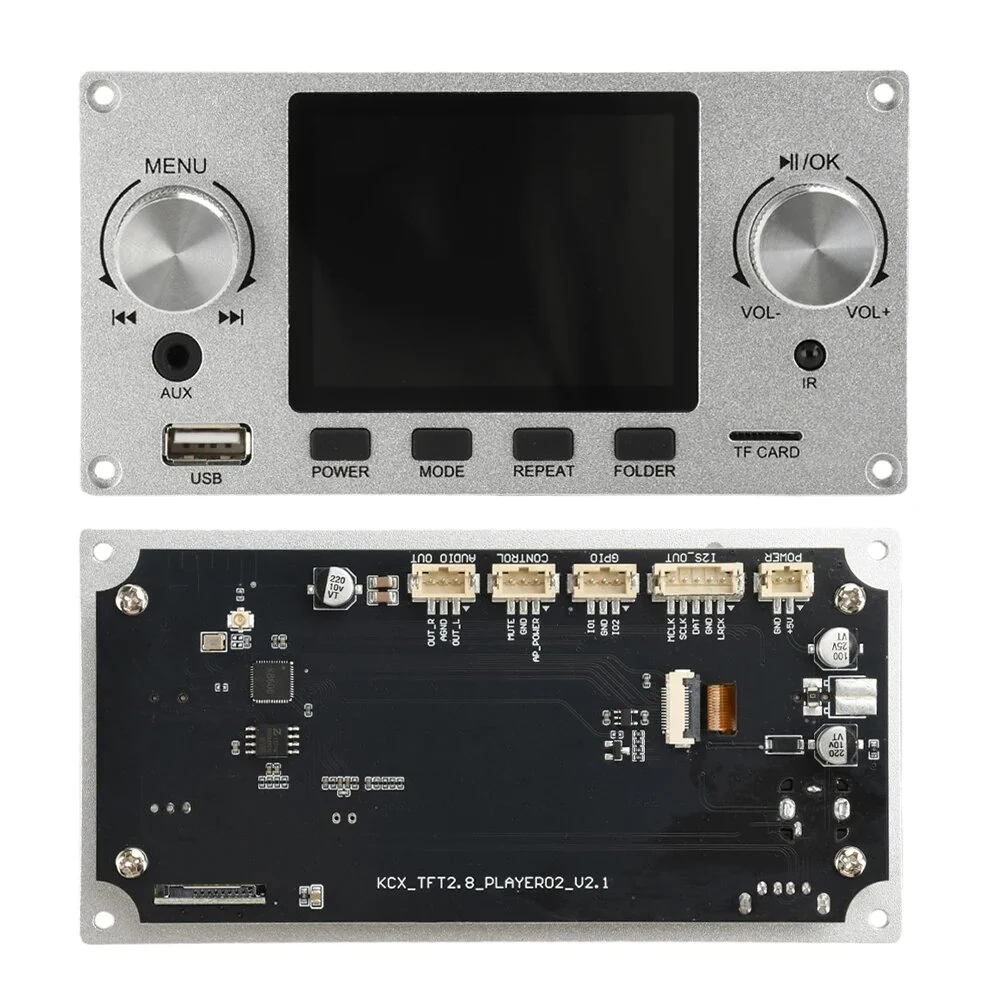

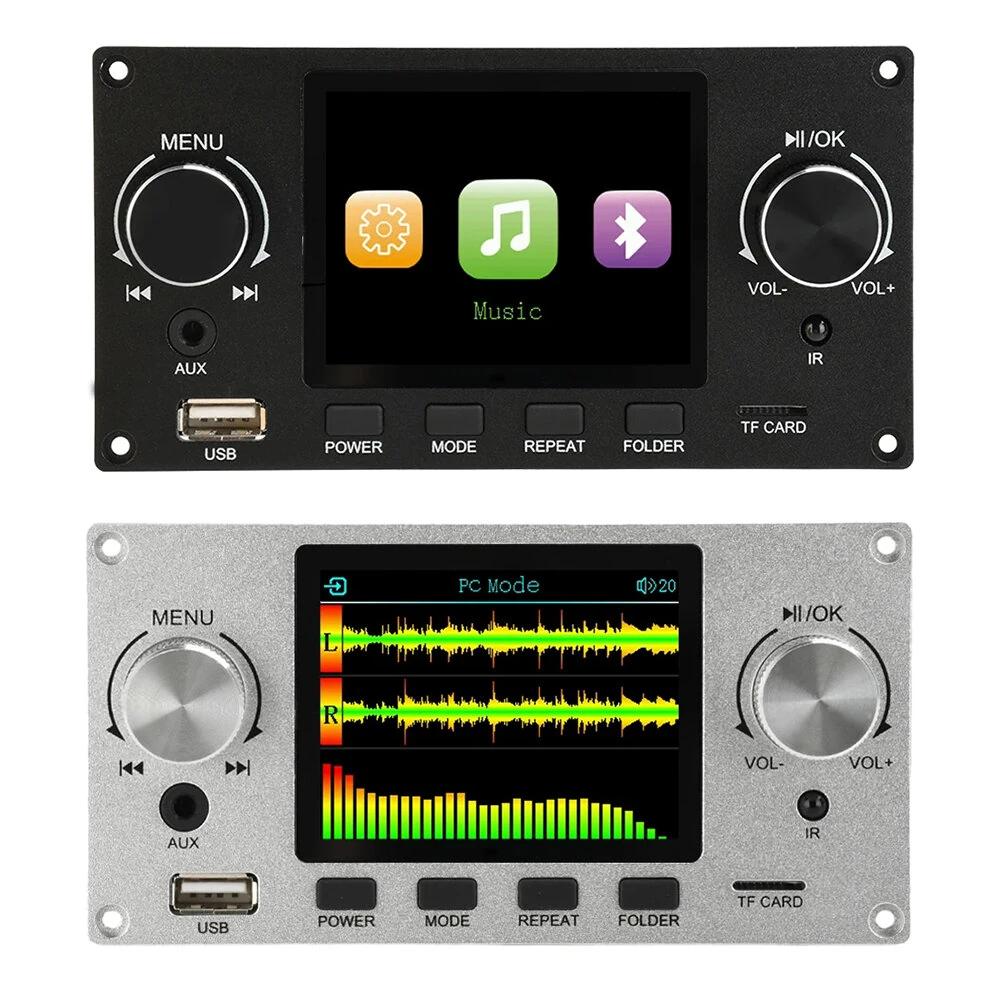

2. The front panel is made of aluminum alloy and features a 2.8-inch 320*240 pixel IPS color screen to display playback status and decoding information. It also supports analog audio and digital audio (I2S) output.
3. The 3.5mm stereo line-in jack is used to input line-in audio signals from mobile phones, computers, MP3 players, and other devices.
4. The built-in equalizer has 7 preset EQ scenes and 1 custom EQ scene, allowing you to adjust the sound quality to your speakers and personal listening preferences.
Mode Description:
1. When playing USB flash drives/TF cards in Music mode, it supports decoding file formats such as MP3, WAV, WMA, FLAC, and APE. Lyrics files can be parsed and displayed synchronously with 1rc lyrics files. Without lyrics files, a 32-segment dynamic spectrum is displayed. 2. In Bluetooth mode, it supports SBC/AAC audio transmission protocols, displays ID3 information such as lyrics and song titles, and displays spectrum.
3. In LINE mode, it supports stereo line-in audio input, displaying envelope graphs for both left and right channels and spectrum.
4. In USB sound card mode, it supports envelope graphs and spectrum displays.

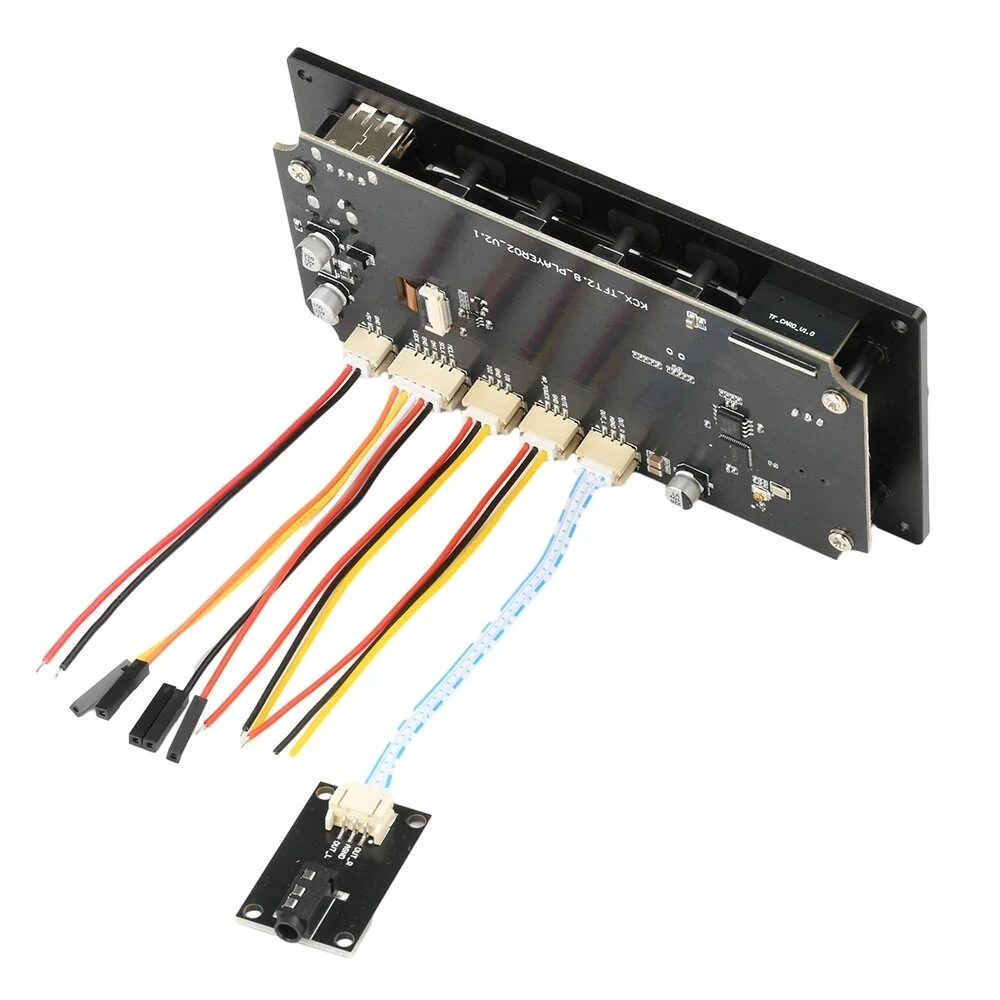

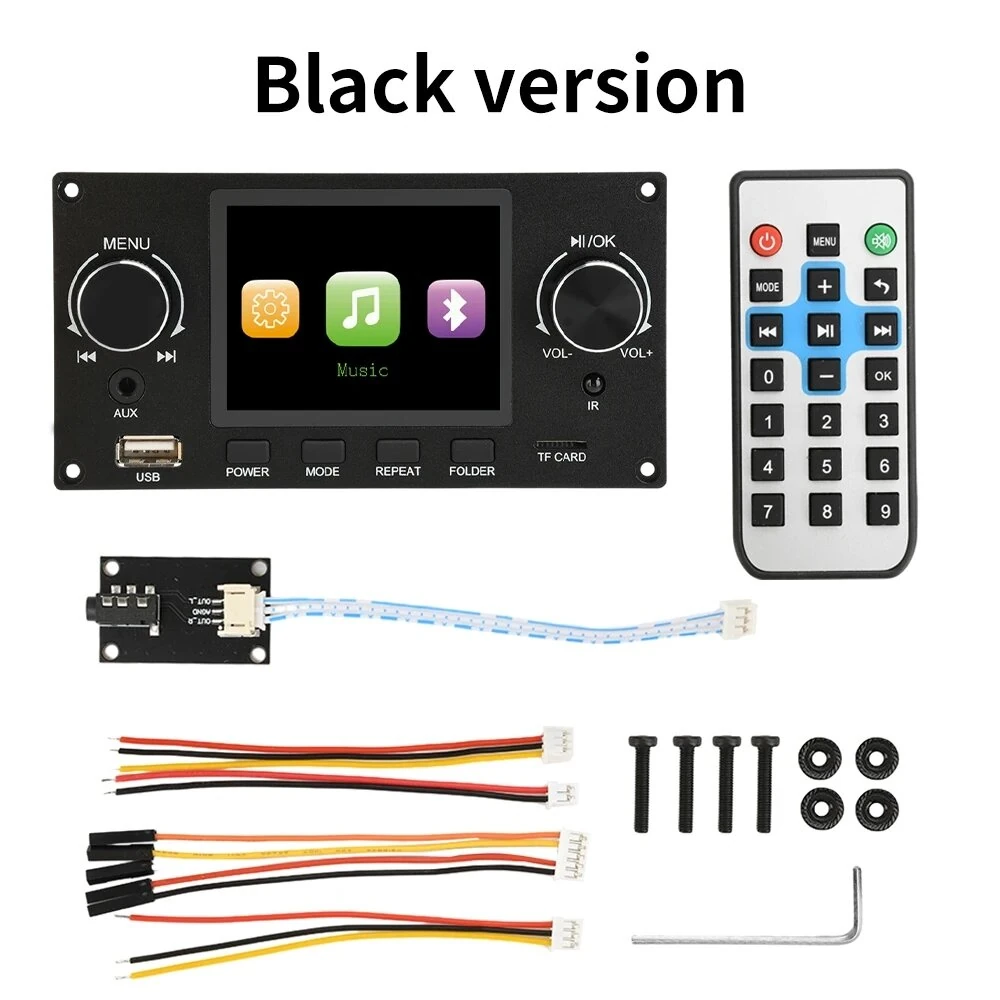

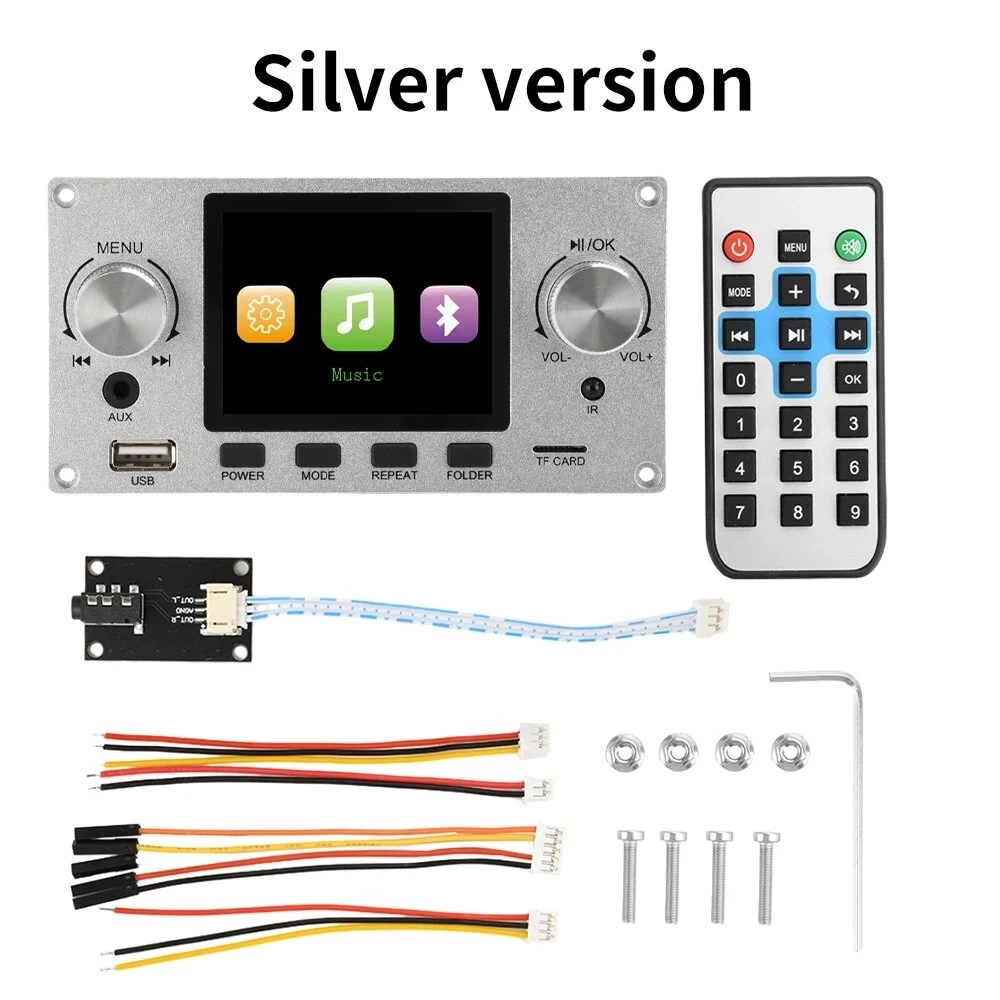

Package Included:
1 x Audio Decoder Board (Black/Silver optional)
1 x M3 Hex Wrench
4 x M3x16 Hex Screws with Nuts
1 x Remote Controller
1 x 3.5mm Audio Jack Cable
1 x PH2.0/5PIN to Dupont Cable
2 x PH2.0/3PIN Cables
1 x PH2.0/2PIN Power Cable
Note:
This decoder board operates from a 4.5-5.0V supply voltage. It is recommended to use a linear voltage regulator such as the LM7805 to avoid overvoltage and possible burnout of the decoder board or malfunction due to undervoltage. A 3.7V lithium battery is not recommended for powering the decoder board, as it is too low and unstable for the decoder board.
