2.4G Remote Control Receiver Kit for DIY Toy Cars Robots 8-Channel Wireless Module with 100M Range Overcharge Protection

Name: 2.4G Remote Control Receiver Kit for DIY Toy Cars Robots 8-Channel Wireless Module with 100M Range Overcharge Protection
Brand: Pricio
SKU: 2051313
Price: 1116 INR
Availability: InStock

21+ bought in last month

AI Summary

product for DIY enthusiasts and makers

The 2.4G Remote Control Receiver Kit for DIY Toy Cars Robots 8-Channel Wireless Module with 100M Range Overcharge Protection is a value-for-money product designed for DIY enthusiasts and makers.

✓ wireless convenience

₹1,116-30%

MRP:₹1,597Save ₹481

Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

30% Off — you save ₹481 on this product!

Color: Purple

Purple

Quantity

Total: ₹1,116

Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.

Estimated delivery: 26 Aug – 9 Sept

Check delivery date

Free Shipping

Pan India delivery

15-Day Returns

Hassle-free policy

Secure Payment

Razorpay protected

Quality Assured

Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Hobbyist flyingOutdoor recreationKids entertainment

SKU: bg-2051313

About This Product

The 2.4G Remote Control Receiver Kit for DIY Toy Cars Robots 8-Channel Wireless Module with 100M Range Overcharge Protection is a value-for-money designed for DIY enthusiasts and makers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Features:

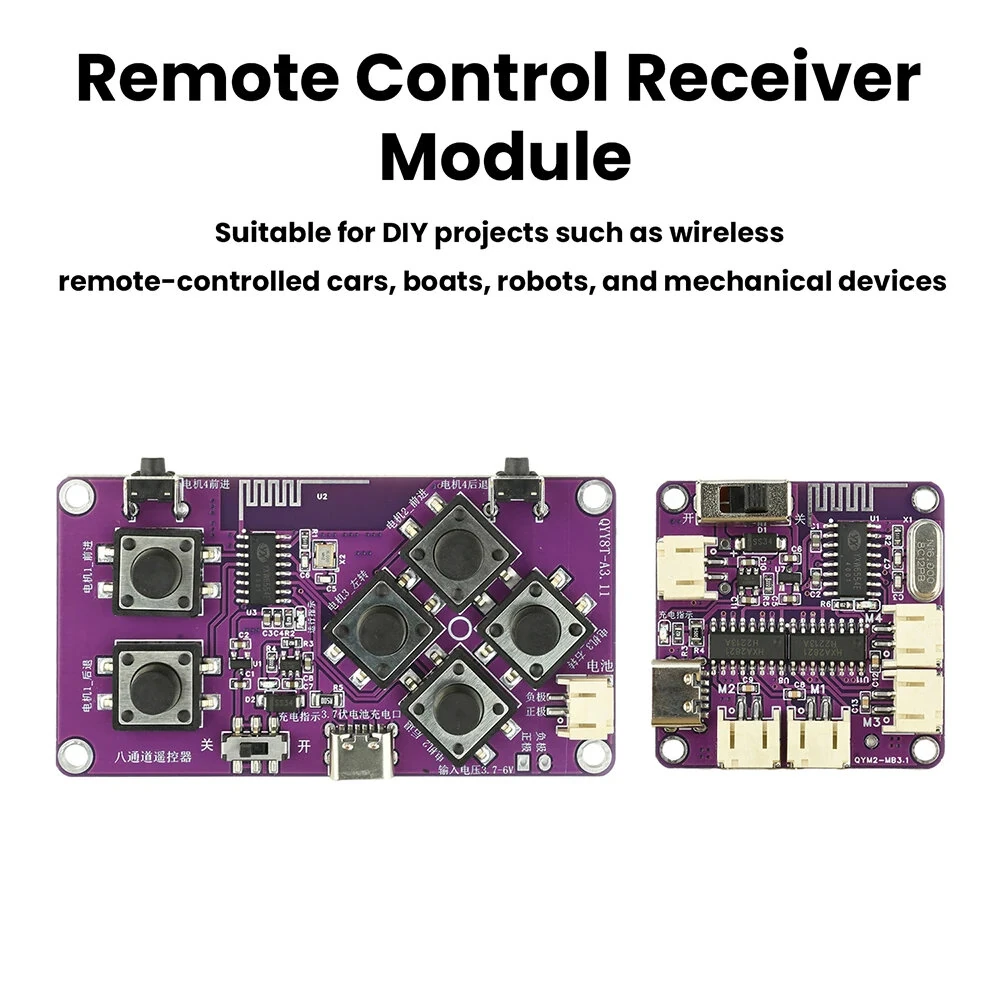

1. Ideal for DIY projects like wireless remote-controlled cars, boats, robots, and mechanical devices

2. Stable performance up to 100 meters in open areas, reliable operation in complex environments

3. Precise control of multiple devices, supporting complex mechanical designs

4. Safe 3.7-6V operation protects chips from burnout, compatible with mainstream batteries

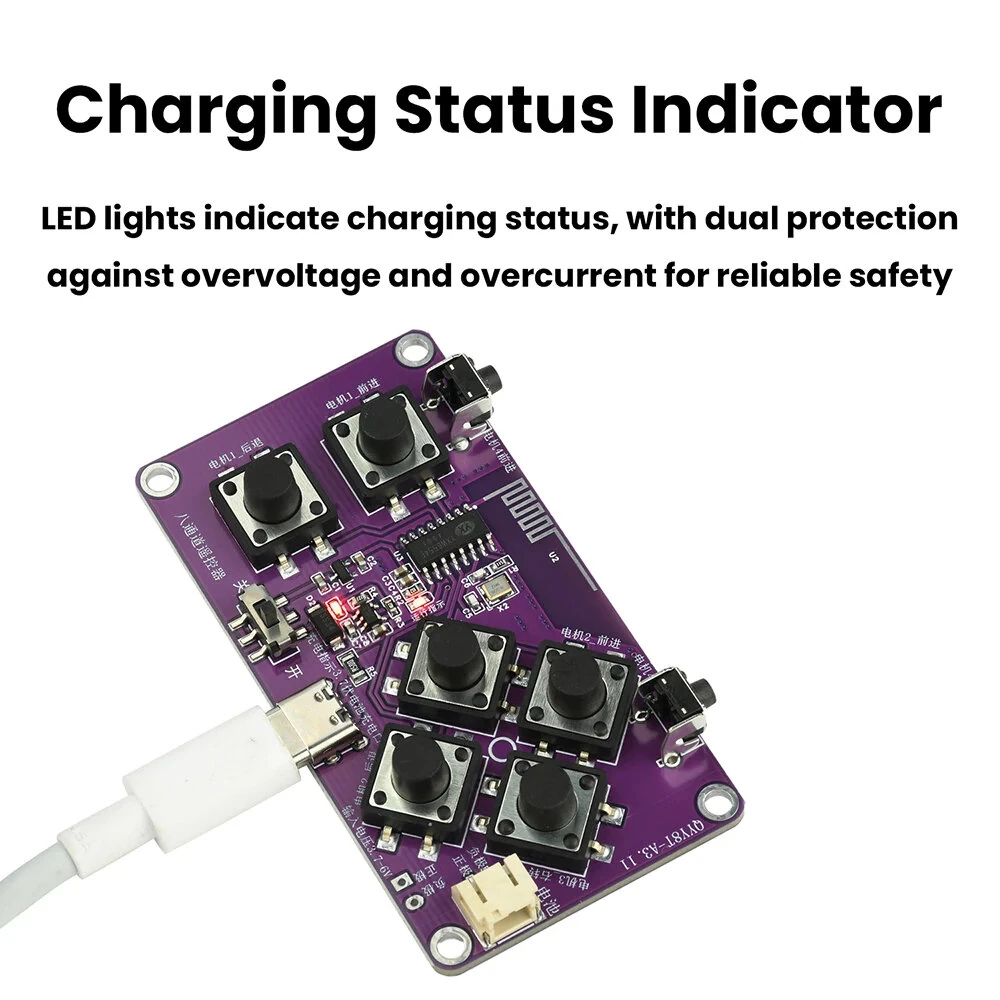

5. LED indicators show charging status; dual overvoltage/overcurrent protection ensures reliability

Specification:

Product Name: 8-Channel Remote Control Kit Transmitter

Operating Voltage: DC 3-6V

Receiver Voltage: DC 3.7-6V (Do not exceed 6V; does not support 7.4V Li-ion batteries)

Channel Mode: Independent channels, no interference

Remote Control Range: 100 meters (open environment)

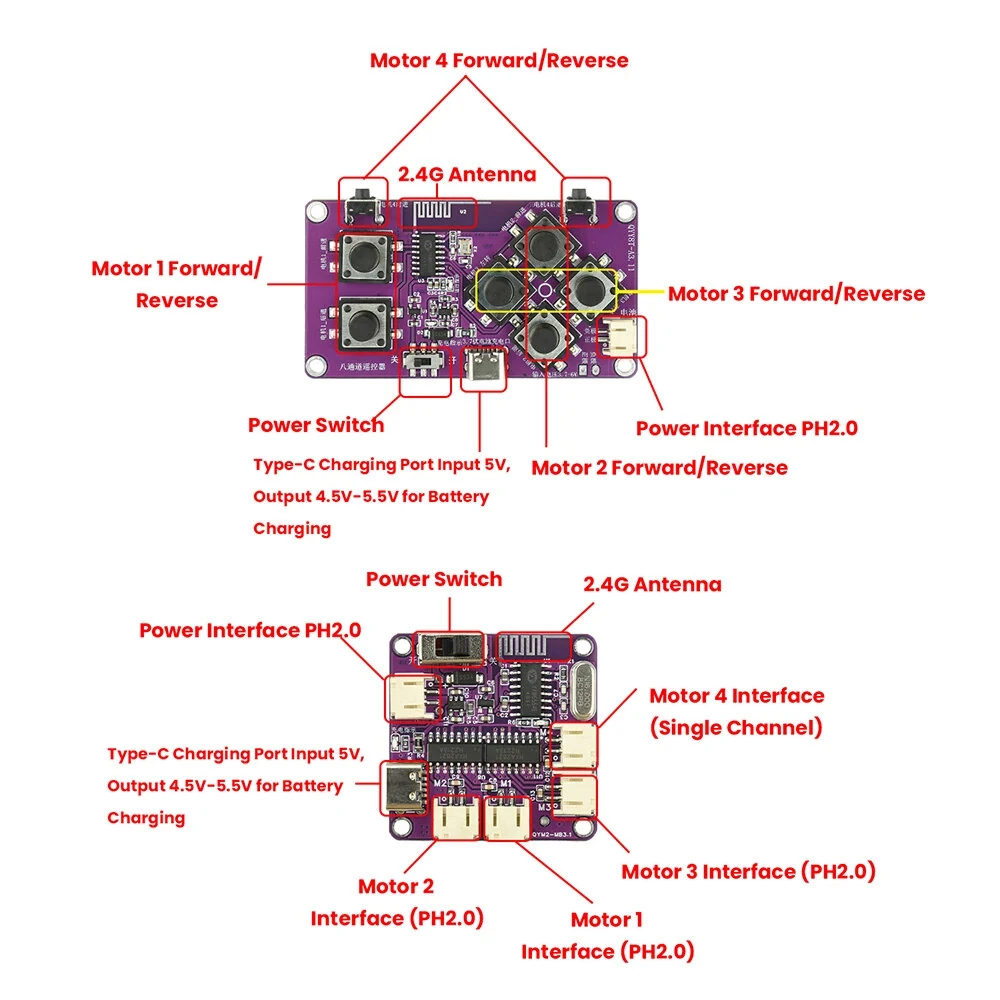

Interface Types:

Power Interface: XH2.0 Female

Motor Interface: PH2.0 Female

Application: Suitable for DIY wireless remote-controlled cars, boats, robots, mechanical devices, etc.

Instructions:

1. Pair the remote with the receiver board: First turn on the remote's power switch, then the receiver board's power switch. (Activate the remote within 20 seconds; prolonged power-on time may cause both boards to enter sleep mode, requiring power cycle restart.) Pairing is successful when the pairing indicator stops flashing. If initial pairing fails, repeatedly cycle the receiver board's power.

2. Each button group on the remote controls forward/reverse rotation of one motor port on the receiver board. Motor ports cannot be programmed.

3. Both remote and receiver operate at 3.7V-6V. Do not exceed 6V voltage, as this will burn out the main control chip. Use one 3.7V 18650 lithium battery.

4. The receiver board can drive brushed motors with power ratings below 6V 1.8A.

5. The remote and receiver board use a one-to-one pairing method. In the same environment, multiple sets of remote/receiver pairs can operate simultaneously (power them on sequentially—pair the first set before powering the second, and so on). However, a single remote cannot control multiple receiver boards.

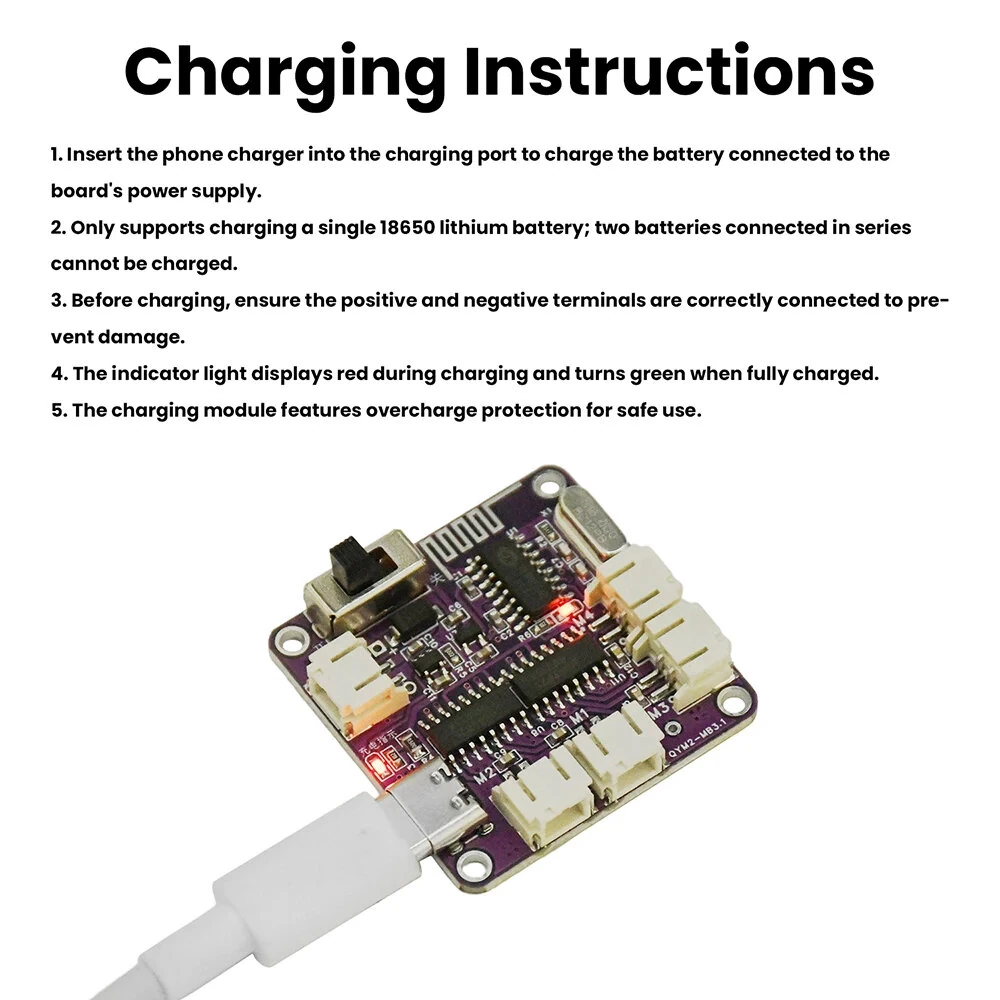

Charging Instructions:

1. Insert a mobile phone charger into the charging port to charge the battery connected to the board.

2. Only supports charging a single 18650 lithium battery. Two batteries connected in series cannot be charged.

3. Before charging, ensure the power supply's positive and negative terminals are correctly connected to prevent damage.

4. The indicator light displays red during charging and turns green when fully charged.

5. The charging module features overcharge protection for safe use.

Package included:

1 x Receiver Board

1 x Remote Control Board
