1PCS SOP8 150mil/208mil Chip Burn Write Probe Handheld Block 2×4Pin Programmer Connection Cable Surface Mount Chip EEPROM Programming Probe
The 1PCS SOP8 150mil/208mil Chip Burn Write Probe Handheld Block 2×4Pin Programmer Connection Cable Surface Mount Chip EEPROM Programming Probe is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
34% Off — you save ₹827 on this product!
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 1PCS SOP8 150mil/208mil Chip Burn Write Probe Handheld Block 2×4Pin Programmer Connection Cable Surface Mount Chip EEPROM Programming Probe is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Specification:

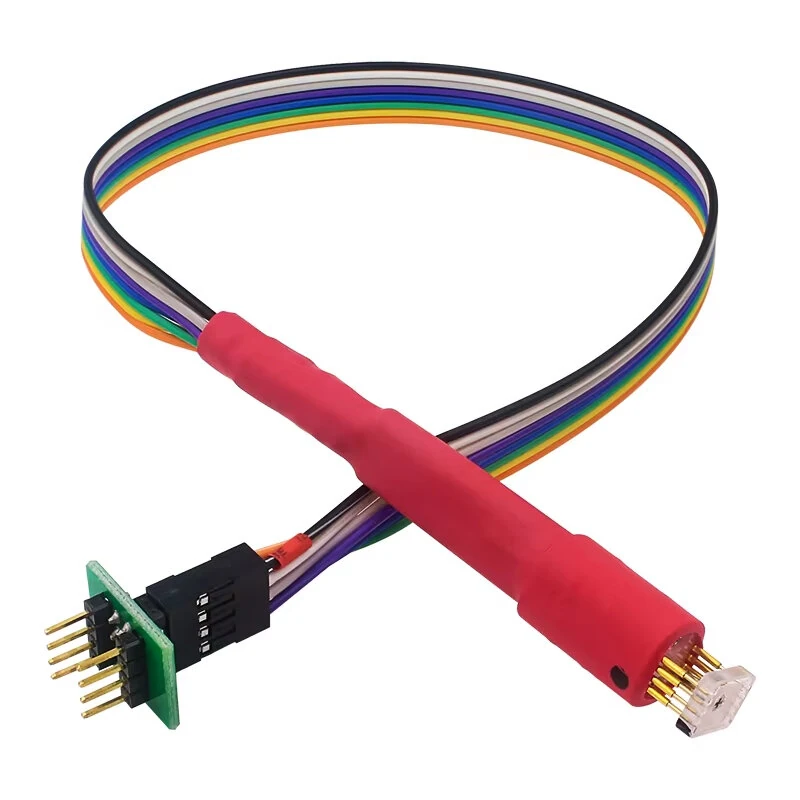

Product Name: SOP8 Chip Programming Burn Write Probe
Probe Type: Spring‑loaded pogo pin, replaceable
Supported Packages: SOP8 150mil, SOP8 208mil (also suitable for most SOIC8 / VSOP8 with same pitch)
Pin Pitch: 1.27 mm
Cable Type: 8‑core DuPont rainbow ribbon cable
Cable Length: approx. 30 cm
Connection: 2×4‑pin header to universal programmer socket / adapter board
Housing Color: Red probe block + multicolor cable
Features:
1. Direct in‑circuit programming: touch probe tip to SOP8/WSON8 chip pins without removing the chip from PCB.
2. Gold‑plated pogo pins: stable contact and low contact resistance for flashing, reading and testing.
3. Elastic stop‑block structure: built‑in limit stop keeps probe travel uniform and helps control pressure on chip pins.
4. 3D‑shaped handheld block: enlarged grip section for comfortable holding during long programming work.
5. Replaceable needle design: individual pogo pins can be replaced with included spare needles using the screw and screwdriver.
6. Programmer‑ready connector: 2×4‑pin adapter board at cable end can plug straight into most universal EEPROM/MCU programmers via Dupont header.
Package Includes:
Option SOP8‑150mil:
1 x SOP8‑150mil chip burn write probe
2 x Spare pogo pins
1 x Fixing screw for probe
1 x Mini screwdriver
Option SOP8‑208mil:
1 x SOP8‑208mil chip burn write probe
2 x Spare pogo pins
1 x Fixing screw for probe
1 x Mini screwdriver
