1.54 inch OLED Display LCD Screen Module Resolution 128*64 SPI/IIC Interface SSD1309 Driver
5.06 ratingsThe 1.54 inch OLED Display LCD Screen Module Resolution 128*64 SPI/IIC Interface SSD1309 Driver is a value-for-money display screen designed for everyday users. It features 1: GND and 2: VCC. Customers praise its excellent build quality and fast and responsive. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Price: ₹1,033
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Quick Specs
Ideal For
About This Product
The 1.54 inch OLED Display LCD Screen Module Resolution 128*64 SPI/IIC Interface SSD1309 Driver is a value-for-money display screen designed for everyday users. Customers highlight its excellent build quality and fast and responsive.
Key Specifications

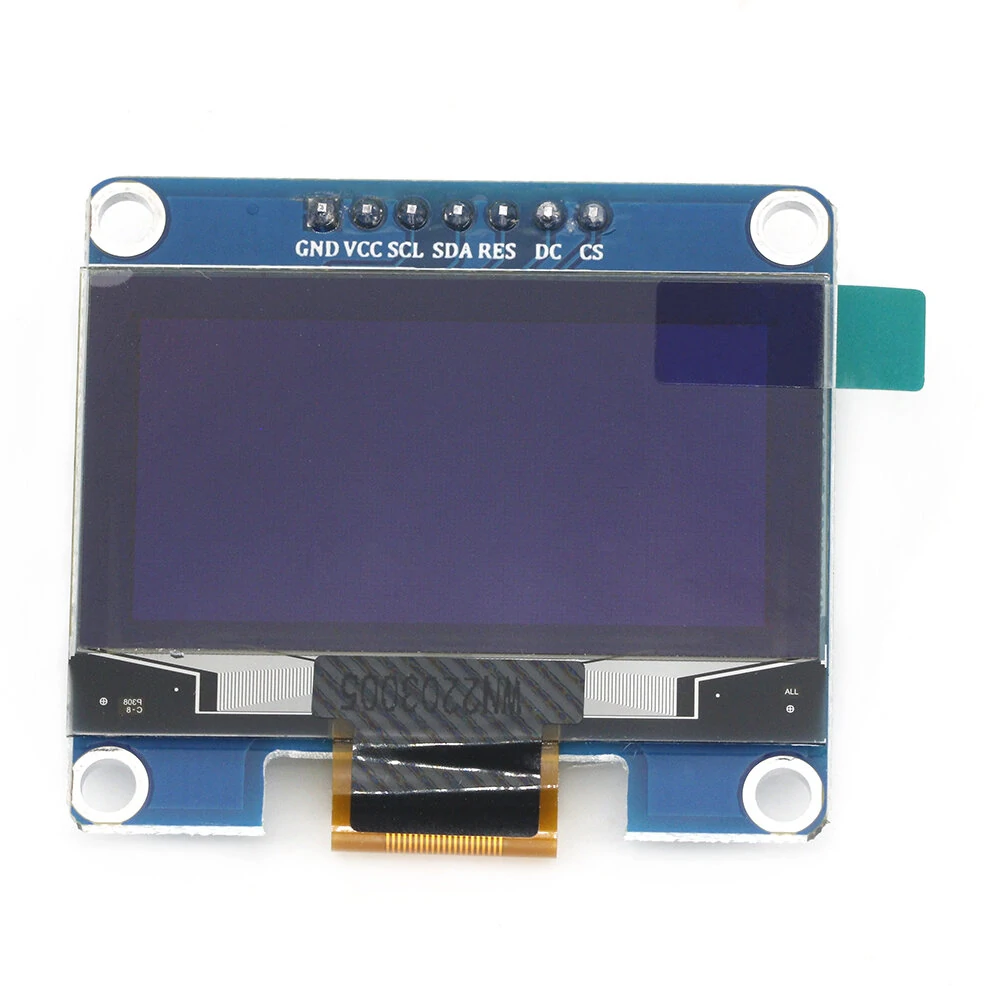

- 1: GND
- 2: VCC
- 3: SCL
- 4: SDA
- 5: RES
- 6: DC
- 7: CS
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: excellent build quality, fast and responsive, accurate and reliable.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Feature:
Driver chip: SSD1309 driver

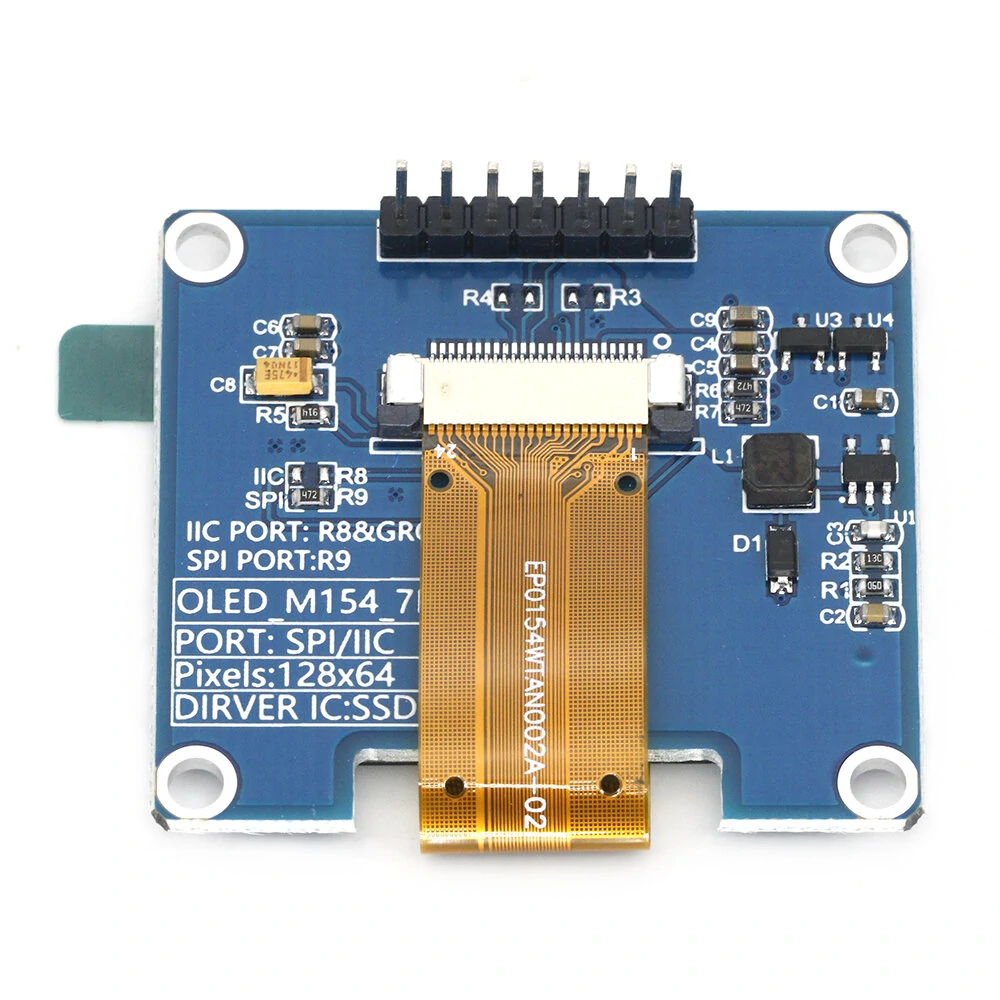

Support interface: 7-pin SPI/4-pin IIC
Resolution 128X64
Display size: 1.54 inches

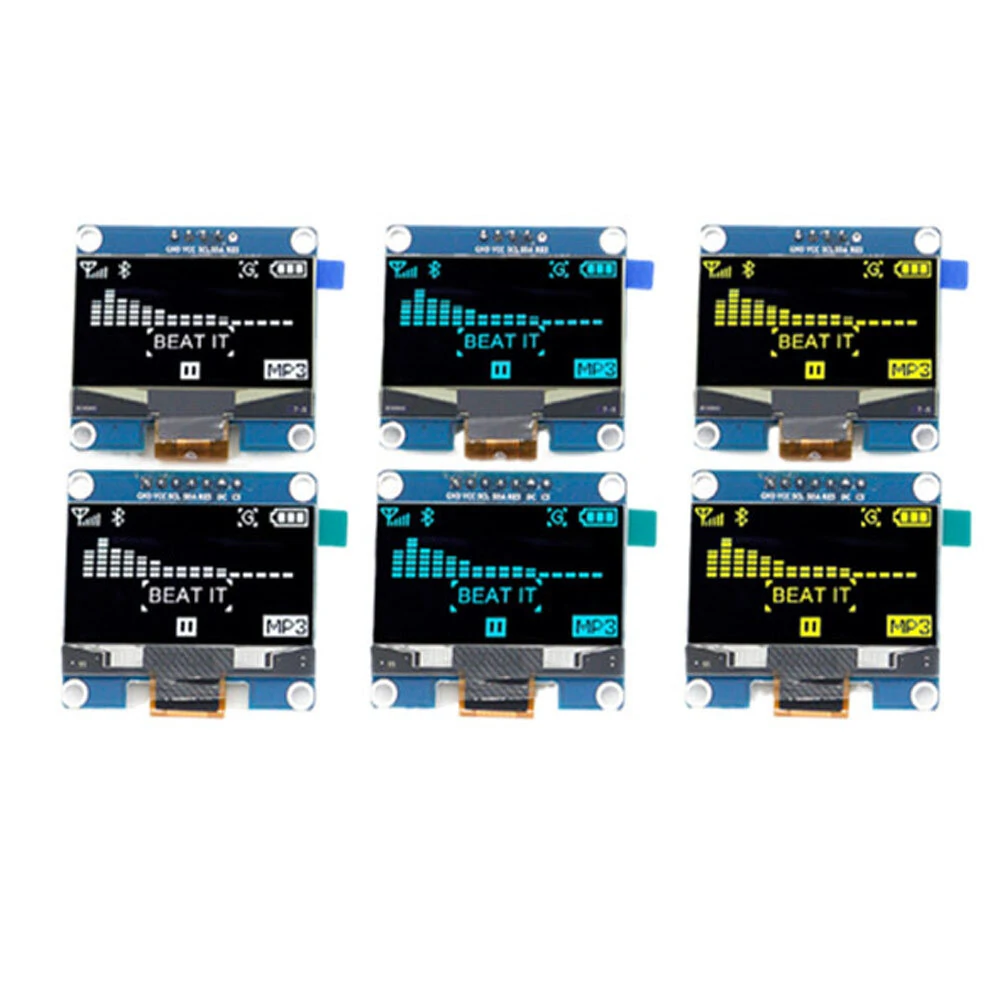

Display Color: White/Blue/Yellow

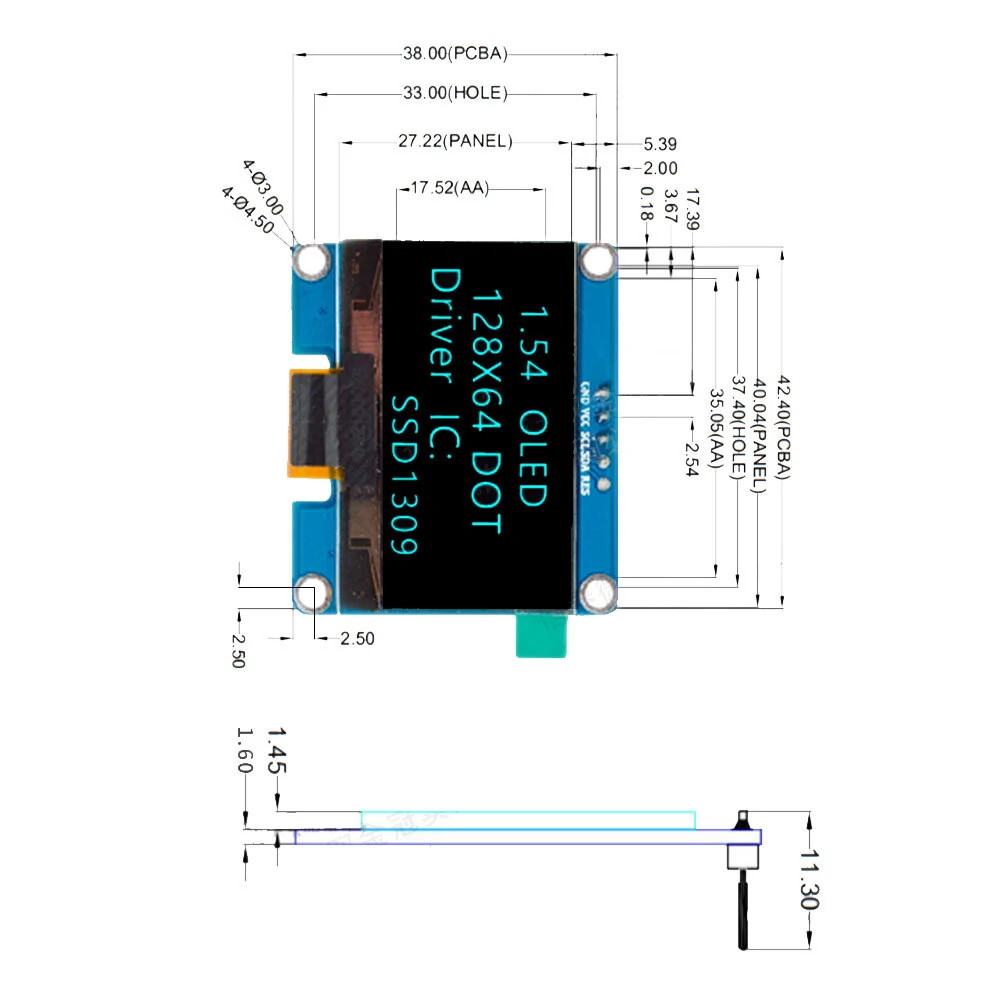

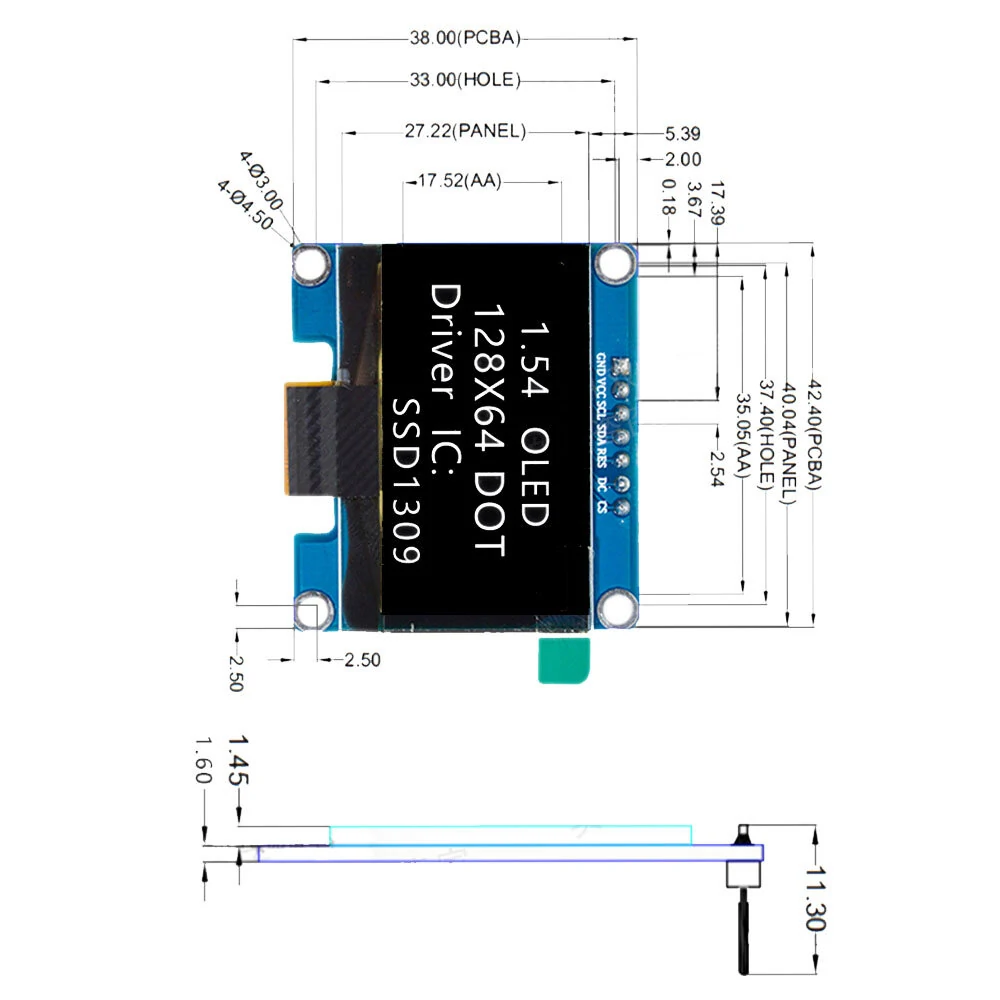

Module size: 42.4x38 (mm)
Display area: 35.052X17.516 (mm)
Pixel pitch: 0.274X0.274 (mm)
Pixel size: 0.254X0.254 (mm)
Number of pins: 5PINQ.54 pitch single row pin headers, of which the 5th pin RES pin is not used by default) This is 4 pins
Perspective: full perspective
Working temperature: -40℃~70℃
Working voltage: 3.3-5.5V (do not use other power sources)
7-pin interface definition:
4-pin interface definition:
Package includes:
1 x Screen
