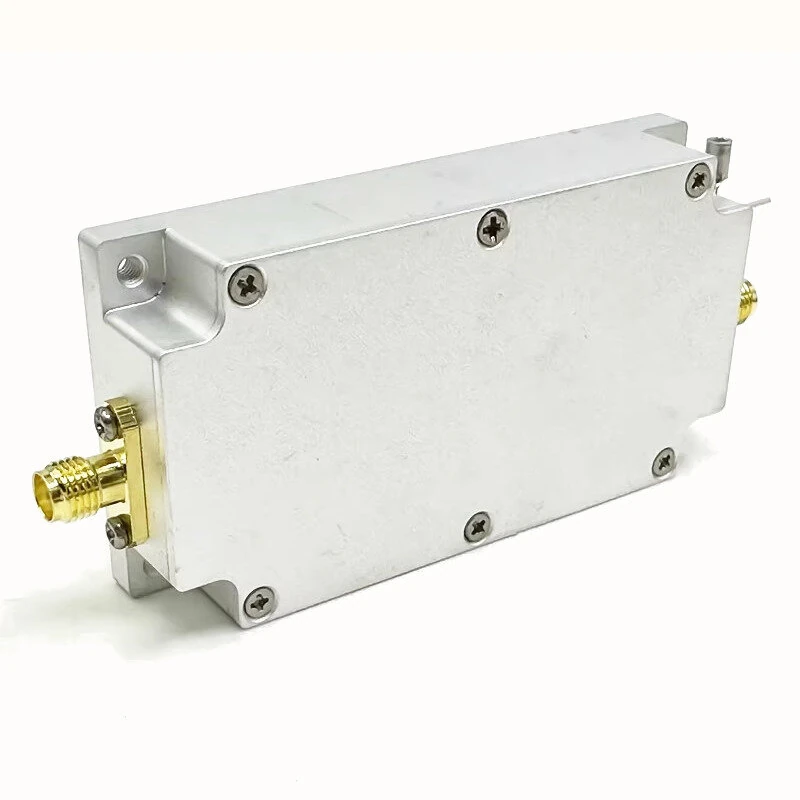

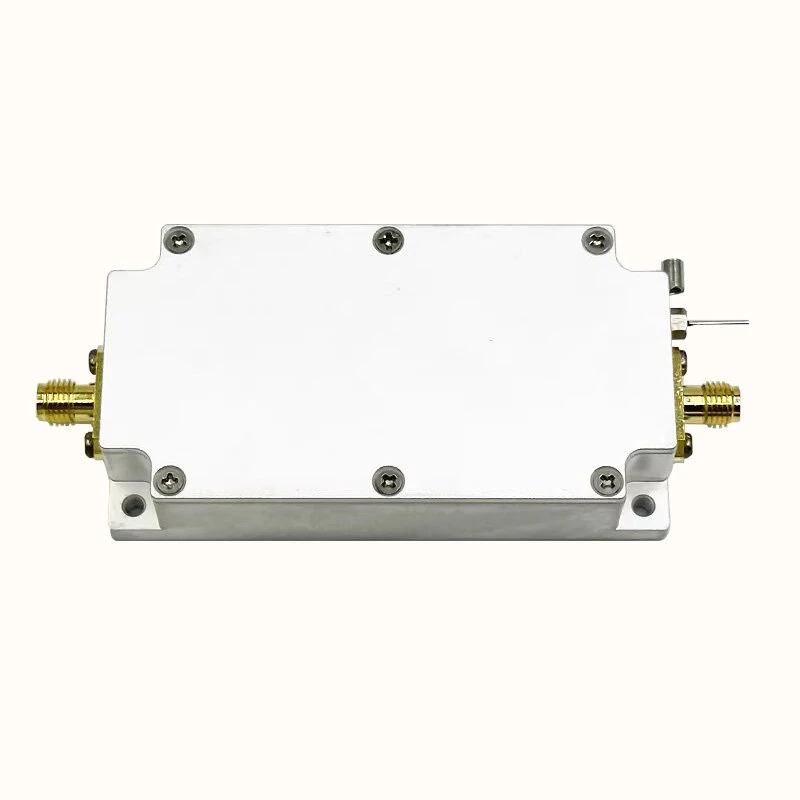

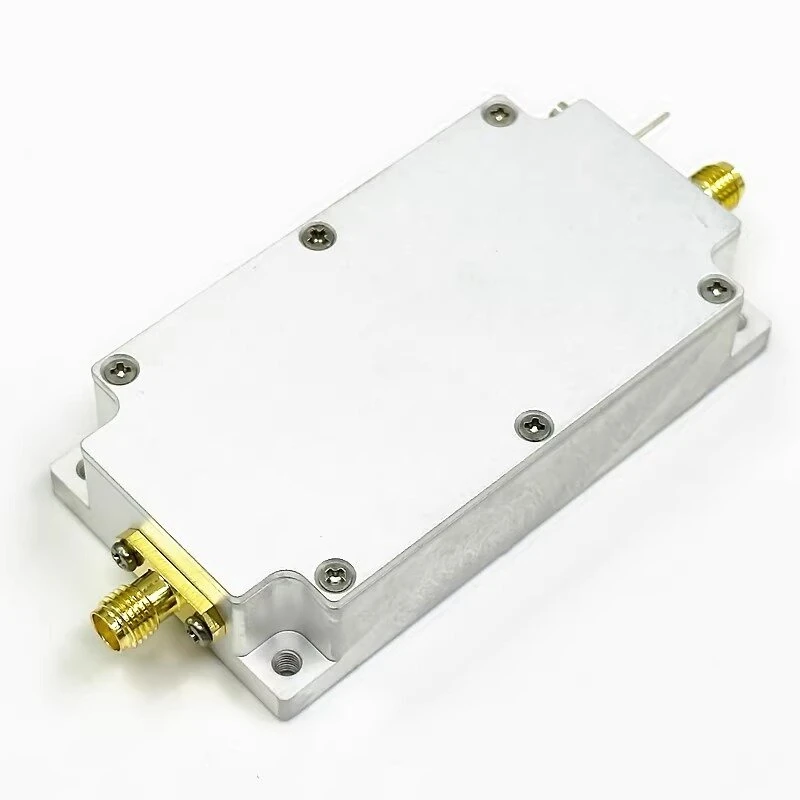

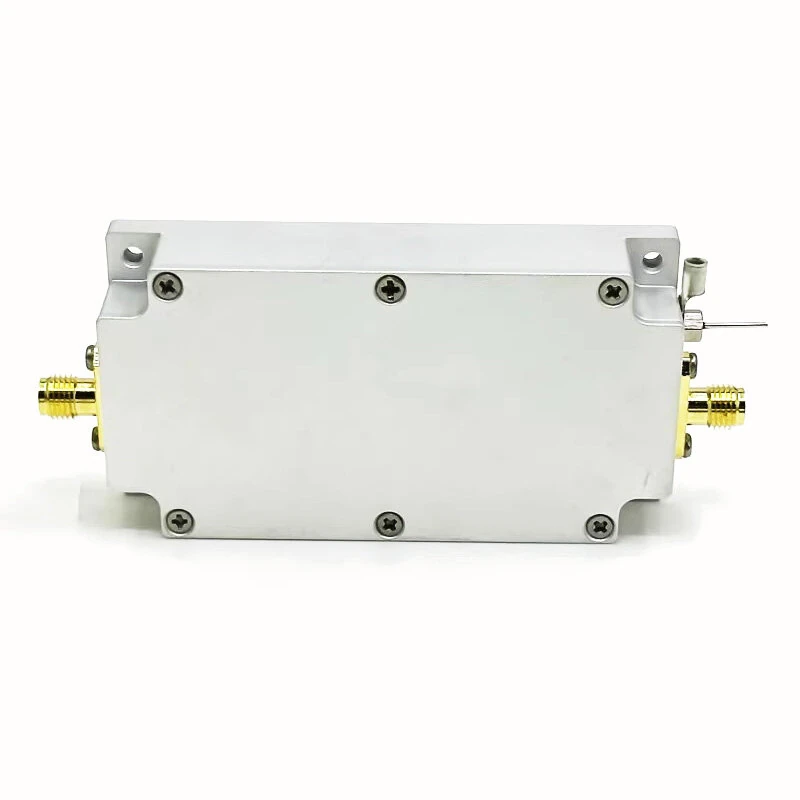

1.42GHz 1420MHz RF Power Amplifier Module 15W Output 40dB Gain CNC Cavity Microwave Amplifier Module for High-Frequency Applications
The 1.42GHz 1420MHz RF Power Amplifier Module 15W Output 40dB Gain CNC Cavity Microwave Amplifier Module for High-Frequency Applications is a mid-range product designed for everyday users.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
frequency: 1420MHz
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 1.42GHz 1420MHz RF Power Amplifier Module 15W Output 40dB Gain CNC Cavity Microwave Amplifier Module for High-Frequency Applications is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Model: 1420MHz RF Power Amplifier
Working Frequency: 1320-1520MHz (1420MHz)
Output Power:
13W (41dBm@24V, RFin=5dBm (3mW))
15W (42dBm@28V, RFin=5dBm (3mW))
20W (43dBm@28V, RFin=7dBm (5mW))
Working Voltage: 20-28V (24V recommended)
Working Current: 1.7A (depending on the supply voltage)
System Impedance: 50 ohms
Overall Size: 76x40x16.5mm (without joint)
Connector Type: SMA female head (outer screw inner hole)
Note: Additional heat sink required
Features:
1.Wide Frequency Range:
The 1420MHz RF Power Amplifier operates over a broad frequency range from 1320MHz to 1520MHz, including the key frequency of 1420MHz. This extensive range makes it suitable for a variety of high-frequency applications, ensuring flexibility and compatibility.
2.High Output Power Options:
Offering multiple output power levels—13W, 15W, and 20W—this amplifier adapts to different transmission needs and conditions. Whether you are working with lower power requirements or need maximum output, this module provides the necessary power options for effective operations.
3.Versatile Voltage Supply:
With an operating voltage range between 20-28V, and a recommended 24V for optimal performance, this amplifier provides flexibility in setup and integration. This variability helps match different power supplies while maintaining reliable performance.
4.Efficient Power Consumption:
The working current of 1.7A, which varies with the supply voltage, ensures efficient power consumption. This efficiency is important for maintaining long operation times without excessive energy use, making it a practical choice for continuous operations.
5.Compact Design with Standard Connector:
Measuring 76x40x16.5mm (without joint), this RF power amplifier is compact and easy to integrate into different systems. The inclusion of an SMA female head (outer screw inner hole) ensures a standard, reliable connection that fits well with most RF setups.
Package Included:
1 x 1420MHz RF Power Amplifier Module
