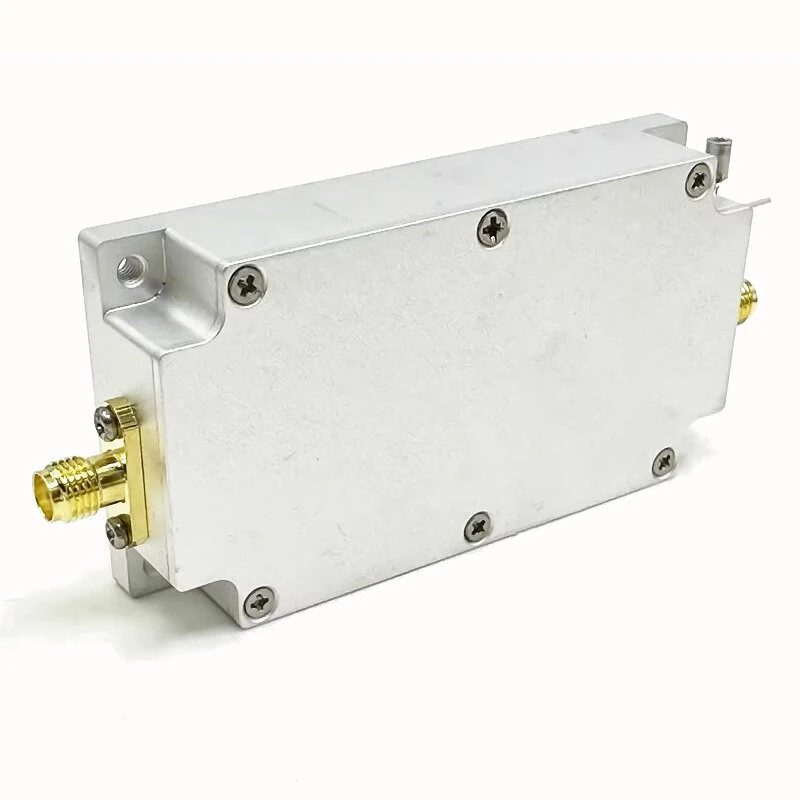

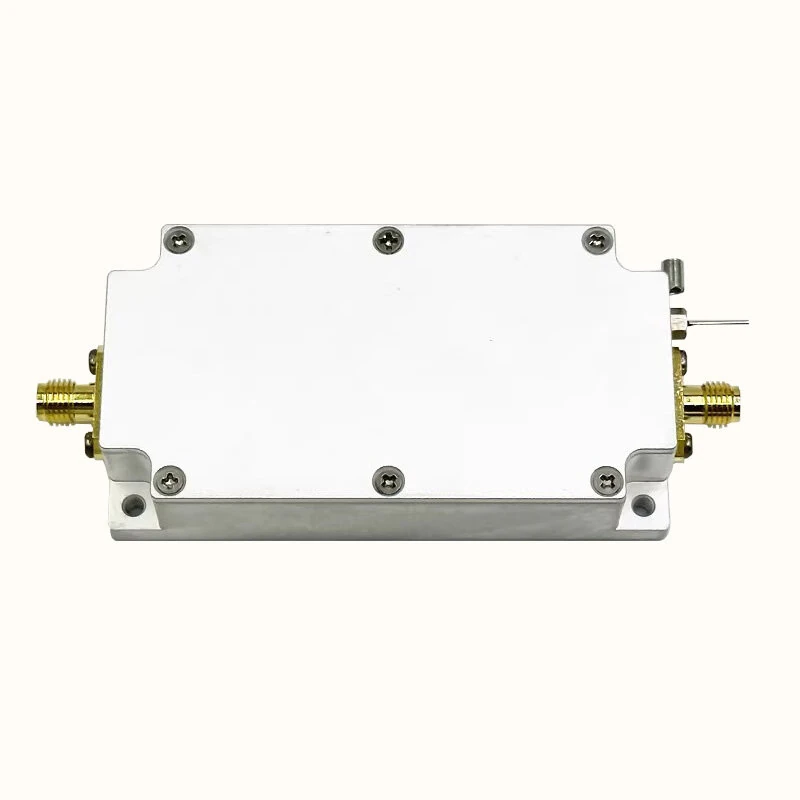

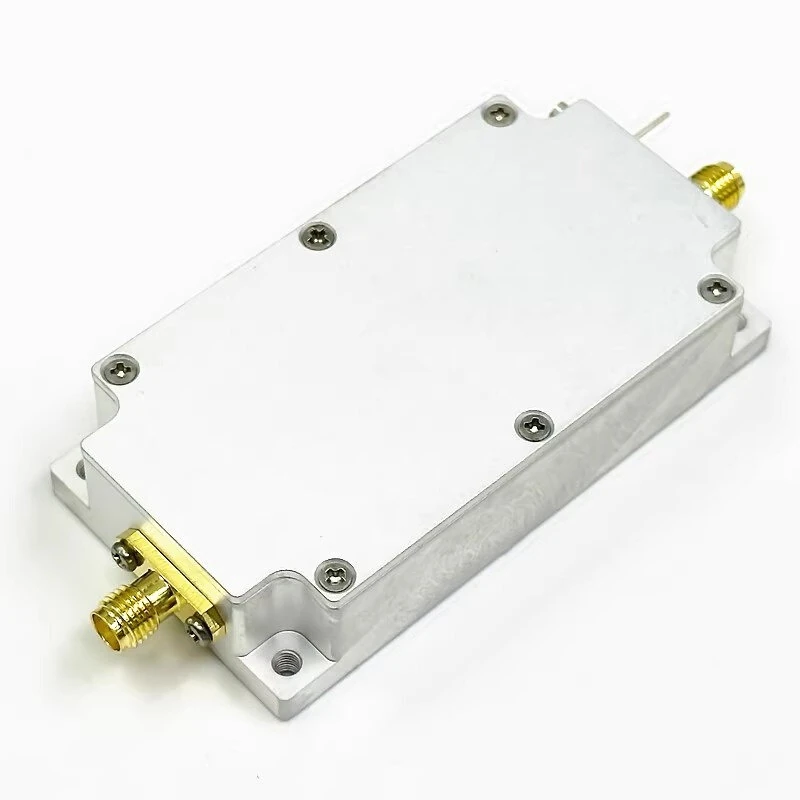

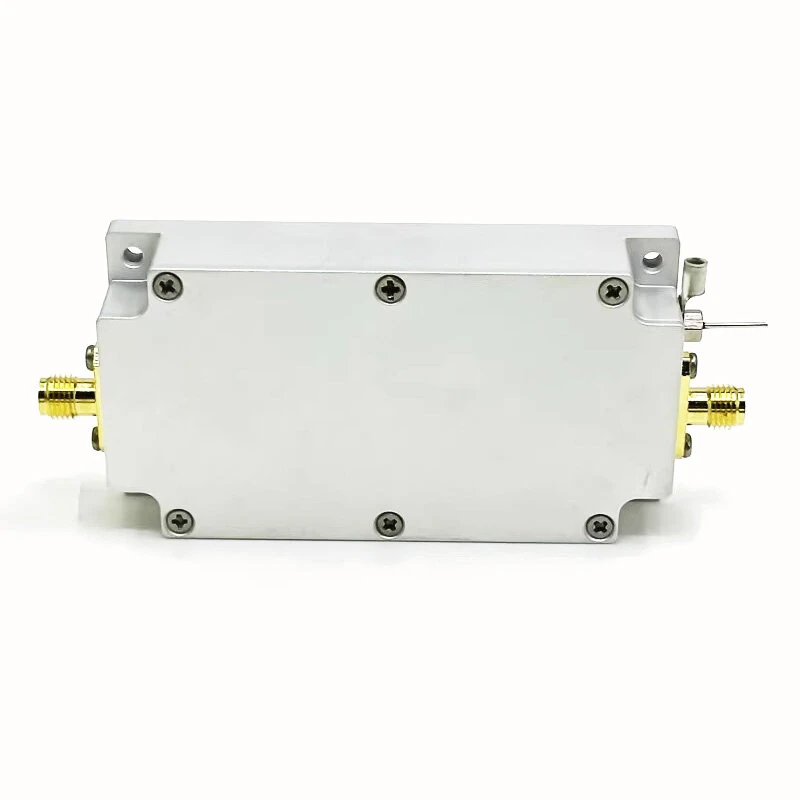

1.2-1.6GHz RF Power Amplifier Module 12W Output 40dB Gain SMA Connector High-Frequency Amplifier Board for Wireless Communication Applications
The 1.2-1.6GHz RF Power Amplifier Module 12W Output 40dB Gain SMA Connector High-Frequency Amplifier Board for Wireless Communication Applications is a premium rf amplifier designed for premium buyers.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
frequency: 1.2-1.6GHz
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 1.2-1.6GHz RF Power Amplifier Module 12W Output 40dB Gain SMA Connector High-Frequency Amplifier Board for Wireless Communication Applications is a premium rf amplifier designed for premium buyers. It delivers reliable performance at an accessible price.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Model: RF Power Amplifier
Operating Frequency: 1.2-1.6GHz (1.25GHz, 1575GHz)
Output Power:
10W (40dBm@24V, RFin=5dBm (3mW))
12W (41dBm@28V, RFin=5dBm (3mW))
Working Voltage: 20-28V (recommended 24V)
Working Current: 1.5A (depending on the supply voltage)
System Impedance: 50 ohms
Dimensions: 76x40x16.5mm (excluding joints)
Product Weight: 95g
Connector Type: SMA female head (outer screw inner hole)
Heat Dissipation: Requires external auxiliary heat dissipation
Features:
1.Wide Operating Frequency:
Spanning from 1.2 to 1.6GHz, this RF Power Amplifier supports a broad range of frequencies, including 1.25GHz and 1575GHz. This wide range ensures it can handle various applications, making it versatile and adaptable to numerous RF systems.
2.High Output Power Capacity:
The amplifier offers substantial output power levels, including 10W and 12W, ensuring robust signal amplification. With different output power settings, users can select the appropriate power level to match their transmission needs, enhancing flexibility.
3.Variable Voltage Support:
Operating within a 20-28V range, with a recommended 24V for optimal performance, this amplifier accommodates a variety of power supply options. This flexibility allows for easier integration into existing setups while maintaining consistent performance.
4.Efficient Power Usage:
With a working current of 1.5A, depending on the supply voltage, the amplifier efficiently manages power consumption. This efficiency is critical for extended operations without excessive energy drain, making it suitable for continuous use.
5.Compact and Connectible Design:
Despite its powerful capabilities, the amplifier maintains a compact size of 764016.5mm and weighs only 95g, making it easy to integrate into tight spaces. The SMA female connectors (outer screw inner hole) ensure a standard, reliable connection for seamless integration into various RF systems.
Package Included:
1 x RF Power Amplifier Module
