0~3500V Semiconductor Withstanding Voltage Tester Transistor Tester Diode MOS Triode LED Voltage MOV Withstand Voltage Detection
5.07 ratingsThe 0~3500V Semiconductor Withstanding Voltage Tester Transistor Tester Diode MOS Triode LED Voltage MOV Withstand Voltage Detection is a mid-range product designed for everyday users. Customers praise its easy to set up and use and excellent build quality. 100% of buyers rate it 4★ or above.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
24% Off — you save ₹984 on this product!
Price: ₹3,104
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Ideal For
About This Product
The 0~3500V Semiconductor Withstanding Voltage Tester Transistor Tester Diode MOS Triode LED Voltage MOV Withstand Voltage Detection is a mid-range designed for everyday users. Customers highlight its easy to set up and use and excellent build quality.
Customer Verdict
100% of buyers rated this product 4 stars or above. The most appreciated qualities are: easy to set up and use, excellent build quality, fast and responsive, accurate and reliable.
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

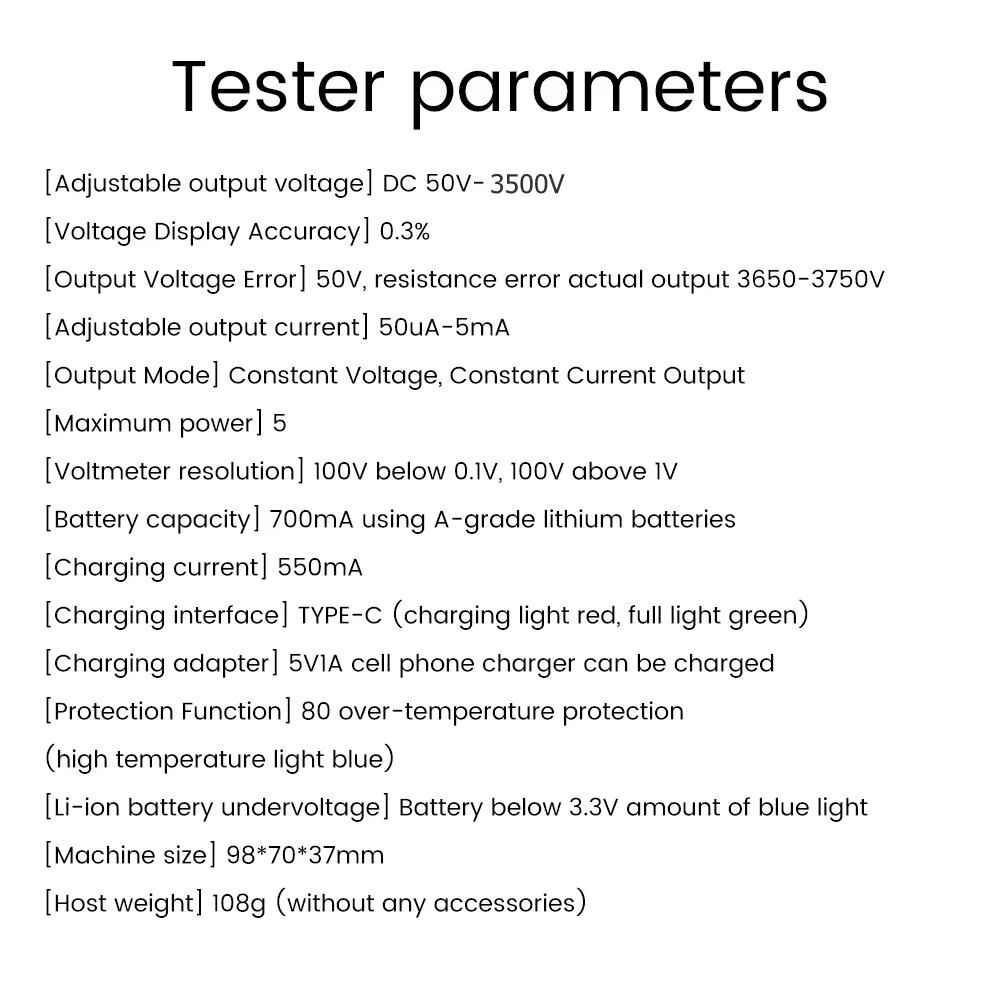

- Adjustable output voltage: DC 50V-3500V
- Voltage display accuracy: 0.3%
- Output voltage error: ±50V
- Adjustable output current: 50uA-5mA
- Output mode: constant voltage, constant current output
- Maximum power of the machine: 5W
- Voltmeter resolution: 0.1V (below 100V), 1V (above 100V)
- Battery capacity: 700mA lithium battery
- Charging current: 550mA

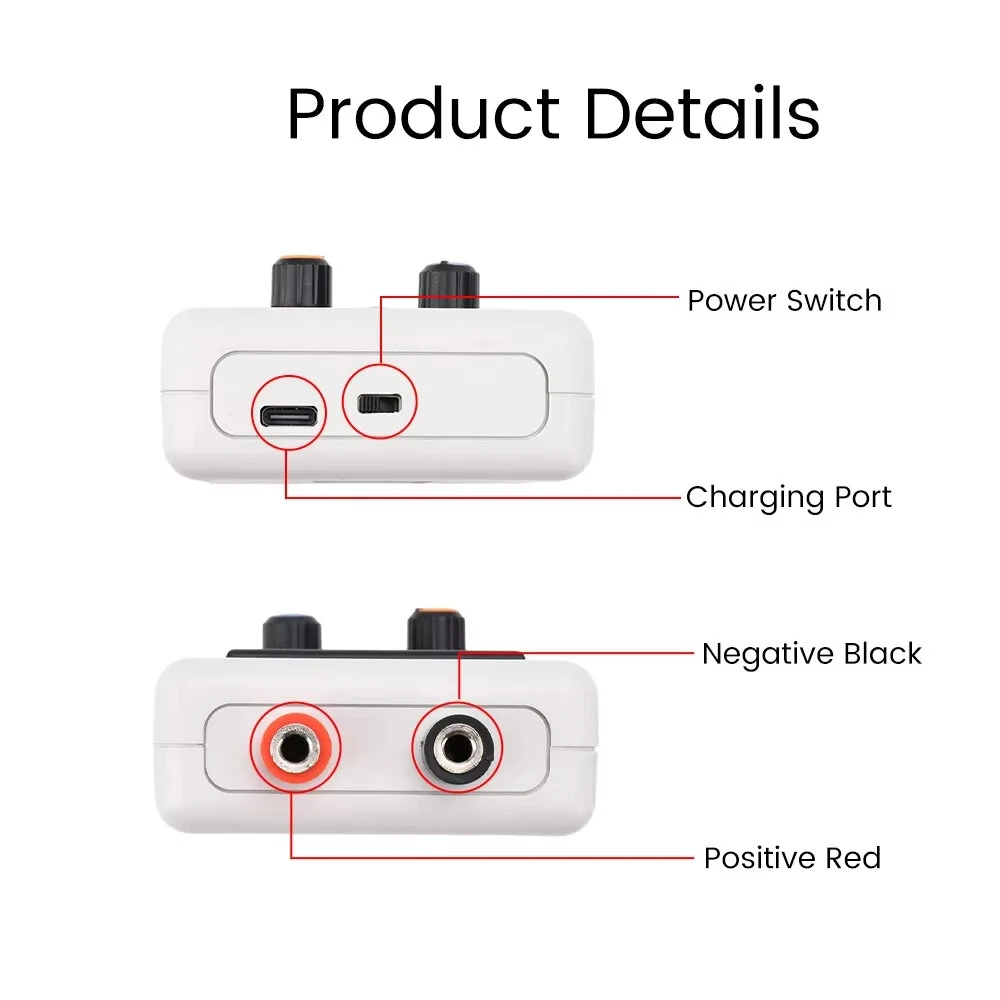

- Charging interface: TYPE-C (red light when charging, green light when full)
- Charging adapter: 5V1A phone charger compatible
- Protection function: over-temperature protection at 80°C (indicator light blue)
- Battery undervoltage: indicator light blue (below 3.3V)
- Machine size: 98*70*37 mm
- Host weight: 108 g (without accessories)
Features:
-1. Efficient Insulation Testing: Simultaneously test insulation voltage for switches, buttons, connectors, and between motor windings, including phase-to-phase and shell core insulation.
-2. Portable and Compact: Designed for easy transportation and organization, ensuring convenience wherever you go.

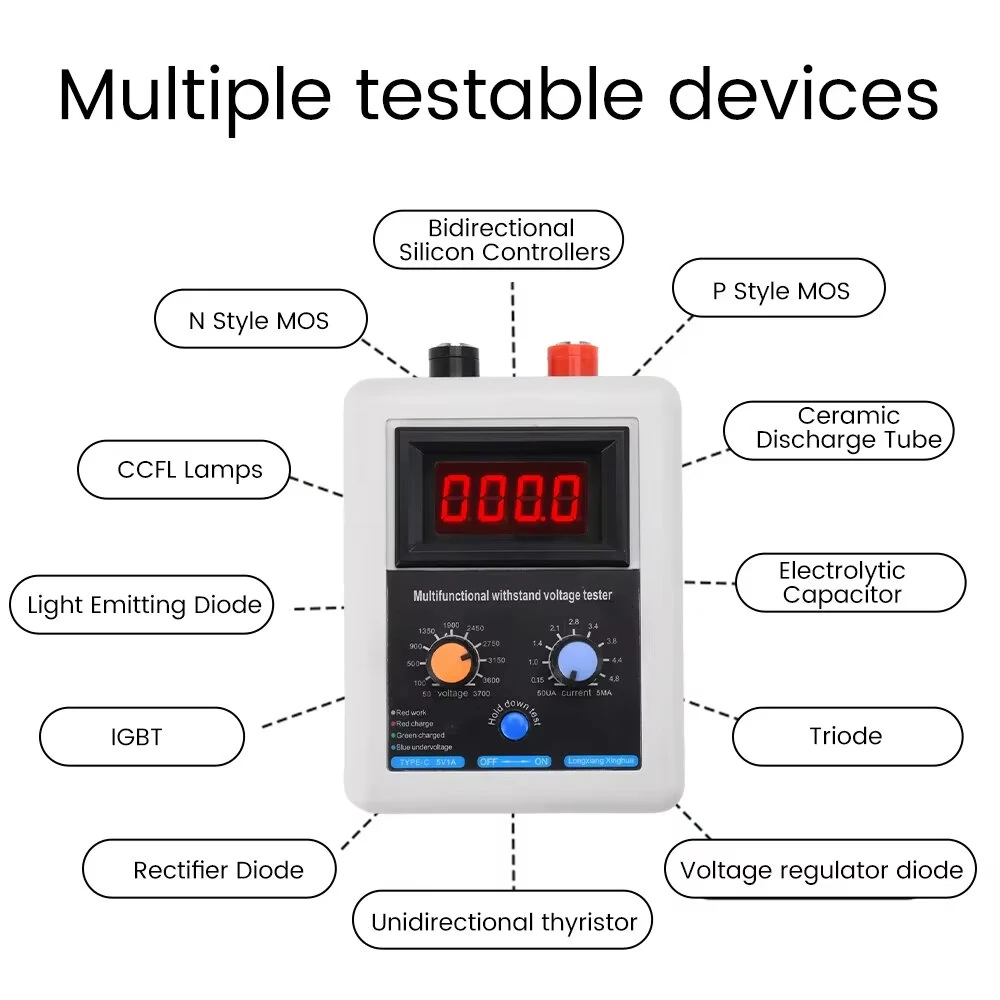

-3. Wide Applicability: Suitable for a variety of components including NIMOS, PMOS, IGBT, transistors, SCRs, voltage regulator diodes, LEDs, rectifier bridges, varistors, and electrolytic capacitors.
-4. Precision Voltage Adjustment: Adjustable output voltage ranging from DC 50V to 3500V with a voltage display accuracy of 0.3% and an error margin of ±50V.
-5. User-Friendly Charging: Equipped with a 700mA lithium battery, rechargeable via TYPE-C interface with a standard 5V1A phone charger, complemented by indicator lights for charging status and over-temperature protection.

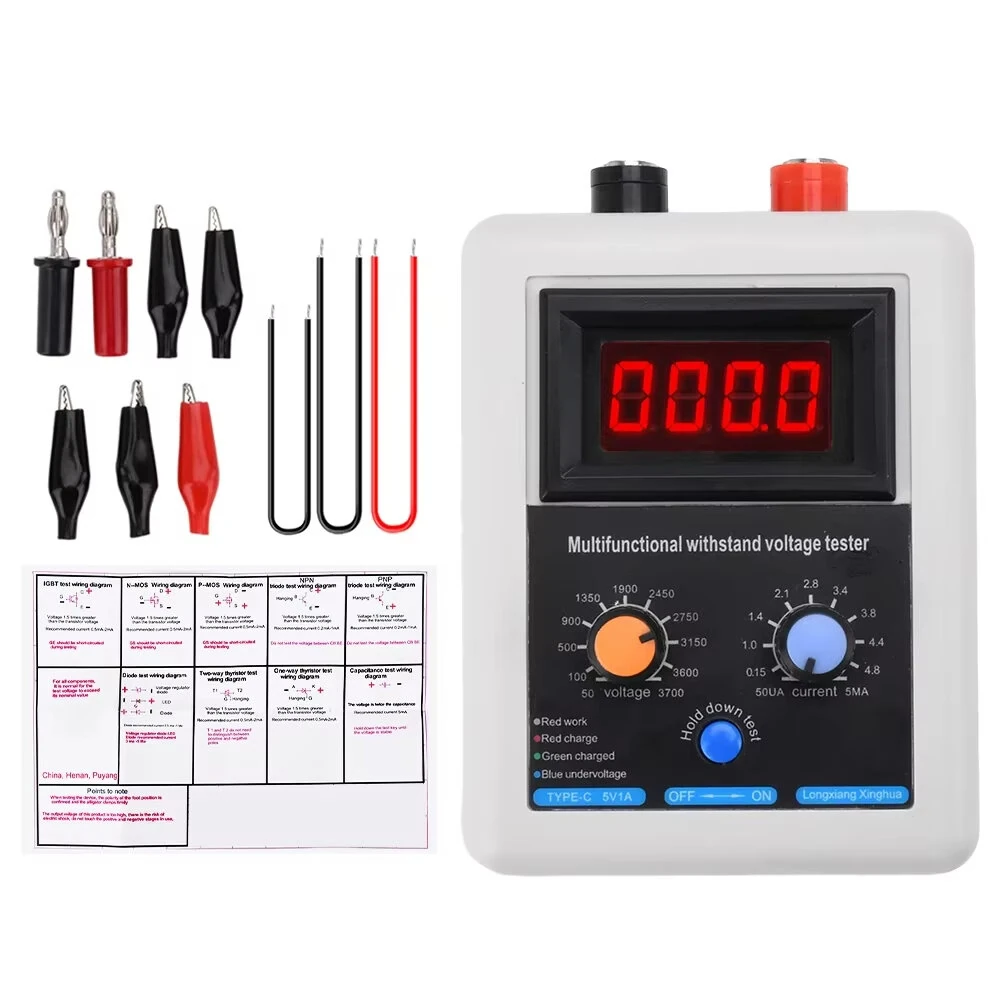

Package included:
1 x Tester
1 x Instruction manual
10 x Alligator clips test line accessories
