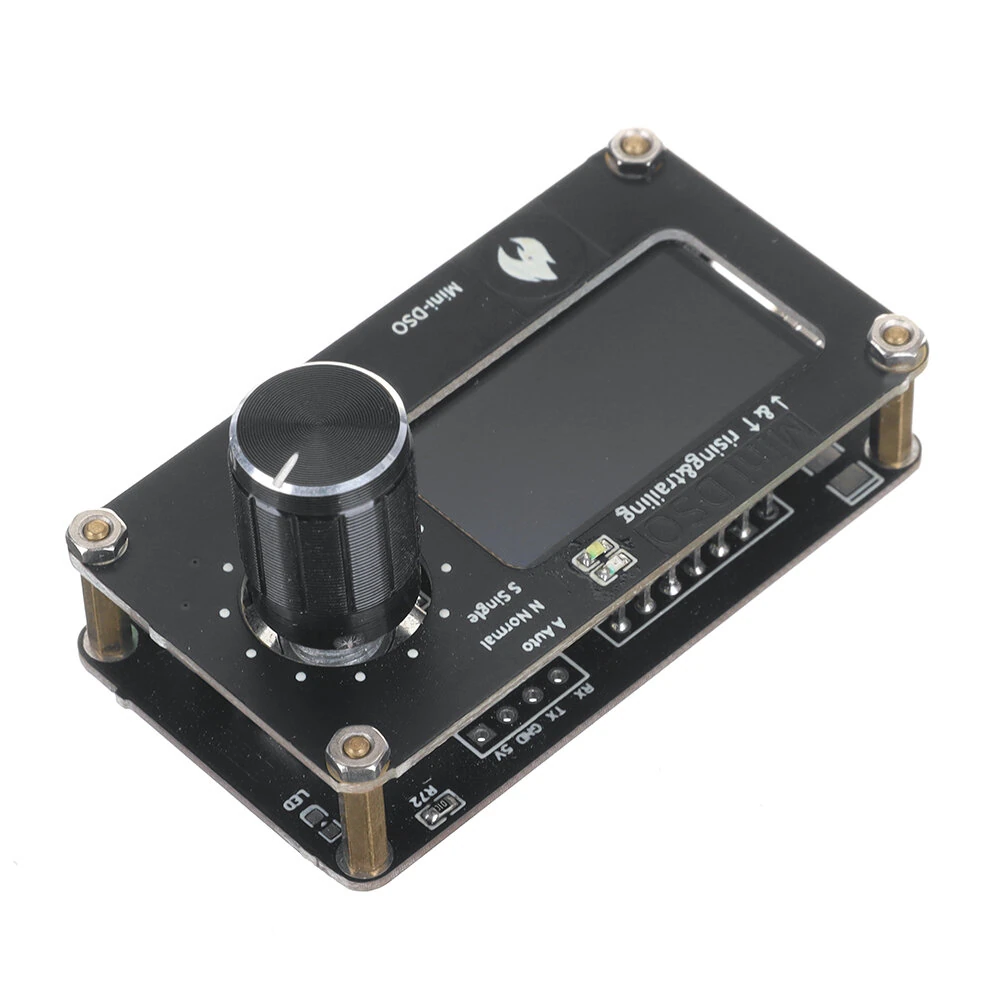

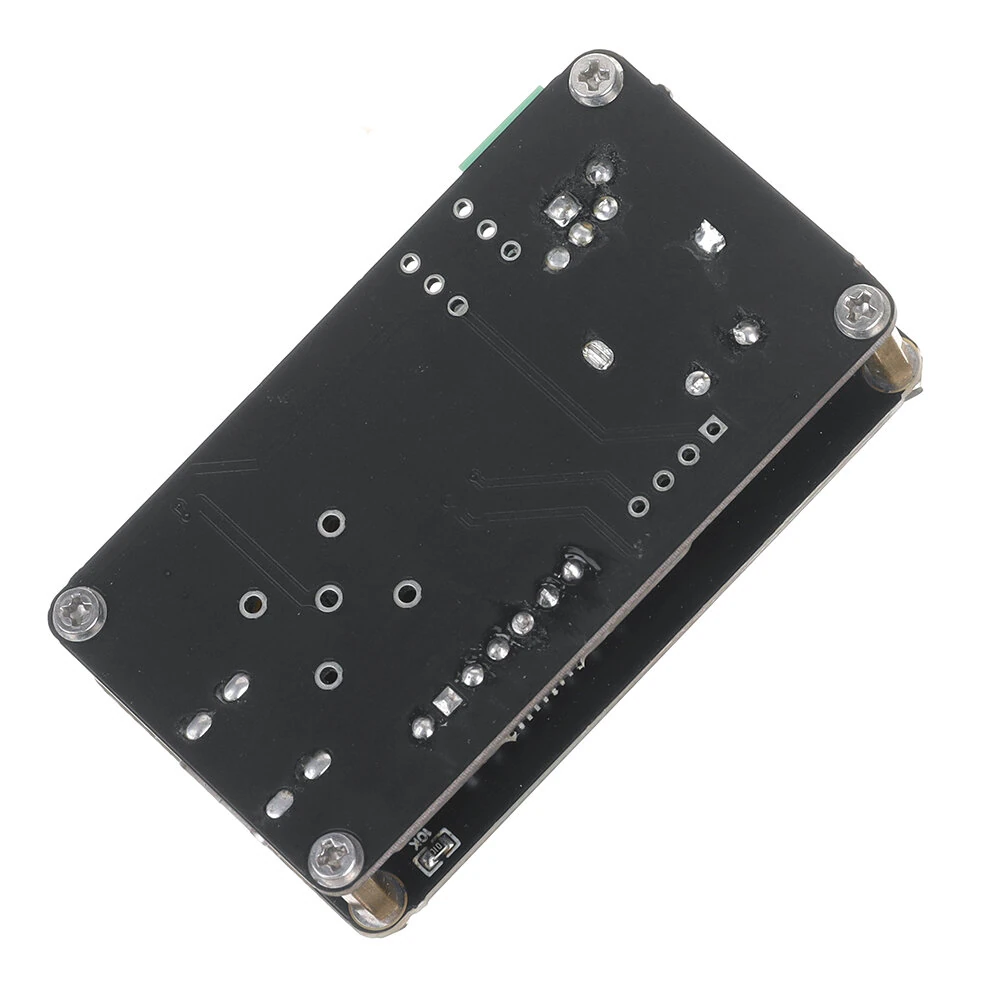

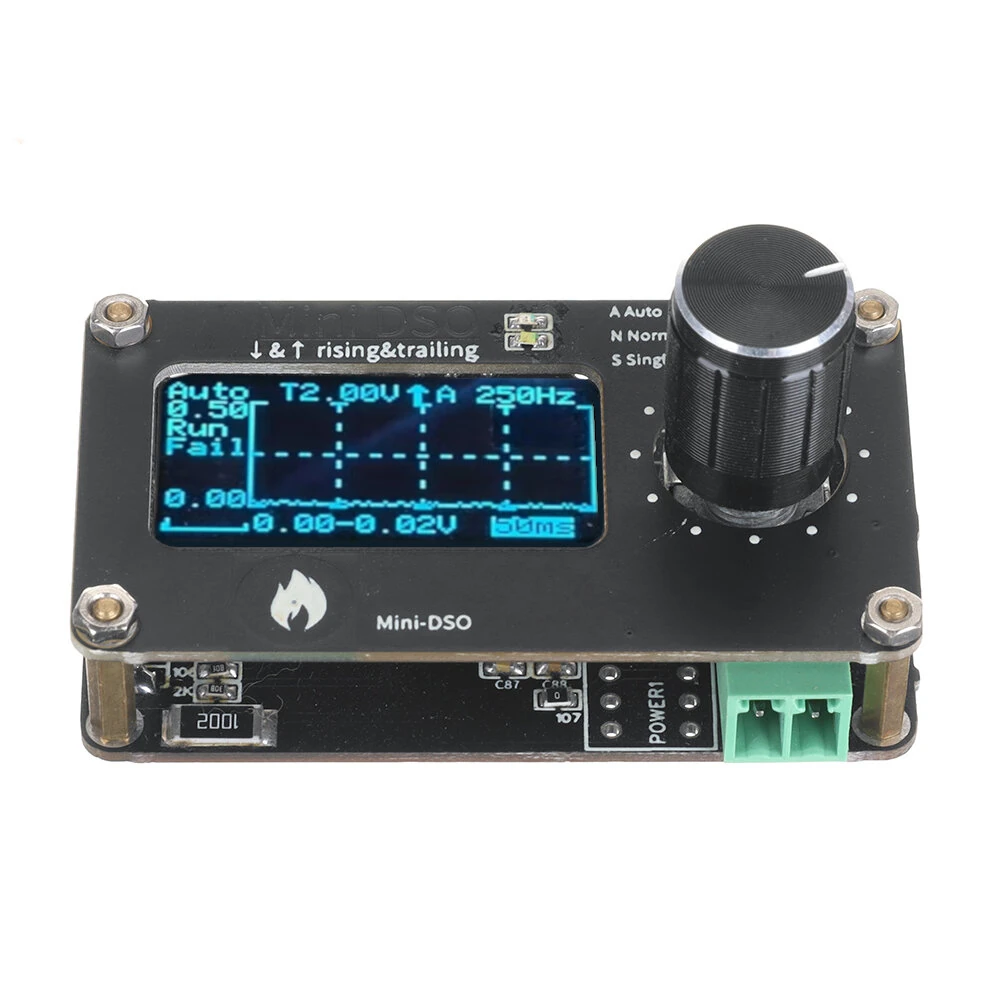

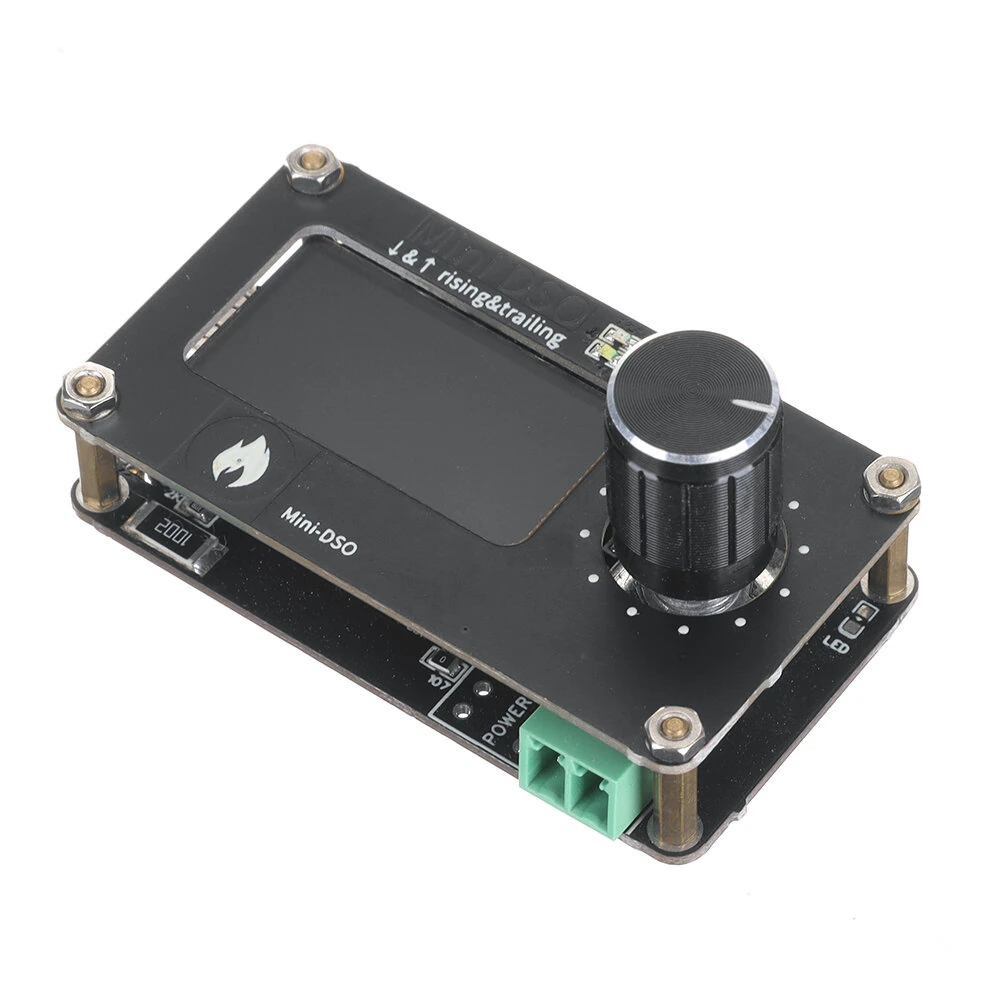

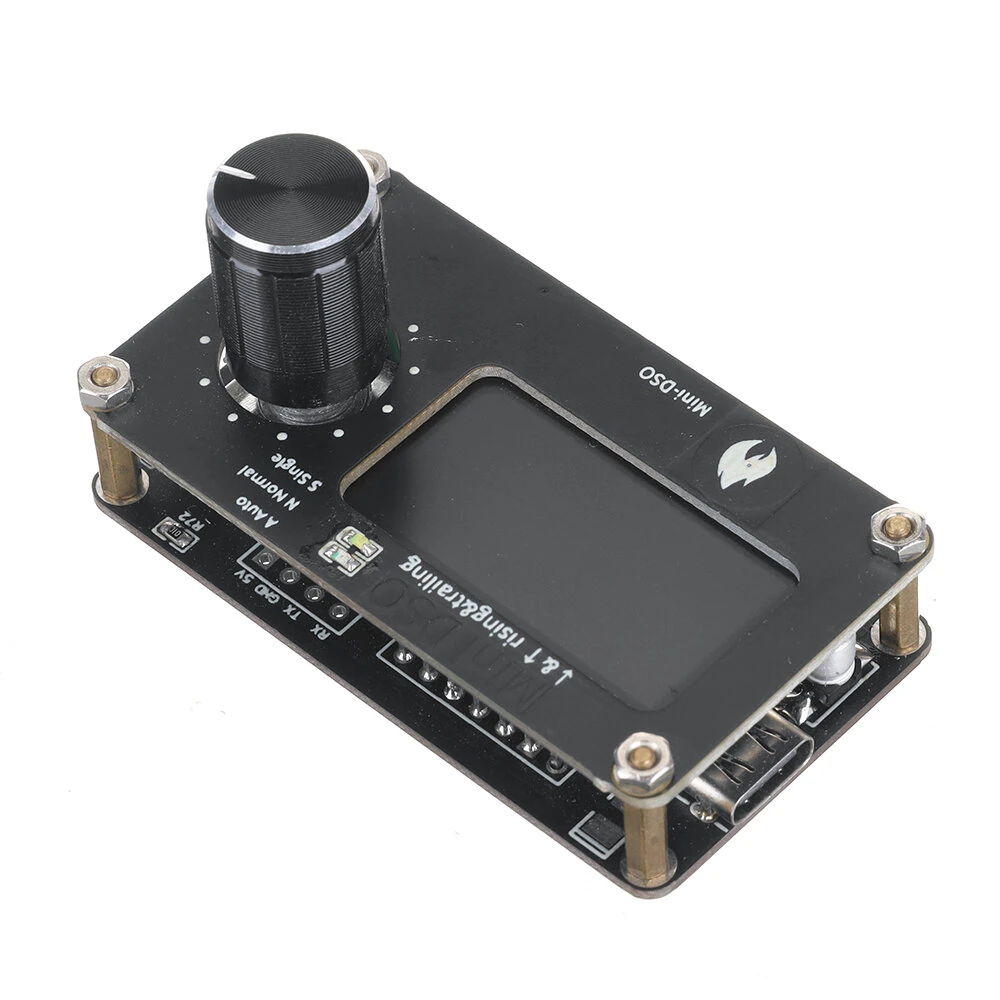

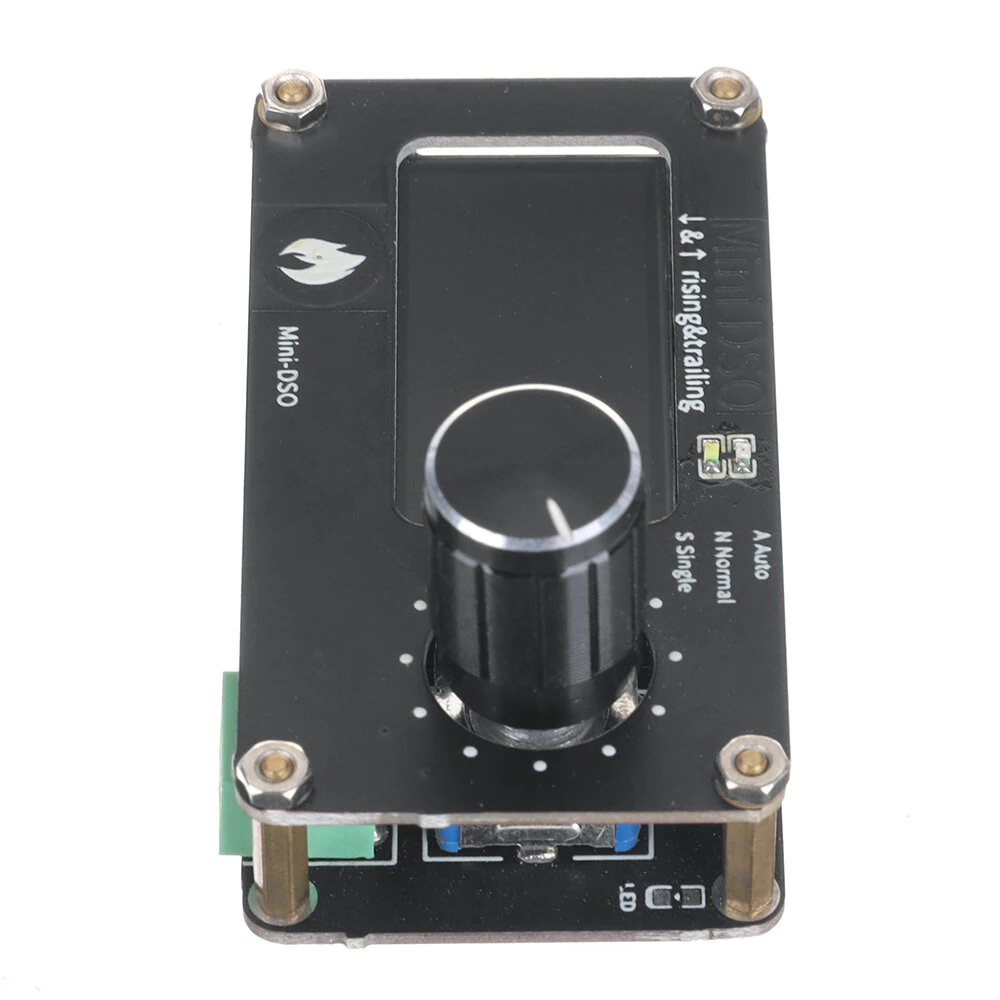

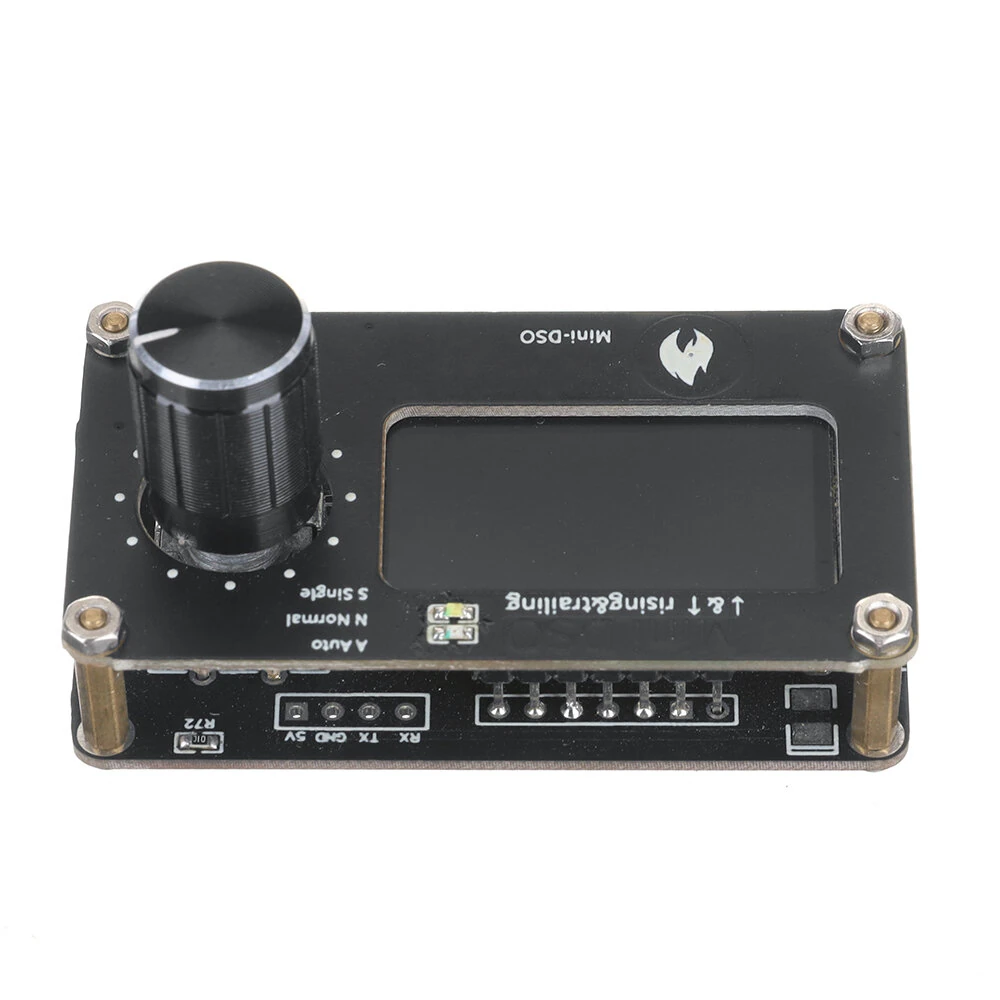

0-30K 250kHz Mini DIY Digital Oscilloscope for Educational Learning Measurement Electronic Maintenance

26+ bought in last month
AI Summary
product for DIY enthusiasts and makers

The 0-30K 250kHz Mini DIY Digital Oscilloscope for Educational Learning Measurement Electronic Maintenance is a mid-range product designed for DIY enthusiasts and makers.

✓ compact and portable
₹2,145-34%
MRP:₹3,242Save ₹1,097
Free Shipping💵 COD Available

Available Offers

Free Delivery on this order. No minimum order value.

15-Day Easy Returns — hassle-free return & full refund.

Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.

34% Off — you save ₹1,097 on this product!

Price: ₹2,145

Total: ₹2,145
Buying tip: A well-rounded choice at a fair price. Recommended for most buyers.
Estimated delivery: 26 Aug – 9 Sept
Free Shipping
Pan India delivery
15-Day Returns
Hassle-free policy
Secure Payment
Razorpay protected
Quality Assured
Vetted products only

Available Offers

💳

5% Cashback

Pay with UPI & get 5% cashback (up to ₹50) via Razorpay

🏦

No-Cost EMI

Available on select bank cards at checkout. 0% interest for 3 months.

📦

Free Shipping

Free delivery on all orders. No minimum order value.

💵

Cash on Delivery

COD available on orders up to ₹5,000 across India.

Ideal For

Everyday convenience
Share:
SKU: bg-2042442

About This Product

The 0-30K 250kHz Mini DIY Digital Oscilloscope for Educational Learning Measurement Electronic Maintenance is a mid-range designed for DIY enthusiasts and makers. It delivers reliable performance at an accessible price.

Why Buy from Pricio?

Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.

Features:
MCU: STC8A8K64S4A12 @27MHz
System power supply: 5V type power supply
Display: 0.96inch or 1.3inch
Controller: One EC11 Encoder
Input: Single Channel
Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms, 10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us
100us only available in Auto Trigger Mode
Voltage Range: 0-30V
Sampling Rating: 250kHz @100us/div

How to Operation:
Main Interface - Parameter Mode:
Single Click Encoder: Run/Stop sampling
Double Click Encoder: Enter Wave Scroll Mode
Long Press Encoder: Enter Settings Interface
Rotate Encoder: Adjust parameters
Rotate Encoder While Pressing: Switch between options
Main Interface - Wave Scroll Mode:
Single Click Encoder: Run/Stop sampling
Double Click Encoder: Enter Parameter Mode
Long Press Encoder: Enter Settings Interface
Rotate Encoder: Scroll waveform horizontally (only available when sampling stopped)
Rotate Encoder While Pressing: Scroll waveform vertically (only available when sampling stopped)
Settings Interface:
Single Click Encoder: N/A
Double Click Encoder: N/A
Long Press Encoder: Return to Main Interface
Rotate Encoder: Adjust parameters
Rotate Encoder While Pressing: Switch between options

Package Included：
1 x Mini OSC
(0.96inch/1.3 inch display optional)
