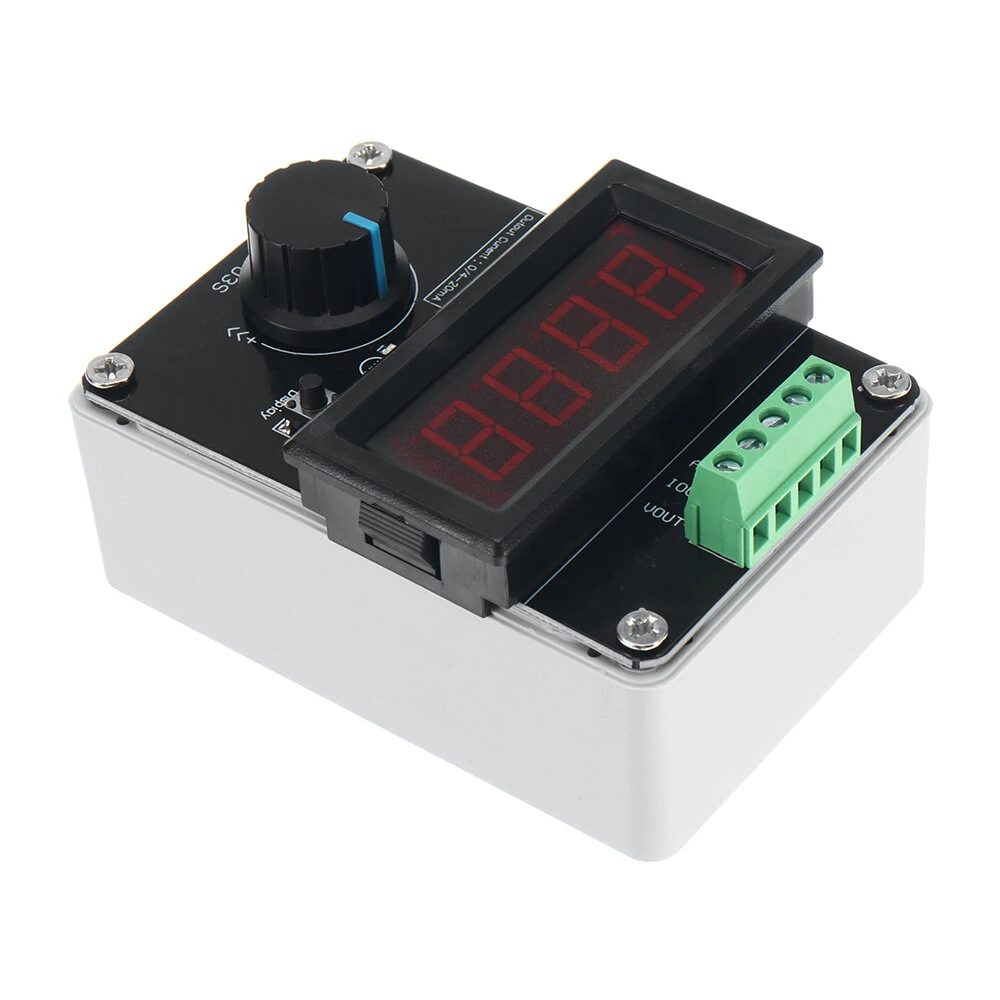

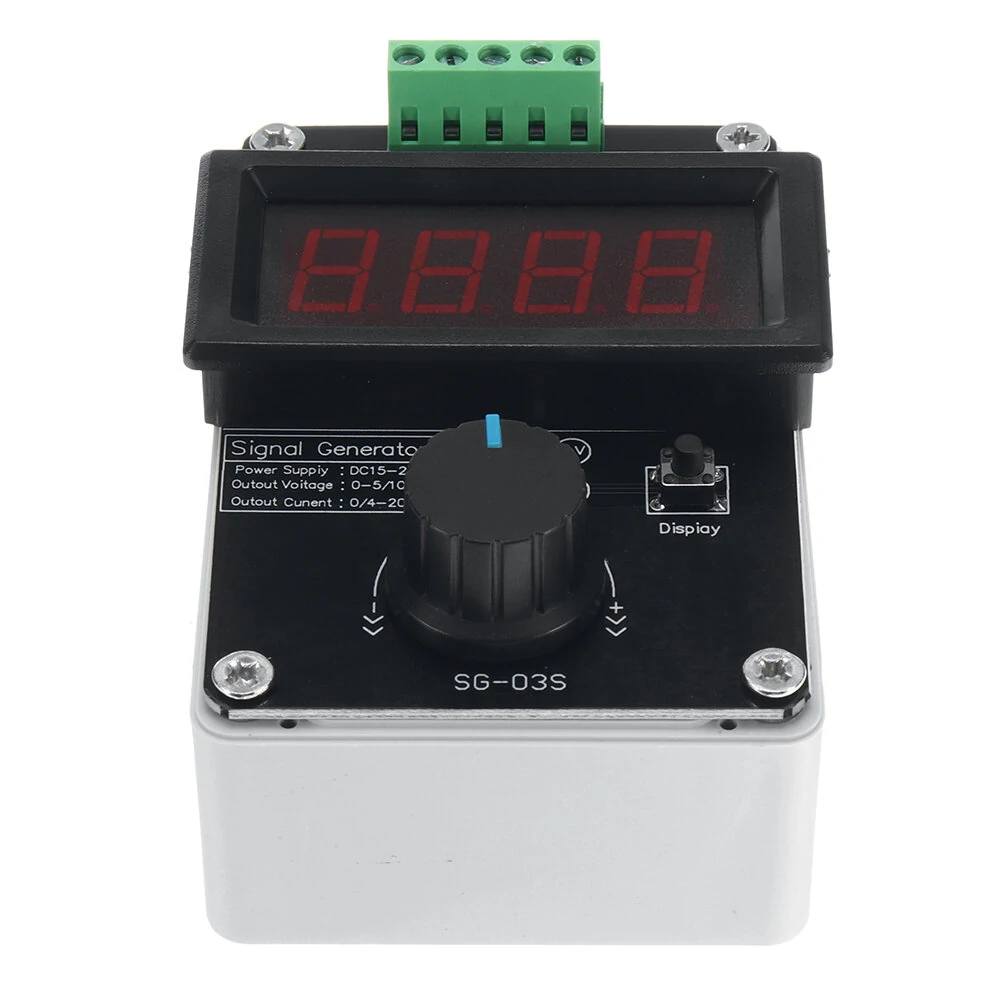

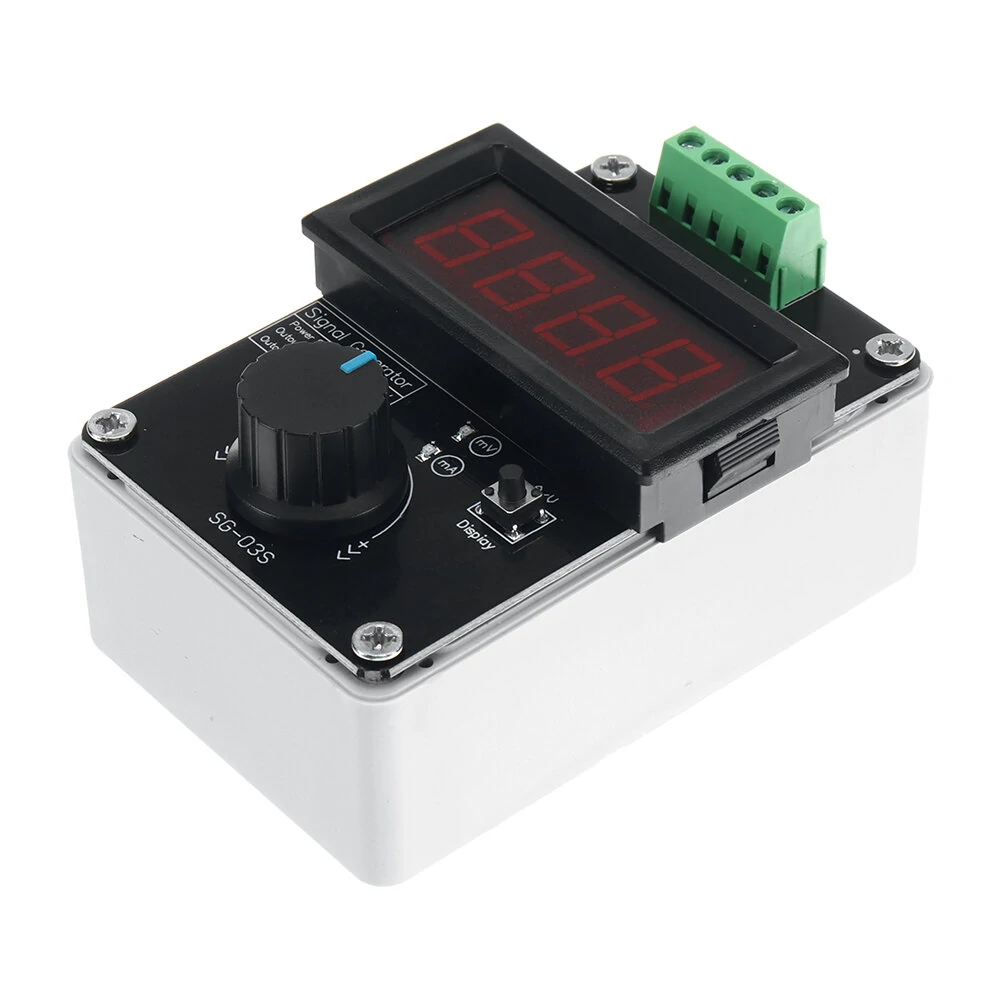

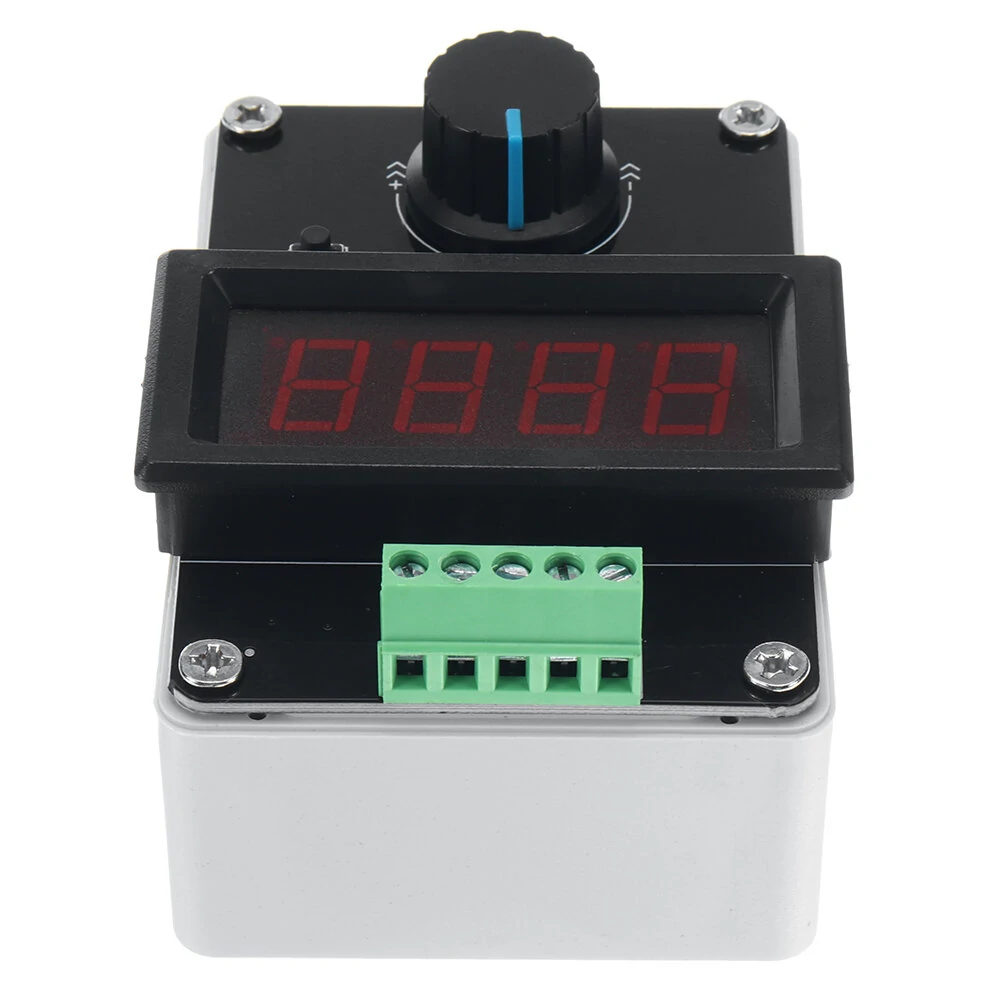

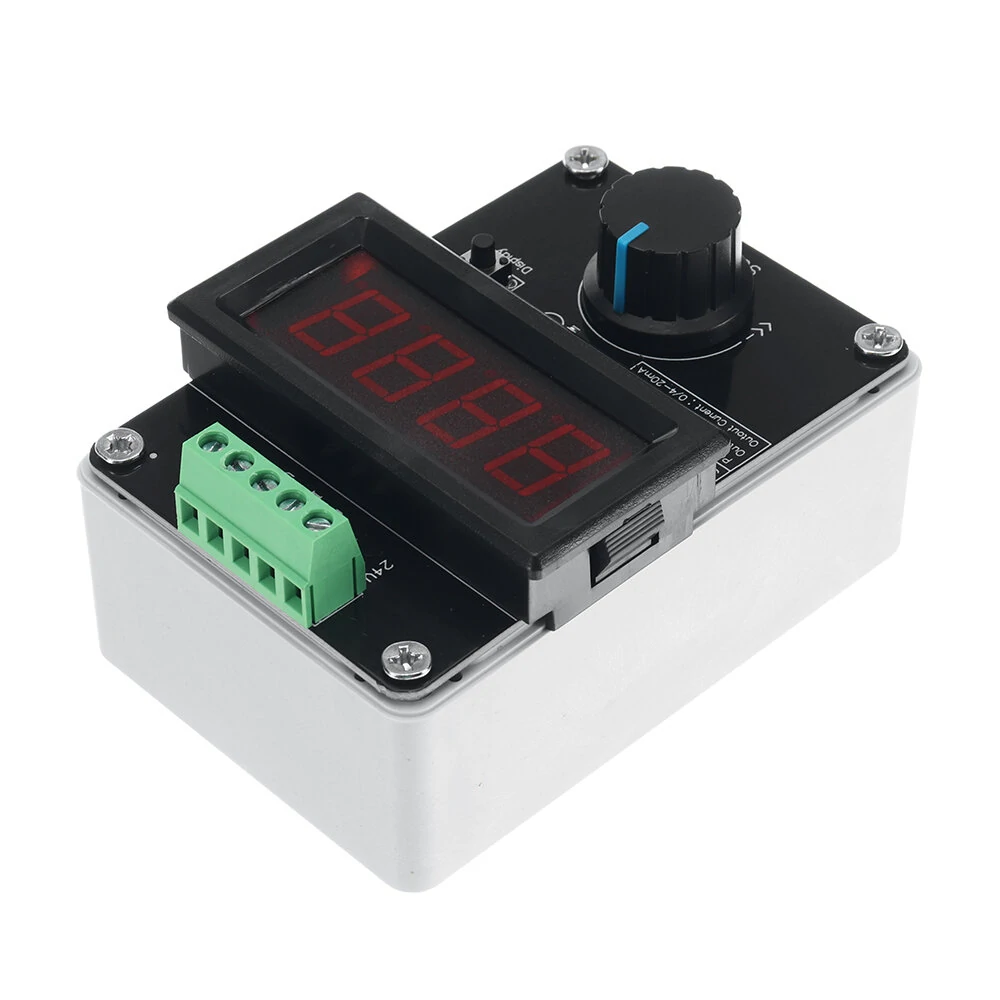

0-20mA/4-20mA/0-10V Signal Generator Adjustable Current Voltage Analog Current Signal Source
The 0-20mA/4-20mA/0-10V Signal Generator Adjustable Current Voltage Analog Current Signal Source is a mid-range product designed for everyday users. It features Parameter: illustrate and P001: model.
Available Offers
Free Delivery on this order. No minimum order value.
15-Day Easy Returns — hassle-free return & full refund.
Secure Payment — 100% safe checkout with UPI, Cards & Net Banking.
Available Offers
5% Cashback
Pay with UPI & get 5% cashback (up to ₹50) via Razorpay
No-Cost EMI
Available on select bank cards at checkout. 0% interest for 3 months.
Free Shipping
Free delivery on all orders. No minimum order value.
Cash on Delivery
COD available on orders up to ₹5,000 across India.
Quick Specs
Ideal For
About This Product
The 0-20mA/4-20mA/0-10V Signal Generator Adjustable Current Voltage Analog Current Signal Source is a mid-range designed for everyday users. It delivers reliable performance at an accessible price.
Key Specifications
- Parameter: illustrate
- P001: model
- P002: Voltage range — reliable connection even at a distance
- P003: Coarse resolution
- P004: Fine-tune resolution
- P005: 10V calibration
- P006: 0.03V calibration
- P007: Save after power off
Why Buy from Pricio?
Pricio sources this product directly, cutting out multiple middlemen. Every order includes free shipping, a 15-day return policy, and secure payment via Razorpay.
Parameters:
Supply voltage: 24VDC
Voltage output: 0-10V adjustable, drive current <20mA
Current output: 0-22mA adjustable, load sampling resistance <500 ohms
Adjustment resolution: 0.1V/0.01V or 0.1mA/0.01mA
Linearity: better than 0.2%
Display mode: 4-digit digital tube
Adjustment method: rotary encoder + key

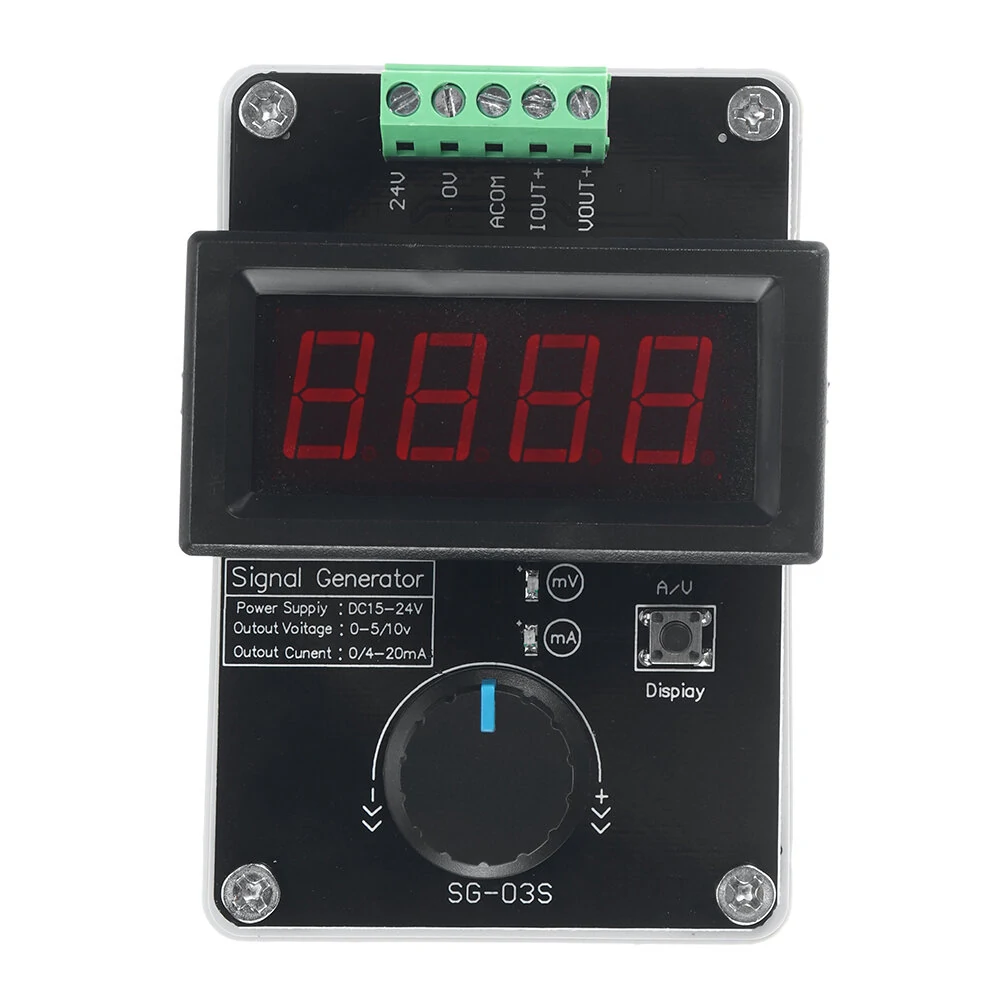

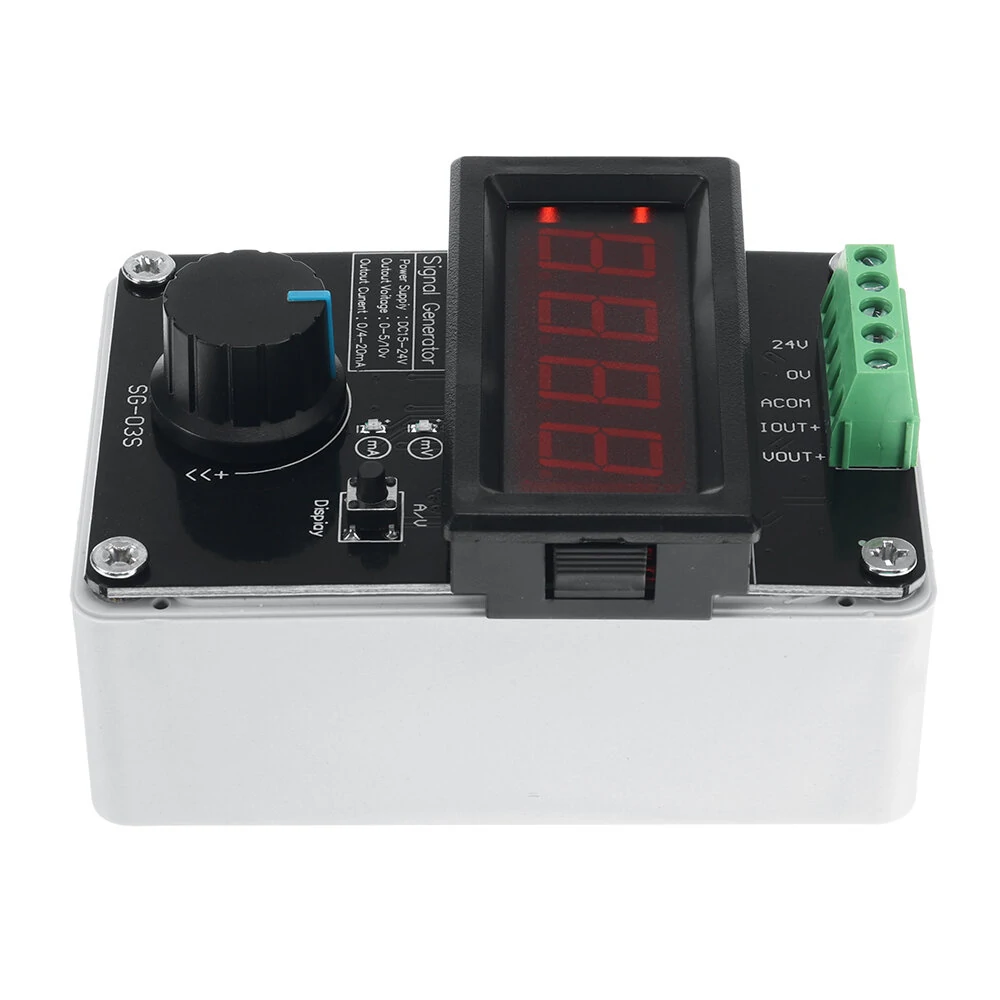

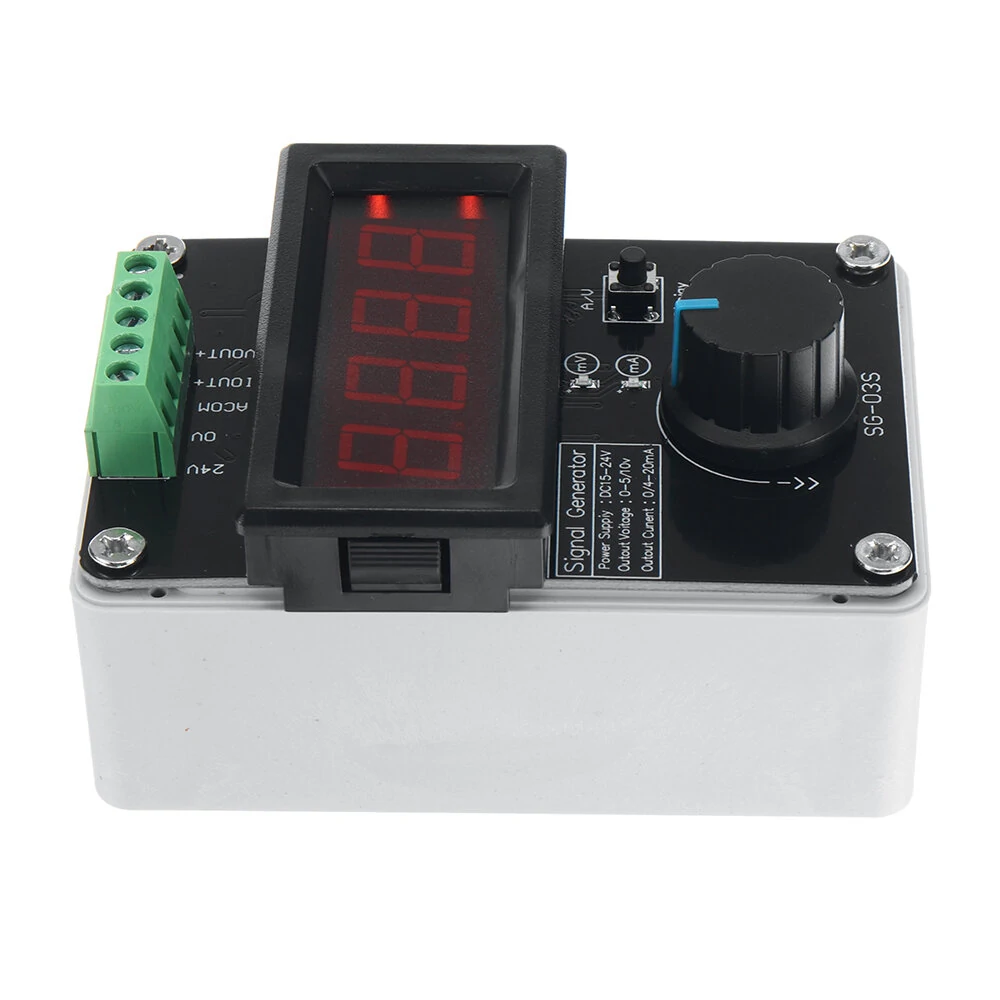

Terminal interface definition:
24v: positive pole of power supply
0V: negative pole of power supply
ACOM: voltage and current signal output negative pole
Aout+: Current signal output positive pole
Vout+: voltage signal output positive pole
Parameter settings and usage
1. Switch voltage/current mode: Click the Display button to switch the current voltage/current mode, the current output value is digitally displayed, rotate the encoder to change the output value, press the encoder to reset and restore the output value;
2. How to enter the menu mode: long press the rotary encoder, the screen will display ----, at this time the rotary encoder rotates once each time; in voltage mode, the order is right, left, left, left, and right, the screen will display rLLr, if the password is correct, the menu interface will be automatically entered. P001; In current mode, the order is right, left, left, and the screen displays rLrL. If the password is correct, the menu interface will automatically enter and P001 will be displayed;
3. Save and exit: When the "POOX" interface is currently displayed, long pressing the encoder will save and exit to the main interface;
4. Exit without saving: When the "POOX" interface is currently displayed, enter the parameter adjustment mode and long press the encoder to exit to the main interface without saving;
Features:
1. Versatile Output Range: The Signal Generator boasts an adjustable voltage output range of 0-10V and a current output range of 0-22mA, allowing for a wide range of applications. With a drive current of less than 20mA and a load sampling resistor of less than 500Ω, this generator is perfect for a variety of uses.2. Precise Adjustment: The Signal Generator features an adjustment resolution of 0.1V /0.01V or 0.1mA/0.01mA, ensuring precise and accurate signal generation. The rotary encoder + button adjustment method allows for easy and intuitive use.
3. Excellent Linearity: With a linearity of better than 0.2%, the Signal Generator provides consistent and accurate signal generation. Users can rely on this generator for precise and reliable results.
4. User-Friendly Display: The Signal Generator features a 4-digit digital tube display for easy and clear reading of output values. This user-friendly display makes it simple to monitor and adjust the generator's output.
5. High-Quality Design: The Signal Generator is designed with high-quality materials and components, ensuring long-lasting and reliable performance. Its compact and durable design makes it easy to use and transport, making it an ideal choice for both laboratory and field use.
Signal generator operating instructions
Current menu
Package Include:
1× Module Board
